Default Pics of my setup Finally!

I'm not done.. maybe 70% there. over the months i've seen alot of members join/finish and enjoy. Well i've been sititng here eager to finish my baby and I got her on the other day so I decided to do a photoshoot. The car hasn't been washed/dusted/cleaned for over 8 months so its dirty as ****.

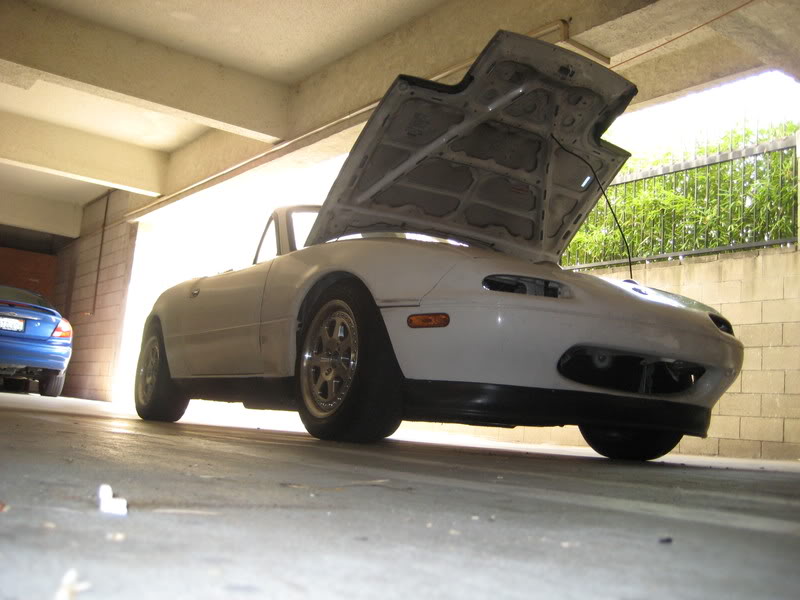

Name:  IMG_3918.jpg
Views: 4
Size:  69.1 KB

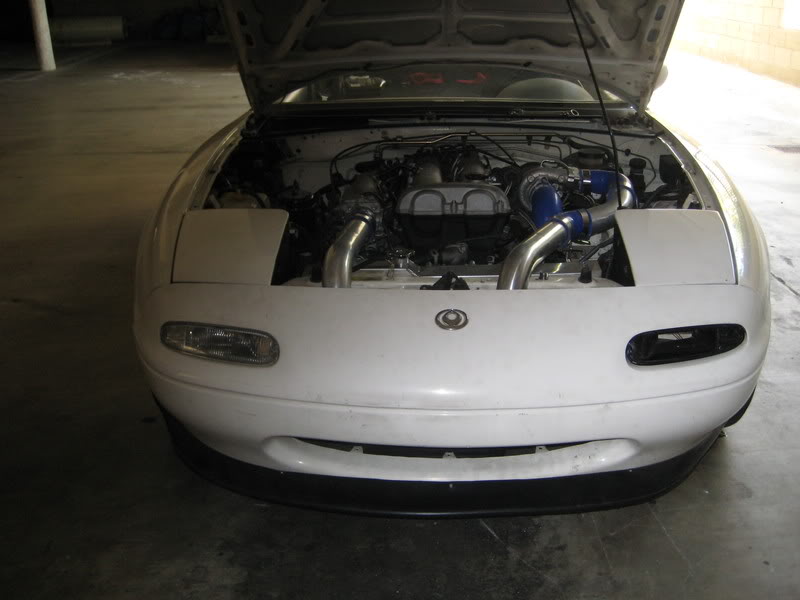

Name:  IMG_3921.jpg
Views: 5
Size:  52.2 KB

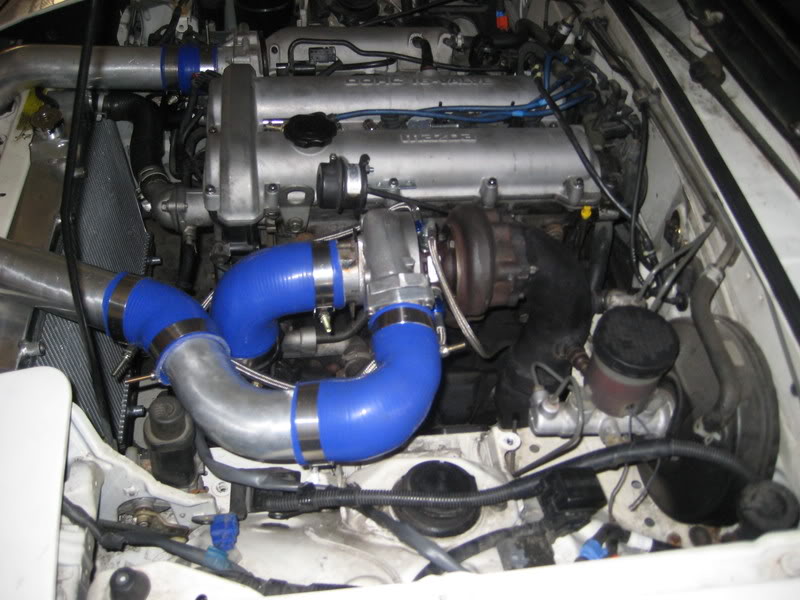

Name:  IMG_3922.jpg
Views: 4
Size:  86.1 KB

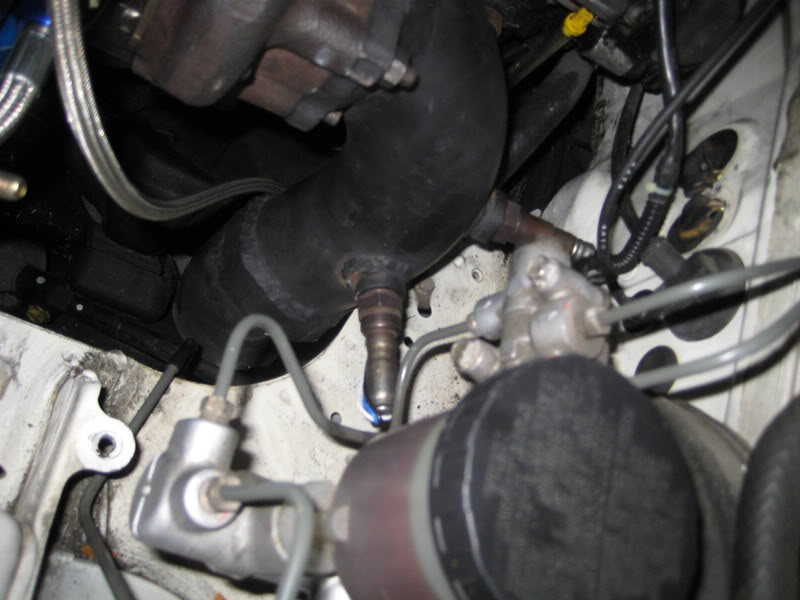

Name:  IMG_3923.jpg
Views: 4
Size:  60.2 KB

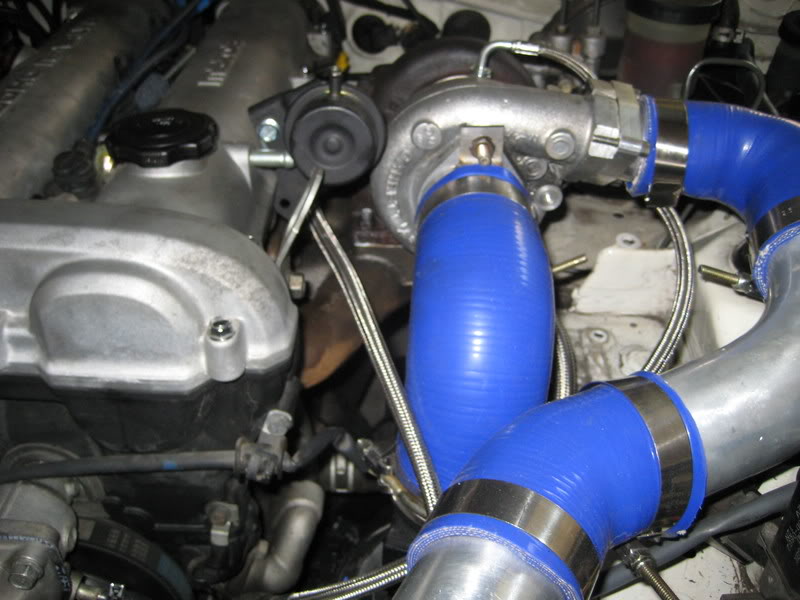

Name:  IMG_3925.jpg
Views: 4
Size:  73.5 KB

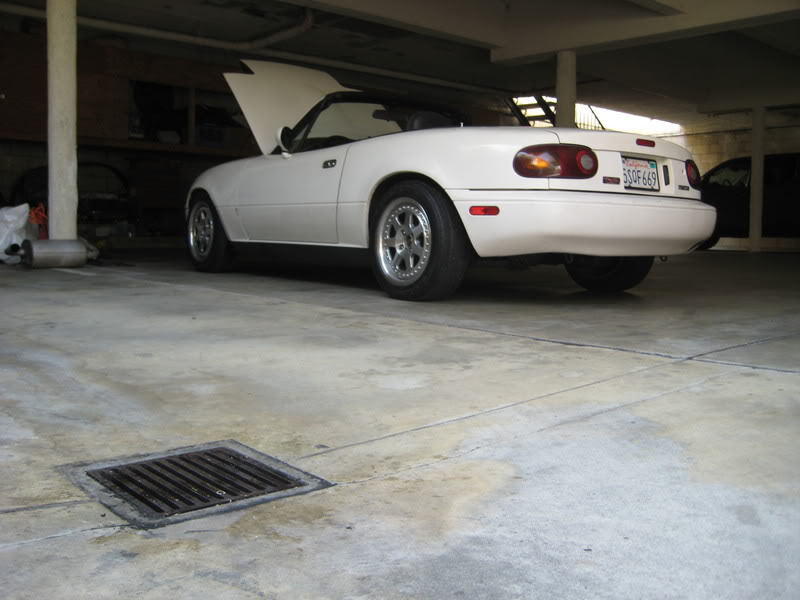

Name:  IMG_3927.jpg
Views: 5
Size:  60.3 KB

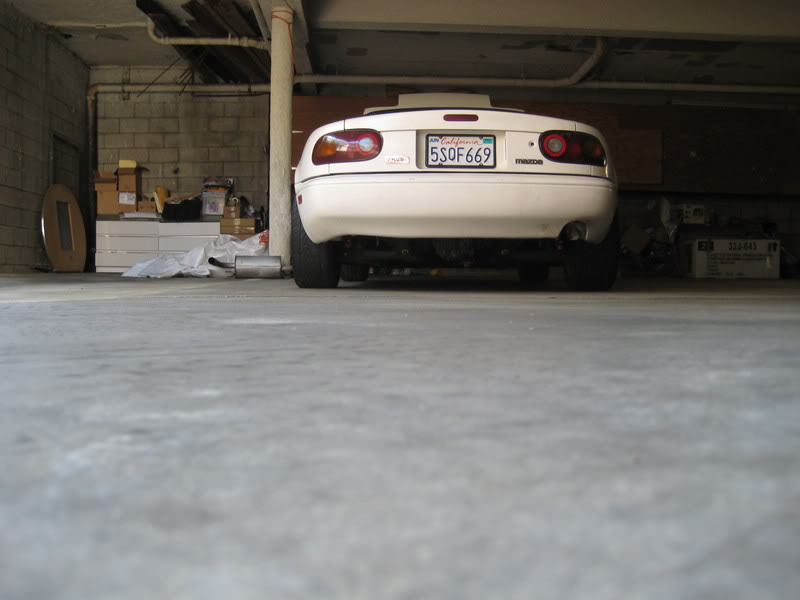

Name:  IMG_3928.jpg
Views: 5
Size:  44.6 KB

Name:  IMG_3931.jpg
Views: 4
Size:  45.5 KB

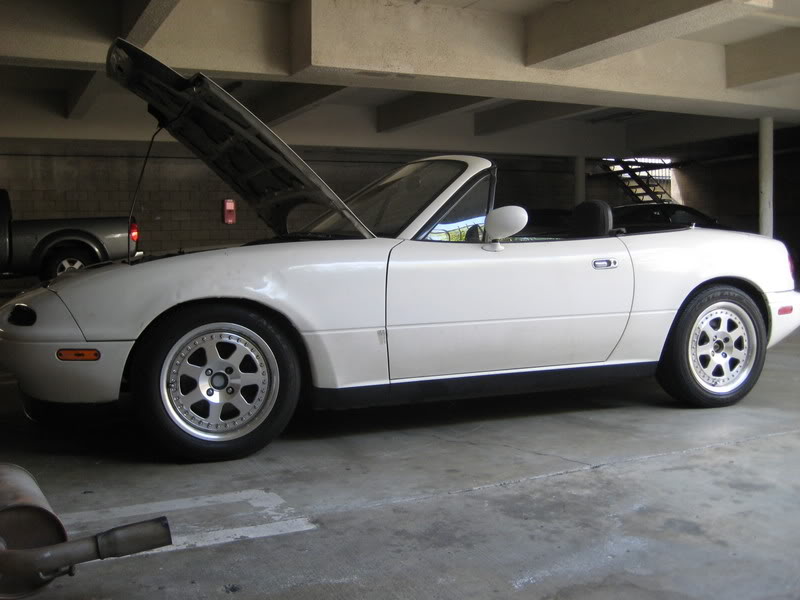

Name:  IMG_3940.jpg
Views: 17
Size:  60.5 KB
PaKMaN is offline   Reply With Quote
Old 02-18-2008, 04:51 PM   #2
Junior Member
iTrader: (3)

Join Date: Apr 2007
Location: San Diego CA
Posts: 399
Total Cats: 0
Default

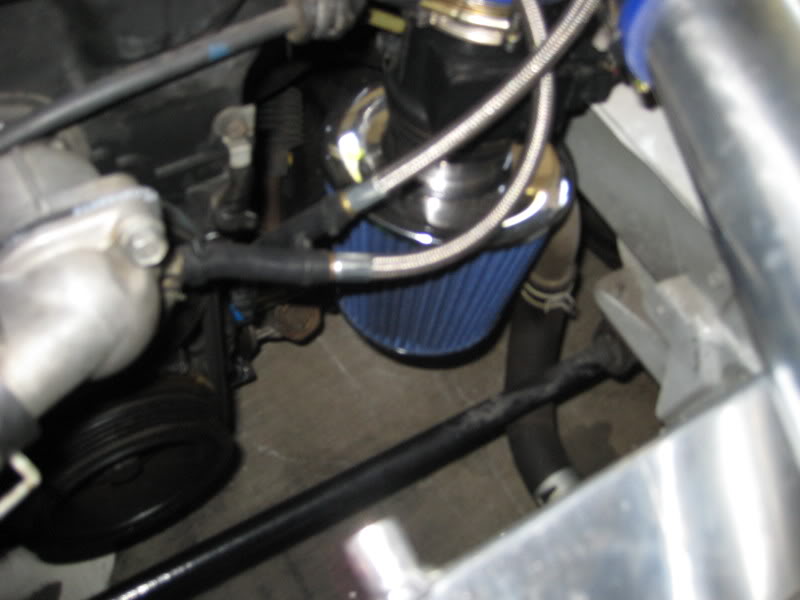

nice where does the intake go? more pics?
teknikscian is offline   Reply With Quote
Old 02-18-2008, 04:56 PM   #3
Senior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2006
Location: Burbank, CA
Posts: 536
Total Cats: 0
Default

Name:  IMG_3924.jpg
Views: 5
Size:  47.0 KB
PaKMaN is offline   Reply With Quote
Old 02-18-2008, 05:01 PM   #4
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

That car would look so badass with a rollbar.

Nice big pipes over the radiator...do those hit the hood? I guess not...??
TurboTim is offline   Reply With Quote
Old 02-18-2008, 05:01 PM   #5
Elite Member
iTrader: (24)

Join Date: Jun 2007
Location: Sherman Oaks, CA
Posts: 4,481
Total Cats: 3
Default

i see you sorted out your intercooler interference with new radiator
UrbanSoot is offline   Reply With Quote
Old 02-18-2008, 05:02 PM   #6
Elite Member
iTrader: (24)

Join Date: Jun 2007
Location: Sherman Oaks, CA
Posts: 4,481
Total Cats: 3
Default

dude, you gotta help me sort out my intercooler piping
UrbanSoot is offline   Reply With Quote
Old 02-18-2008, 05:02 PM   #7
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

good for you man, im one of those still sitting and waiting
Zabac is offline   Reply With Quote
Old 02-18-2008, 05:10 PM   #8
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

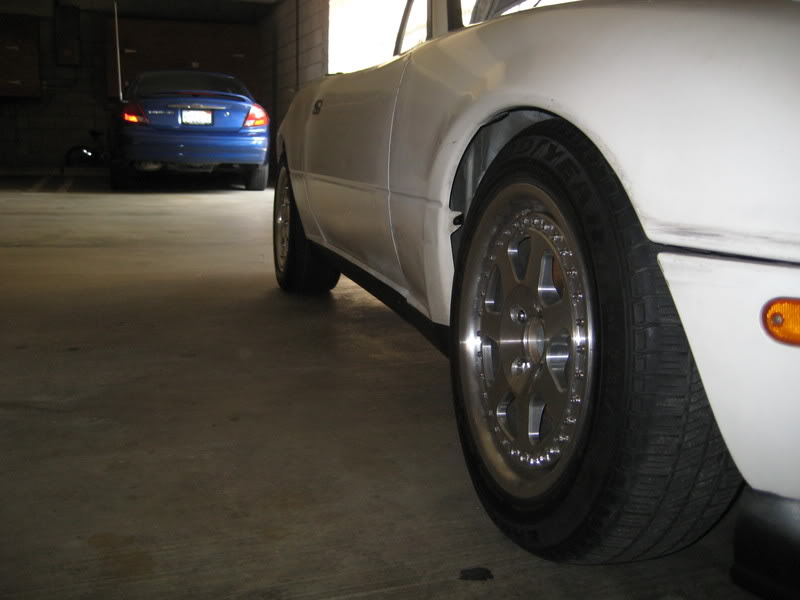

Nice wheels, what are they?
patsmx5 is offline   Reply With Quote
Old 02-18-2008, 05:11 PM   #9
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

I like the setup, but man put a heatsink or something on your wideband. It's way too close to the turbo.
cjernigan is offline   Reply With Quote
Old 02-18-2008, 05:18 PM   #10
Senior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2006
Location: Burbank, CA
Posts: 536
Total Cats: 0
Default

Quote:
Originally Posted by TurboTim View Post
That car would look so badass with a rollbar.

Nice big pipes over the radiator...do those hit the hood? I guess not...??
Unfortunately it does. I'm going to chop up the inside of the hood which should give me 1 1/2 inch clearance.

Quote:
Originally Posted by patsmx5 View Post
Nice wheels, what are they?
Rota JMAG 15x7

Quote:
Originally Posted by cjernigan View Post
I like the setup, but man put a heatsink or something on your wideband. It's way too close to the turbo.

I'm actually going to redo the downpipe in the next month. Will add a blanket and wrap.. should be enough.
PaKMaN is offline   Reply With Quote
Old 02-18-2008, 05:44 PM   #11
Senior Member
iTrader: (5)

Join Date: Nov 2007
Location: Troy, MI
Posts: 860
Total Cats: 13
Default

nice setup.......can you take a closeup of your charge pipe routing? specially ahead of the radiator? Those pipes look like 2.5" OD. How about posting a list of parts you used?
The_Pipefather is offline   Reply With Quote
Old 02-19-2008, 12:38 PM   #12
Junior Member
iTrader: (1)

Join Date: Aug 2006
Location: Ellicott City, MD
Posts: 458
Total Cats: 6
Default

hey where did you get the inlet and outlet adapters for the cold side? I'm guessing this a Sr20 t25?
MicaCeli is offline   Reply With Quote
Old 02-19-2008, 12:50 PM   #13
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Quote:
Originally Posted by MicaCeli View Post
hey where did you get the inlet and outlet adapters for the cold side? I'm guessing this a Sr20 t25?
He made the inlet you can see pics of it in the thread. The outlet looks like the one from ATPturbo.
cjernigan is offline   Reply With Quote
Old 02-19-2008, 12:57 PM   #14
Junior Member
iTrader: (1)

Join Date: Aug 2006
Location: Ellicott City, MD
Posts: 458
Total Cats: 6
Default

Yeah I was looking at the APturbo one. Do you know where i could pick up the inlet?
MicaCeli is offline   Reply With Quote
Old 02-19-2008, 01:33 PM   #15
Junior Member
iTrader: (3)

Join Date: Apr 2007
Location: San Diego CA
Posts: 399
Total Cats: 0
Default

Quote:
Originally Posted by MicaCeli View Post
Yeah I was looking at the APturbo one. Do you know where i could pick up the inlet?
ebay
teknikscian is offline   Reply With Quote
Old 02-19-2008, 06:07 PM   #16
Junior Member
iTrader: (1)

Join Date: Aug 2006
Location: Ellicott City, MD
Posts: 458
Total Cats: 6
Default

Quote:
Originally Posted by teknikscian View Post
ebay

Gotta love Ebay.
MicaCeli is offline   Reply With Quote
Old 02-19-2008, 06:38 PM   #17
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Quote:
Originally Posted by PaKMaN View Post
I'm actually going to redo the downpipe in the next month. Will add a blanket and wrap.. should be enough.
Just to clarify what I meant. I wasn't referring to your controller. The sensor should be 36" away from turbine outlet to keep heat from damaging it. When you redo the downpipe, weld a bung like 6" before the exit flange, anywhere before the cat if you have one.
cjernigan is offline   Reply With Quote
Old 02-20-2008, 05:36 AM   #18
Senior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2006
Location: Burbank, CA
Posts: 536
Total Cats: 0
Default

36 inches????? Are you reffering to the wideband or o2 sensor? O2 sensors are usually safe anything after 8 inches.. and widebands.. well get em as close as possible.
PaKMaN is offline   Reply With Quote
Old 02-20-2008, 05:57 AM   #19
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Quote:
Originally Posted by PaKMaN View Post
36 inches????? Are you reffering to the wideband or o2 sensor? O2 sensors are usually safe anything after 8 inches.. and widebands.. well get em as close as possible.
I'm referring to the wideband. Excessive heat will damage the sensor.
From AEM's instruction manual:

Quote:
A weld-in M18 X 1.5 boss is supplied for sensor installation. Mount the O2 sensor in the
exhaust system at least 18 inches downstream from the exhaust port. If you anticipate
high EGT's (over 800C), run a turbocharger, run at high RPM for extended periods of
time or plan on running leaded race fuel then you must mount the sensor at least 36
inches or more downstream of the exhaust port as all of these can cause the sensor to
overheat.
On turbocharged engines the UEGO sensor must be installed after the
turbo charger, if not, the pressure differential will greatly affect the accuracy of
the unit. For accurate readings, the sensor must be mounted before catalytic
converters and/or auxiliary air pumps. To prevent collection of liquids between the
sensor housing and sensor element during the cold start phase, the installation angle
should be inclined at least 10 from horizontal with the electrical connection upwards,
see below. (Figure 8)
From Innovative's manual, they also refer to the high heat damaging them, though they give no measurement:


Of course it's purely your decision where you mount the sensor, if you can afford frequent $60+ replacement sensors then it's no big deal.
cjernigan is offline   Reply With Quote
Old 02-20-2008, 02:05 PM   #20
Senior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2006
Location: Burbank, CA
Posts: 536
Total Cats: 0
Default

The way I see it.. the closer it is the more accurate. And its not going to get fucked up that fast. It'll probably take a year (3000-4000 miles minimum until it gets messed up).


I look at all those supra's running the LC1 same bosch sensor directly onto the turbo.. and running C16. Ya it'll definately get messed up eventually but I'd much rather have a fine tune and pay $60 every other year than pay AAA to tow my car. Plus I doubt it'll get fucked up while in my possession ( plan to sell the car after I track it).
