is it possible to tap the pan without uasge of air? - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 06-16-2009, 05:39 PM   #1
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2008
Location: The Netherlands
Posts: 104
Total Cats: 0
Default is it possible to tap the pan without uasge of air?

I've read the manuals from FM, AVO and Bell. They all say to use airpressure to blow out the alu pieces when drilling the pan.

I don't have airpressure at home so:
I thought to drain about the half of the oil out of the pan, then drill (with a lot of vaseline) and tap (again with a lot o vaseline), mount the oil return line only at the side of the oilpan. Now drain the resuming oil out of the pan. Flush the pan by using the oil return line (and old oil) a few times.

After that I hope there isn't any **** in the pan anymore.

How do you all tap the pan, when there is no airpressure around?
martijn is offline   Reply With Quote
Old 06-16-2009, 05:43 PM   #2
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

yes, drill and tap with lots of grease. Flush with mineral spirits.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 06-16-2009, 06:18 PM   #3
Junior Member

Join Date: Mar 2008
Location: Charleston, S.C.
Posts: 159
Total Cats: 0
Default

Got a hairdryer?? Cover the output with a sock or stocking and put it into the oil filler opening.
04 Miata is offline   Reply With Quote
Old 06-16-2009, 06:24 PM   #4
Elite Member
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

mineral spirits
thesnowboarder is offline   Reply With Quote
Old 06-16-2009, 06:43 PM   #5
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

i didnt use air.

if you go slowly, it's possible to get a finger in there to get any stray chips out. it's also possible to cut the @#$% out of your finger doing it, but blood wont hurt your motor.
y8s is offline   Reply With Quote
Old 06-16-2009, 06:46 PM   #6
Junior Member
iTrader: (1)

Join Date: Jul 2007
Posts: 123
Total Cats: 0
Default

Bent Q-Tips works great and got a lot of shavings out for me. Then I flushed with mineral spirits.

edit. I did not use any air either.
1redcanuck is offline   Reply With Quote
Old 06-16-2009, 07:18 PM   #7
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

^^^TRIPLE THAT! Regular Q-tips bent 90* will fish around under the drill site and get 90% of the shavings... flush with mineral spririts for another 5%... forget about the last 5%.
samnavy is offline   Reply With Quote
Old 06-16-2009, 09:48 PM   #8
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

If you consider the fact that the bits have to get through two filters before getting into the engine you will soon realize you dont have to go overboard to get all the bits.
Saml01 is offline   Reply With Quote
Old 06-16-2009, 10:18 PM   #9
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

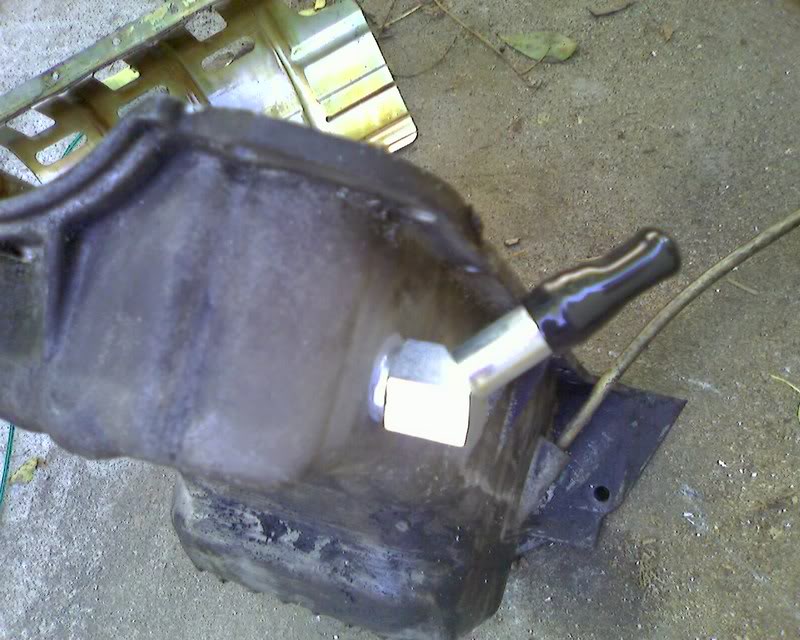

I didn't use any air and I got all of the shavings out... but I don't recommend doing it my way.

Name:  img015.jpg
Views: 0
Size:  89.6 KB
kotomile is offline   Reply With Quote
Old 06-16-2009, 10:34 PM   #10
Senior Member
iTrader: (8)

Join Date: Mar 2006
Location: Indianapolis, IN
Posts: 758
Total Cats: 5
Default

Quote:
Originally Posted by kotomile View Post
I didn't use any air and I got all of the shavings out... but I don't recommend doing it my way.

x2. My oil pan was seeping though, so I needed to re-seal it anyway. Plus it was much easier installing the clutch & flywheel w/ the motor out.
boileralum is offline   Reply With Quote
Old 06-16-2009, 11:47 PM   #11
Former Vendor

Join Date: Dec 2007
Location: Texas Hill Country
Posts: 271
Total Cats: 16
Default

BEGi has not suggested the use of air pressure. Thirty years of tapping aluminum oil pans with the procedure we have outlined has proven 100% safe.

It is a 15 minute job to do perfectly. C'mon man, have a little faith.
Corky Bell is offline   Reply With Quote
Old 06-17-2009, 12:00 PM   #12
Senior Member
iTrader: (14)

Join Date: Aug 2008
Location: Tinley Park, IL
Posts: 1,488
Total Cats: 0
Default

No air for me either. I just greased the tap real good and it pulled most of the chips out with it. Used the Q-Tips as stated before. I pulled my pan off to fix a leaky gasket and was quite surprised to find out there wasn't any chips in the pan. It's a fairly sound procedure.
lordrigamus is offline   Reply With Quote
Old 06-17-2009, 05:38 PM   #13
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2008
Location: The Netherlands
Posts: 104
Total Cats: 0
Default

Thanks for all your replyes!
Now I'm confident that it can be done without air.
Special thanks and sorry for my mistake about Bell (:
martijn is offline   Reply With Quote
