Hey all,

Just starting a thread on the list of upgrades that I am about to put my old car through (with pics).

My car is a vintage 1990 MX5 (english RHD) and the changes/upgrades to be done are as follows:

Swap the original 1.6 (152K miles) engine with a JDM 1.8 with about 50K miles on it.

Replace clutch and flywheel (Flyin Miata happy meal)

Replace the eManage with a megasquirt PNP system.

Upgrade the brakes to handle extra horsepower.

Once this is all done then a full tune and dyno and we should have a hot little car.

Here are pics of the work so far

Mark
Attached Thumbnails

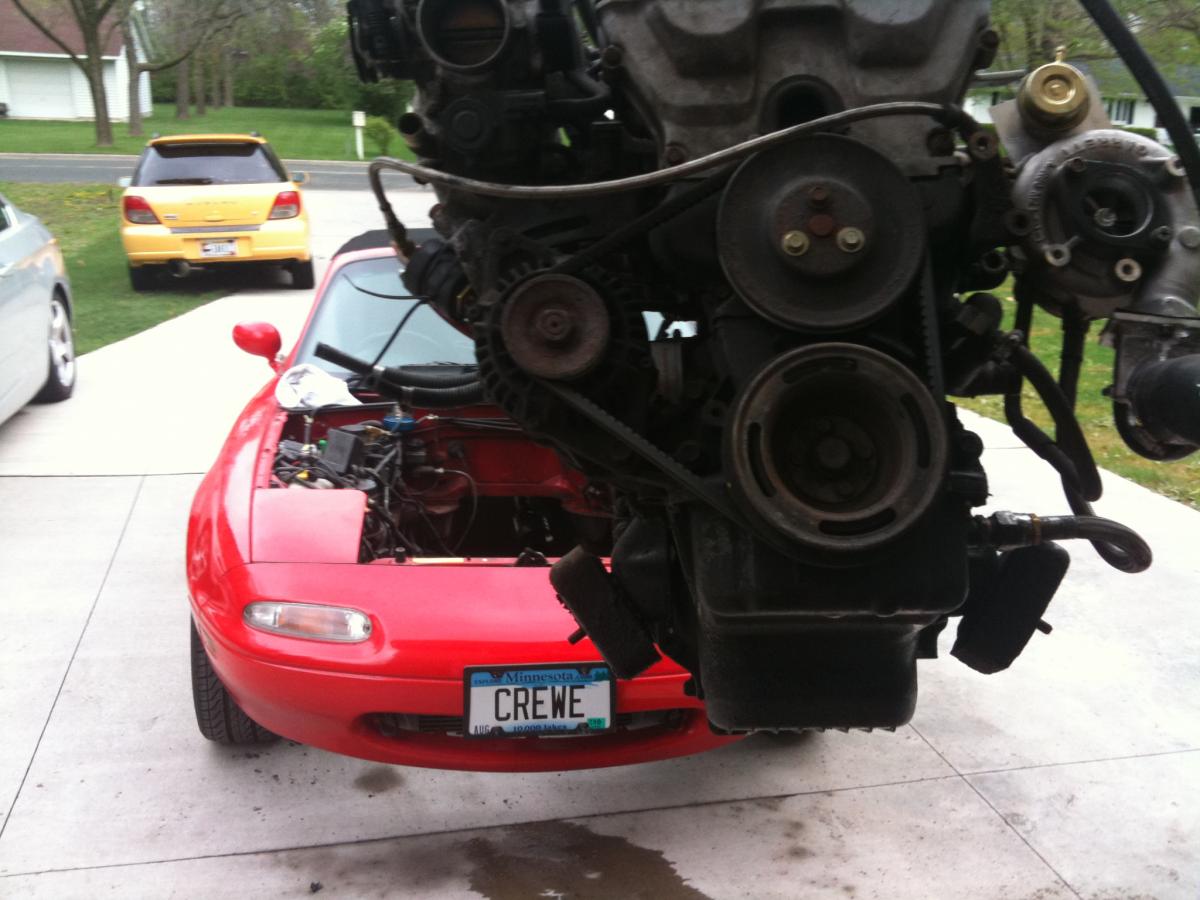

Project Phoenix part 2-img_1425.jpg   Project Phoenix part 2-img_1430.jpg
supercrewe is offline   Reply With Quote
Old 04-26-2010, 02:44 PM   #2
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

i see no mention of forced induction my freind.
magnamx-5 is offline   Reply With Quote
Old 04-26-2010, 02:54 PM   #3
Senior Member
iTrader: (1)

Join Date: Apr 2007
Location: North Jersey
Posts: 721
Total Cats: 0
Default

you don't see the turbo hanging off in the first pic?
budget racer is offline   Reply With Quote
Old 04-26-2010, 03:21 PM   #4
Newb
Thread Starter

Join Date: Apr 2010
Location: Bloomington, MN
Posts: 27
Total Cats: 0
Default

Yeah budget racer you are correct it is a Begi GT 25.

Just left out any turbo comments to see who was paying attention

Hope to get up to about 280 rwhp when I am done.

Also will be taking the engine out this winter and rebuilding / making a little bigger (like around 2.0L)

Woo hoo
supercrewe is offline   Reply With Quote
Old 05-04-2010, 11:37 AM   #5
Newb
Thread Starter

Join Date: Apr 2010
Location: Bloomington, MN
Posts: 27
Total Cats: 0
Default

Hey Everyone,

Here is a little update on the engine swap etc.

The original engine (151K, 1.6) is being stripped for some parts.

The new(er) JDM 1.8 engine is now being assembled before we put it back in the car and hook it up.

Hoping to get the car running tonight with the original emanage just to check that the install is running ok.

Mark
supercrewe is offline   Reply With Quote
Old 05-04-2010, 12:26 PM   #6
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

What turbo manifold are you going to use?
dustinb is offline   Reply With Quote
Old 05-04-2010, 01:58 PM   #7
Newb
Thread Starter

Join Date: Apr 2010
Location: Bloomington, MN
Posts: 27
Total Cats: 0
Default

Hi Dustin,

Originally I was going to use a Flyin Miata manifold but they were outta stock with no delivery in sight (I believe that the machine they use was broken or something).

So with that in mind I ordered a manifold from BEGI (as the turbo is a BEGI).

It fits nicely

Hoping to hear that turbo whining again soon
supercrewe is offline   Reply With Quote
Old 05-12-2010, 01:38 PM   #8
Newb
Thread Starter

Join Date: Apr 2010
Location: Bloomington, MN
Posts: 27
Total Cats: 0
Default

Hey all,

So the 1.8 is in but still quite a lot of work to do.

Took a while to get the engine to fit into the engine bay (turbo catching on the body).

Anyway here are a few pictures to show you all the progress made.

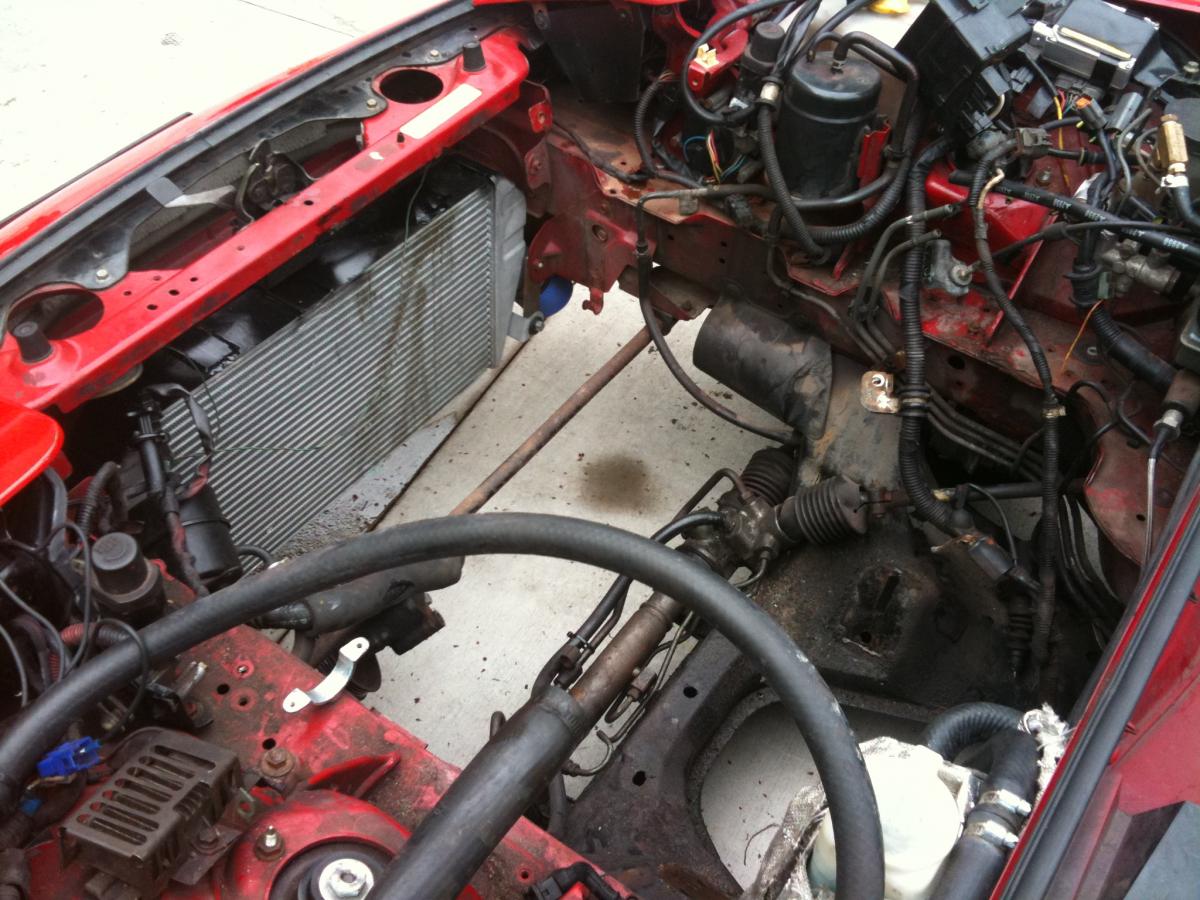

IMG 1430 - where the hell is the engine ?

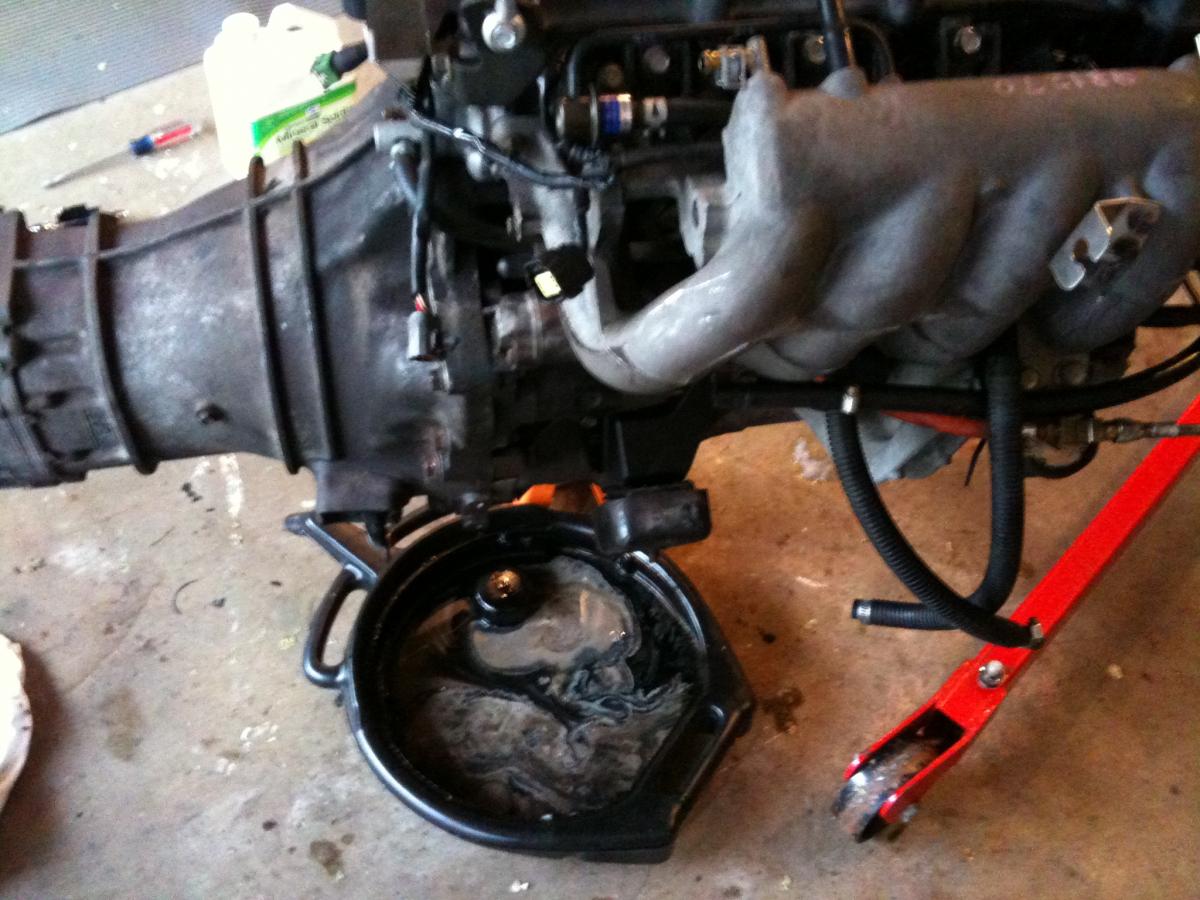

IMG 1470 - flushing the oil sump with mineral spirits

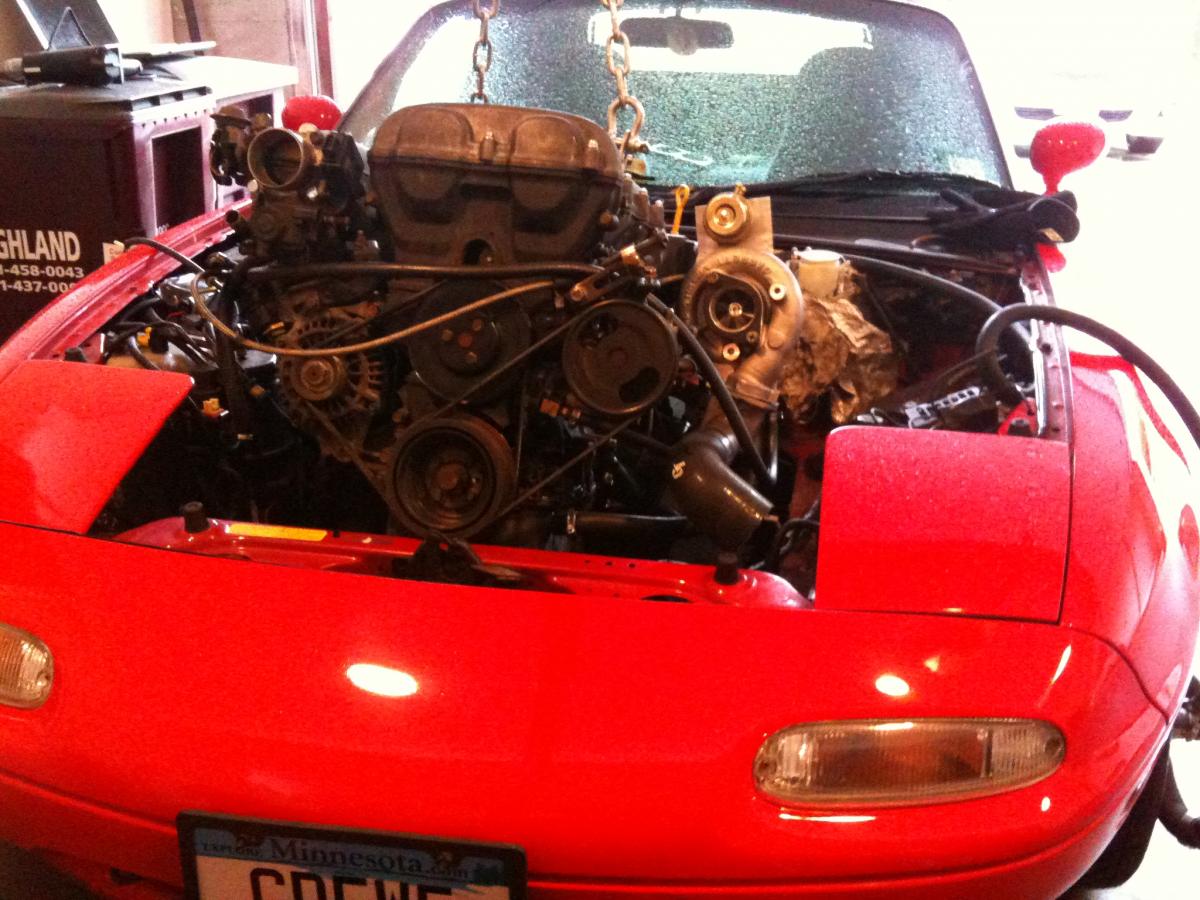

IMG 1475 - nearly in ....should we leave it like that

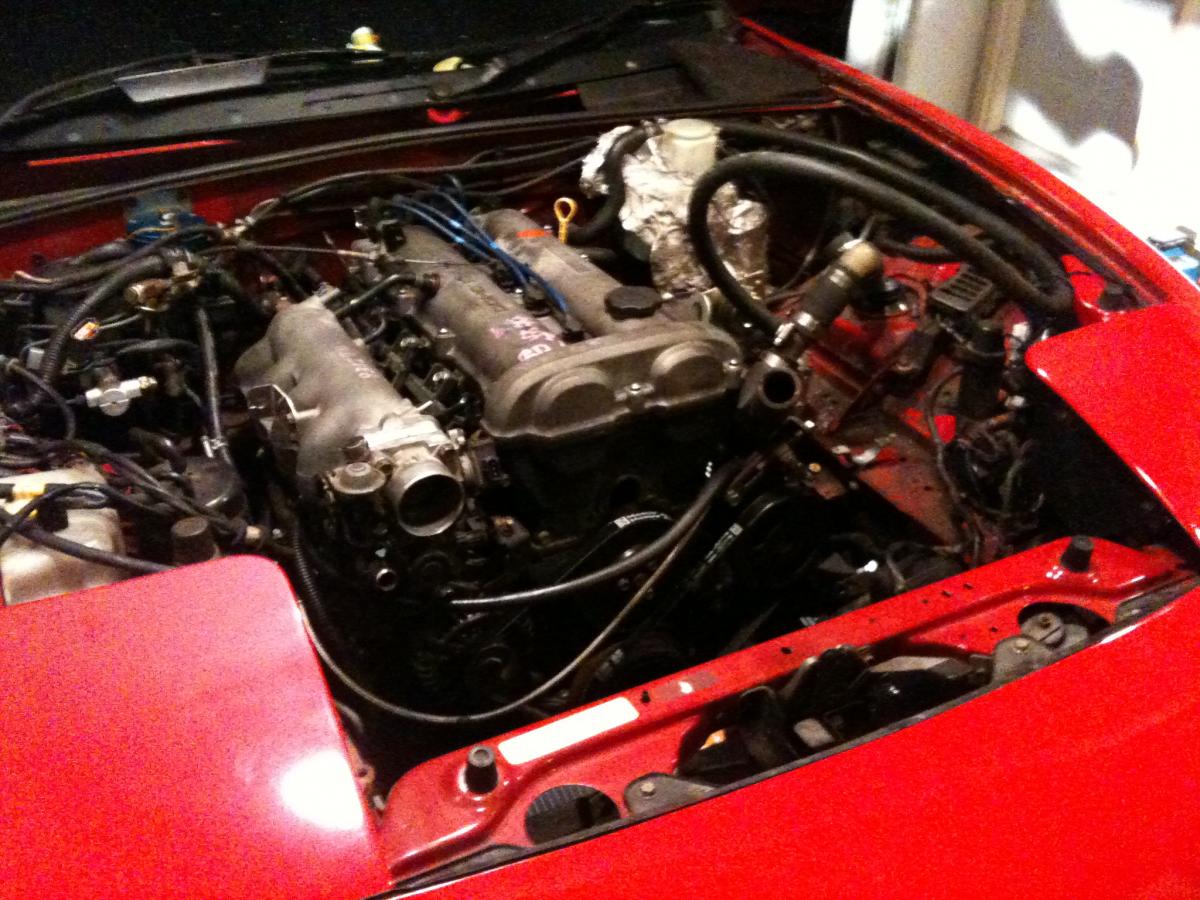

IMG 1477 - Woohoo after a lot of messing around the engine is on the engine mounts

I hope to have the engine running and dyno it with the megasquirt this weekend

Later

Mark
Attached Thumbnails
Project Phoenix part 2-img_1430.jpg   Project Phoenix part 2-img_1470.jpg   Project Phoenix part 2-img_1475.jpg   Project Phoenix part 2-img_1477.jpg
supercrewe is offline   Reply With Quote
Old 05-12-2010, 01:53 PM   #9
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

Looks like it is coming along nicely. Should be fun
dustinb is offline   Reply With Quote
Old 05-13-2010, 12:10 PM   #10
Newb
Thread Starter

Join Date: Apr 2010
Location: Bloomington, MN
Posts: 27
Total Cats: 0
Default

Thanks Dustin,

I am excited for the weekend, hopefully if we can get the megasquirt in with a base AFR map.

I will go crazy and post the dyno runs when I do it.

M
supercrewe is offline   Reply With Quote
Old 05-17-2010, 01:25 PM   #11
Newb
Thread Starter

Join Date: Apr 2010
Location: Bloomington, MN
Posts: 27
Total Cats: 0
Default Miata update :)

Ok everyone,

The eManage is out and the Megasquirt is in.
A few things still left to complete (temp sensor in the intercooler pipes).

We got the vacuum pipes and other pipes all tidied up.

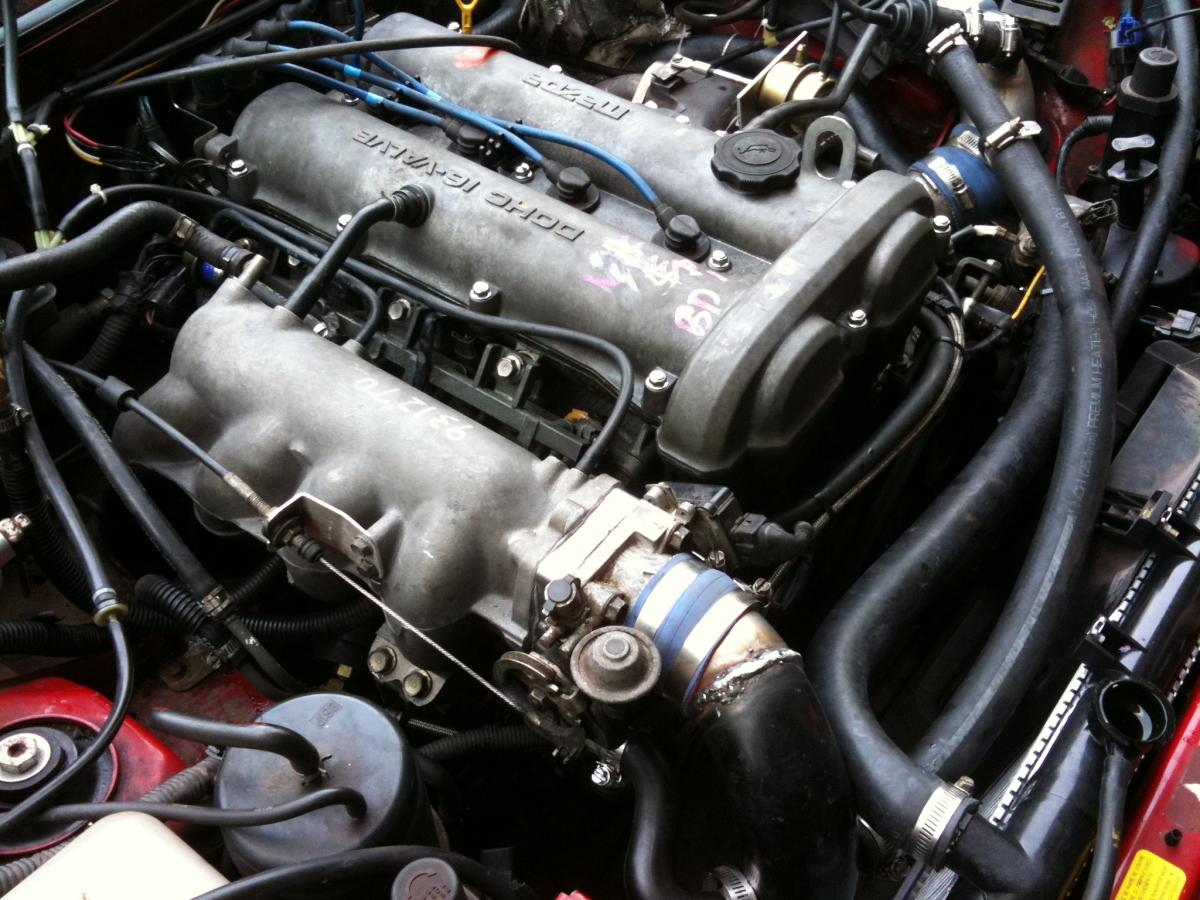

IMG_1490.jpg is the engine pre pipes clean up

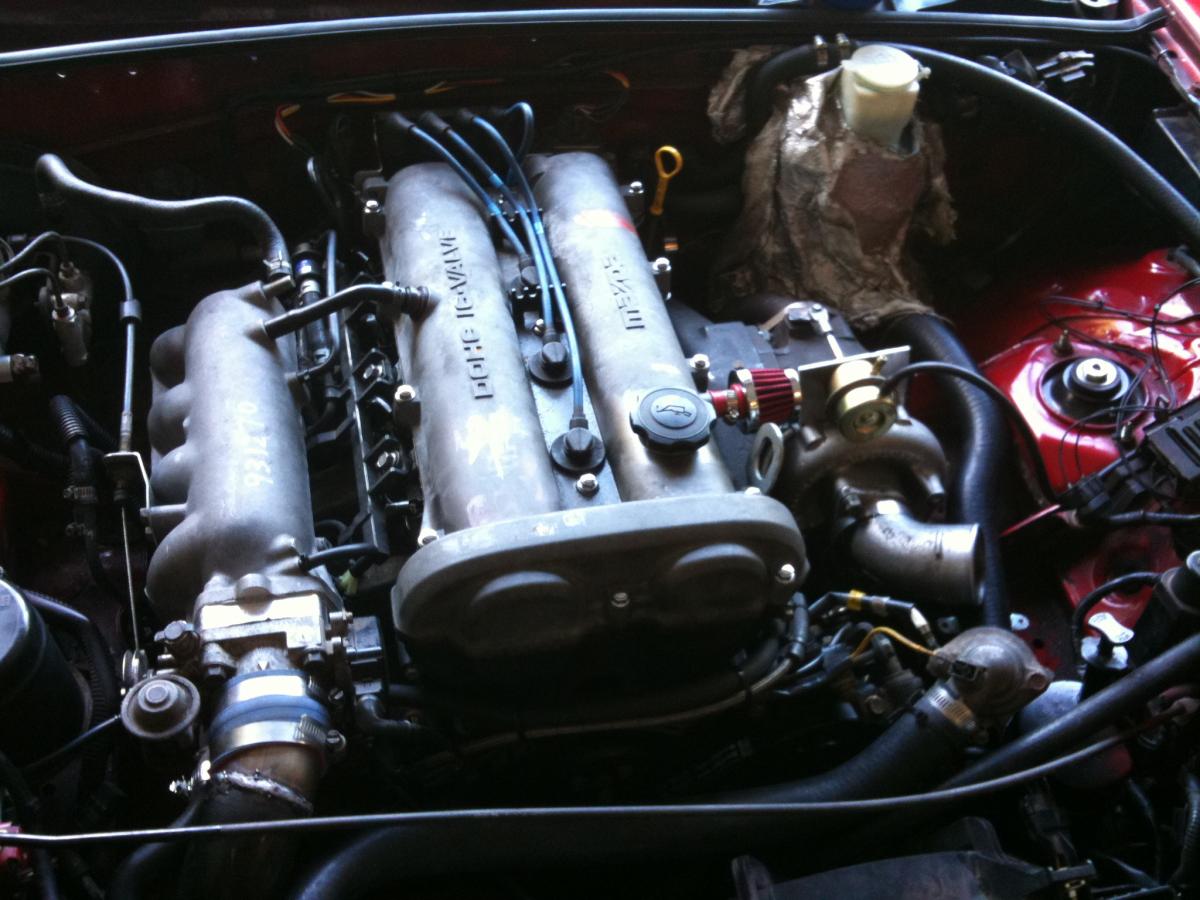

IMG_1494.jpg is after they are cleaned up .....wow you can see the color of the engine bay LOL.

Looking to Dyno it this week......

Mark
Attached Thumbnails
Project Phoenix part 2-img_1490.jpg   Project Phoenix part 2-img_1494.jpg
supercrewe is offline   Reply With Quote
Old 05-17-2010, 06:48 PM   #12
Want fries with that?
iTrader: (3)

Join Date: Oct 2009
Location: Twin Cities, Minnesota
Posts: 2,023
Total Cats: -1
Default

That IC seems unnecessarily large.

Nice car, I wanna see it
rider384 is offline   Reply With Quote
Old 05-21-2010, 12:50 AM   #13
Newb
Thread Starter

Join Date: Apr 2010
Location: Bloomington, MN
Posts: 27
Total Cats: 0
Default

Thanks Rider384 whereabouts in the twin cities are you? I'm in the south metro area.

Ran into a snag today with the last stages of getting her ready and we were removing a very tight oil filter when we saw a spark.

I think we shorted something out ....actually we blew a 30a fuse.

Now when the engine is running and I turn on the lights, the engine dies. There seems to be a lot of clicking too.....
Anyone got any ideas about this ?
I am due to take the car to the dyno next wed so it needs to be together.

If anyone has any thoughts please let me know.

Thanks

Mark
supercrewe is offline   Reply With Quote
Old 05-21-2010, 05:32 PM   #14
Newb
Thread Starter

Join Date: Apr 2010
Location: Bloomington, MN
Posts: 27
Total Cats: 0
Default Here I go answering my own problems !!

So I replaced the blown 30A fuse and it seems to be fine again....

woo hoo dyno day is rapidly approaching
supercrewe is offline   Reply With Quote
Old 05-21-2010, 08:28 PM   #15
Want fries with that?
iTrader: (3)

Join Date: Oct 2009
Location: Twin Cities, Minnesota
Posts: 2,023
Total Cats: -1
Default

Are you going to MAP?

I'm semi-close to there, I'm a bit east of Rockford.

Last edited by rider384; 05-21-2010 at 09:31 PM.
rider384 is offline   Reply With Quote
Old 05-21-2010, 09:11 PM   #16
Elite Member
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

Interesting coolant reroute. How do you shield it from the heat from the turbo?
astroboy is offline   Reply With Quote
Old 05-21-2010, 10:30 PM   #17
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Quote:
Originally Posted by astroboy View Post
Interesting coolant reroute. How do you shield it from the heat from the turbo?
Used to be copper tubing.
olderguy is offline   Reply With Quote
Old 05-22-2010, 02:54 AM   #18
Newb
Thread Starter

Join Date: Apr 2010
Location: Bloomington, MN
Posts: 27
Total Cats: 0
Default

Hi Rider. Yes I will be going to map next Wednesday at noon.

Hey bruce indeed with the copper but the bigger turbo / engine got in the way. Need to look at heat shields.
supercrewe is offline   Reply With Quote
Old 05-24-2010, 12:39 PM   #19
Newb
Thread Starter

Join Date: Apr 2010
Location: Bloomington, MN
Posts: 27
Total Cats: 0
Default Latest update

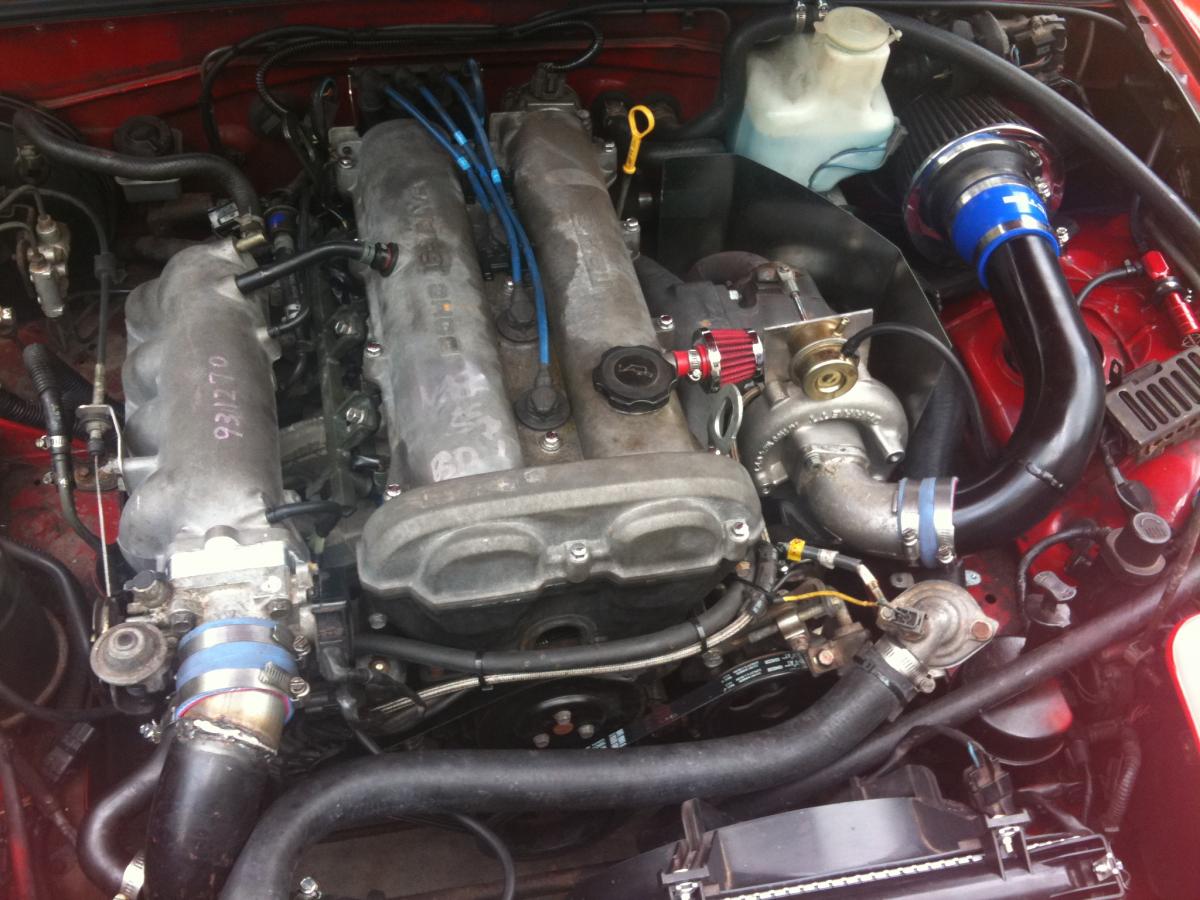

Here is the latest pic of the engine bay with the improvised heat shield.

What does everyone think?

On Wednesday, I will tune the car for 17lbs of boost and hopefully get around 270/280 rwhp Woo Hoo

I may still need to replace the exhaust system and will be getting her a good cleaning but she is basically complete.

Mark
Attached Thumbnails
Project Phoenix part 2-img_1504.jpg

Last edited by supercrewe; 05-24-2010 at 12:44 PM. Reason: Additions
supercrewe is offline   Reply With Quote
Old 05-24-2010, 12:44 PM   #20
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Figure out how to get a pipe back in there or take the large hose up around by the fender.
olderguy is offline   Reply With Quote
