Default Question about turbo angle.

So i got all my new stuff and I have heard mixed things about tilting the turbo on an angle, i did this to help clear the frame rails. So my question is do you guys think i should get the turbo to sit as flat as possible or will it be fine tilted like i have here in these photos.

.

So let me know what you guys think, should i leave it or should i try and make it flat
miatamike203 is offline   Reply With Quote
Old 06-10-2010, 11:37 PM   #2
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

I say straighten it out. If it were a cheap china charger then Id say leave it and see.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 06-10-2010, 11:53 PM   #3
Senior Member
iTrader: (3)

Join Date: Jul 2005
Location: Connect-I-Cut
Posts: 1,431
Total Cats: 0
Default

I don't understand, you just tuned your car and now your swapping turbo, mani and DP? Why did you tune it on the old turbo then?
miataspeed2005 is offline   Reply With Quote
Old 06-10-2010, 11:56 PM   #4
Senior Member
Thread Starter

Join Date: Aug 2009
Location: MONROE CT
Posts: 1,100
Total Cats: 2
Default

Quote:
Originally Posted by miataspeed2005 View Post
I don't understand, you just tuned your car and now your swapping turbo, mani and DP? Why did you tune it on the old turbo then?
Because i wanted to see what you could get out of an EVOIII 16g on a miata seeing as how i had it on there and also so people here could have a base line for the 16g on a built miata.
miatamike203 is offline   Reply With Quote
Old 06-11-2010, 12:25 AM   #5
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

I think the oil pooling in the hot side of the CHRA could be an issue but overall I dont see a problem. My CHRA is clocked a little bit so that I have just about that much angle on my oil drain and its fine.
wayne_curr is offline   Reply With Quote
Old 06-11-2010, 02:33 AM   #6
Senior Member
iTrader: (34)

ARTech's Avatar

Join Date: Mar 2009
Location: Dallas
Posts: 530
Total Cats: 9
Default

IIRC garrett recommends no more than 15 degrees from vertical for proper drainage
ARTech is offline   Reply With Quote
Old 06-11-2010, 03:40 AM   #7
Trackspeed Engineering
iTrader: (9)

Join Date: Jan 2008
Location: Bay Area, California
Posts: 937
Total Cats: 10
Default

"When installing your turbocharger, insure that the turbocharger axis of rotation is parallel
to the level ground within +/- 15. This means that the oil inlet/outlet should be within
15 of being perpendicular to level ground."
And center housing clocked 20* for best water cooling.

Source: http://www.turbobygarrett.com/turbob...ly%20&%20Drain
crashnscar is offline   Reply With Quote
Old 06-11-2010, 09:46 AM   #8
Senior Member
iTrader: (2)

Join Date: Oct 2007
Location: Northeastern CT
Posts: 547
Total Cats: 2
Default



15* is a pretty good amount, i think you're okay.

you could always bust out the protractor and/or ruler + trig calculator and make sure, though.
therieldeal is offline   Reply With Quote
Old 06-11-2010, 12:14 PM   #9
Senior Member
iTrader: (8)

Join Date: Feb 2009
Location: Jax, Fl
Posts: 907
Total Cats: 0
Default

Damn that's a turbo right there. Sorry nothing productive to add
johnmatt is offline   Reply With Quote
Old 06-11-2010, 06:40 PM   #10
Junior Member
iTrader: (4)

Join Date: Feb 2009
Location: Raleigh, NC
Posts: 321
Total Cats: 0
Default

i never knew about the 20 degree water cooling thing, doesnt that put the oil in/out at 20 degrees also?
kewilso3 is offline   Reply With Quote
Old 06-11-2010, 07:14 PM   #11
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

different axis.
shlammed is offline   Reply With Quote
Old 06-11-2010, 08:26 PM   #12
Senior Member
Thread Starter

Join Date: Aug 2009
Location: MONROE CT
Posts: 1,100
Total Cats: 2
Default

Good info I'm going to try and make it sit flat
miatamike203 is offline   Reply With Quote
Old 06-11-2010, 10:03 PM   #13
Senior Member
Thread Starter

Join Date: Aug 2009
Location: MONROE CT
Posts: 1,100
Total Cats: 2
Default



how much of an angle you guys think this is.
miatamike203 is offline   Reply With Quote
Old 06-11-2010, 10:05 PM   #14
Elite Member
iTrader: (6)

Join Date: Nov 2007
Location: Southlake,Texas
Posts: 3,251
Total Cats: 17
Default

22.36*
Bond is offline   Reply With Quote
Old 06-11-2010, 10:12 PM   #15
Senior Member
Thread Starter

Join Date: Aug 2009
Location: MONROE CT
Posts: 1,100
Total Cats: 2
Default

may i ask how did you figure that out my math is **** lol
miatamike203 is offline   Reply With Quote
Old 06-12-2010, 01:40 PM   #16
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

yeha thats definately more than 15 degrees.

if i was on my wor computer with CAD i could tell you in a second. by xref'ing that image in.
shlammed is offline   Reply With Quote
Old 06-12-2010, 02:29 PM   #17
Elite Member

Join Date: Dec 2008
Location: Colorado
Posts: 1,669
Total Cats: 36
Default

Quote:
Originally Posted by Bond View Post
22.36*

Thats a pretty good guess. I'm betting in that ball park.
Sparetire is offline   Reply With Quote
Old 06-12-2010, 02:49 PM   #18
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

that's somewhere between 30-40
Braineack is offline   Reply With Quote
Old 06-12-2010, 03:05 PM   #19
Newb

Join Date: Jan 2008
Location: Baltimore County, MD
Posts: 27
Total Cats: 0
Default

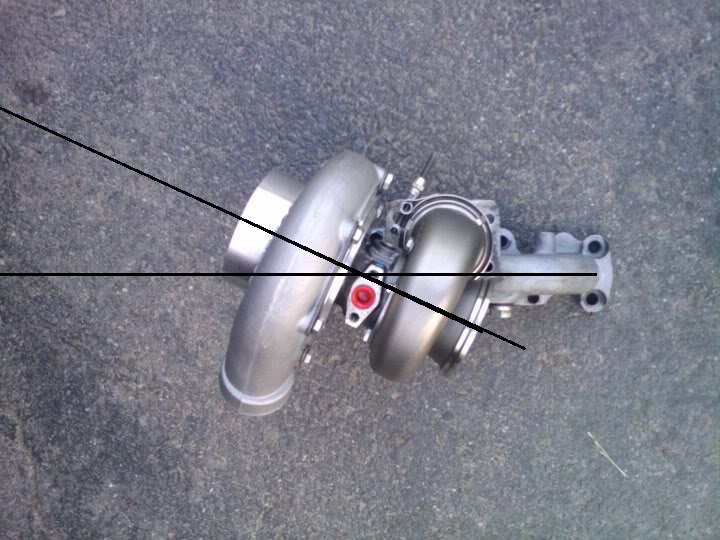

I measured 25 degrees between these lines:
Name:  28398_459841779011_835234011_605802.jpg
Views: 3
Size:  82.0 KB
bengxe is offline   Reply With Quote
Old 06-12-2010, 05:39 PM   #20
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

Time to massage the frame with a BFH.
