Old 05-15-2012, 02:41 PM   #1
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default Recycled exhaust manifold

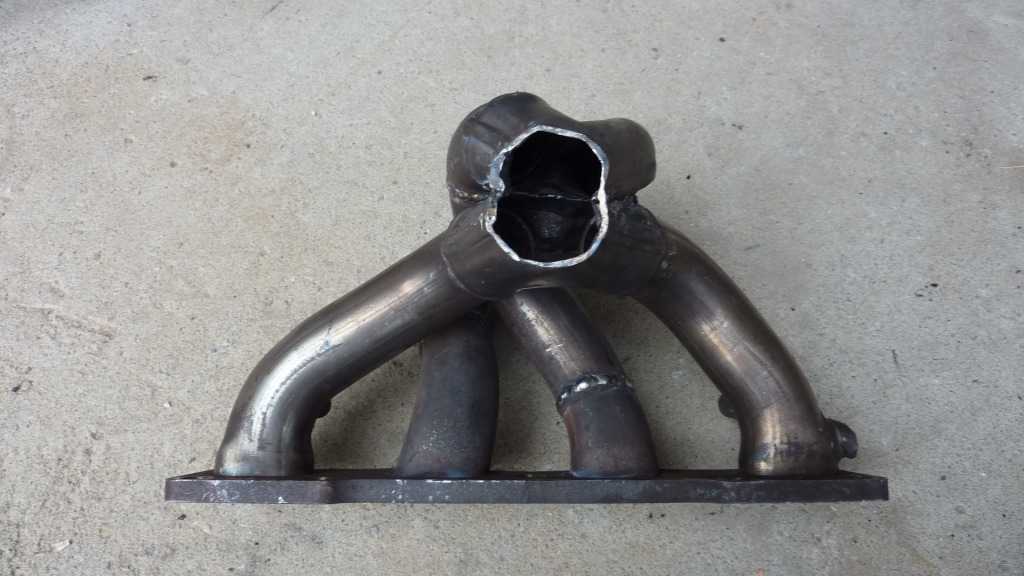

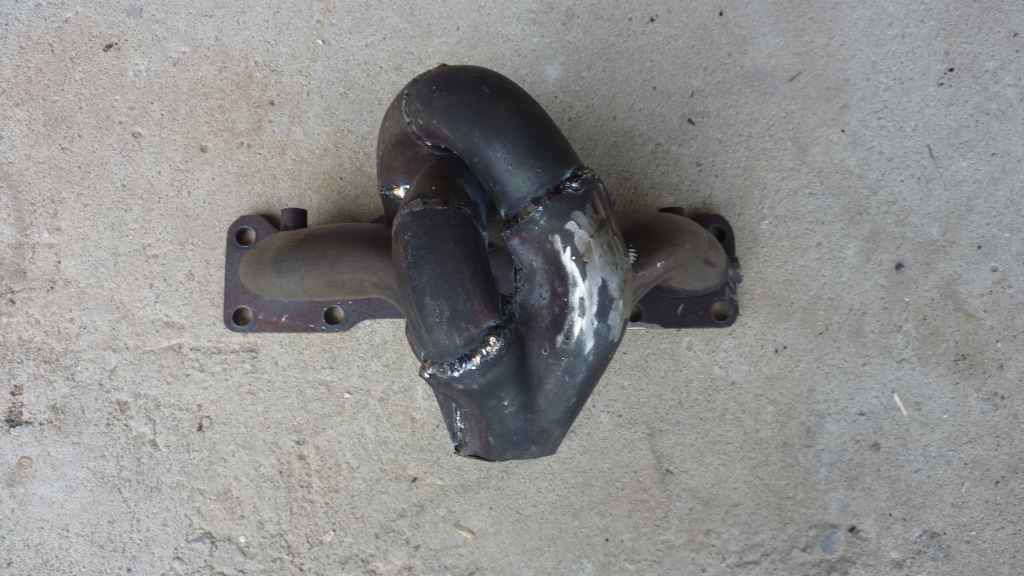

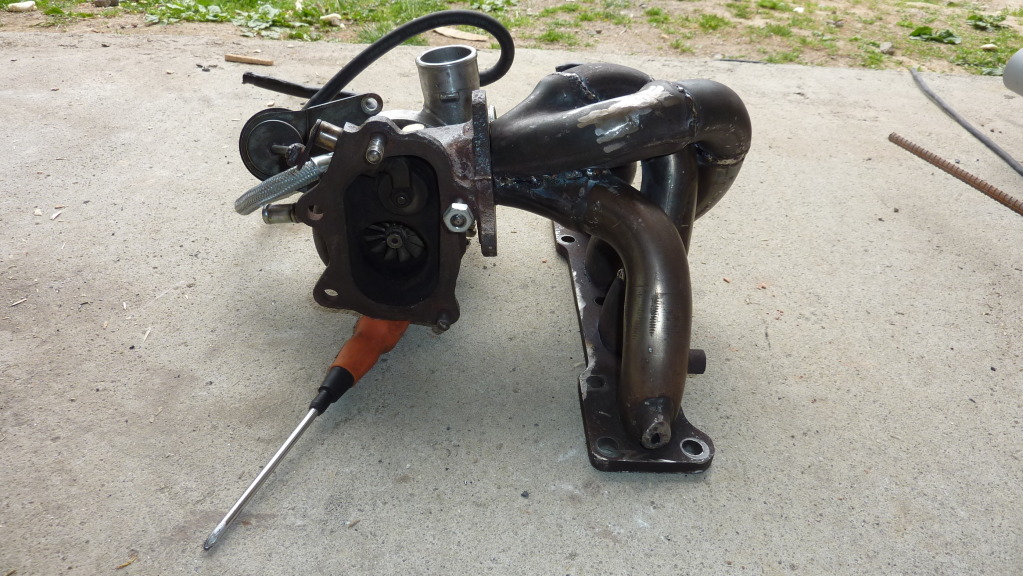

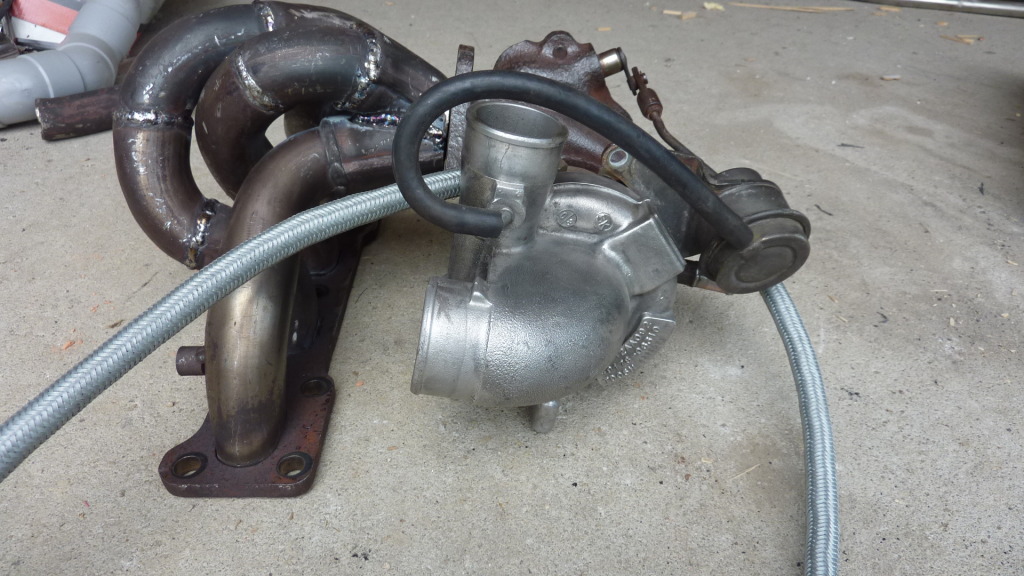

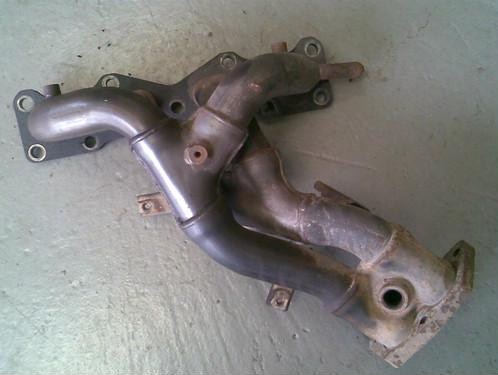

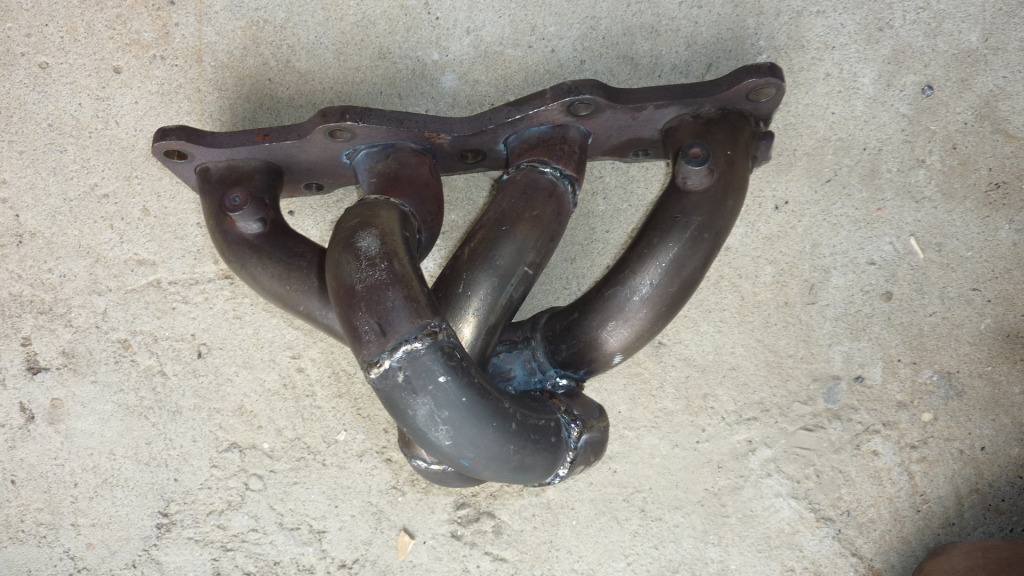

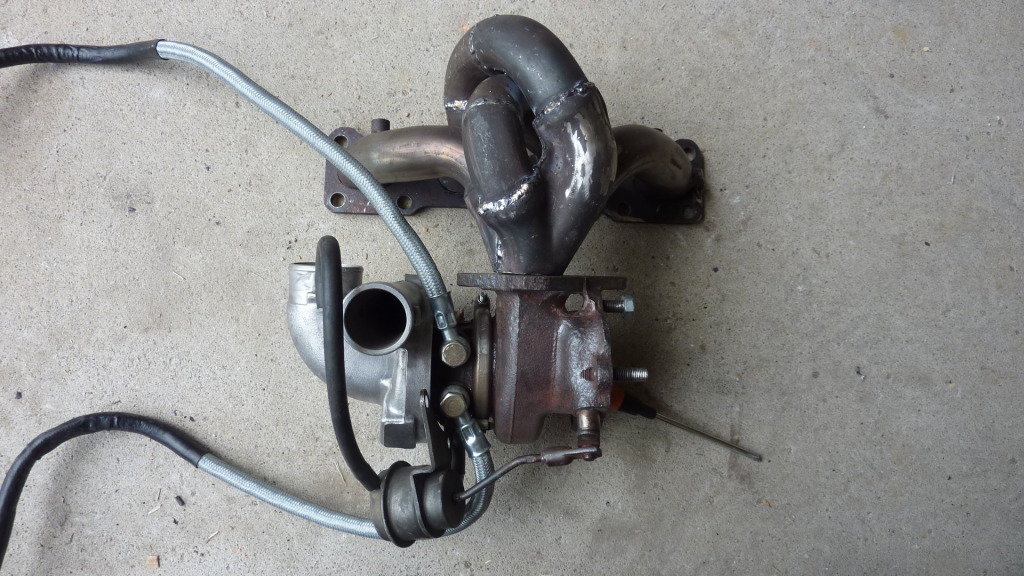

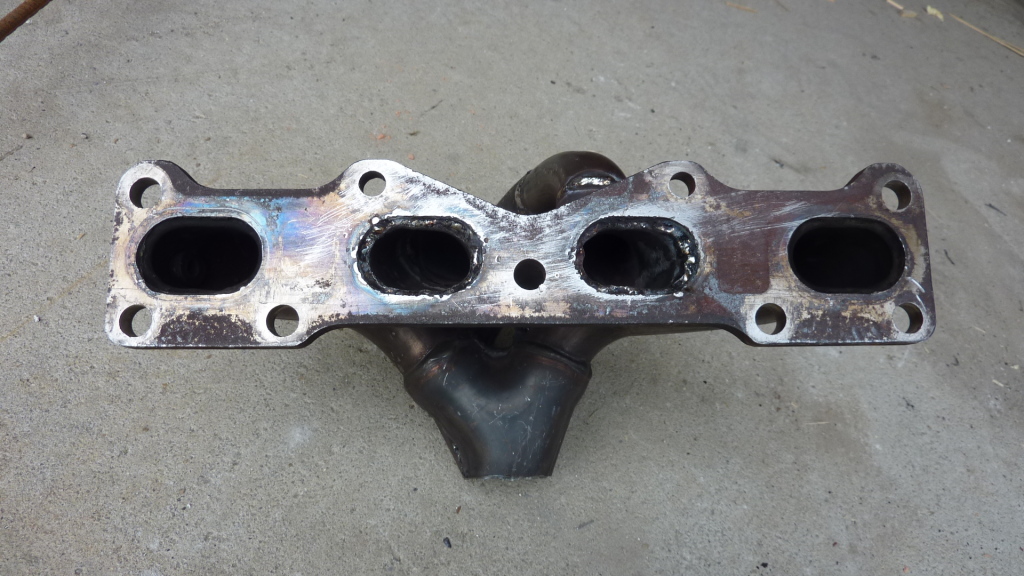

I attacked my 1.8 manifold with a 4.5 inch grinder and a stick welder.


4 hours later and voila! my no hit block special is born









next step vband!
Attached Thumbnails
Recycled exhaust manifold-exhuntitled.jpg   Recycled exhaust manifold-p1020867.jpg   Recycled exhaust manifold-p1020866.jpg   Recycled exhaust manifold-p1020865.jpg   Recycled exhaust manifold-p1020868.jpg

Recycled exhaust manifold-p1020872.jpg   Recycled exhaust manifold-p1020871.jpg   Recycled exhaust manifold-p1020876.jpg
sturovo is offline   Reply With Quote
Old 05-15-2012, 03:05 PM   #2
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,071
Total Cats: 253
Default

Holy **** that is so damn boss!

Props to you, good sir!
viperormiata is offline   Reply With Quote
Old 05-15-2012, 03:13 PM   #3
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

Nifty
You used to see this stuff all the time, then everybody got baller.
Full_Tilt_Boogie is offline   Reply With Quote
Old 05-15-2012, 03:29 PM   #4
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 129
Default

That's awesome, really impressive work.
pdexta is offline   Reply With Quote
Old 05-15-2012, 05:04 PM   #5
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

I need a welder.
miatauser884 is offline   Reply With Quote
Old 05-15-2012, 06:18 PM   #6
Senior Member

Join Date: Aug 2010
Location: Arl. Texas
Posts: 937
Total Cats: 23
Default

Any pics of it mounted to the head? Thats some good welding with an arc welder in such a small space. Bet it was a pain on the insides of the runners, or did you weld them up, and then weld it to the flange?
Miater is offline   Reply With Quote
Old 05-15-2012, 06:40 PM   #7
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,184
Total Cats: 2,582
Default

I agree: that's good stuff.
And if you did a good job welding it, I don't see why it won't hold up for a LONG time.
Too bad our manifolds aren't made like that in the US
18psi is offline   Reply With Quote
Old 05-16-2012, 03:27 AM   #8
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by viperormiata View Post
Holy **** that is so damn boss!

Props to you, good sir!
viperormiata, Full_Tilt_Boogie, pdexta, Miater, 18psi, Thank you men. Praise like that makes me feel alive!

Quote:
Originally Posted by Miater View Post
Any pics of it mounted to the head? Thats some good welding with an arc welder in such a small space. Bet it was a pain on the insides of the runners, or did you weld them up, and then weld it to the flange?
The welding was easy enough. I welded the collector up first, then the runners and lastly the slip joints at the flange and collector. I used a small rod (1.6mm2 308 stainless) which is good for getting into tight spots.

(For a crazy but simple solution how about tying a stubby downpipe elbow back into the stock 2 to 1 piping flange and a close on vacuum operated screamer pipe through the hood! As if there isn't enough drama all ready when boost hits...but having to contend with a rocket launch as well!)

It may be a while before it gets mounted as the current set up on my car works well. Possibly a winter project.
sturovo is offline   Reply With Quote
Old 05-17-2012, 05:49 PM   #9
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by sturovo View Post
close on vacuum operated screamer pipe

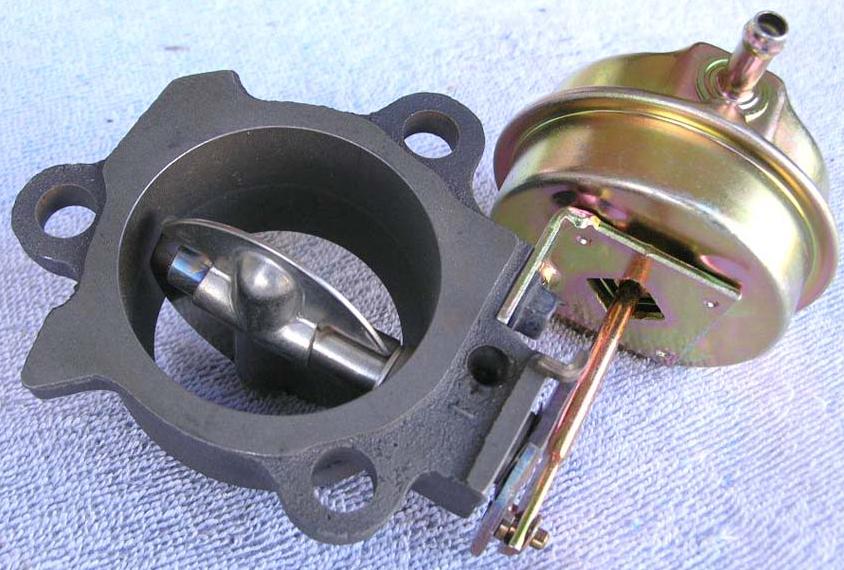

How about using a heat riser valve dumping to a screamer pipe? Has any one tried this? It closes with vacuum / opens with boost.

Probably a cabin mounted manual boost controller could be used to ramp the closing time or lock it closed.
Attached Thumbnails
Recycled exhaust manifold-heatriservalve.jpg
sturovo is offline   Reply With Quote
Old 05-17-2012, 06:14 PM   #10
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Honestly that ^ seems like a better option than the spring flapper in the muffler.

I also have the feeling this manifold will have a deep subbie type growl.

When the 2nd cylinder fires, it takes a longer path than the next #1 cylinder then they meet about together. Then the 3rd cylinder fires takes a longer path than the 4th and again they meet together.
triple88a is offline   Reply With Quote
Old 06-04-2012, 11:25 AM   #11
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

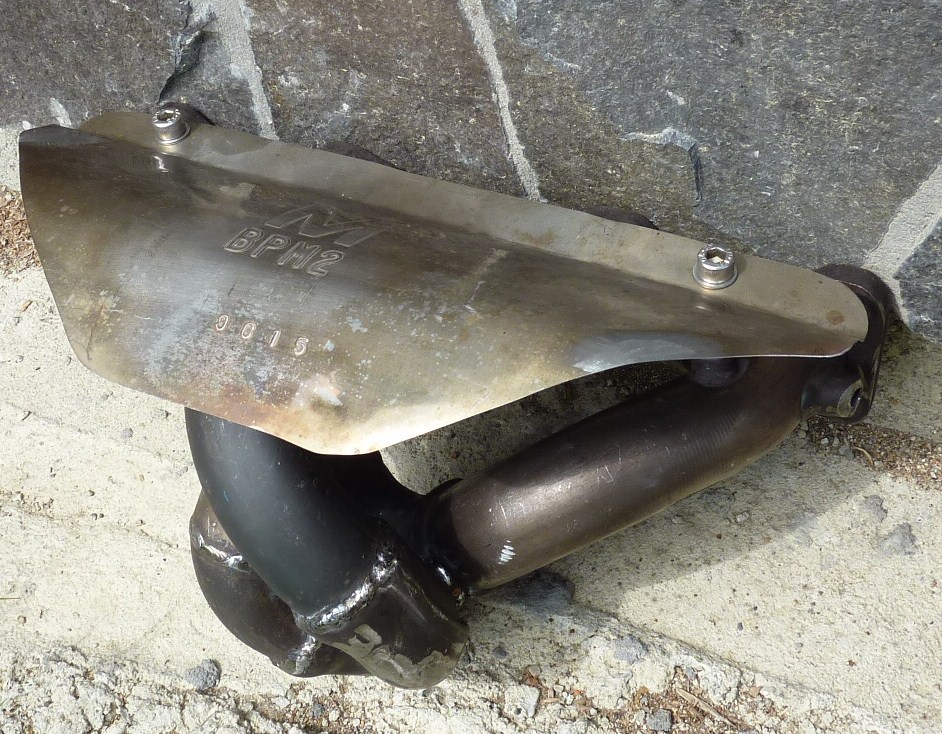

more recycling.... resonator skin to heat shield

Attached Thumbnails
Recycled exhaust manifold-p1020885.jpg
sturovo is offline   Reply With Quote
Old 06-04-2012, 12:55 PM   #12
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,484
Total Cats: 248
Default

This guy gets double props from me. Yessssss!
TurboTim is offline   Reply With Quote
Old 06-04-2012, 04:57 PM   #13
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,664
Total Cats: 1,560
Default

Cool work. When I do fab work it ends up ugly or nonfunctional.
sixshooter is offline   Reply With Quote
Old 06-04-2012, 10:26 PM   #14
Elite Member
iTrader: (3)

Join Date: Dec 2004
Location: Houston
Posts: 2,904
Total Cats: 4
Default

very cool
Pitlab77 is offline   Reply With Quote
Old 06-04-2012, 10:38 PM   #15
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,184
Total Cats: 2,582
Default

Quote:
Originally Posted by sturovo View Post


How about using a heat riser valve dumping to a screamer pipe? Has any one tried this? It closes with vacuum / opens with boost.

Probably a cabin mounted manual boost controller could be used to ramp the closing time or lock it closed.
where did you find this?
LINK?
18psi is offline   Reply With Quote
Old 06-04-2012, 11:44 PM   #16
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

wut

da

FUKKK

damn that looks better than my stupid begi log manifold.

u r a god.
Faeflora is offline   Reply With Quote
Old 06-05-2012, 03:46 AM   #17
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by 18psi View Post
where did you find this?
LINK?
http://www.ebay.com/itm/390417734620...5.l2649http://

(On ebay I searched for heat riser or efe valve)

Last edited by sturovo; 06-05-2012 at 03:56 AM.
sturovo is offline   Reply With Quote
Old 06-05-2012, 03:53 AM   #18
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by Faeflora View Post
damn that looks better than my stupid begi log manifold.
Quote:
Originally Posted by Pitlab77 View Post
very cool
Quote:
Originally Posted by sixshooter View Post
Cool work.
Quote:
Originally Posted by TurboTim View Post
Yessssss!
now suffering kind words induced Billy Elliot Electricity moment
sturovo is offline   Reply With Quote
Old 06-05-2012, 10:43 PM   #19
Junior Member

Join Date: Mar 2009
Location: Venice, FL
Posts: 179
Total Cats: 9
Default

Hideously beautiful. Very ingenious and well-done!
Orion ZyGarian is offline   Reply With Quote
Old 06-05-2012, 10:48 PM   #20
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

This thread was great until the stupid cutout was posted.
Braineack is online now   Reply With Quote
