Default Returning Car Back to Stock - Temporarily

Anybody know what size and type of fitting I need to plug the oil feed line and cap the oil pan drain fitting and where to get them?

I'd like to return the vehicle to a drivable condition while I wait (3 weeks and counting) for BEGi to send me an ic tube and dp that fits.
sv650_ck is offline   Reply With Quote
Old 01-22-2008, 09:36 PM   #2
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

I'm not sure exactly what size line begi uses.
Commonly we use -10AN i think they use -8AN line. Is the fitting in the oil pan threaded or a hose barb?
If you remove your oil line from the oil pressure adapter fitting you could plug the hole with 1/8" NPT plug from any autostore.
cjernigan is offline   Reply With Quote
Old 01-22-2008, 09:42 PM   #3
Junior Member
Thread Starter
iTrader: (9)

Join Date: Jan 2007
Posts: 455
Total Cats: 3
Default

According to their parts list the sump fitting is a AN816-10-06D. Would the part store have a cap for this?
sv650_ck is offline   Reply With Quote
Old 01-22-2008, 09:47 PM   #4
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

They might but it's not very likely.
You might have to remove the fitting in the pan and replace it with a -8 plug.
cjernigan is offline   Reply With Quote
Old 01-22-2008, 10:17 PM   #5
Junior Member
Thread Starter
iTrader: (9)

Join Date: Jan 2007
Posts: 455
Total Cats: 3
Default

Thanks - found the cap at Summit.

http://store.summitracing.com/partde...5&autoview=sku
sv650_ck is offline   Reply With Quote
Old 01-22-2008, 10:23 PM   #6
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

That will work just make sure you get the right size. Thanks again for the check valve.
cjernigan is offline   Reply With Quote
Old 01-22-2008, 10:30 PM   #7
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Or you can just leave 2 inches of the hose off the barb, put a bolt in it, clamp it with a hose clamp and drive it like that for the time being.
Saml01 is offline   Reply With Quote
Old 01-22-2008, 10:35 PM   #8
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

He doesn't have a hose barb to do that with sam he has a npt to AN fitting in the pan. Though that is a viable option for people with a hosebarb in the pan.
cjernigan is offline   Reply With Quote
Old 01-22-2008, 11:23 PM   #9
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Quote:
Originally Posted by cjernigan View Post
He doesn't have a hose barb to do that with sam he has a npt to AN fitting in the pan. Though that is a viable option for people with a hosebarb in the pan.
:(

Im guessing he cant slip a hose over the an fitting and clamp it?
Saml01 is offline   Reply With Quote
Old 01-22-2008, 11:28 PM   #10
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

There is no smooth surface, just tapered threads and a hex to tigten it. Bum deal
cjernigan is offline   Reply With Quote
Old 01-23-2008, 09:07 PM   #11
Former Vendor

Join Date: Jun 2006
Location: Bell Tuning & Performance
Posts: 1,338
Total Cats: -78
Default

Quote:
Originally Posted by sv650_ck View Post
Anybody know what size and type of fitting I need to plug the oil feed line and cap the oil pan drain fitting and where to get them?
The oil pan fitting is 3/4 NPT.
The oil feed for 96+ is 1/8 BNPT.
Stephanie
Stephanie Turner is offline   Reply With Quote
Old 01-24-2008, 10:06 AM   #12
Junior Member
Thread Starter
iTrader: (9)

Join Date: Jan 2007
Posts: 455
Total Cats: 3
Default

Quote:
Originally Posted by Stephanie Turner View Post
The oil pan fitting is 3/4 NPT.
The oil feed for 96+ is 1/8 BNPT.
Stephanie

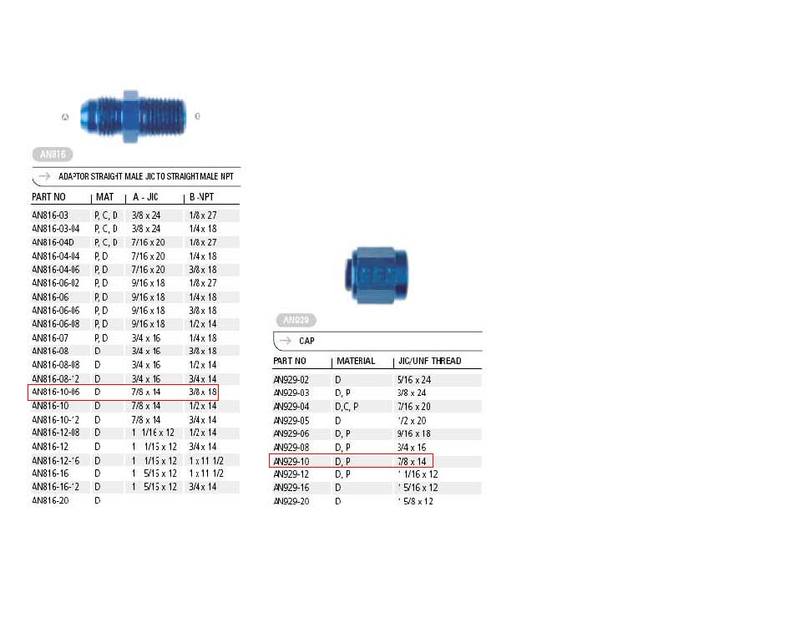

Thanks Stephanie - I decided to add an AN cap fitting to oil pan fitting. Hopefully the parts list has the correct p/n's which I went by. BTW, any updates on the NB down pipe fix? My daily driver is going in the shop so I need my miata running.

Name:  ANFitting.jpg
Views: 2
Size:  37.6 KB
sv650_ck is offline   Reply With Quote
Old 01-24-2008, 11:34 PM   #13
Junior Member

Join Date: Jul 2006
Posts: 88
Total Cats: 0
Default

A spare AN fitting can be turned into a plug by filling it with JB Weld.


The oil line you can plug with a bolt and clamp.
retro is offline   Reply With Quote
