RX-8 injector fitment question - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 03-31-2011, 01:09 AM   #1
Slowest Progress Ever
Thread Starter
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default RX-8 injector fitment question

http://www.fiveomotorsport.com/impor...s/?itemid=1116

I found those injectors, and just wondered as I know a few members are running them. Do they fit just like the stock injectors do? They look the same, just a different color. Do the electrical connections fit with no issues also?
thirdgen is offline   Reply With Quote
Old 03-31-2011, 03:04 AM   #2
Junior Member

Golferluke's Avatar

Join Date: Oct 2009
Location: Springfield, MO
Posts: 497
Total Cats: 3
Default

According to the wiki the numbers line up. http://miataturbo.wikidot.com/fuel-injectors

IanFerrell(spelling lol? Sorry Ian) is using rx8 injectors, they are a complete stock drop in, no modifications. I'd pm him if you have questions.
Golferluke is offline   Reply With Quote
Old 03-31-2011, 06:15 AM   #3
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

They drop straight in, though they're very right around the o-ring.
richyvrlimited is offline   Reply With Quote
Old 03-31-2011, 09:40 AM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,854
Total Cats: 1,788
Default

dont you already have injectors?

Looks like over $270 for 4, you can do better with that.
Braineack is offline   Reply With Quote
Old 03-31-2011, 09:54 AM   #5
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

You need these: http://cgi.ebay.com/ebaymotors/4-EV1...Q5fCarQ5fParts

They will idle better than the injectors you posted above, will be more consistent and provide a lot more headroom. Completely PNP.
Reverant is offline   Reply With Quote
Old 03-31-2011, 10:21 AM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,854
Total Cats: 1,788
Default

the dead time is amazing.
Braineack is offline   Reply With Quote
Old 03-31-2011, 10:28 AM   #7
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Which is why the idle quality is so win.
Reverant is offline   Reply With Quote
Old 03-31-2011, 10:29 AM   #8
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,181
Total Cats: 2,579
Default

Wow, those EV's definitely look like win. Never seen em before, and the pricing is great.
18psi is offline   Reply With Quote
Old 03-31-2011, 10:31 AM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,854
Total Cats: 1,788
Default

anyone wanna buy rx7 550s? they were just flowed, haven't even recieved them back from DW yet.
Braineack is offline   Reply With Quote
Old 03-31-2011, 10:49 AM   #10
Slowest Progress Ever
Thread Starter
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

I must've looked at the link I originally posted too fast. I thought it was $74.99 for the set of 4 injectors, not by the piece. ****.
I figure, my 460's have been bad luck for me. Time to go with a different style, and I'm thinking something more like the 195500-4450.
thirdgen is offline   Reply With Quote
Old 03-31-2011, 10:50 AM   #11
Junior Member

kday's Avatar

Join Date: Aug 2008
Location: Boston
Posts: 223
Total Cats: 0
Default

I used the yellow RX8 injectors. Plug and play.
I paid like $50 on ebay though.
kday is offline   Reply With Quote
Old 05-29-2011, 10:46 AM   #12
Newb

Join Date: Jan 2011
Location: Columbia SC
Posts: 26
Total Cats: 0
Default

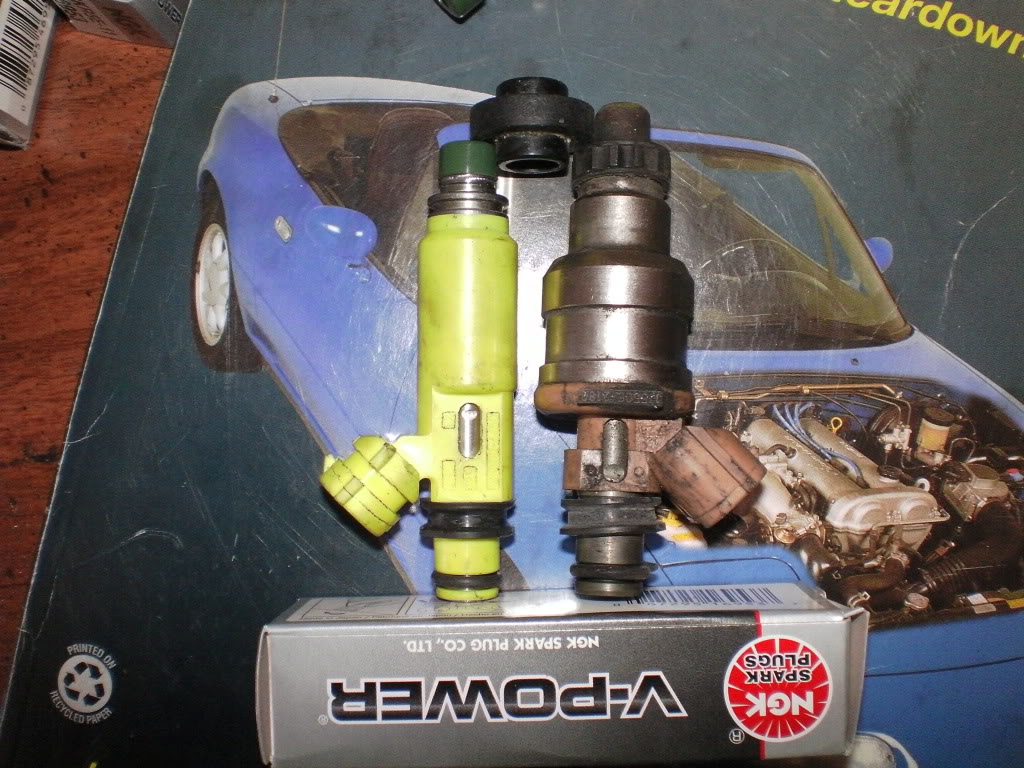

Name:  zk.jpg
Views: 58
Size:  180.6 KB
lose the spacer they fit
guestlive85 is offline   Reply With Quote
Old 05-29-2011, 07:09 PM   #13
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

No you keep the spacer. You don't have the rubber injector to head seal on the RX8 injector on that picture.

If anything the RX8 injectors are slightly longer than the OEM ones.
richyvrlimited is offline   Reply With Quote
Old 05-29-2011, 08:27 PM   #14
Newb

Join Date: Jan 2011
Location: Columbia SC
Posts: 26
Total Cats: 0
Default

[QUOTE=richyvrlimited;732465]No you keep the spacer. You don't have the rubber injector to head seal on the RX8 injector on that picture.

you got a pic or part number?
guestlive85 is offline   Reply With Quote
Old 05-29-2011, 10:38 PM   #15
Senior Member
iTrader: (9)

Join Date: Sep 2009
Location: Yamato Japan
Posts: 692
Total Cats: 26
Default

Go to FIC and ask them for some EV14's. Custom fit to your setup, about $50 a piece. He gave me a military discount ON TOP of that price. I call them up for every car I own.
tasty danish is offline   Reply With Quote
Old 06-01-2011, 07:24 AM   #16
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

[QUOTE=guestlive85;732485]
Quote:
Originally Posted by richyvrlimited View Post
No you keep the spacer. You don't have the rubber injector to head seal on the RX8 injector on that picture.

you got a pic or part number?
Not sure why you want a picture, it's in your previous post.

http://www.mx5parts.co.uk/product_in...oducts_id/1222
richyvrlimited is offline   Reply With Quote
Old 06-01-2011, 10:20 AM   #17
Newb

Join Date: Jan 2011
Location: Columbia SC
Posts: 26
Total Cats: 0
Default

[QUOTE=richyvrlimited;733295][QUOTE=guestlive85;732485]

Not sure why you want a picture, it's in your previous post.

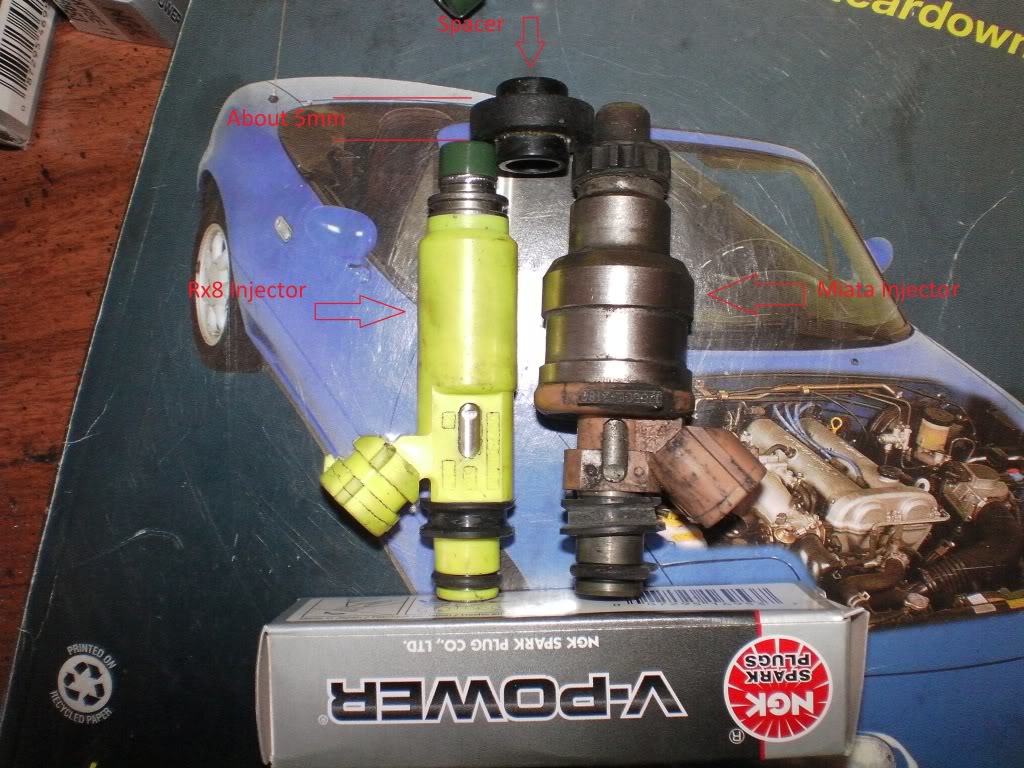

I was just making sure there's not some special injector to head seal that increases the over length of the injector. I didn't explain that original picture very well. I was trying to show the how the difference in injector length is about the same as the thickness of the spacer. So when I put the RX8 injectors in I just had to leave the spacer out and now they fit fine.
Name:  zk-1.jpg
Views: 94
Size:  169.5 KB
guestlive85 is offline   Reply With Quote
Old 06-01-2011, 10:26 AM   #18
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,854
Total Cats: 1,788
Default

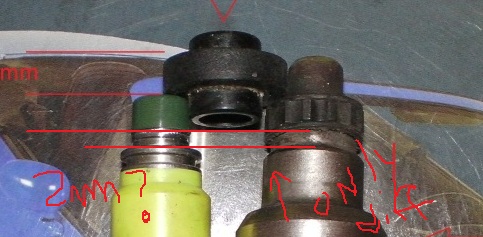

they only look shorter by about 2mm.



the amount the pintle sticks out doesn't matter. What matters is how short they are once they are fit into the head/manifold.

it looks like the edge the insulator sits on is about 2mm off.
Attached Thumbnails
RX-8 injector fitment question-injector_difference.jpg
Braineack is offline   Reply With Quote
Old 06-01-2011, 10:30 AM   #19
Junior Member

Join Date: Jun 2007
Posts: 411
Total Cats: 0
Default

So anyone have the dead time for these rx-8 injectors?
Greg G is offline   Reply With Quote
Old 06-01-2011, 10:46 AM   #20
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,854
Total Cats: 1,788
Default

my guess is the 0.8ms range at ~13.5v. See JasonC SBB's how to find injector dead time post.
Braineack is offline   Reply With Quote
