Old 03-22-2014, 11:04 AM   #21
Junior Member
Thread Starter

Join Date: Mar 2014
Location: Bartlett, Tn
Posts: 107
Total Cats: 2
Default

[QUOTE=2manyhobyz;1113961]
Quote:
Originally Posted by jmuse8482 View Post
So here are some pics... Going to modify this manifold to take an external wastegate and add allot of support. Got this for cheap on ebay... Didnt want to spend allot if this falls through and turns out to be ***.

Go for it. Support it well, see how it goes. You will also need to support the down pipe off the trans then a flex piece. Less is more. What's the compressor housing lying on the floor in the one pic?

HT18S-2S.... Turbo from and FC Rx7.. Funny you should say something about that... I got to looking at it the other night and, the compressor wheel is remarkably similiar to the S200. Its the close to the same size but just a pinch smaller as far as exd and ind measurments go. What is different is the # of blades.. It has less..
jmuse8482 is offline   Reply With Quote
Old 03-26-2014, 10:01 AM   #22
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

This turbo should work pretty well once it spools. It should be comparable to a 2871R in flow. Big turbine wheel will be higher flow up top with slower spool but the 0.64 housing will bring that down.

Borgs are always odd in sizing compared to garrett, but they work really really well.
shlammed is offline   Reply With Quote
Old 03-26-2014, 11:43 AM   #23
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

I believe our friend David has swapped this turbo for an SR20 unit and is now on the lookout for a used FM/Begi cast manifold. Like a boss.
concealer404 is offline   Reply With Quote
Old 03-26-2014, 11:48 AM   #24
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

It's the less interesting way to do it, but also the way that will see the car still driving at this time next year.
thenuge26 is offline   Reply With Quote
Old 03-29-2014, 10:10 PM   #25
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,354
Total Cats: 1,322
Default

Are we banning people for suggesting that eBay manifolds are anything other than absolute and utter garbage yet?
Savington is online now   Reply With Quote
Old 03-29-2014, 10:17 PM   #26
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,168
Total Cats: 2,573
Default

we should
18psi is offline   Reply With Quote
Old 04-22-2014, 09:28 PM   #27
Elite Member
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Oh man, I have the borg warner bug and was excited to see how this ended up. What, if anything, happened to that turbo?
buffon01 is offline   Reply With Quote
Old 04-22-2014, 09:55 PM   #28
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,924
Total Cats: 526
Default

I don't get the logic of going with an eBay manifold, even for a test, if you plan to go turbo eventually. Here's why:

eBay manifold: $100
Approximate value after cracking: $15
After you decide you need a quality manifold and buy a new one, new BEGi mani: $400.
Total cost: $485

VS

new BEGi manifold: $400
Total cost: $400

turbofan is offline   Reply With Quote
Old 04-22-2014, 10:18 PM   #29
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

Ebay manifold is documented fail aids.
Fireindc is offline   Reply With Quote
Old 04-23-2014, 03:46 AM   #30
Senior Member

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by Fireindc View Post
Ebay manifold is documented fail aids.

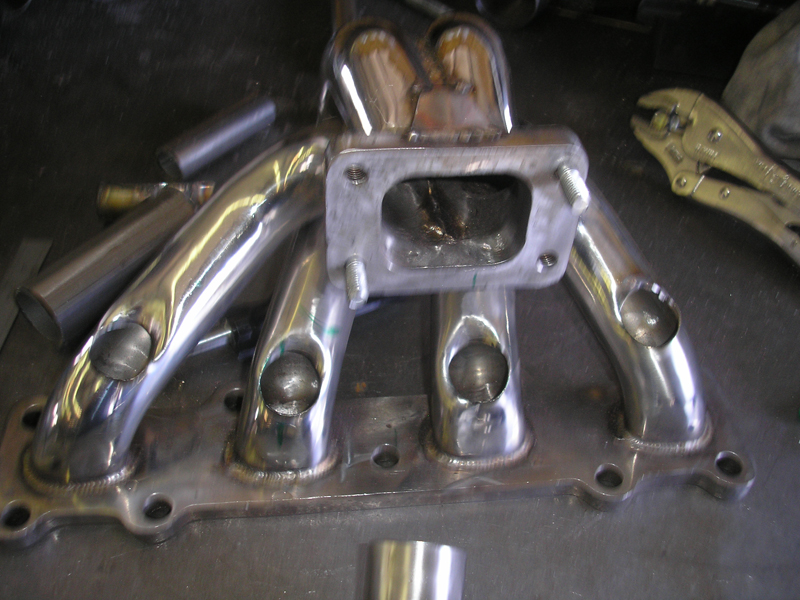

Those early s4 / ebay manifolds are prone to cracking as they use 1mm thick tubing. This is a pity as otherwise the design is pretty great. AC, PS, stock coolant compatible, room for a 3 inch downpipe and a decent collector design.



It is possible to beef them up by adding braces etc but it kind of defeats the low $ theme.
https://www.miataturbo.net/build-thr...e2/#post992615

It has been said many times before but worth repeating... Mr. Ebay why not increase the wall thickness?
Attached Thumbnails
Schwitzer S200 Opinions?-p2245774.jpg
sturovo is offline   Reply With Quote
Old 04-23-2014, 09:47 AM   #31
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

Guys, the S200 is gone, and he's not using an Ebay manifold. You can all straighten your panties now.
concealer404 is offline   Reply With Quote
Old 04-23-2014, 10:22 AM   #32
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by concealer404 View Post
Guys, the S200 is gone, and he's not using an Ebay manifold. You can all straighten your panties now.
But, but I like when my panties are all bunched up.
shuiend is offline   Reply With Quote
Old 04-23-2014, 10:29 AM   #33
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

Stimulates the knot pretty well, doesn't it?
concealer404 is offline   Reply With Quote
Old 04-23-2014, 12:35 PM   #34
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,924
Total Cats: 526
Default

But... But... Why is it gone? :-(
turbofan is offline   Reply With Quote
Old 04-23-2014, 03:01 PM   #35
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,647
Total Cats: 1,559
Default

FWIW, that was a turbo designed for a small diesel application, just by the specs - very small compressor inducer with relatively large exducer and disproportionately large turbine compared to the compressor.
sixshooter is online now   Reply With Quote
