Default Schwitzer S200 Opinions?

Okay.... make a long story short....have a good friend that works for BW Schwitzer. I ended up with a S200 that he gave me....New never used. They build test turbos then throw them away once tested (prototypes). Anyway.. this turbo is T3 flanged single entry .64, turbine=47/63.......comp=45/64 has a dual 7 blade wheel.... I have no trim numbers for the comp housing..... Since it is a one off turbo (not knowing whether it is going to be good for low pressure midrange or high), I know its kinda vague, but going off of said crap above..... should I try it/sell it/and or find another turbo?
jmuse8482 is offline   Reply With Quote
Old 03-19-2014, 10:14 PM   #2
Senior Member

Join Date: Nov 2010
Location: Pittsburgh PA
Posts: 1,196
Total Cats: 12
Default

If you have to ask; you're probably not able to build a one off setup.

If it is this turbo - Borg Warner S200 320 to 580 HP Turbo - AGP Turbochargers, Inc. Store

It's way too big.





Try to avoid "text....speak". People will take questions posed more seriously.
2ndGearRubber is offline   Reply With Quote
Old 03-19-2014, 10:37 PM   #3
Junior Member
Thread Starter

Join Date: Mar 2014
Location: Bartlett, Tn
Posts: 107
Total Cats: 2
Default

Its not that turbo by any means. Fact of the matter is, its not a turbo your going to find..... Wasnt asking if it would work.... I know the engine will spool it... how it will behave and perform on the other hand since I am map-less with this turbo and, as stated above.... I have the only one. I am new to the BP Turbo world and to this forum.. Not turbo engines completely. It was opinions wether should I, or should I not try it... Not to insult my Intellegence..

Last edited by jmuse8482; 03-19-2014 at 11:04 PM.
jmuse8482 is offline   Reply With Quote
Old 03-20-2014, 09:37 AM   #4
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

That sounds like a weird turbo to me. The compressor seems really small for the size of the turbine wheel. Did your buddy give you any info with the turbo since I mean, they did already test it. I wouldnt try to sell it, your friend could possible get in trouble for letting that turbo get out into the wild when I'm sure it was supposed to be sent to the metal recycler. If you can weld, what do you have to loose besides like a weekend of your life and a couple hundred dollars in materials building a manifold and downpipe for a turbo that may or maynot be any good. I'm sure it will be fine, at worst you can put the Brainy special ebay t3 on that manifold and just adjust the downpipe to fix it.

*Note: this differs from my normal advice because this turbo could be cool maybe.
Leafy is offline   Reply With Quote
Old 03-20-2014, 10:09 AM   #5
Junior Member
Thread Starter

Join Date: Mar 2014
Location: Bartlett, Tn
Posts: 107
Total Cats: 2
Default

Well... I did a few things.... I took the turbo back apart again and did some measuring just double check. And this is what I came up with :
Turbo : S200
(divide comp ind by exd = 73 trim)
Compressor specs : 46mm ind / 63 exd
Turbine specs : 46mm ind / 57mm exd
Looks to be a .064 turbine housing....has a Renualt badge on the comp housing.
Its kinda wierd actually because the compressor is a dual 7 blade type which usually means it was intended for higher pressures, but the trim of the compressor is high which would indicate Higher Flow... So where ever this turbos sweet spot in its efficiency range is debatable. Ill step out on a limb and guess full boost from 3k to 4k and an efficiency anywhere from 12-18 psi with maybe 300hp. But yeah, really dont have anything to loose but time so I might as well try it.
jmuse8482 is offline   Reply With Quote
Old 03-20-2014, 10:26 AM   #6
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

As long as it's T3 I'd give it a shot. At worst you'd have to redo your downpipe if it sucks and you want a different turbo.

Since I'm building your old truck, I have some Supertechs and rods that I won't be using for a bit if you want to buy them off me.
thenuge26 is offline   Reply With Quote
Old 03-20-2014, 10:29 AM   #7
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by thenuge26 View Post
As long as it's T3 I'd give it a shot. At worst you'd have to redo your downpipe if it sucks and you want a different turbo.

Since I'm building your old truck, I have some Supertechs and rods that I won't be using for a bit if you want to buy them off me.
At the very very worst it sucks alot and you just buy a smaller off the shelf s200 that drops right in. I think the smallest s200 they make would be pretty decent in a miata.
Leafy is offline   Reply With Quote
Old 03-20-2014, 10:30 AM   #8
Junior Member
Thread Starter

Join Date: Mar 2014
Location: Bartlett, Tn
Posts: 107
Total Cats: 2
Default

Quote:
Originally Posted by thenuge26 View Post
As long as it's T3 I'd give it a shot. At worst you'd have to redo your downpipe if it sucks and you want a different turbo.

Since I'm building your old truck, I have some Supertechs and rods that I won't be using for a bit if you want to buy them off me.
Just pm me with info and prices.
jmuse8482 is offline   Reply With Quote
Old 03-20-2014, 10:57 AM   #9
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Clear your PMs and I'll do that
thenuge26 is offline   Reply With Quote
Old 03-20-2014, 11:08 AM   #10
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 782
Default

Or i can send both you fruitcakes each others' phone numbers, since apparently you've both lost them.



But yeah, i'd give this turbo a shot. **** it, who cares? If it's too laggy for a BP, give it to me for cheap and i'll see what it does on an F2T or something.
concealer404 is online now   Reply With Quote
Old 03-20-2014, 11:16 AM   #11
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

But then I have to type with my thumbs instead of on a real keyboard...
thenuge26 is offline   Reply With Quote
Old 03-20-2014, 11:17 AM   #12
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 782
Default

Swype, dude. Swype.
concealer404 is online now   Reply With Quote
Old 03-20-2014, 11:21 AM   #13
Junior Member
Thread Starter

Join Date: Mar 2014
Location: Bartlett, Tn
Posts: 107
Total Cats: 2
Default

Quote:
Originally Posted by concealer404 View Post
Or i can send both you fruitcakes each others' phone numbers, since apparently you've both lost them.



But yeah, i'd give this turbo a shot. **** it, who cares? If it's too laggy for a BP, give it to me for cheap and i'll see what it does on an F2T or something.
Yeah I plan on trying it just to see.....Yeah I think we both know what would happen with it on a F2.
jmuse8482 is offline   Reply With Quote
Old 03-20-2014, 11:22 AM   #14
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 782
Default

Quote:
Originally Posted by jmuse8482 View Post
Yeah I plan on trying it just to see.....Yeah I think we both know what would happen with it on a F2.
Lots and lots of surge?
concealer404 is online now   Reply With Quote
Old 03-20-2014, 11:30 AM   #15
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by concealer404 View Post
Lots and lots of surge?
Maybe. Its kind of a weird turbo, big turbine wheel in a housing thats a bit small for it, combined with a small comp wheel.
Leafy is offline   Reply With Quote
Old 03-20-2014, 11:34 AM   #16
Junior Member
Thread Starter

Join Date: Mar 2014
Location: Bartlett, Tn
Posts: 107
Total Cats: 2
Default

Quote:
Originally Posted by Leafy View Post

Maybe. Its kind of a weird turbo, big turbine wheel in a housing thats a bit small for it, combined with a small comp wheel.
Dunno.... F2's are ****** of the Mazda World. They will take almost anything and like it.
jmuse8482 is offline   Reply With Quote
Old 03-21-2014, 09:39 PM   #17
Junior Member
Thread Starter

Join Date: Mar 2014
Location: Bartlett, Tn
Posts: 107
Total Cats: 2
Default

Quote:
Originally Posted by jmuse8482 View Post

Dunno.... F2's are ****** of the Mazda World. They will take almost anything and like it.

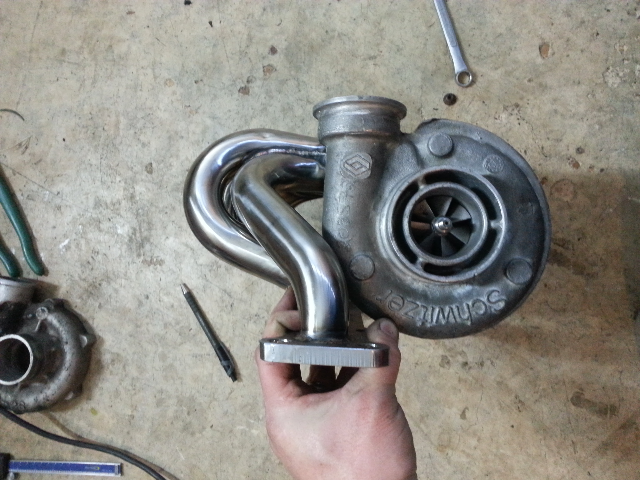

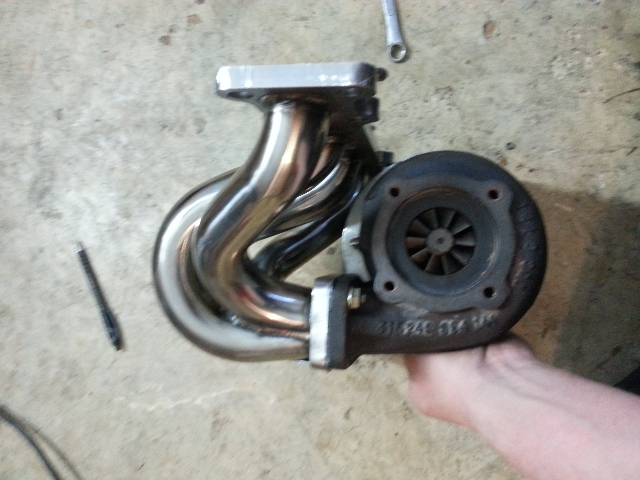

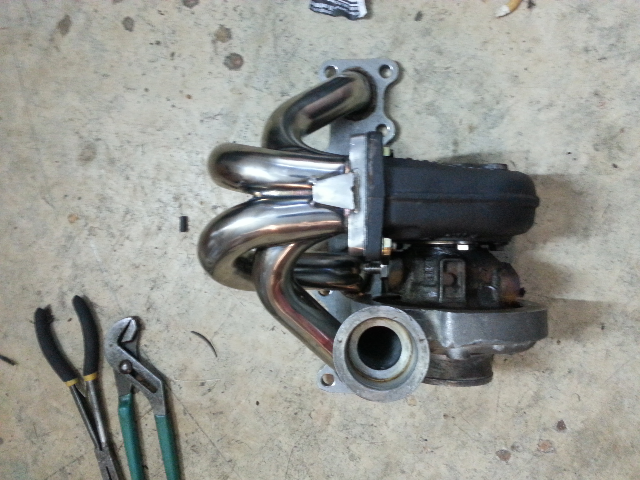

So here are some pics... Going to modify this manifold to take an external wastegate and add allot of support. Got this for cheap on ebay... Didnt want to spend allot if this falls through and turns out to be ***.

Schwitzer S200 Opinions?-forumrunner_20140321_193839.png



Schwitzer S200 Opinions?-forumrunner_20140321_193852.png



Schwitzer S200 Opinions?-forumrunner_20140321_193904.png
jmuse8482 is offline   Reply With Quote
Old 03-22-2014, 09:46 AM   #18
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by jmuse8482 View Post
So here are some pics... Going to modify this manifold to take an external wastegate and add allot of support. Got this for cheap on ebay... Didnt want to spend allot if this falls through and turns out to be ***.
It will fall through and turn out to be ***. You have a one of a kind turbo and you go and buy a manifold that WILL FAIL, it is such stupidity. You can build one that will last for cheaper, here is a thread about it.
shuiend is offline   Reply With Quote
Old 03-22-2014, 10:52 AM   #19
Junior Member
Thread Starter

Join Date: Mar 2014
Location: Bartlett, Tn
Posts: 107
Total Cats: 2
Default

Well I used this exact manifold on the FE3 Stroker I built for my B2200. Which TheNuge now has minus the engine. I supported it allot and it turned out fine... Now concealor404 HAS told be that FE3"s "dont shake like Micheal J Fox as BP does". So you are right... It could turn out to be *** and the manifold could and or will crack and break..... Or the turbo could turn out to be ***. If the turbo turns out great or just okay.... im going to build another manifold from scheduled 40 weld bend pipe. This is by no means perminant. It is the cheapest alternative to find out what how rhis turbo is going to behave.
jmuse8482 is offline   Reply With Quote
Old 03-22-2014, 10:59 AM   #20
Senior Member
iTrader: (4)

2manyhobyz's Avatar

Join Date: Feb 2011
Location: Joliet, IL
Posts: 622
Total Cats: 16
Default

[QUOTE=jmuse8482;1113878]So here are some pics... Going to modify this manifold to take an external wastegate and add allot of support. Got this for cheap on ebay... Didnt want to spend allot if this falls through and turns out to be ***.

Go for it. Support it well, see how it goes. You will also need to support the down pipe off the trans then a flex piece. Less is more. What's the compressor housing lying on the floor in the one pic?
2manyhobyz is offline   Reply With Quote
