Old 07-09-2013, 01:27 AM   #21
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

'GRATS MAN!!

That 1st time hitting boost is a feeling that can only be replicated by the 1st time hitting BIG BOOST with a built engine
18psi is offline   Reply With Quote
Old 07-09-2013, 09:34 AM   #22
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

Quote:
Originally Posted by Braineack View Post
can i have the old compressor and housing?
offer still stands; 4 years later.
Braineack is offline   Reply With Quote
Old 07-09-2013, 10:10 AM   #23
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,240
Total Cats: 290
Default

You've got the original SSA top mount manifold. Nothitblock is bottom mount. Meanwhile you should figure out a brace for it, or it will hit block. Congrats!
m2cupcar is offline   Reply With Quote
Old 07-09-2013, 01:34 PM   #24
Elite Member
Thread Starter
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Thanks everyone, but I've got a problem. That tial wastegate has a 10psi spring installed (Big yellow, should be 10.15psi) shows regular pressure of making 14psi in data logs saturday and sunday night, and was making 23psi last night. We're not talking spikes, I mean solid 23psi. Bad. Wastegate signal source is from the intake manifold, compressor does not have a tapped boss for vacuum/pressure signal.

Is the incredibly shitty design of this manifold venting off just the number 4 cylinder the reason for this?
elesjuan is offline   Reply With Quote
Old 07-09-2013, 01:47 PM   #25
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

Definitely not. ETD long tubes do it the same way and have no problem staying under even 10psi

Either you have a stiffer spring, or maybe the wg is stuck somehow?
18psi is offline   Reply With Quote
Old 07-09-2013, 01:48 PM   #26
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,240
Total Cats: 290
Default

I doubt it. DCVN has the SSA manifold, 38mm TiAL and is using the EWG port w/o issue. Y8s mani was the same #4 design with a 38mm EWG and he didn't have issues.
m2cupcar is offline   Reply With Quote
Old 07-09-2013, 02:21 PM   #27
Elite Member
Thread Starter
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Okay ill look into the spring. The gate came with a small red and a large yellow, I used the yellow and it was quite the bitch to install. Bought it second hand off a forum member and promptly disassembled it for inspection, noticed it had the large yellow spring installed and the diaphragm was slightly pinched between the cover and base of the gate so I took great care ensuring that didn't happen again. Could there be damage to the diaphragm?

My original inspection didn't appear there was a tear in the rubber or whatever material it's made from..
elesjuan is offline   Reply With Quote
Old 07-09-2013, 02:29 PM   #28
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,240
Total Cats: 290
Default

fwiw- The large spring is going to be the higher wg pressure.
m2cupcar is offline   Reply With Quote
Old 07-09-2013, 10:43 PM   #29
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,071
Total Cats: 253
Default

PM me if you want/need different springs. My mvs came with a **** ton that I don't need.
viperormiata is offline   Reply With Quote
Old 07-10-2013, 12:40 AM   #30
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

Put the smaller spring in or have a very short-lived turbo miata experience, LOL.

Seriously congrats though.
Fireindc is offline   Reply With Quote
Old 07-12-2013, 01:48 AM   #31
Elite Member
Thread Starter
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

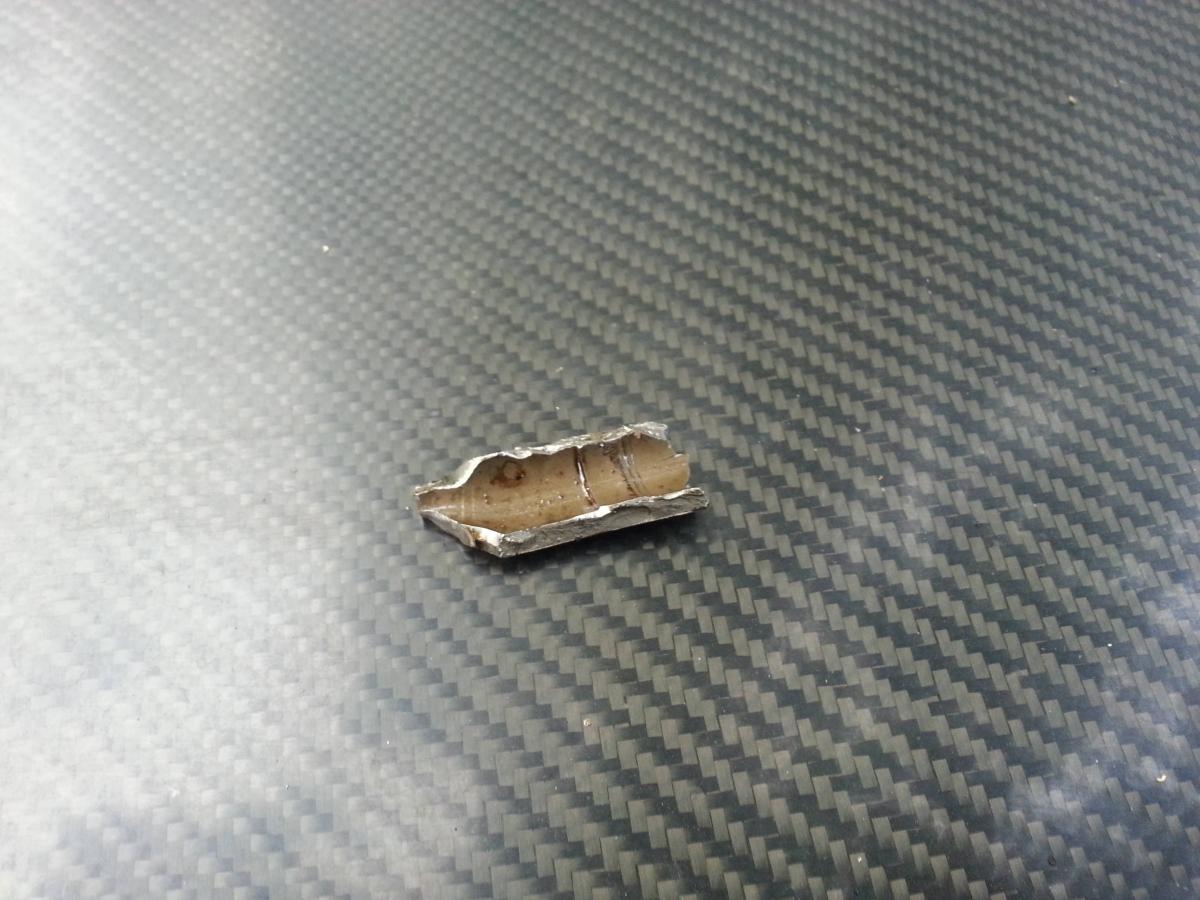

Think the only reason I'd even admit to this is because I'm fairly drunk right now. Something came out...




Pulling the engine tomorrow evening to investigate what might've happened.. All I can say is OH MY GOD, boost is AMAZING. I realized something just now. Before messing with anything I had a pretty regular 14psi manifold pressure but the BOV wasn't opening, in fact it actually ended up blowing off my hotside boost pipe on a full throttle dump. Took the valve off the car, removed one of the springs so it would actually function then it started making enormous boost. After typing that, I'm not sure why that'd even be related. I'll be placing the 5psi spring in the wastegate and playing with EBC I Think.

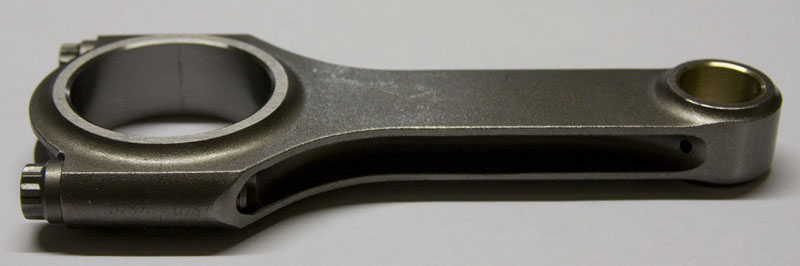

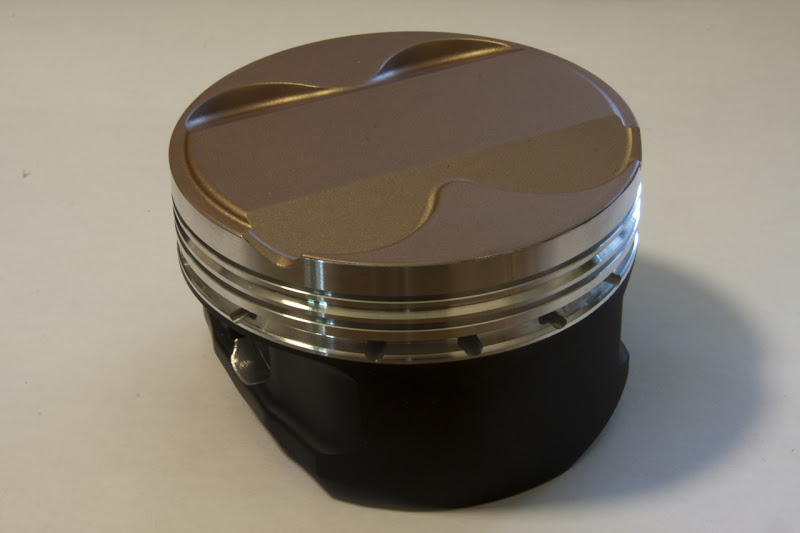

Regardless of what came out I'm actively searching for a reputable machine shop for a block that's been waiting for these:




Part of the reason I never actually started the motor build is I'm afraid that'll get blown up too. Guess you only live once, and there's really only one way to find out. Decided from here on out I'm going to change my tuning tactic by reducing my spark table by 3 or 4 degrees in boost then increase the cells in VE table by +40% across ALL cells above 100kpa then I'll tune it to lean out instead of the other way around.... Maybe with some luck a built motor might handle 23psi on a regular basis..
Attached Thumbnails
Scott's Turbo build!!  (Finally!)-wnkdmqs.jpg   Scott's Turbo build!!  (Finally!)-img_8175.jpg   Scott's Turbo build!!  (Finally!)-img_0137.jpg
elesjuan is offline   Reply With Quote
Old 07-12-2013, 01:50 AM   #32
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

#YOLO
FRT_Fun is offline   Reply With Quote
Old 07-12-2013, 02:36 AM   #33
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

welp

that was fast

lol
18psi is offline   Reply With Quote
Old 07-12-2013, 02:40 AM   #34
Elite Member
Thread Starter
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

So the guy who occupies the office next to mine is a mazdaspeed3 owner who said, "zoom zoom boom.." to describe boosted mazdas. I blame him.

That was awful quick but I'm not even upset or really that embarrassed about it. I'm still learning and well, **** happens. My biggest enemy is patients which eventually run out then I start doing silly **** that I'd normally never do. With any luck it'll be on the road again by next weekend.
elesjuan is offline   Reply With Quote
Old 07-12-2013, 11:38 PM   #35
Elite Member
Thread Starter
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Andy came over to help me pull the motor out and now I'm pissed.


The wastegate signal line burst. That's what caused 23psi. Still mad at myself for not seeing that high of a pressure until it was too late.

Time for a built motor. To be continued.



Lesson learned: The next motor will have a -4AN stainless braided line for the wastegate signal.
elesjuan is offline   Reply With Quote
Old 07-13-2013, 02:48 AM   #36
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

my friend had that happen on a 2jz single snail mk3 poopra

went from 18psi to ALLOFIT while racing my other friend...looked like VTAK KICKED IN YO!!

fun stuff

you live and you learn lol
18psi is offline   Reply With Quote
Old 07-13-2013, 02:11 PM   #37
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

LOL, damn. Boom goes the dynamite.
Fireindc is offline   Reply With Quote
Old 07-13-2013, 07:07 PM   #38
Elite Member
Thread Starter
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Attached Thumbnails
Scott's Turbo build!!  (Finally!)-23239800.jpg
elesjuan is offline   Reply With Quote
Old 07-15-2013, 10:31 PM   #39
Elite Member
Thread Starter
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

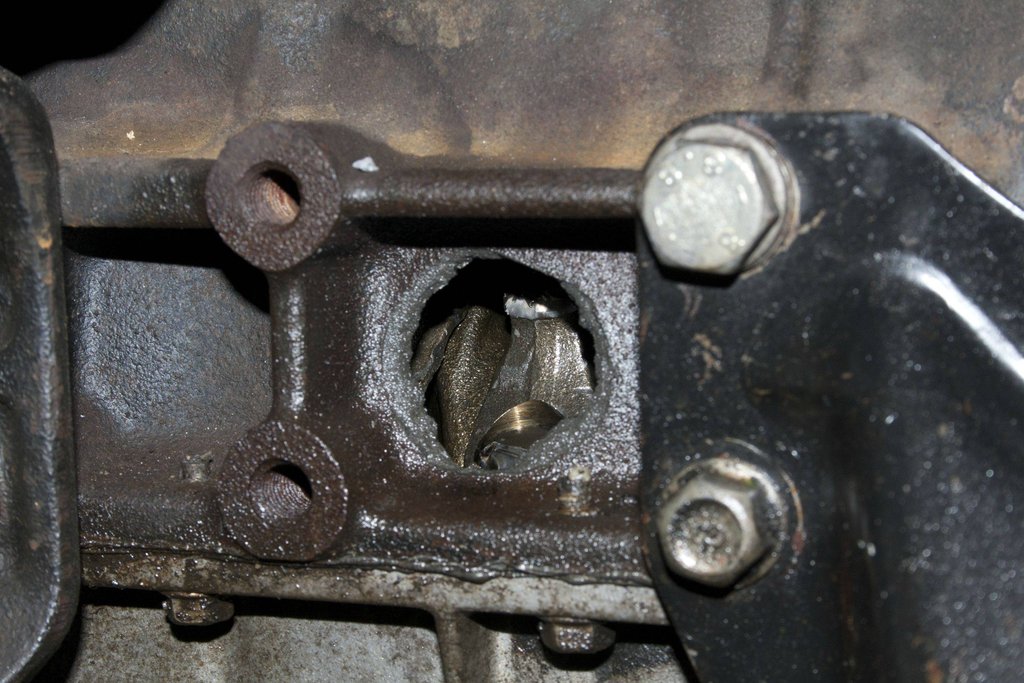

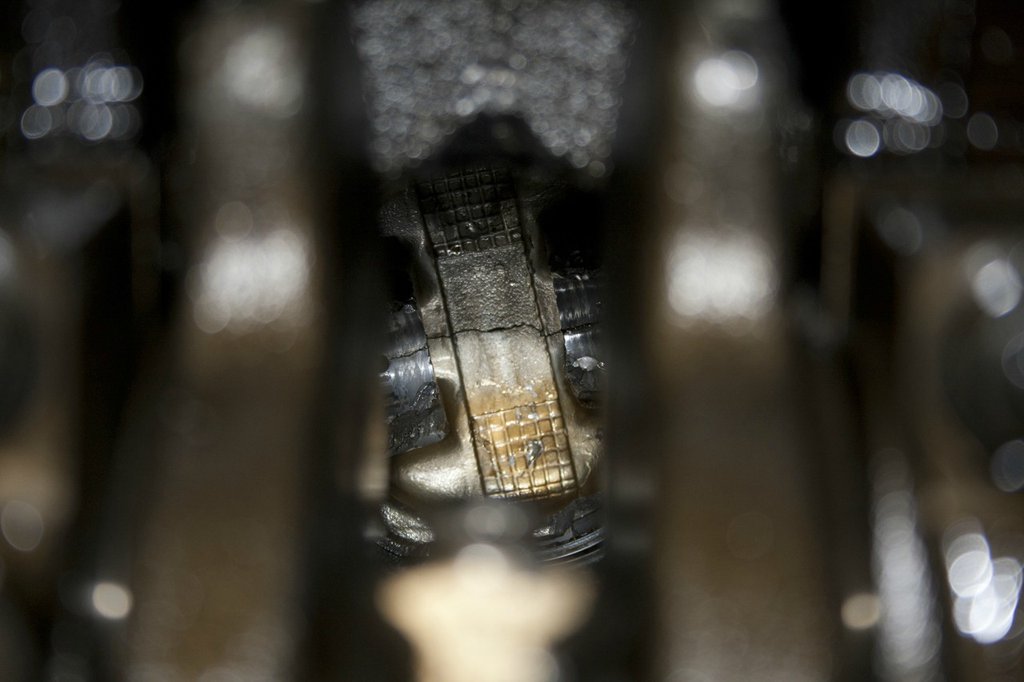

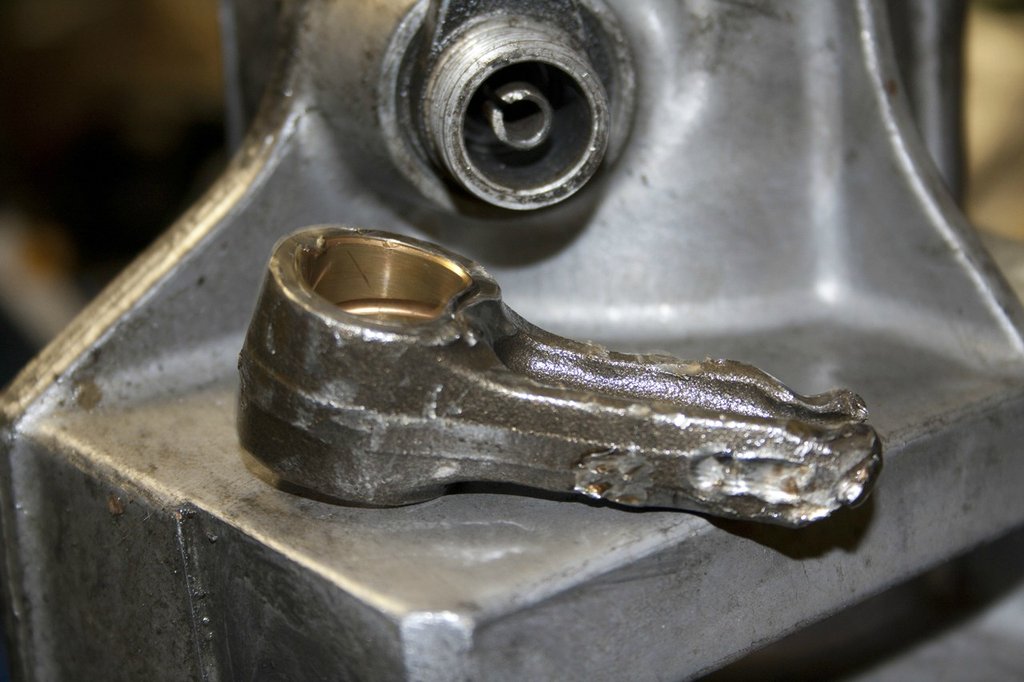

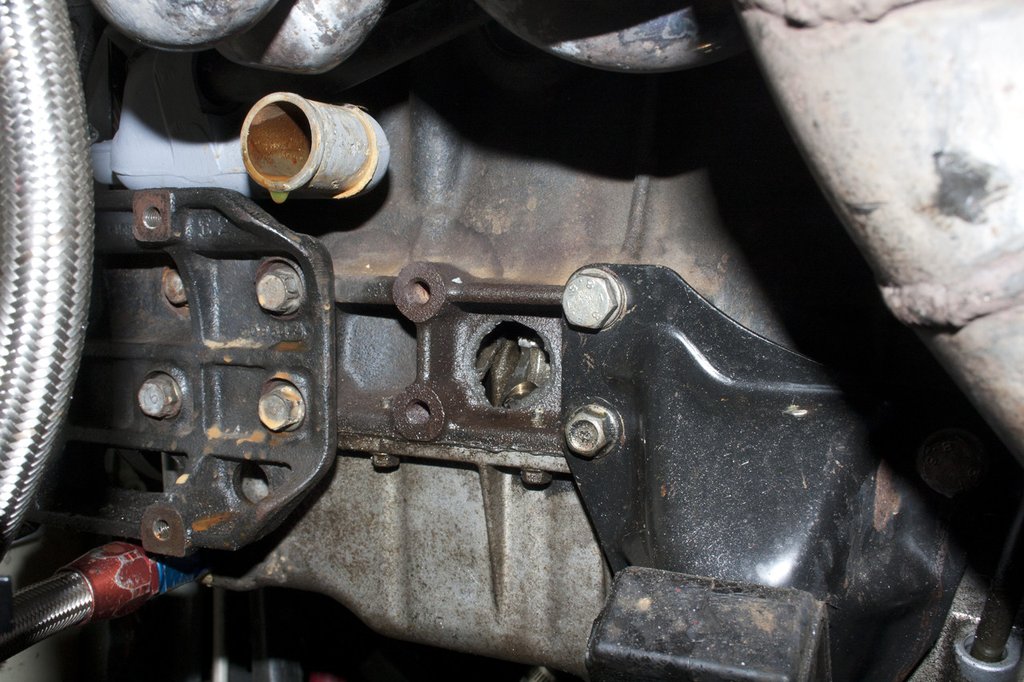

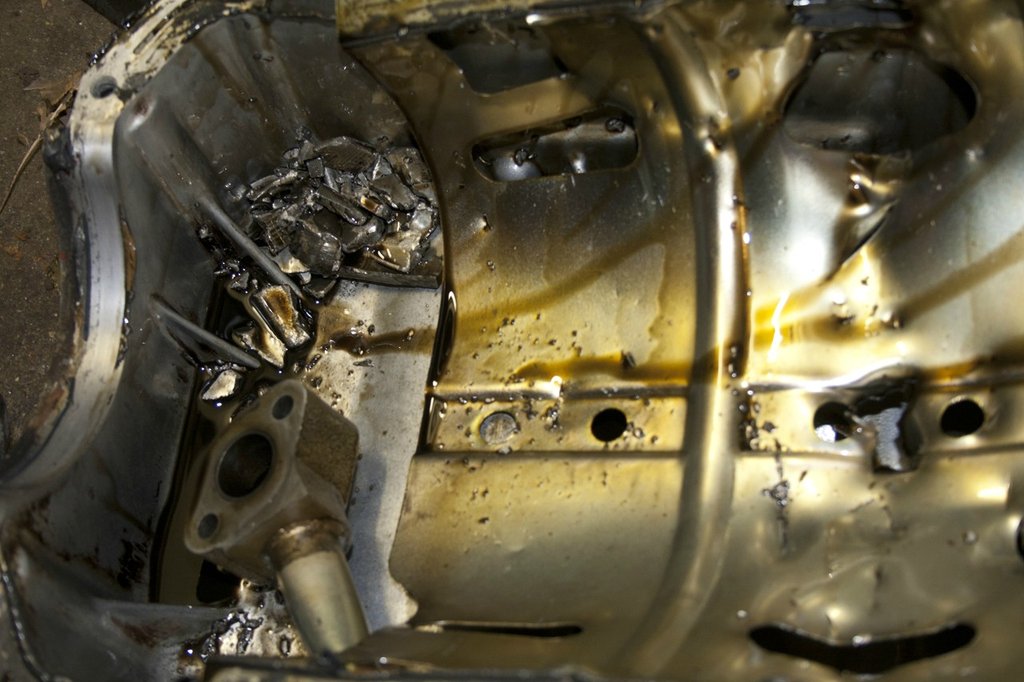

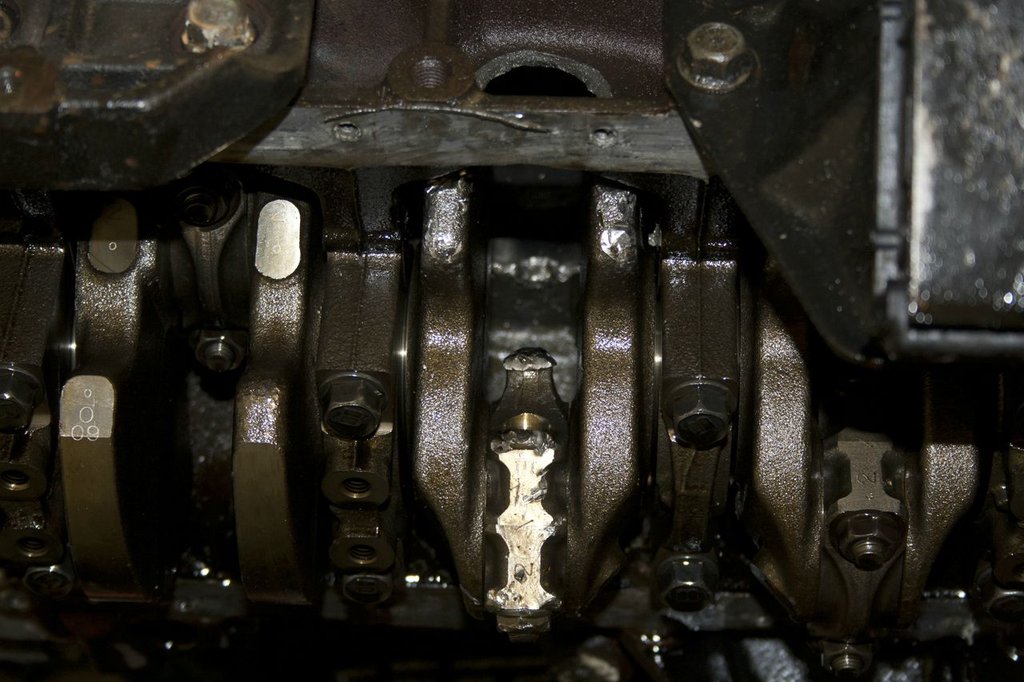

My best guess is the rod snapped. C'est ma vie.
Attached Thumbnails
Scott's Turbo build!!  (Finally!)-rn57ghsh.jpg   Scott's Turbo build!!  (Finally!)-xcfliljh.jpg   Scott's Turbo build!!  (Finally!)-hfbaswqh.jpg   Scott's Turbo build!!  (Finally!)-ngrujjyh.jpg   Scott's Turbo build!!  (Finally!)-gdskybch.jpg

Scott's Turbo build!!  (Finally!)-vuhaqaxh.jpg
elesjuan is offline   Reply With Quote
Old 07-15-2013, 11:13 PM   #40
Elite Member
Thread Starter
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

So I've been doin' quite a bit of drinking tonight.. Half tempted to weld hole shut and replace rod/piston with a uhm, not broken one..
elesjuan is offline   Reply With Quote
