Default Separated Gases DP Leak

Hey everyone,

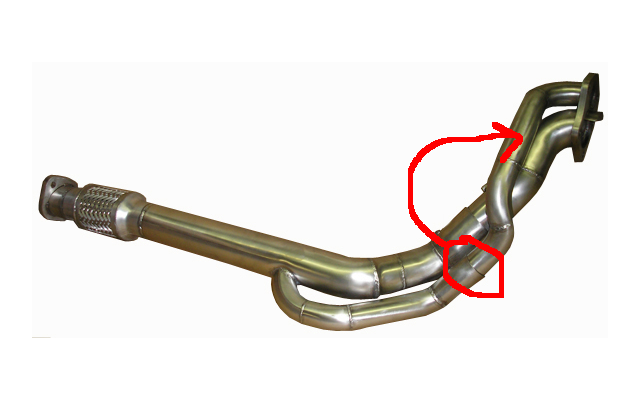

I purchased my Miata used with a T25 turbo kit already in it. I've noticed that the separated gases downpipe is leaking at the joint in the picture, however, the joint on my downpipe that I circled is actually further up where the arrow is pointing.

Anyway, just wondering if I should have this joint welded to stop the leak or if it's un-welded for a reason. I have searched to no avail. I appreciated any help.

-Sean
Attached Thumbnails
Separated Gases DP Leak-dp.png
CHUNKYBOWSER is offline   Reply With Quote
Old 07-31-2015, 01:02 AM   #2
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default

I would personally say no. That is a slip joint for a reason. Find out how BEGI seals that joint and go from there. Worse comes to worse I would look into one of those pipe clamps.
Chiburbian is offline   Reply With Quote
Old 07-31-2015, 01:16 AM   #3
Newb
Thread Starter

Join Date: Apr 2015
Posts: 24
Total Cats: 2
Default

Quote:
Originally Posted by Chiburbian View Post
I would personally say no. That is a slip joint for a reason. Find out how BEGI seals that joint and go from there. Worse comes to worse I would look into one of those pipe clamps.
Thanks for the reply.

I tried an exhaust U-bolt clamp, however, it was unable to be used do to how close the main part of the downpipe is. Maybe I can find a lower profile clamp.

I will contact Begi as well.
CHUNKYBOWSER is offline   Reply With Quote
Old 07-31-2015, 09:29 AM   #4
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,700
Total Cats: 268
Default

<p>It is a slip joint to allow for differential expansion between the main pipe and the waste gate pipe. Main pipe has constant flow of hot exhaust, waste pipe has intermittent flow. So you should not weld it, or one of the pipes will develope a crack &nbsp;</p><p>Other vendors use a flex joint in the waste tube. Some use a double slip joint, which are reputed not to leak.&nbsp;</p><p>&nbsp;</p>
DNMakinson is offline   Reply With Quote
Old 07-31-2015, 09:31 AM   #5
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by DNMakinson View Post
<p>It is a slip joint to allow for differential expansion between the main pipe and the waste gate pipe. Main pipe has constant flow of hot exhaust, waste pipe has intermittent flow. So you should not weld it, or one of the pipes will develope a crack &nbsp;</p><p>Other vendors use a flex joint in the waste tube. Some use a double slip joint, which are reputed not to leak.&nbsp;</p><p>&nbsp;</p>
I had the old begi separated gas pipes down pipe years ago and never had leaking issues. On my Absurdflow setup I have a double slip joint and it also does not leak. I would look to swapping out to a double slip joint to get rid of the leak.
