DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 08-06-2008, 10:17 PM   #41
I'm Miserable!
Thread Starter
iTrader: (5)

Join Date: Sep 2005
Location: SLC, Utah
Posts: 1,591
Total Cats: 0
Default

as said, start your own thread!!
zoom2zoom is offline   Reply With Quote
Old 08-06-2008, 11:45 PM   #42
Senior Member
iTrader: (5)

Join Date: Nov 2007
Location: Troy, MI
Posts: 860
Total Cats: 13
Default

Quote:
Originally Posted by zoom2zoom View Post
To add to that, the total piping length would be the same regardless of which side it's on. Whether it's the inlet or outlet piping that's longer, doesn't really make a difference.
that's arguable because I'd think that you have max. intercooler efficiency with a longer hotside (aka more heat loss) and a shorter coldside (aka less heat gain).
The_Pipefather is offline   Reply With Quote
Old 08-07-2008, 10:11 AM   #43
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

That's arguable as a longer hot side pipe on the hot side would have more exposure to engine bay heat for soak. Though a longer hot side pipe that left the engine bay asap would have less opportunity for heating up. My only point is that without numbers, or before/after any claims are speculation and merely for conjecture.
m2cupcar is offline   Reply With Quote
Old 08-07-2008, 10:13 AM   #44
Junior Member

Join Date: Oct 2007
Location: Rancho Santa Fe, CA
Posts: 115
Total Cats: 0
Default

Pipefather is right on the money. Heat is "injected" at the compressor wheel. However the transit times at WOT are so short that the differences seen are minimal.
drgoodwrench is offline   Reply With Quote
Old 08-07-2008, 01:14 PM   #45
Senior Member
iTrader: (5)

Join Date: Nov 2007
Location: Troy, MI
Posts: 860
Total Cats: 13
Default

m2, didn't you read corky's comments, paragraph 5:

http://www.bellengineering.net/artic...2e56b781190aa5

But I do agree with your last statement somewhat, once I get my data acquisition system i expect to have some data on this.
The_Pipefather is offline   Reply With Quote
Old 08-07-2008, 02:05 PM   #46
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

Quote:
Originally Posted by The_Pipefather View Post
m2, didn't you read corky's comments, paragraph 5:

http://www.bellengineering.net/artic...2e56b781190aa5

But I do agree with your last statement somewhat, once I get my data acquisition system i expect to have some data on this.
This is speculation with out proof. Where are his numbers?
jayc72 is offline   Reply With Quote
Old 08-07-2008, 02:07 PM   #47
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

Quote:
Originally Posted by m2cupcar View Post
My only point is that without numbers, or before/after any claims are speculation and merely for conjecture.
Absolutely. There is a lot of "fact" thrown around that has no testing done. Just because it SHOULD be better doesn't mean that it will.
jayc72 is offline   Reply With Quote
Old 08-07-2008, 03:59 PM   #48
Senior Member
iTrader: (5)

Join Date: Nov 2007
Location: Troy, MI
Posts: 860
Total Cats: 13
Default

You didnt really click the link I posted did you. Anybody who isnt blind can see the numbers quite plainly.
The_Pipefather is offline   Reply With Quote
Old 08-07-2008, 05:46 PM   #49
I'm Miserable!
Thread Starter
iTrader: (5)

Join Date: Sep 2005
Location: SLC, Utah
Posts: 1,591
Total Cats: 0
Default

don't argue in my thread!! jk, kill each other at will!!!!
zoom2zoom is offline   Reply With Quote
Old 08-07-2008, 06:19 PM   #50
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

I read it. I must say I'm amazed that the underhood temps were only 112f on a 95f day. It just seems impossible considering my race car interior measured similarly at a July race at CMS in a showroom stock Miata- with both windows down. I actually had my shoe heel melt on the trans tunnel in the foot well with our NB race car. And then to think that the headers internal gases are running ~1350f pre turbine at cruise, and higher under boost. Is it not incredible that the header is really retaining that much heat?
m2cupcar is offline   Reply With Quote
Old 08-08-2008, 03:24 AM   #51
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

Quote:
Originally Posted by The_Pipefather View Post
You didnt really click the link I posted did you. Anybody who isnt blind can see the numbers quite plainly.
I did when this same discussion came up in the spring.

I should have been more specific, where are his numbers for an insulated pipe (ala FM)? He states clearly that it is better, show me the numbers that prove it. Oh wait, it wasn't tested. Speculation and mud slinging.

Is it better? Probably? Does it matter when you have an I/C in the picture, most likely not.
jayc72 is offline   Reply With Quote
Old 08-08-2008, 10:12 AM   #52
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

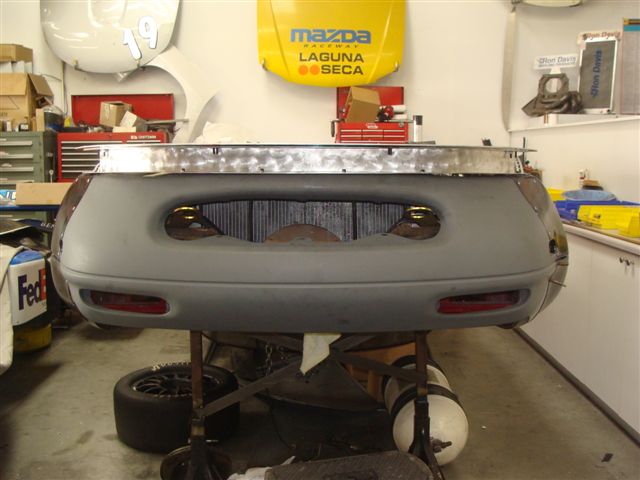

holy ****. How did you attach that splitter?
hustler is offline   Reply With Quote
Old 08-08-2008, 11:09 AM   #53
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

ummmmm....do I see an F1 or CART something or other with Bennetton in the garage?
https://www.miataturbo.net/forum/att...1&d=1218071180
hustler is offline   Reply With Quote
Old 08-08-2008, 10:31 PM   #54
Junior Member

Join Date: Oct 2007
Location: Rancho Santa Fe, CA
Posts: 115
Total Cats: 0
Default

Yep, that's a Bennetton F1 car...taking it out next week for testing
drgoodwrench is offline   Reply With Quote
Old 08-08-2008, 10:41 PM   #55
Junior Member

Join Date: Oct 2007
Location: Rancho Santa Fe, CA
Posts: 115
Total Cats: 0
Default

Thought I had posted a dimensional analysis arguement here about why the pipe length is of little consequence, but don't see it here.
In a nutshell the transit time of the intake air to quick to make any heat transfer from the small amount of tube surface inconsequential, other wise, why have an intercooler, just bend up a bunch of pipe! Just break the equation down into thermal conductivity of the air and pipe material, the surface area where transfer takes place, and after cancelling like terms etc, the equation simplifies to units of heat per unit time. Since the time is so short, and the surface area so small (relative to an Intercooler), the units of heat transferred turn out to be miniscule.
drgoodwrench is offline   Reply With Quote
Old 09-25-2008, 05:52 AM   #56
I'm Miserable!
Thread Starter
iTrader: (5)

Join Date: Sep 2005
Location: SLC, Utah
Posts: 1,591
Total Cats: 0
Default

the side by side is up for sale.
