Old 08-06-2008, 12:38 PM   #21
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Corky has a side-by-side radiator/IC combo sitting on a shelf in the lobby of BEGI. It looks about the right size for a Miata, though I do not know its history. It might be interesting to know the story behind it.
ZX-Tex is offline   Reply With Quote
Old 08-06-2008, 03:26 PM   #22
I'm Miserable!
Thread Starter
iTrader: (5)

Join Date: Sep 2005
Location: SLC, Utah
Posts: 1,591
Total Cats: 0
Default

Quote:
Originally Posted by m2cupcar View Post
Isn't that exactly the guy you're speaking of?

That thread really doesn't show the benefit in all that work... I think it'd take a real scientific approach to prove that there's any greater advantage over the traditional approach. There's a lot of things that aren't immediately obvious when first considering it the setup. Most are immediately blinded by the advantage of direct exposure to both exchangers (or only having them covered by the condenser). But then you've introduced the IC to engine bay (header/turbo) heat exposure that it didn't have before (and so on).
If you have a dedicated fan and/or heat shield behind the IC it would more than make up for any engine heat sources.
zoom2zoom is offline   Reply With Quote
Old 08-06-2008, 03:30 PM   #23
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by ZX-Tex View Post
Corky has a side-by-side radiator/IC combo sitting on a shelf in the lobby of BEGI. It looks about the right size for a Miata, though I do not know its history. It might be interesting to know the story behind it.
i really want to know now.
hustler is offline   Reply With Quote
Old 08-06-2008, 03:33 PM   #24
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

Quote:
Originally Posted by zoom2zoom View Post
If you have a dedicated fan and/or heat shield behind the IC it would more than make up for any engine heat sources.
Except that the heat shield would then prevent the flow of air from the exchangers past the header/turbo. So now what? Compressor housing heat soak and elevated intake temps? Then that means the IC is getting hotter air and thus the probability of resulting temps similar to the fmic... negating the advantage.

This is what I'm speaking of- w/o testing everything, changing one thing and seeing a positive result means nothing if you've changed five other thing negatively but fail to realize it.
m2cupcar is offline   Reply With Quote
Old 08-06-2008, 03:35 PM   #25
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

move IC to coldside of bay
Braineack is offline   Reply With Quote
Old 08-06-2008, 03:37 PM   #26
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,293
Total Cats: 26
Default

Or just V-Mount it...
Splitime is offline   Reply With Quote
Old 08-06-2008, 03:44 PM   #27
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Quote:
Originally Posted by hustler View Post
i really want to know now.
Call them up and ask them. They are pretty friendly about that kind of thing.
ZX-Tex is offline   Reply With Quote
Old 08-06-2008, 04:29 PM   #28
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

Quote:
Originally Posted by Braineack View Post
move IC to coldside of bay
OMG then you'll double the length of the hot side pipe

oh, and mr. V - where did you say your condenser was? (and trash is not an option)
m2cupcar is offline   Reply With Quote
Old 08-06-2008, 04:31 PM   #29
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,293
Total Cats: 26
Default

Quote:
Originally Posted by m2cupcar View Post
OMG then you'll double the length of the hot side pipe

oh, and mr. V - where did you say your condenser was? (and trash is not an option)
Grinder's Vmount has the condenser below the radiator. Lots of room to fit it. Or it could be level right in the middle of everything.
Splitime is offline   Reply With Quote
Old 08-06-2008, 04:41 PM   #30
I'm Miserable!
Thread Starter
iTrader: (5)

Join Date: Sep 2005
Location: SLC, Utah
Posts: 1,591
Total Cats: 0
Default

A/C is a must, that's why I sold my other Miata to buy one with A/C. Never missed it before I moved to Utah. The condensor can easily be moved around. I pretty much have everything for a nice V-mount setup if the side by side fails.
zoom2zoom is offline   Reply With Quote
Old 08-06-2008, 06:34 PM   #31
Senior Member
iTrader: (5)

Join Date: Nov 2007
Location: Troy, MI
Posts: 860
Total Cats: 13
Default

Quote:
Originally Posted by m2cupcar View Post
OMG then you'll double the length of the hot side pipe
assuming this isnt a joke, doubling the length might be beneficial in terms of heat loss from the pipe.
The_Pipefather is offline   Reply With Quote
Old 08-06-2008, 07:52 PM   #32
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by zoom2zoom View Post
A/C is a must, that's why I sold my other Miata to buy one with A/C. Never missed it before I moved to Utah. The condensor can easily be moved around. I pretty much have everything for a nice V-mount setup if the side by side fails.
I'm thinking about removing it in my car right now because it doesn't really work that well currently, and i think that if it were hot enough to need the AC, I'd rather drive something else.
hustler is offline   Reply With Quote
Old 08-06-2008, 08:39 PM   #33
Junior Member

Join Date: Oct 2007
Location: Rancho Santa Fe, CA
Posts: 115
Total Cats: 0

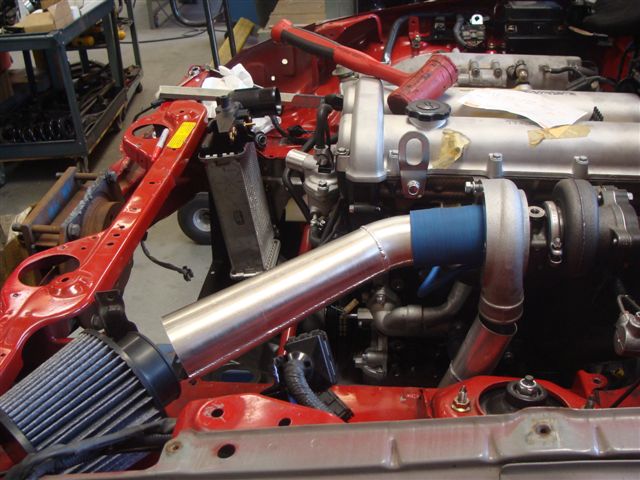

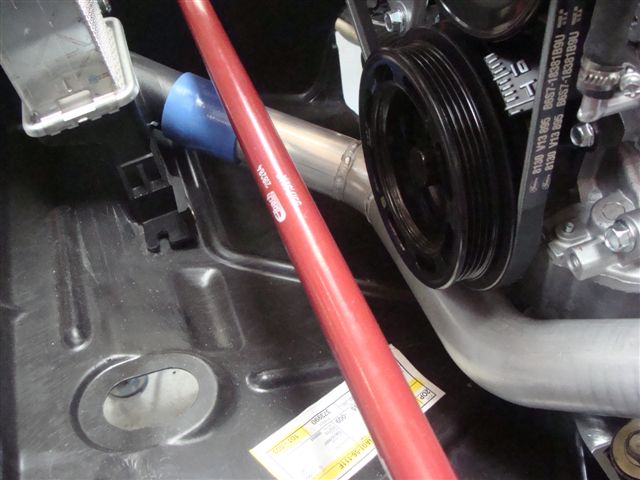

Default here is the beginning of my side by side

The Radiator will be a Ron Davis triple core, the IC is a stock Mazda part......
Attached Thumbnails
side by side radiator and intercooler setup-dsc00899.jpg   side by side radiator and intercooler setup-dsc00896.jpg
drgoodwrench is offline   Reply With Quote
Old 08-06-2008, 09:41 PM   #34
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

^Ooooooohhhhh.... I see lotsa new parts (like motor)... and require lots more info on this setup. Don't forget to start a thread and post pics when this thing is complete.
samnavy is offline   Reply With Quote
Old 08-06-2008, 09:56 PM   #35
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

yeah- it was a joke... if you're extending one, you're most likely shortening the other. But the shorter cold side pipe is probably the better option. I'm doing the same thing- but I'm running an oil cooler in that spot.
m2cupcar is offline   Reply With Quote
Old 08-06-2008, 10:04 PM   #36
I'm Miserable!
Thread Starter
iTrader: (5)

Join Date: Sep 2005
Location: SLC, Utah
Posts: 1,591
Total Cats: 0
Default

Quote:
Originally Posted by The_Pipefather View Post
assuming this isnt a joke, doubling the length might be beneficial in terms of heat loss from the pipe.
To add to that, the total piping length would be the same regardless of which side it's on. Whether it's the inlet or outlet piping that's longer, doesn't really make a difference.
zoom2zoom is offline   Reply With Quote
Old 08-06-2008, 10:06 PM   #37
Junior Member

Join Date: Oct 2007
Location: Rancho Santa Fe, CA
Posts: 115
Total Cats: 0
Default

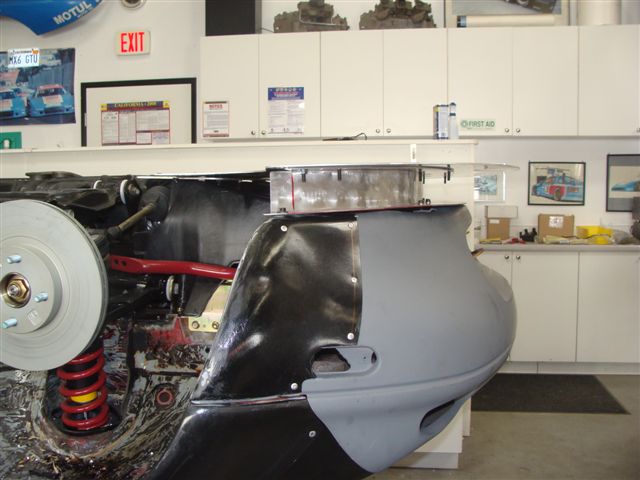

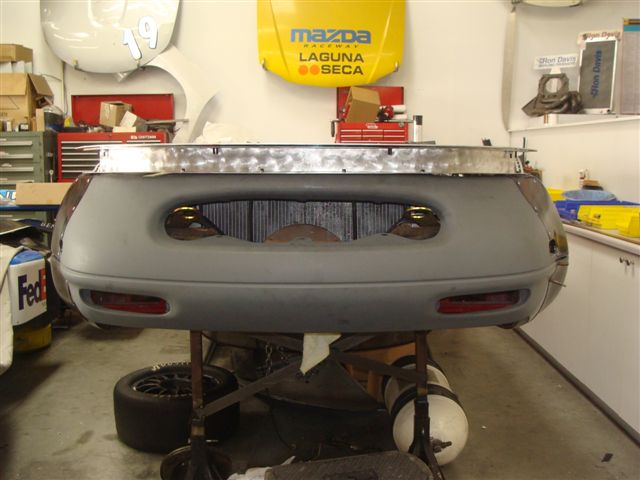

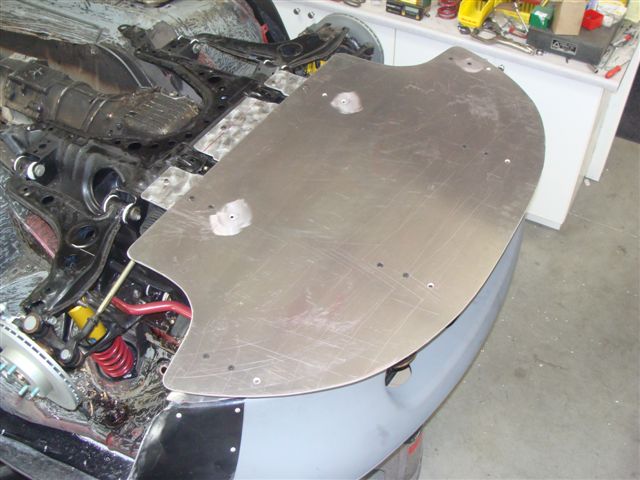

Will do. Here are a few more mock up photos of the work in progress..
Attached Thumbnails
side by side radiator and intercooler setup-dsc00870.jpg   side by side radiator and intercooler setup-dsc00869.jpg   side by side radiator and intercooler setup-dsc00868.jpg
drgoodwrench is offline   Reply With Quote
Old 08-06-2008, 10:08 PM   #38
Elite Member
iTrader: (1)

Join Date: Jun 2007
Location: VA, Germany, Afghanistan
Posts: 2,967
Total Cats: 3
Default

That's one hell of a shop you got there. The car doesn't look half bad either. What's your ETA for being done with it..well having it driveable?
KPLAFIN is offline   Reply With Quote
Old 08-06-2008, 10:09 PM   #39
Junior Member

Join Date: Oct 2007
Location: Rancho Santa Fe, CA
Posts: 115
Total Cats: 0
Default

shooting for two weeks from Saturday
drgoodwrench is offline   Reply With Quote
Old 08-06-2008, 10:11 PM   #40
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Please please start a build thread. Must have more pics and info.
