Quote:
Originally Posted by 18psi View Post
20* at peak boost? 34+ in various other areas? WOWW

The stock 1.6L map looks something like this at WOT:

Code:
RPM 500 1000 1500 2000 2500 3000 3500 4000 4500 5000 5500 6000 6500 7000
BTDC 10   10   12   17   22   24   28   28   31   34   36   36   36   36
Braineack is offline   Reply With Quote
Old 04-01-2010, 01:09 PM   #42
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,184
Total Cats: 2,582
Default

Didn't realise it ran so much timing stock.
So he's basically not retarding spark AT ALL in teh midrange at 12psi according to that post and his map? shittt
18psi is offline   Reply With Quote
Old 04-01-2010, 01:21 PM   #43
Antisaint
Thread Starter
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

I took the car out last night and made it! lol

I left here when it was already dark out, and with the tint on the windows its hard to see if I was smoking, but I didnt see anything.

The car acted halfway decent last night, but now I have another issue.

There is some more than normal clatter from the transmission. I know its been a long time since I even drove the miata, so getting used to all the noises and the general loudness of the car took awhile for sure. But this is definitely making me worry.

As I was typing this just now, I remembered that I had a dream last night that I lost 3rd gear and had to drive it around like that. Or maybe that really happened.....? I better go check the car.

I'm going to assume the worst and start planning on re-building the motor, or swapping in another one. The car has seemed pretty strong up until this point, but I guess all good things must come to an end.
Vashthestampede is offline   Reply With Quote
Old 04-01-2010, 01:36 PM   #44
Antisaint
Thread Starter
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

And when I get a second I'm going to run out and pull the plugs and see what I find.

I'll report back later.
Vashthestampede is offline   Reply With Quote
Old 04-01-2010, 01:43 PM   #45
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,184
Total Cats: 2,582
Default

inspecting the plugs thoroughly should REALLY help you figure out how the engine is behaving
18psi is offline   Reply With Quote
Old 04-01-2010, 03:01 PM   #46
Antisaint
Thread Starter
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

I just took it down to the gas station quick and its still smoking, pretty bad actually.

Looks like I'll be going back to borrowing a car, getting rides, or longboarding to get around. Perfect, just in time for the nice weather.

So now I have 2 questions. lol

Why would it start to smoke this much more after a oil change? And is it ok to drive it like this for the time being (not anything more than just normal driving around town)?
Vashthestampede is offline   Reply With Quote
Old 04-01-2010, 03:04 PM   #47
Elite Member
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

me personally i wouldnt drive it!

do a compression and leak down test for good measure! if that comes back good then i would say its has somthing to do with your oil feed, drain or its your turbo!
WonTon is offline   Reply With Quote
Old 04-01-2010, 03:08 PM   #48
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

does it smoke all the time, or just when in positive pressure?
Braineack is offline   Reply With Quote
Old 04-01-2010, 03:24 PM   #49
Antisaint
Thread Starter
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

Quote:
Originally Posted by WonTon View Post
me personally i wouldnt drive it!

do a compression and leak down test for good measure! if that comes back good then i would say its has somthing to do with your oil feed, drain or its your turbo!
I think today when I pull the plugs I'll check out the feed and drain lines on the turbo.

Quote:
Originally Posted by Braineack View Post
does it smoke all the time, or just when in positive pressure?
When I first started it up, it didnt seem as if it was smoking. I got to the bottom of the road and I sat in the car and waited. It almost seemed like as it was getting warmer, it was smoking more. Sometimes at idle it would barely smoke, other times it was a lot. I would give it gas and it was the same deal. On my way back up the hill I was watching in the mirror and it wasn't billowing out or anything, but I definitely left a little smoke behind me. Nothing major, but I could see it in the distance.
Vashthestampede is offline   Reply With Quote
Old 04-01-2010, 03:49 PM   #50
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

I hate to tell you, but sounds like what mine was doing.
gospeed81 is offline   Reply With Quote
Old 04-01-2010, 04:46 PM   #51
Senior Member
iTrader: (3)

Join Date: Jul 2005
Location: Connect-I-Cut
Posts: 1,431
Total Cats: 0
Default

Oh man that **** sucks! Hope it's something stupid but for the sound of it I don't think it is. Hopefully you get it sorted out by the Uconn meet.
miataspeed2005 is offline   Reply With Quote
Old 04-01-2010, 05:11 PM   #52
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Vashthestampede View Post
I think today when I pull the plugs I'll check out the feed and drain lines on the turbo.



When I first started it up, it didnt seem as if it was smoking. I got to the bottom of the road and I sat in the car and waited. It almost seemed like as it was getting warmer, it was smoking more. Sometimes at idle it would barely smoke, other times it was a lot. I would give it gas and it was the same deal. On my way back up the hill I was watching in the mirror and it wasn't billowing out or anything, but I definitely left a little smoke behind me. Nothing major, but I could see it in the distance.
Unhook your pcv lines completely and drive around to see if it still smokes. I still think its the turbo.
hustler is offline   Reply With Quote
Old 04-01-2010, 05:14 PM   #53
Elite Member
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

i say turbo as well!
WonTon is offline   Reply With Quote
Old 04-01-2010, 06:43 PM   #54
Antisaint
Thread Starter
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

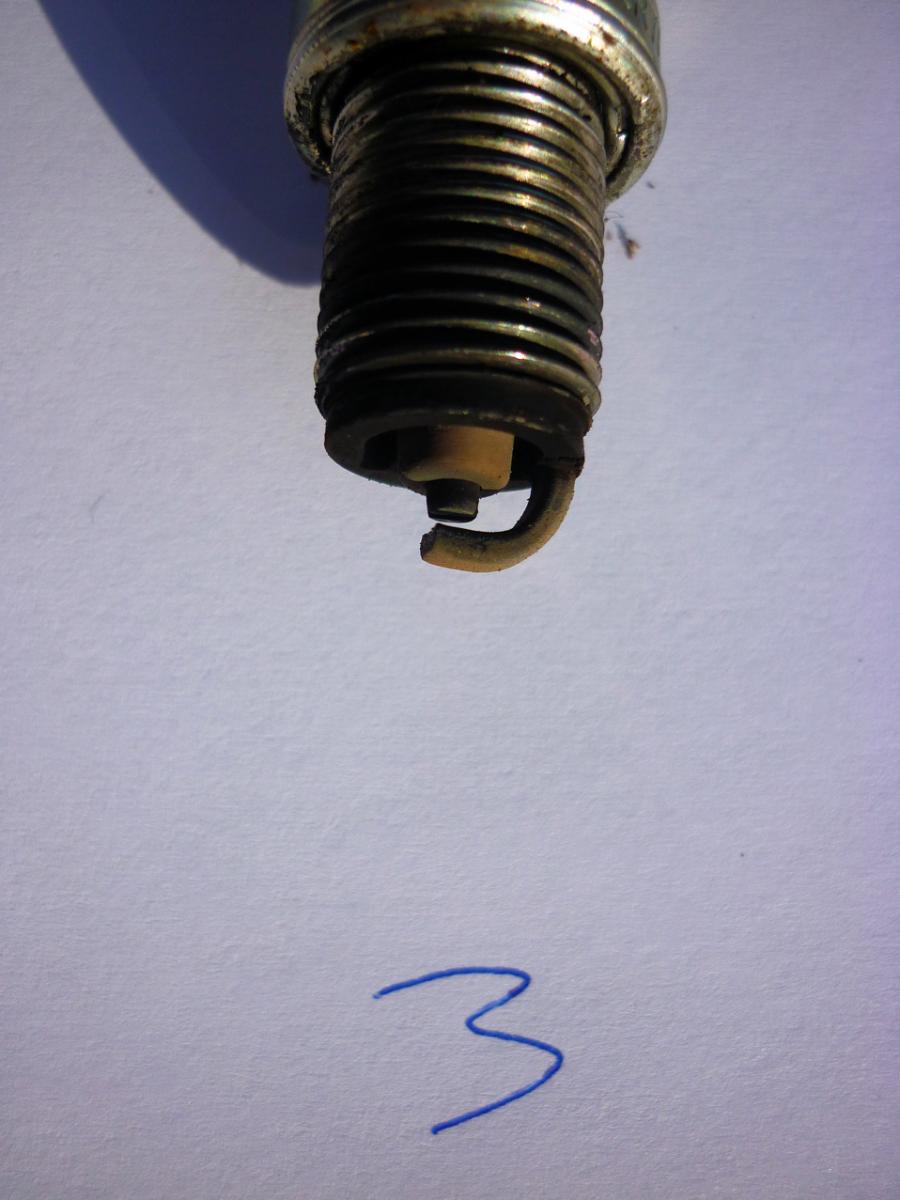

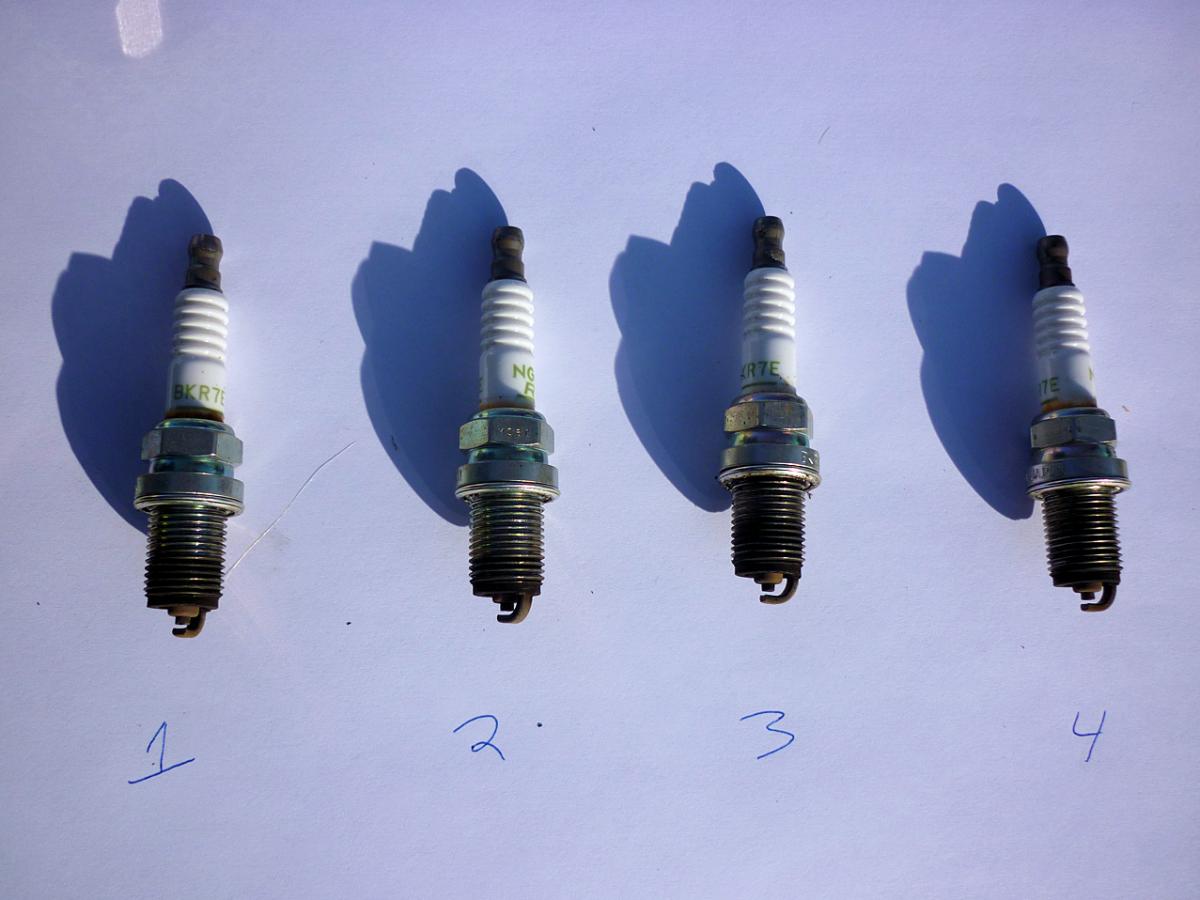

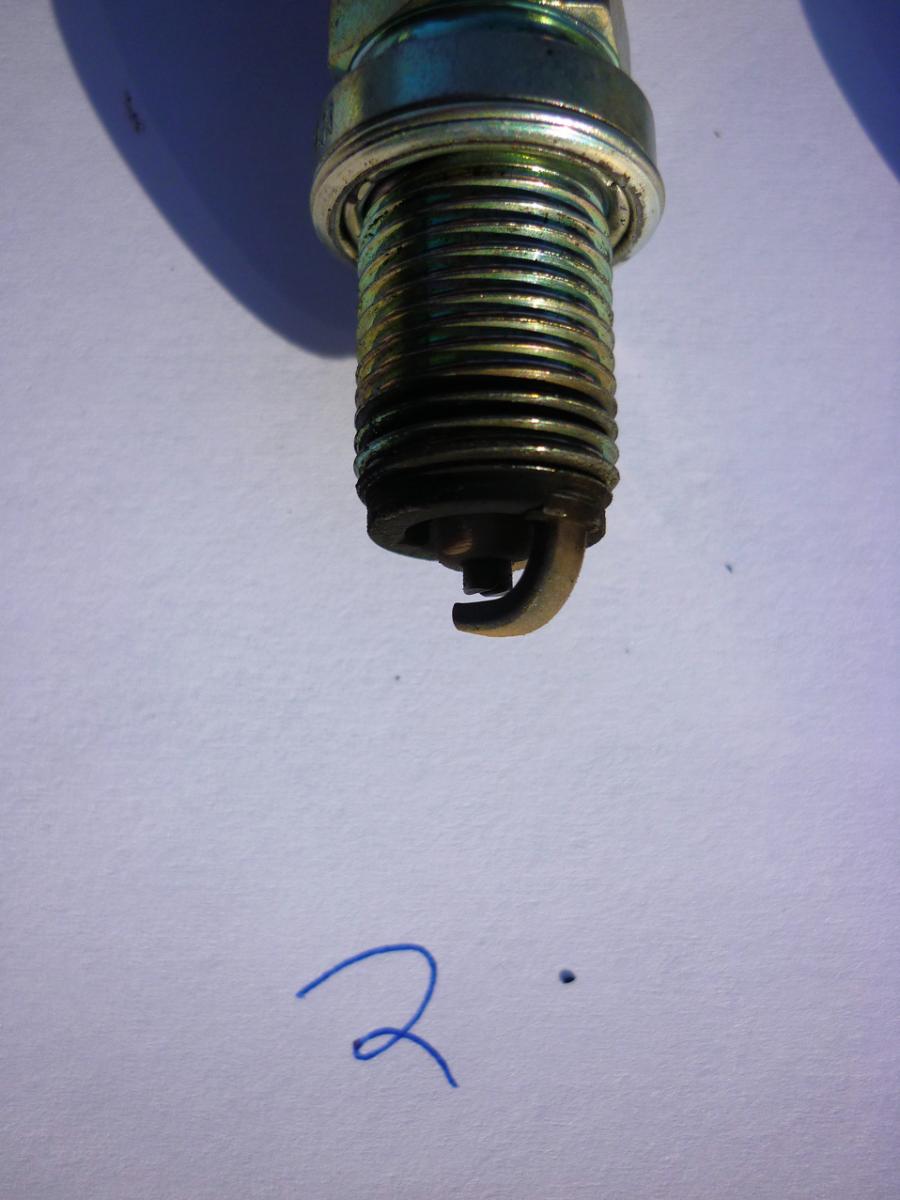

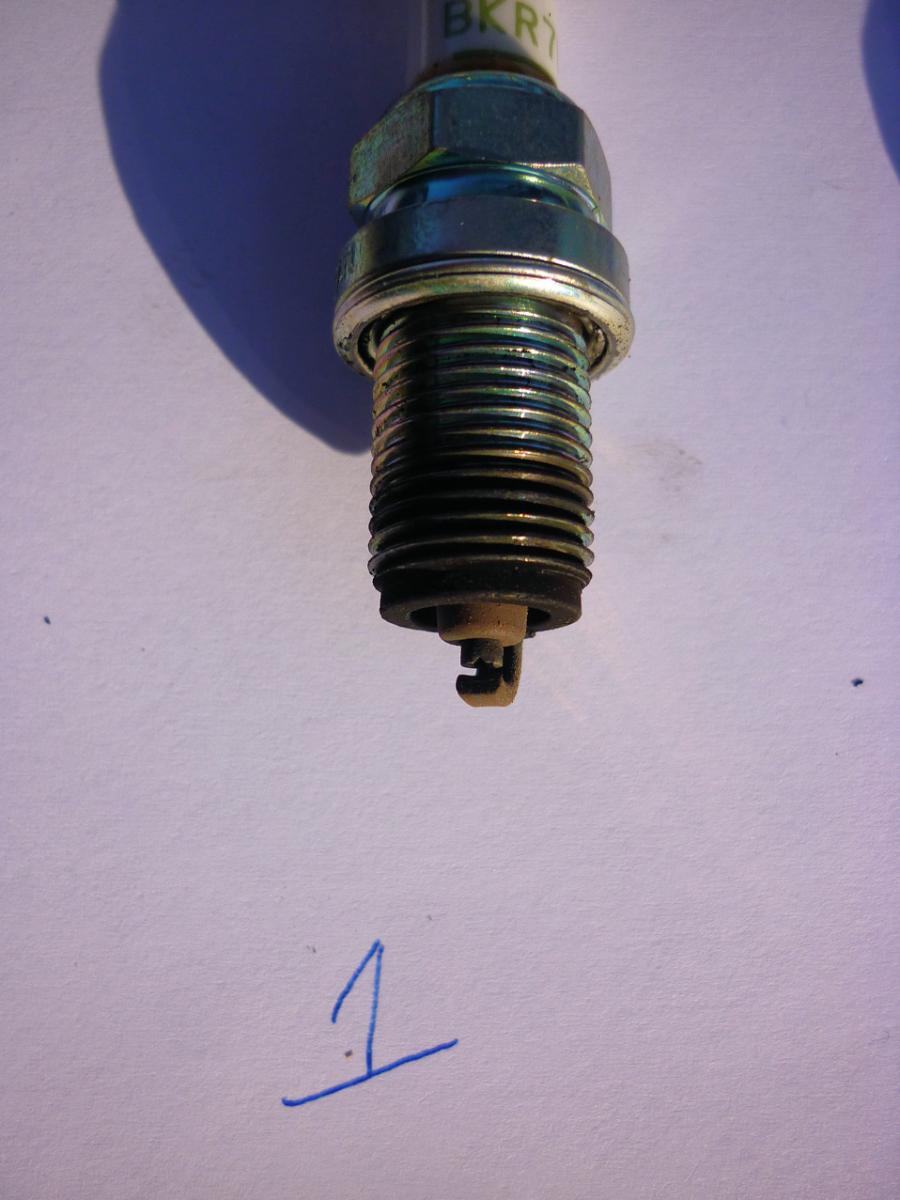

Ok, spark plugs are out. I attached pictures of them below.

Now I just want to clarify before I go ahead and do this. Shall I pull the turbo oil feed line, stick it in a cup, start the car and turn it off right away, then check the cup for oil? Repeat and do the same thing for the oil drain line?

I also found my compression tester while I was out in the garage. Brand new in the box still, which also means I have no idea how to use it. I plan on looking that up tonight and maybe doing the test tomorrow.

This car takes entirely too much time out of too many of my days.
Attached Thumbnails
Smoking out the exhaust-sp01.jpg   Smoking out the exhaust-sp02.jpg   Smoking out the exhaust-sp03.jpg   Smoking out the exhaust-sp04.jpg   Smoking out the exhaust-sp05.jpg

Vashthestampede is offline   Reply With Quote
Old 04-01-2010, 06:47 PM   #55
Elite Member
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

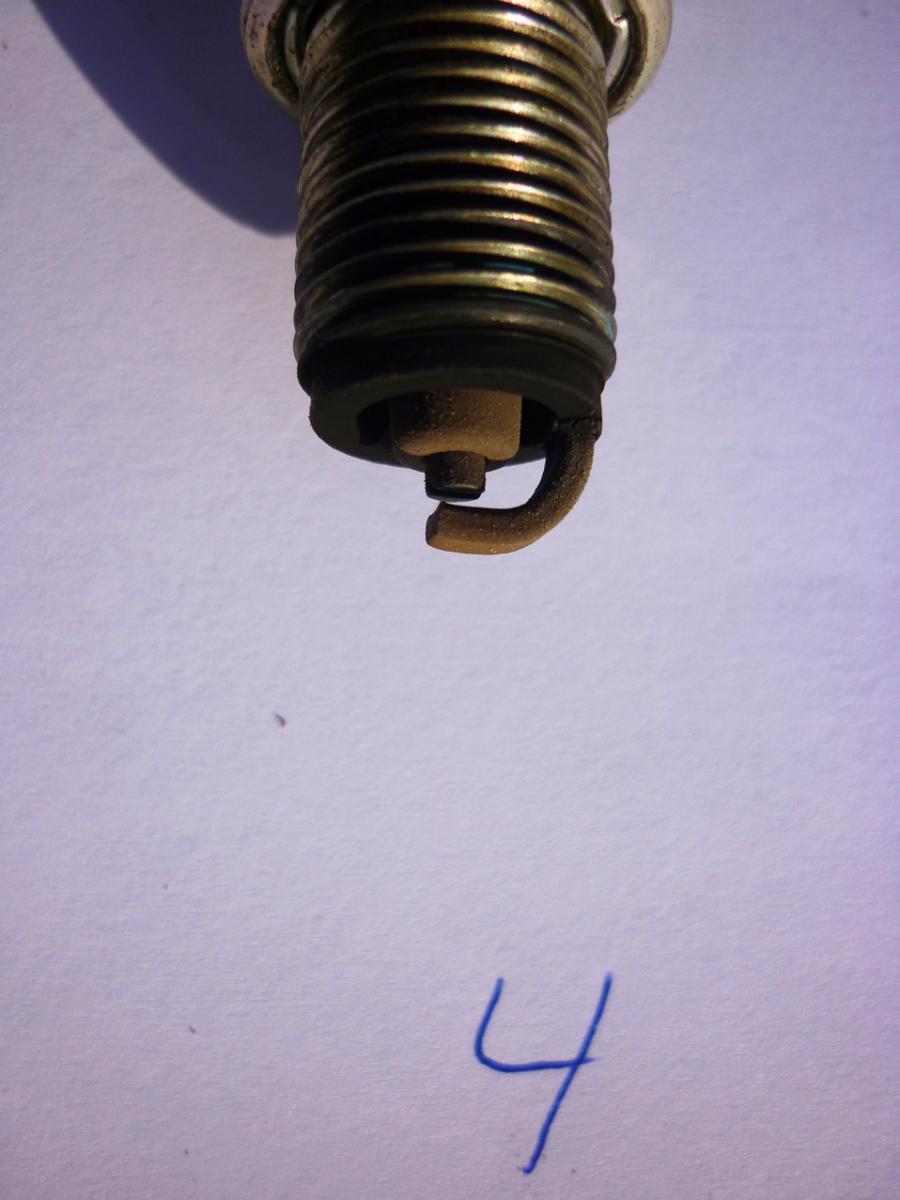

That looks like a fair bit of flecking on #4. #1 isn't looking super hot either.
Jeff_Ciesielski is offline   Reply With Quote
Old 04-01-2010, 06:51 PM   #56
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

Well, at least 1.6 motors are dirt cheap!
Fireindc is offline   Reply With Quote
Old 04-01-2010, 07:07 PM   #57
Antisaint
Thread Starter
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

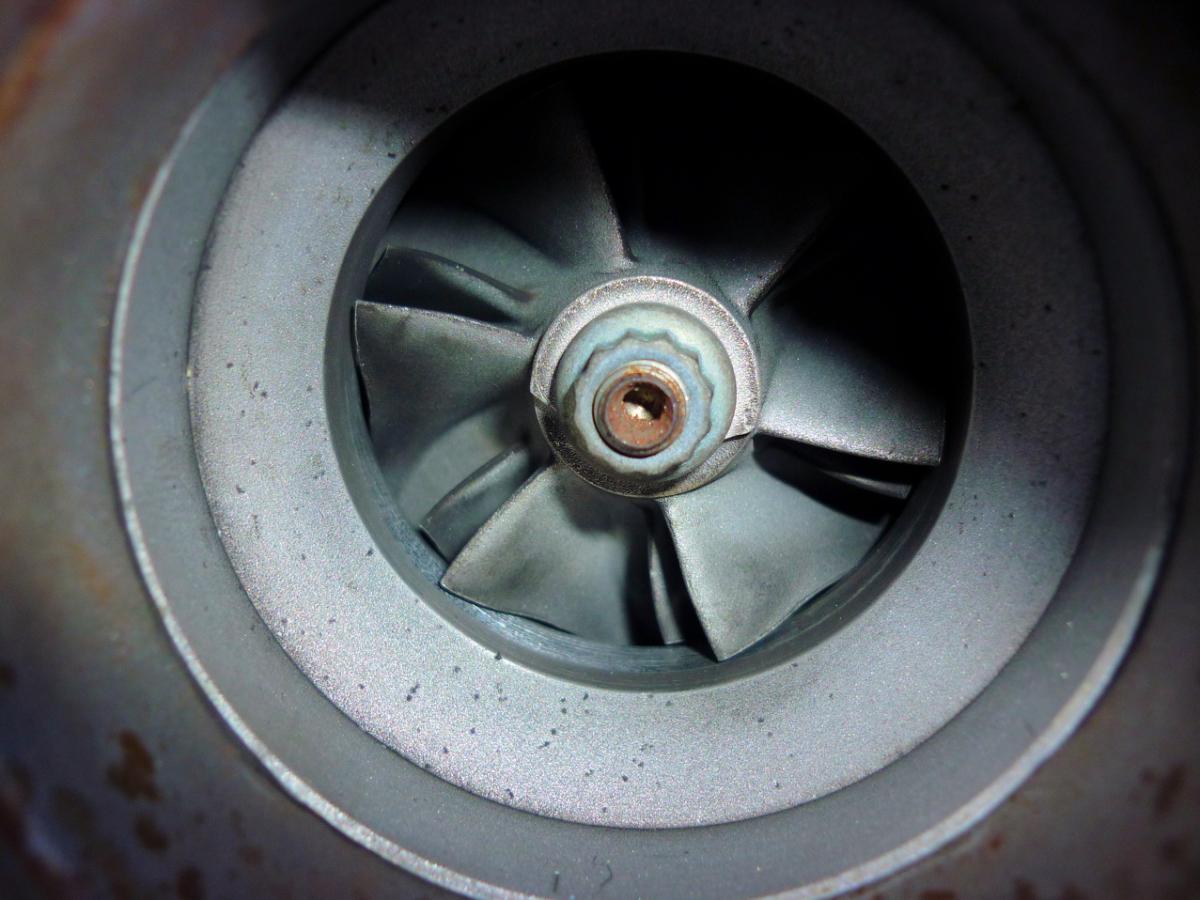

I pulled the air filter off just to peak at the turbo and I now have a considerable amount of shaft play. You can see in the picture where the blades have been rubbing.

I want to see if I can check and verify oil to and from the turbo. Is what I wrote above sound like a plan? I'm just assuming that's the best way to do it, but want to make sure before I do.

BTW, thanks for all the feedback guys. .......even if it is bad news.....
Attached Thumbnails
Smoking out the exhaust-t01.jpg
Vashthestampede is offline   Reply With Quote
Old 04-01-2010, 07:10 PM   #58
Elite Member
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

Time for that Ebay turbo you've always wanted :P.
Jeff_Ciesielski is offline   Reply With Quote
Old 04-01-2010, 07:15 PM   #59
Antisaint
Thread Starter
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

Quote:
Originally Posted by Jeff_Ciesielski View Post
Time for that Ebay turbo you've always wanted :P.
lol

I was just thinking of pulling it and sending it out for a re-build, but I wouldn't mind switching to a ebay turbo if that's the better path. I'm not much for "brand names" if I don't have to be.

I'm at the point now where I just want to figure out what needs fixed, make a plan to fix whats fucked that I can afford, and move on.

At first I was in a rush to have things sorted out by next weekend for the car show, but I have too many other priorities right now that need taken care of. The only reason it sucks about the car is really cause its my only mode of transportation. And there's no way I can longboard everywhere I have to go in a days time.
Vashthestampede is offline   Reply With Quote
Old 04-01-2010, 07:17 PM   #60
Elite Member
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

is your turbo ball bearing out journal?

i thought ball bearing turbos couldnt be rebuilt?
WonTon is offline   Reply With Quote
