SR20 overboosting problems - Page 2 - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 03-18-2012, 06:47 PM   #21
Junior Member
Thread Starter
iTrader: (2)

Join Date: Dec 2011
Posts: 141
Total Cats: 1
Default

Ok so new info, I got the arm off and the flapper does open all the way. So does this mean the actuator is bad?
Ryanxstorey is offline   Reply With Quote
Old 03-18-2012, 09:06 PM   #22
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Low psi and stock internal wg could do it.
dgmorr is offline   Reply With Quote
Old 03-19-2012, 09:52 AM   #23
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

Quote:
Originally Posted by blaen99 View Post
Disconnect the wastegate [arm] completely, then try to run the car.

JUST DO THIS ALREADY and REPORT BACK!

Braineack is offline   Reply With Quote
Old 03-19-2012, 10:08 AM   #24
Junior Member
Thread Starter
iTrader: (2)

Join Date: Dec 2011
Posts: 141
Total Cats: 1
Default

I'm sorry I thought I posted that I did do that. First I tested the actuator by using a compressor, then I removed the arm and the wastegate opened freely. Drove it without the arm on and yea no overboosting. When I put air to the actuator I could hear and feel air looking through it.
Ryanxstorey is offline   Reply With Quote
Old 03-19-2012, 10:25 AM   #25
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

okay, your actuator is dead, get a new one.
Braineack is offline   Reply With Quote
Old 04-06-2012, 08:47 AM   #26
Newb
iTrader: (3)

Join Date: Dec 2010
Posts: 26
Total Cats: 0
Default

Did you replace your actuator yet? If so where did you source it and what final psi did you end up running?
new2mx5 is offline   Reply With Quote
Old 04-06-2012, 09:58 AM   #27
Junior Member
Thread Starter
iTrader: (2)

Join Date: Dec 2011
Posts: 141
Total Cats: 1
Default

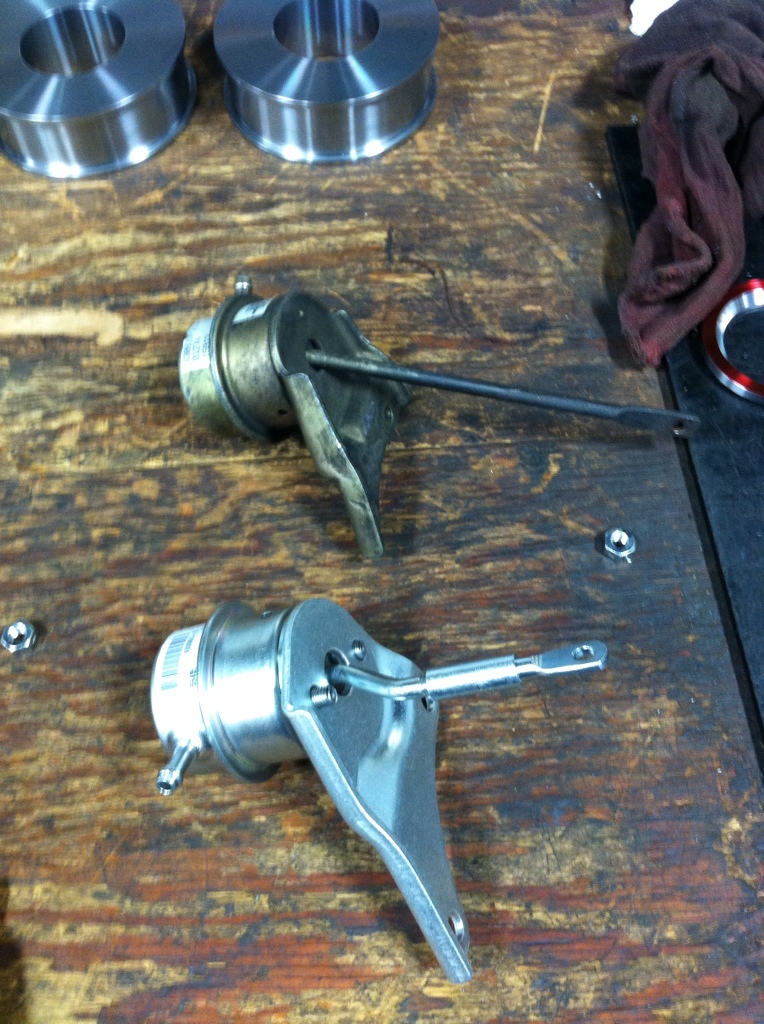

Top actuator is the stock poop one. Bottom one is a 10 psi actuator that the previous owner of the turbo gave me when I bought it.


Taddaaaa.
Easiest way to get the 10 psi actuator to work with how the turbo is clocked. I am actually running 14 psi with a mbc right now.
Attached Thumbnails
SR20 overboosting problems-b4e56b4d.jpg   SR20 overboosting problems-302529af.jpg
Ryanxstorey is offline   Reply With Quote
