Default SR20 T25 disassembly help

Yes I read SamNavy's rebuild instructions, and yes, I've searched other dis assembly threads.

So far I've gotten the C-clip, compressor housing, compressor wheel nut, and compressor wheel off. I cannot for the life of me get the CHRA out of the turbine housing. One of the four bolts and one of the half rings is removed, the other three bolts are backed out as far as I can go, they're all hitting the castings for the oil drain and water inlet/outlets. I have put a 2' socket extension in the oil drain hole, put a 3' length of pipe on the end of that, and pried as hard as I could with the turbo bolted to my drill press table and all I did was bend my extension. I should be able to rotate this, yes? Is it easier to twist it back and forth to get it out, or just bang/pull it straight out? I haven't tried any PB blaster here.

And would smacking on the turbine shaft help, or would I just be ------- up seals and bearings. (which I'm replacing anyways.)

I also have a stuck stud on my DP flange. I have enough exposed to get decent grip on it with the vise grips, but it's not working. I haven't tried PB blaster here either, but I have tried wax, a hot stud, and a frozen stud+some heat on the housing. Any other suggestions?
curly is offline   Reply With Quote
Old 02-15-2012, 12:41 PM   #2
Elite Member
iTrader: (41)

Join Date: Jan 2006
Location: Seabrook, TX
Posts: 2,409
Total Cats: 19
Default

When I did mine recently I had the same issue. I just soaked it in PB overnight and hit a rubber hammer on the side of the CHRA in the morning. It came right out.
rharris19 is offline   Reply With Quote
Old 02-15-2012, 12:44 PM   #3
Elite Member
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

PB blaster the hell out of the turbine, put the CHRA in a vice, use deadblow hammer, whack the ---- out of it. Don't ---- around with prying, it's not the right "type" of force.

Do NOT touch the shaft, it won't help anything beyond you potentially needing a new rotating assembly. This is BAD.

As for the stud, easy out it. It's your best option if vice grips won't work.
blaen99 is offline   Reply With Quote
Old 02-15-2012, 12:53 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,865
Total Cats: 1,790
Default

soak it and try again. a few light blows with a rubber mallet on the end of the turbine wouldn't hurt to help it out. Or I hit the back of the compressor housing on mine sometimes. But yours is probably rusted together, and they are already very tightly fit together once they get snugged down so you just gotta work on getting it to release. You'll get to the point where one side with finally give and then you can work the other side and finally get it to pop.
Braineack is online now   Reply With Quote
Old 02-15-2012, 01:00 PM   #5
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

I had the same issue...soak it overnight, or if you're impatient like I was, use an oxy/ acetylene torch with a fine tip and throw some heat in the groove. A Little Heat. Hit it with a rubber mallet and it should fall right out.
thirdgen is offline   Reply With Quote
Old 02-15-2012, 01:11 PM   #6
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,669
Total Cats: 1,560
Default

If the bolts holding the turbine housing to the chra are backed out with the tops of their heads tight against the chra it won't come loose because you have created a wedge. Screw them halfway so they are loose and then bump the turbine housing gently with a small sledge or whack it hard with a rubber mallet.
sixshooter is offline   Reply With Quote
Old 02-15-2012, 01:21 PM   #7
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,518
Total Cats: 257
Default

loosen the bolts a little bit
put the chra into a vice, smack on the housing with a mallet till it turns.
once you can turn it, get all the bolts out. you can rotate the housing so the bolts can be removed.
then, smack the housing some more
soviet is offline   Reply With Quote
Old 02-15-2012, 01:43 PM   #8
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

All this SR20 turbo talk makes me want to keep mine...
Undecided...
Perhaps a poll will be upcoming....
thirdgen is offline   Reply With Quote
Old 02-15-2012, 03:41 PM   #9
Junior Member
iTrader: (1)

Join Date: Sep 2010
Location: Scranton PA
Posts: 266
Total Cats: 4
Default

Keep turning the bolts against the chra. They are supposed to press the exhaust housing off the chra as you turn them. I have done this on about 4 different t25's and it has always worked. You want to do it evenly though as to not damage the turbine.
duffbuster243 is offline   Reply With Quote
Old 02-15-2012, 03:46 PM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,865
Total Cats: 1,790
Default

wait, that's just smart.


Braineack is online now   Reply With Quote
Old 02-15-2012, 08:08 PM   #11
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

I tried that, one is barely hitting the water inlet, and if I keep turning it itll damage the sealing surface. So I only have two that can push, and they're both on one side, which I'm afraid will just wedge it more.

My stupid vice is two short to hold the chra, I'm already leaning against my miata with a motorcycle between me and the drill press table. I'll try some on blaster and try again.
curly is offline   Reply With Quote
Old 02-16-2012, 03:00 AM   #12
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,071
Total Cats: 253
Default

I had the same issue with mine years ago. I don't have a vice, so I heated it up with a torch then beat it with a rubber mallet.
viperormiata is offline   Reply With Quote
Old 02-16-2012, 03:05 AM   #13
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

Post 5 and 12 have 1 thing in common...win.
thirdgen is offline   Reply With Quote
Old 02-16-2012, 03:42 AM   #14
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Yup I'll pick some up tomorrow, torch it, and beat it.

How long are you torching it for? I feel like I'm doing it for a long time, but a hunk of iron like it is acts as a good heat sink. Should I stick it in the oven first? I am in a chilly garage.
curly is offline   Reply With Quote
Old 02-16-2012, 03:53 AM   #15
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

I didn't torch it till it glowed red...just torched it evenly around the seam where the CHRA and turbine meet. I'd say I torched it until it had that heat discoloration, then I gave it a good whack with a rubber mallet (not a little love tap), and it broke free and pulled right out.
thirdgen is offline   Reply With Quote
Old 02-16-2012, 12:36 PM   #16
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

I used a regular plumbing style torch and warmed up the turbine housing around where it meets the CHRA. I thought it had welded it self together, but with the heat it just took a few taps with a dead blow. Chemicals did not work for me.
dgmorr is offline   Reply With Quote
Old 02-16-2012, 12:55 PM   #17
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

This is a problem. You're gonna need to hit the CHRA hard enough that it will do damage to the bolts or threads when it pops off and the only thing holding it to the CHRA are 3 almost backed out bolts.

PB Blaster and Liquid Wrench bath for 24hrs.
Then put in Freezer overnight.
Next morning, clamp turbine housing in BIG *** VICE tight as hell so it won't move no matter what.

Now, hit the turbine housing near the groove with a torch for a few minutes, trying not to get any heat on the CHRA.

Then... BIG *** RUBBER MALLET as hard as you can on the CHRA. I think I put a piece of wood on the flat mating surface of one of the ports to prevent damage.

If that doesn't work... get a 3lb hand-sledge and tap-tap-tap-tap-tap-tap-tap for a few minutes around the CHRA hitting it from all angles. Then try the rubber mallet again.

Careful with your sledge taps as the CHRA cannot hurt the hammmer... but you can hurt the CHRA if you strike any part of it too hard with too heavy of a hammer.
samnavy is offline   Reply With Quote
Old 02-17-2012, 05:12 AM   #18
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default insert manly voice here

I AM ALL THAT IS MAN!

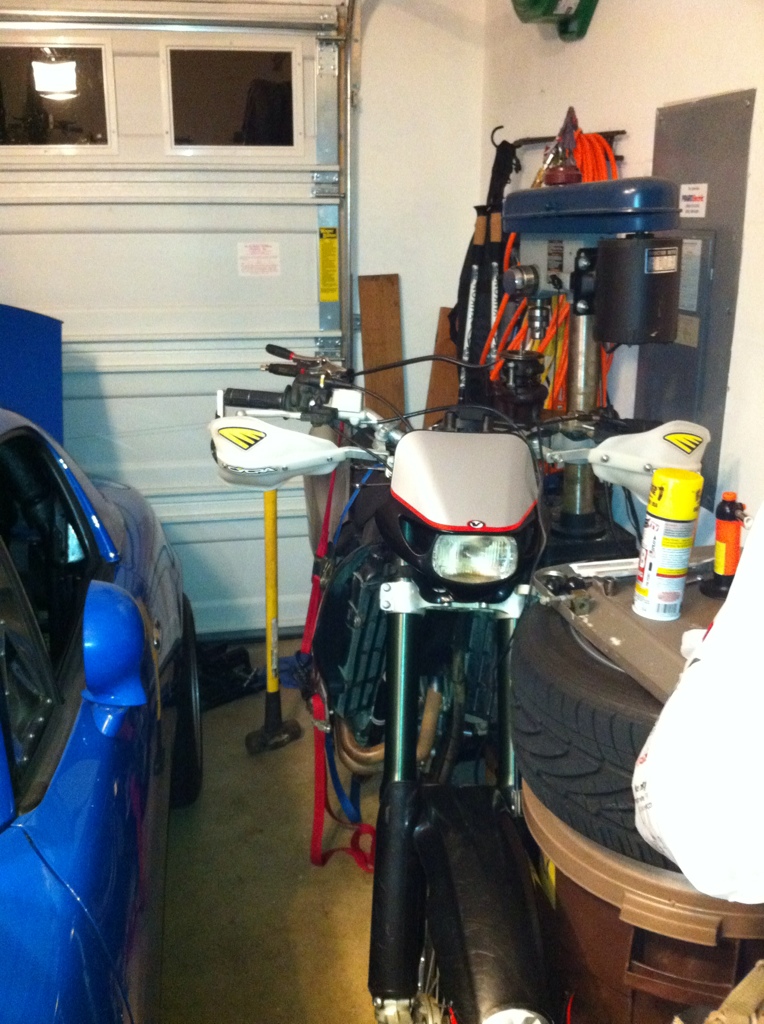

Aka: I got the bitch apart. First off, here's where I'm working, which is where half my frustrations come from. You can see the turbo on the drill press work bench. It's raining outside and that's not even my dirt bike, so putting it outside wasn't an option. Could have put the miata outside, but it has no engine until I get my new turbo stuff, so it'd be a bitch to push it back up my driveway into the garage.

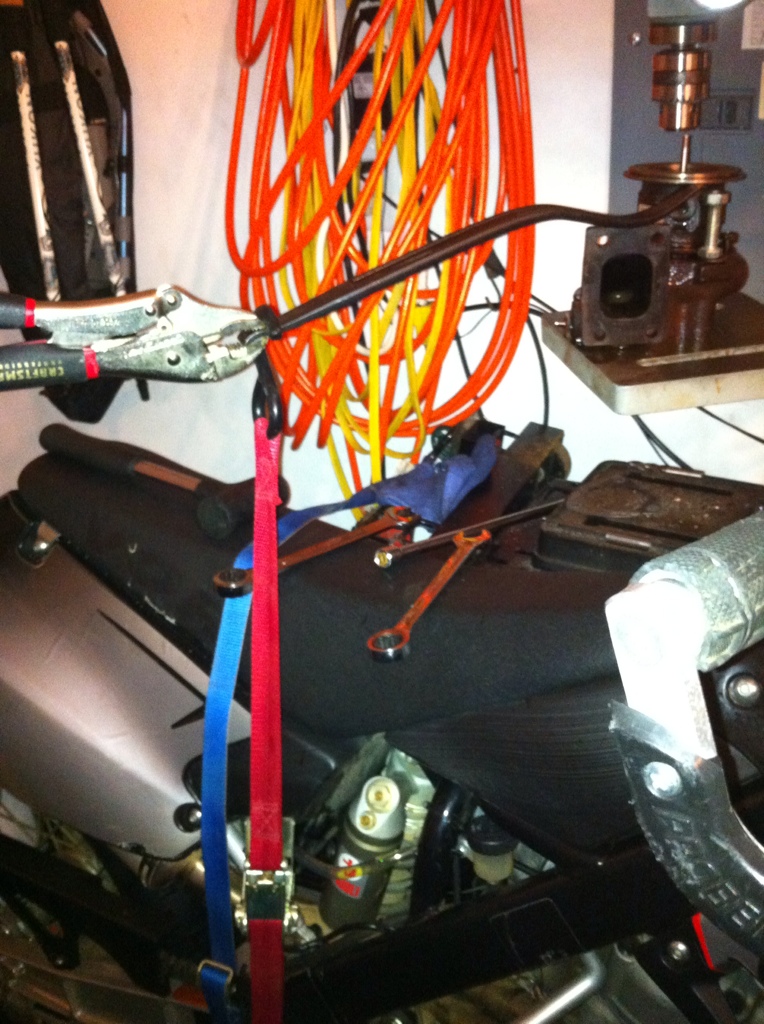

And here's how I got it off. I tied a rachet strap to a tire iron, prying against the turbine flange, putting pressure on the CHRA. This was hooked to the dirt bike's foot rest. The vice grips are to keep the other end from slipping off the tire iron.

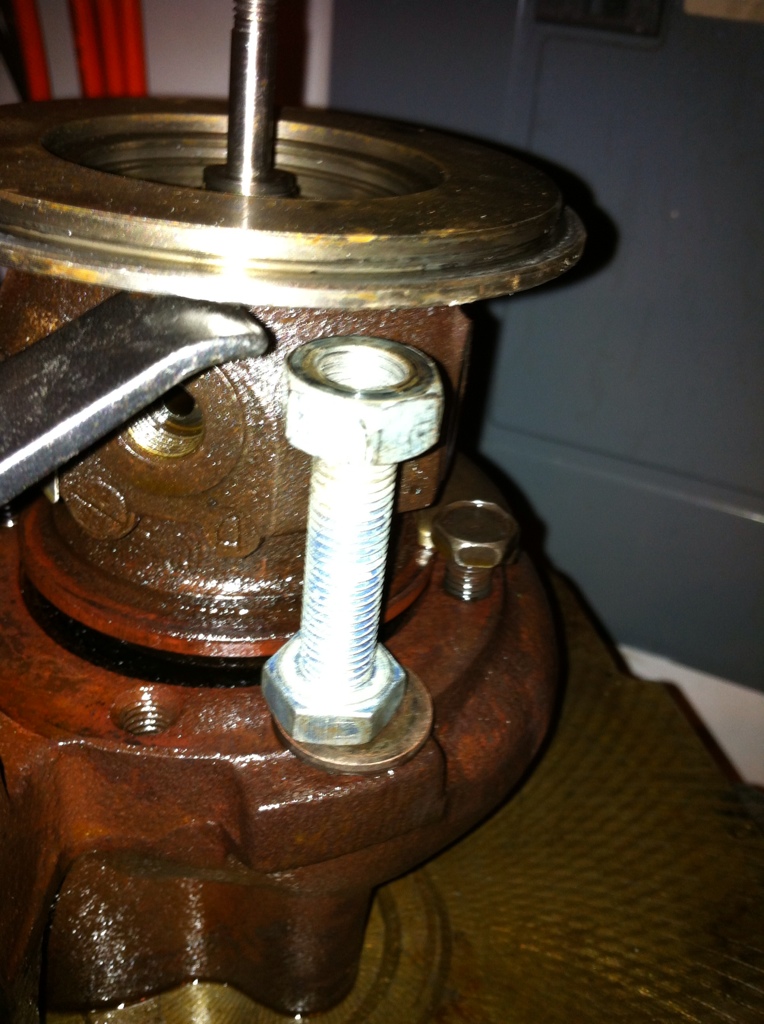

Used a bolt/nut combo push up on the CHRA against the turbine housing. This is probably the main reason I got this bitch apart.

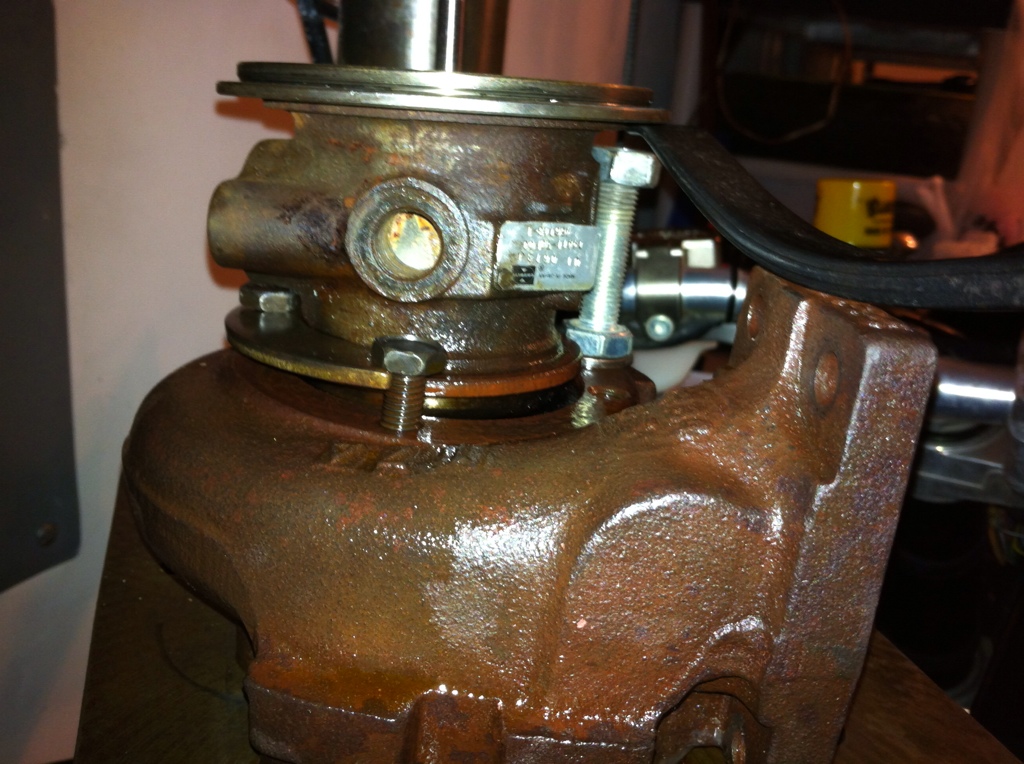

Used this little guy opposite my bolt/nut to pry evenly. You can see him pushed against the oil feed casting. I'd go back and forth between the two for a couple turns, didn't take long.

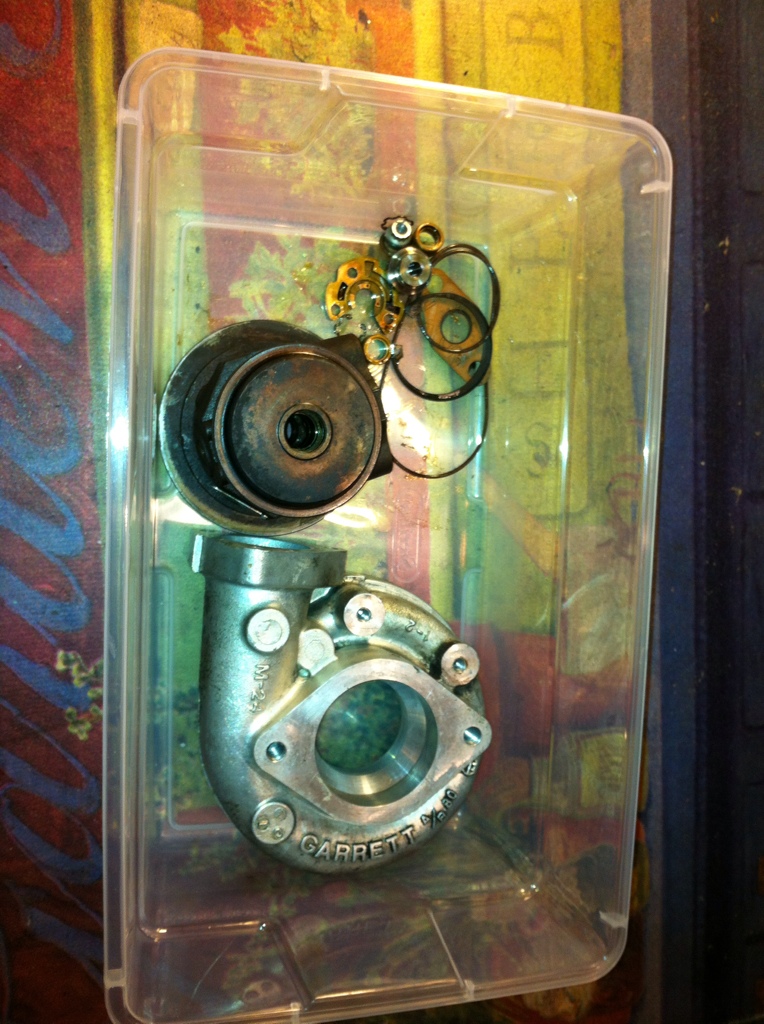

Unfortunetly, like most projects, once I get past a major hurtle, I forget about the camera and just start tearing ---- apart. 10 minutes later I have this. Hopefully I remember how it all goes together when I get my rebuild kit. The rest is soaking in my carb cleaner bucket.
Attached Thumbnails
SR20 T25 disassembly help-f0527c97.jpg   SR20 T25 disassembly help-3d9c74d0.jpg   SR20 T25 disassembly help-2228f0a1.jpg   SR20 T25 disassembly help-9b00d4dd.jpg   SR20 T25 disassembly help-6f361f7f.jpg

curly is offline   Reply With Quote
Old 02-17-2012, 05:37 AM   #19
Elite Member
iTrader: (6)

Join Date: May 2011
Location: Lebanon, TN
Posts: 1,668
Total Cats: 63
Default

Congrats. Samnnavy's was my suggestion. Cold+heat+hammer would = win. It worked on sand rail turbos that were abused by gorilla's.
TorqueZombie is offline   Reply With Quote
Old 02-17-2012, 06:47 AM   #20
Elite Member
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Props for such an unconventional method of seperating the turbine and CHRA.
