Old 06-23-2007, 04:56 PM   #21
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2005
Location: A2, MI
Posts: 474
Total Cats: 0
Default

But i need that thing measured and everything which isn't fun.
Dhaark is offline   Reply With Quote
Old 06-23-2007, 05:30 PM   #22
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

Why not use a IM gasket duh. that would be the easy way.
magnamx-5 is offline   Reply With Quote
Old 06-23-2007, 08:09 PM   #23
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2005
Location: A2, MI
Posts: 474
Total Cats: 0
Default

Quote:
Originally Posted by magnamx-5 View Post
Why not use a IM gasket duh. that would be the easy way.
Easy? it's as easy as measuring the intake manifold whi9ch isn't really easy.
Dhaark is offline   Reply With Quote
Old 06-23-2007, 08:23 PM   #24
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

since when is measuring the manidold harder than the gasket we must have different definitions of measure or you dont have the tools, or don't trust yourself these are all valid points. Not getting snippy or anything just trying to understand where you are comming from.
magnamx-5 is offline   Reply With Quote
Old 06-23-2007, 08:39 PM   #25
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2005
Location: A2, MI
Posts: 474
Total Cats: 0
Default

Magna. I'm using some shitty CMM. - Extreme CMM http://www.burtonprecision.com/cmm-sales.htm

Not being cocky or anything.
I can measure everything for you if you want, it's just too time consuming. If you want anything measured on it, it would cost you around $170-200/hour. - minimum rate rate is 1hour though.
Dhaark is offline   Reply With Quote
Old 06-23-2007, 08:41 PM   #26
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

Ok now it becomes clear to time consuming. Cool i wish you luck man.
magnamx-5 is offline   Reply With Quote
Old 07-15-2007, 08:40 PM   #27
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2005
Location: A2, MI
Posts: 474
Total Cats: 0
Default

Does anyone know how thick is a Sch 40 pipe (wall thickness)?
Dhaark is offline   Reply With Quote
Old 07-15-2007, 09:30 PM   #28
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

The thickness increases as the ID of the pipe increases, but 1.5" sch 40 ss pipe fittings are 0.145" thick
neogenesis2004 is offline   Reply With Quote
Old 07-15-2007, 10:42 PM   #29
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2005
Location: A2, MI
Posts: 474
Total Cats: 0
Default

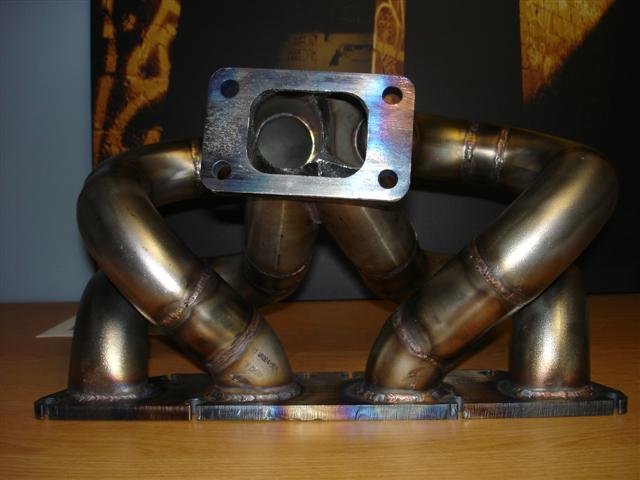

ordered 16, 90* butt-weld ones in 1.5" sch 40. and 3ft of 1.5" pipe sch 40. is this going to be enought for a manifold? for a manifold like this one here:



thanks Neo
Attached Thumbnails
SS Manifold-mani6.jpg
Dhaark is offline   Reply With Quote
Old 07-15-2007, 10:47 PM   #30
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

ha, thats enough for at least 2 of those manifolds.
neogenesis2004 is offline   Reply With Quote
Old 07-15-2007, 10:53 PM   #31
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2005
Location: A2, MI
Posts: 474
Total Cats: 0
Default

it uses 4 on each leg... 3+ 1/2 actually. SO i ordered 4 for each leg just to be safe...
Dhaark is offline   Reply With Quote
