Old 03-14-2008, 01:22 AM   #21
I'm Miserable!
iTrader: (1)

Join Date: Oct 2007
Location: Niagara Falls, On, CANADA
Posts: 979
Total Cats: 0
Default

Ya i had to drill the **** outta the holes to widen them i didnt have that other tool lol, cause i had the cheap ebay turbo kit ****...i regret selling it now i was to lazy to install it back then but now i think about it i could have had a 250hp car lol
miataz is offline   Reply With Quote
Old 03-14-2008, 10:59 AM   #22
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

mazda/nissan-do you have a welder? if you do, try to lay a bead where you trimmed the shelf, it would make me feel a lot better if i was in your shoes...
breaklines, def. needs revisions with that shield, even though it should be easier to re-think the shield rather than make new lines...under normal driving conditions your motor moves quiet a bit, im not sure what would happen to that break line, but id hate to find out while going 50-60MPH
overall, looking good so far...keep up the good work
Zabac is offline   Reply With Quote
Old 03-14-2008, 12:44 PM   #23
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Lexington, SC
Posts: 2,084
Total Cats: 0
Default

why lay down a bead on the shelf? there is not much revision in the heat shield because it is already laying pretty close to the exhaust housing and it would be the turbo hitting the line not only the shield
mazda/nissan is offline   Reply With Quote
Old 03-14-2008, 04:06 PM   #24
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Lexington, SC
Posts: 2,084
Total Cats: 0
Default

aight finished my heatshield for now i think

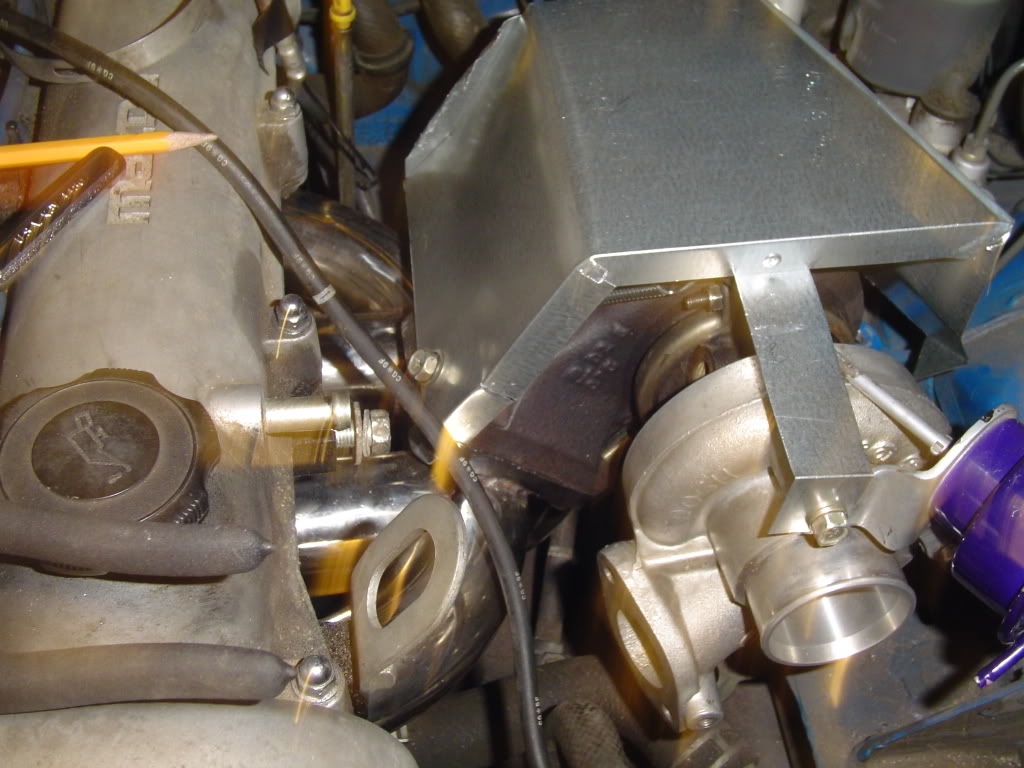

Name:  16g019.jpg
Views: 0
Size:  108.5 KB

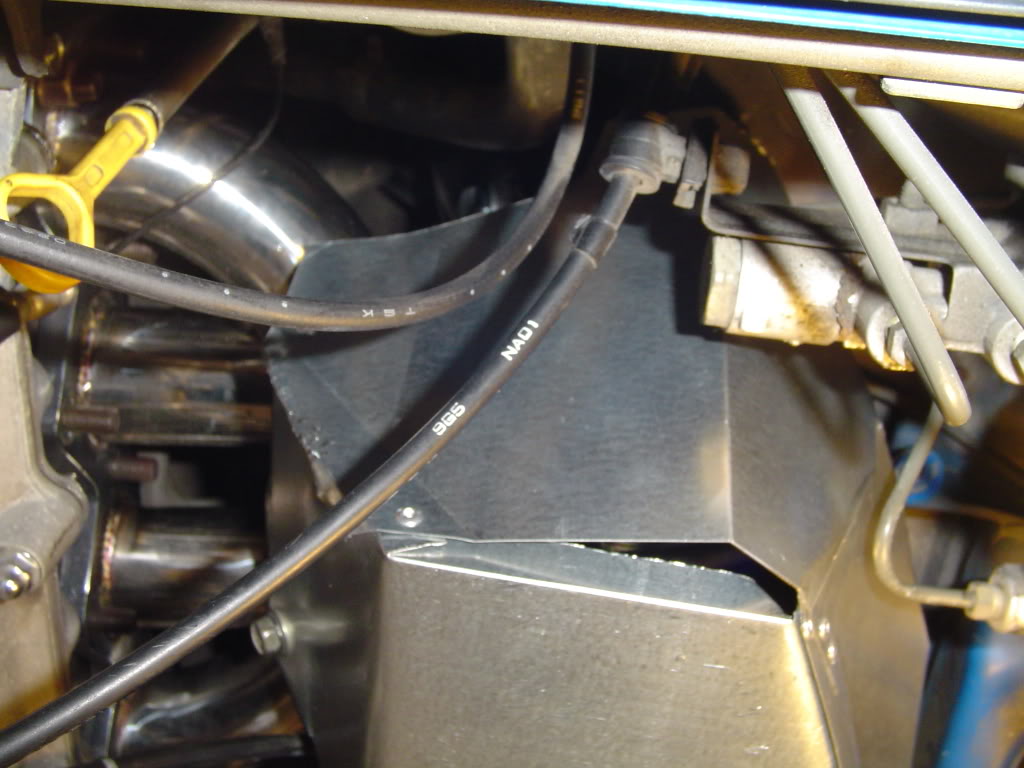

Name:  16g018.jpg
Views: 0
Size:  95.2 KB

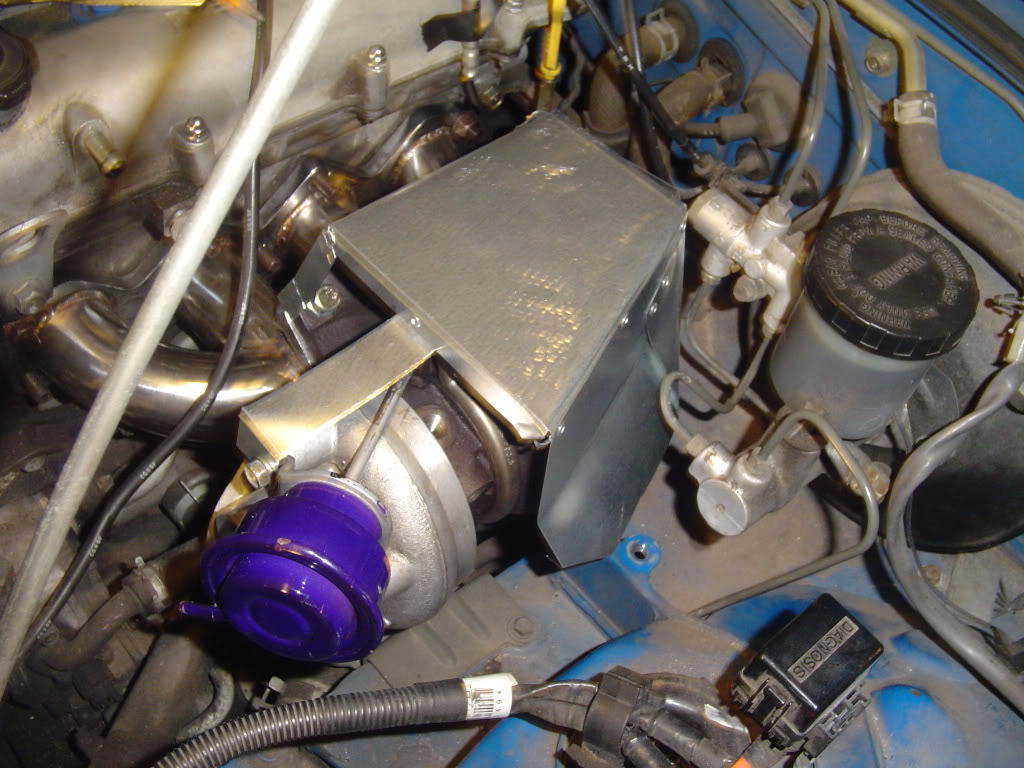

Name:  16g017.jpg
Views: 0
Size:  128.2 KB

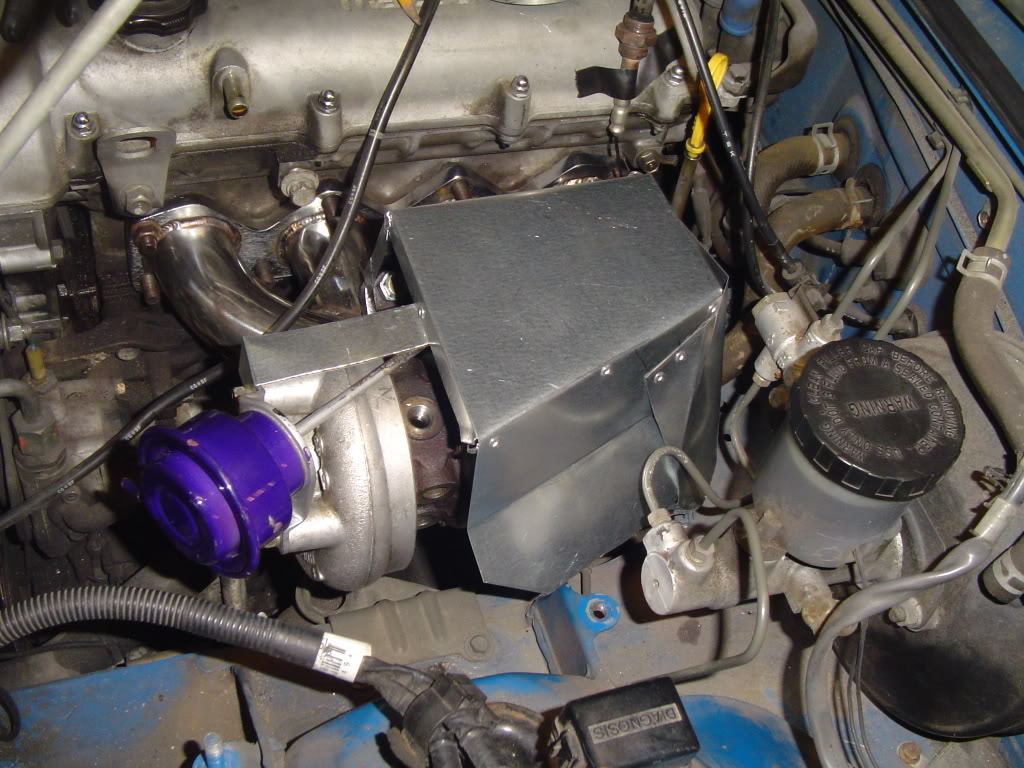

Name:  16g016.jpg
Views: 0
Size:  146.4 KB

i do still need to find another mounting point, it is a bit wobbly but the brace from the actuator bolt should help stiffen it up
mazda/nissan is offline   Reply With Quote
Old 12-14-2008, 12:42 AM   #25
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Lexington, SC
Posts: 2,084
Total Cats: 0
Default

ok well turns out I am going to rotate my compressor housing (yes I have been fighting with my charge pipes for nearly a year and given up) and will just fab up a bracket for the actuator. How much side to side flex can an actuator hold? Or is the actuator's throw a more important factor than the side to side flex due to the wastegate arm (I haven't measured the actuator's throw yet)?
mazda/nissan is offline   Reply With Quote
