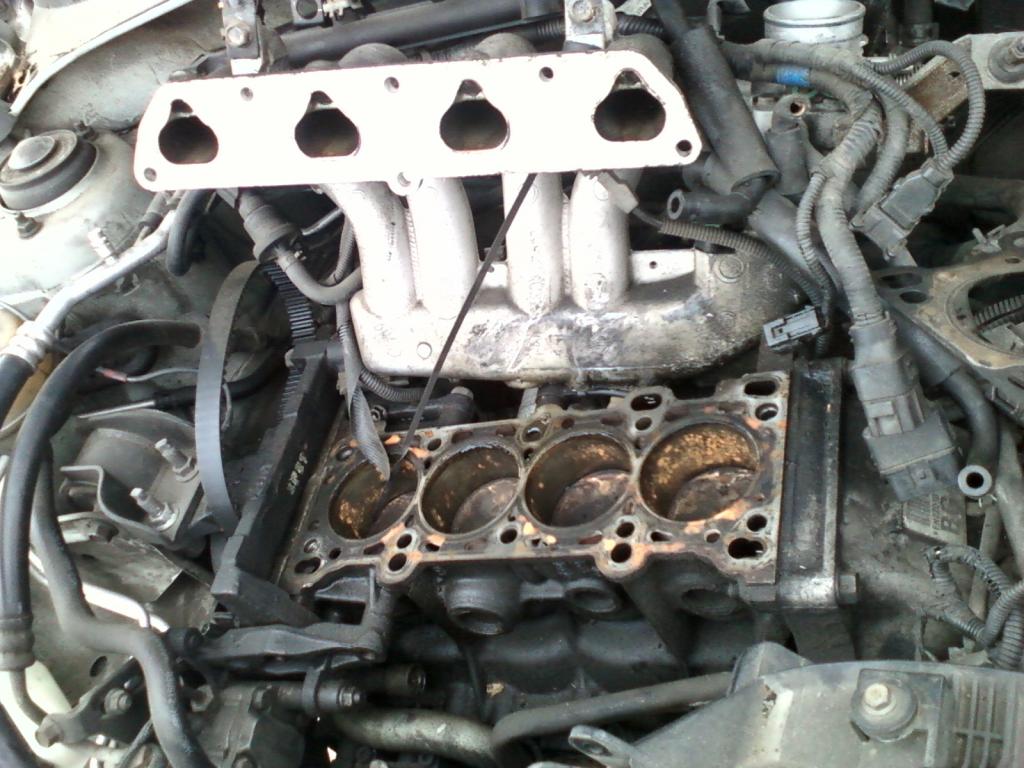

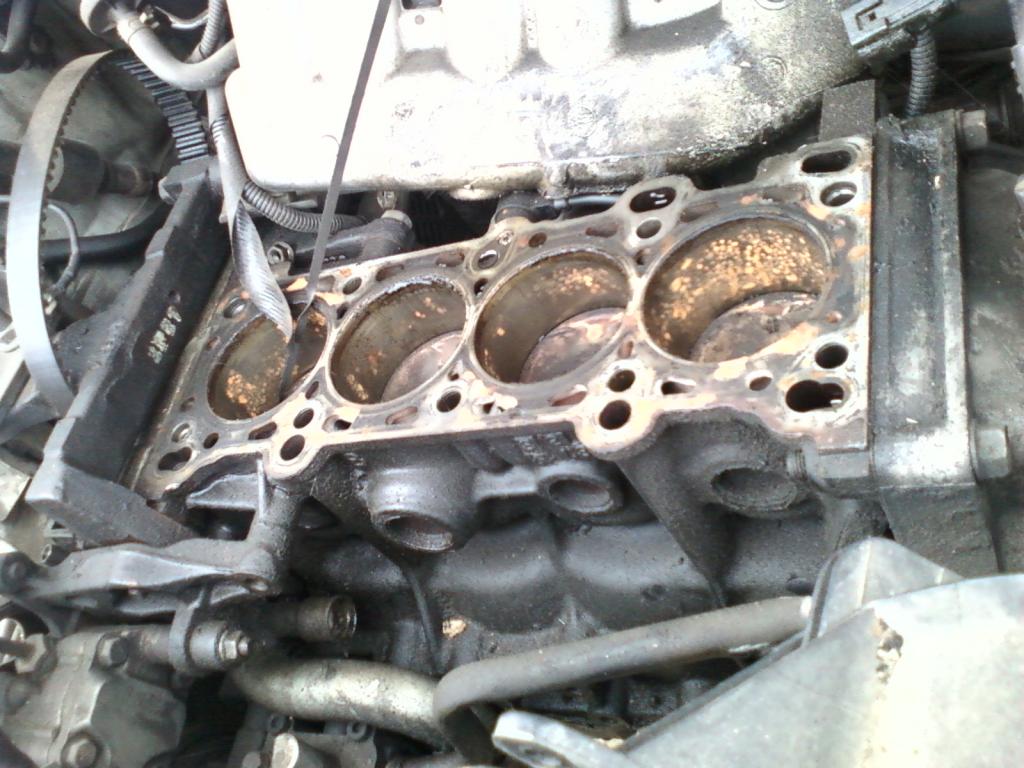

I came across this in a dismantling yard a few weeks back, it is a 2004 Kia Rio. The block appears to be a revised B6 (different water jacket structure). The cylinder head is Kia's own design and is crap (big, heavy, tall, small ports, big combustion chambers and bad valve angles)

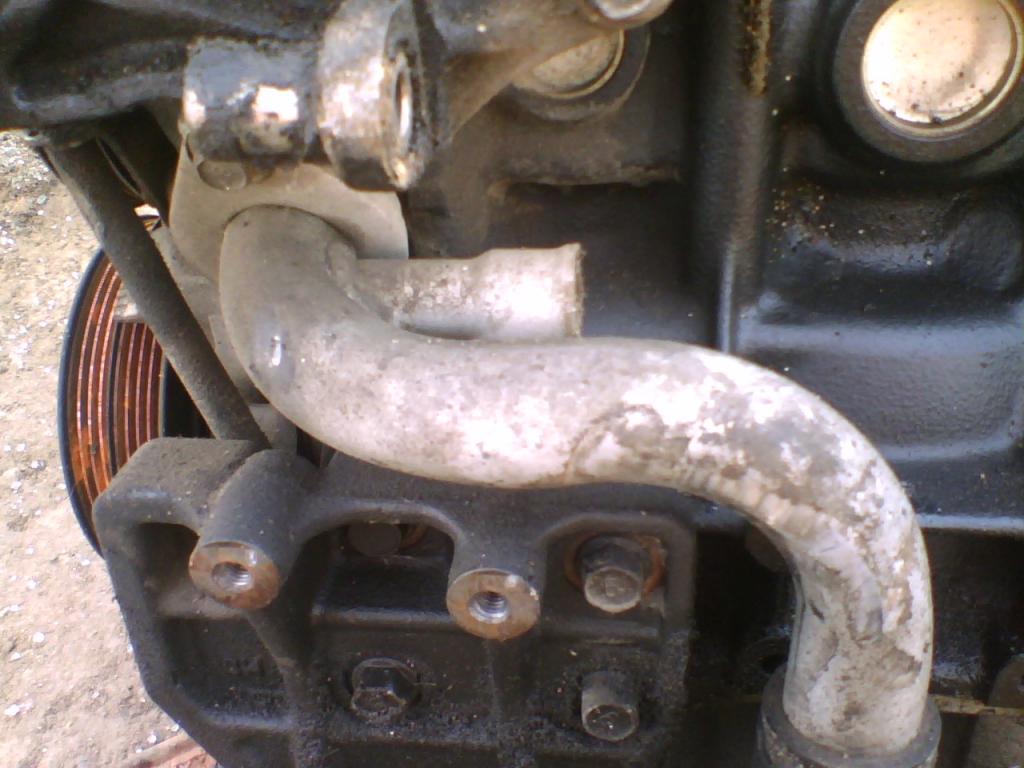

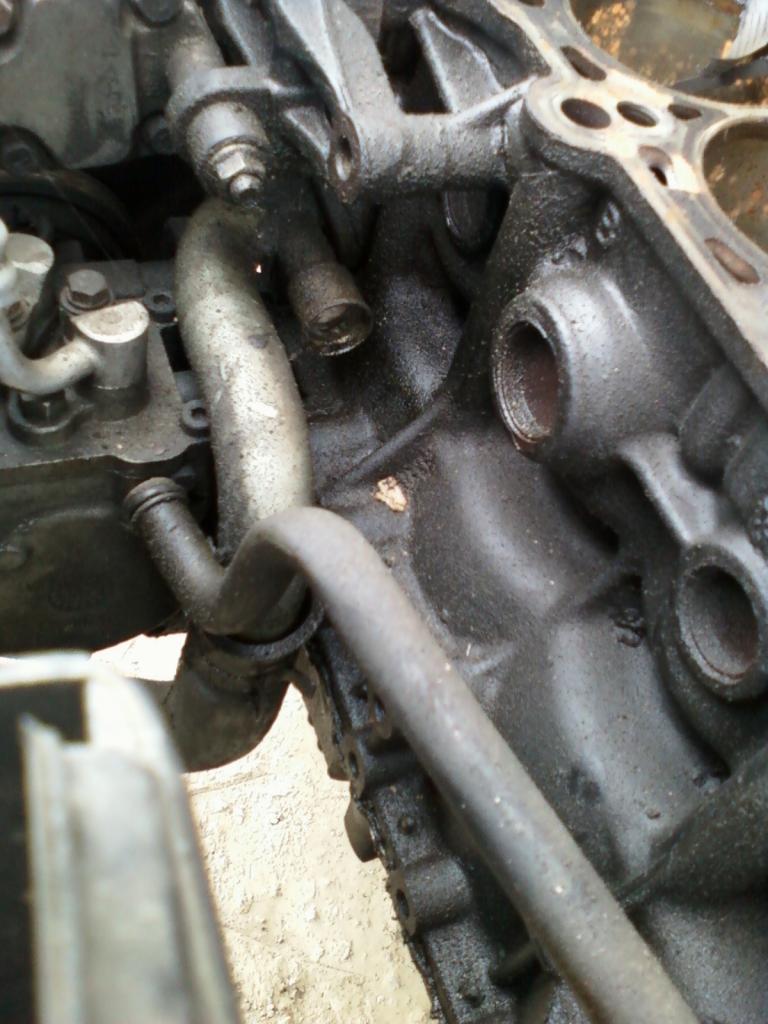

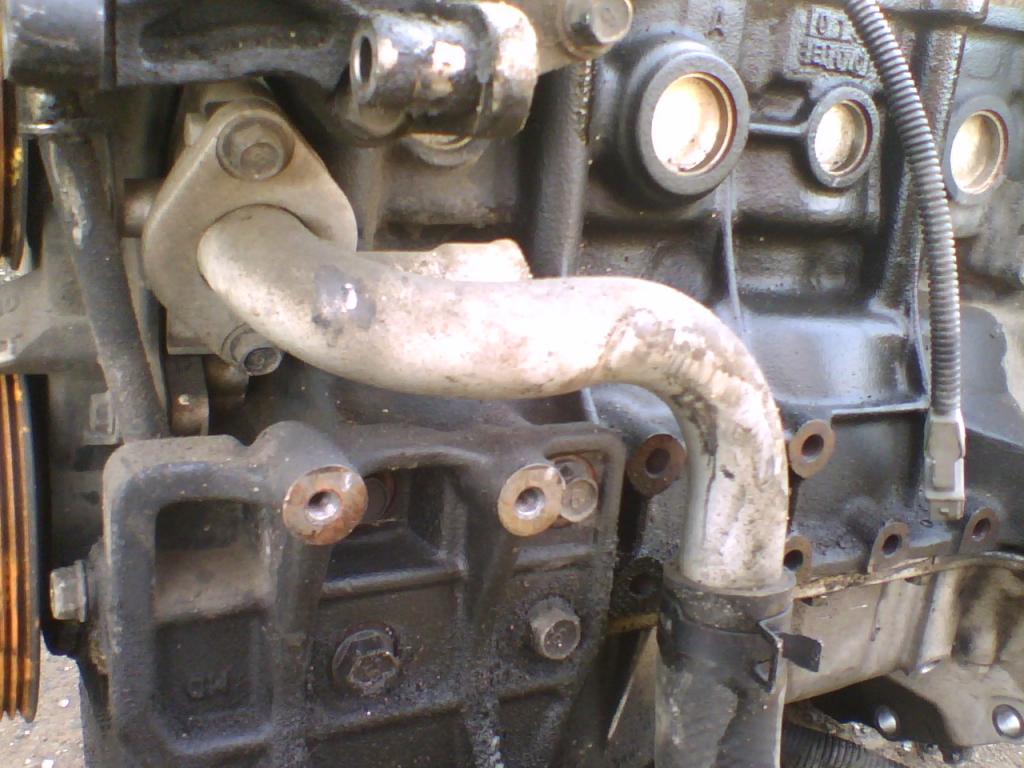

I noticed this steel mixing manifold and thought it would be easier to modify for those who do not have a TIG welder and cannot weld aluminum. I'm not sure if it is a direct fit on our cars due to different A/C compressors.
