Default Stupid F***in n00b DIY questions

Hey all!

I figured I would ask some stupid questions today!

Really just looking for a pointer to a useful DIY build link. I read the sticky above, lots of great stuff there, but my question is a bit more basic.

Is there a general checklist of stuff to collect for a turbo miata project? I am planning to start collecting parts to convert my newly acquired JR M45 to a turbo car.

I am not a total n00b, I have installed and owned a 1.6 BEGI S3, tuned with a Link. The intimidating part is to have to source all the little "bits" versus buying a turnkey setup. Here is what I have thus far...


1999 NB
MS2 e from Reverent coming (may upgrade to a MS3)
TDR front intercooler
ID 725cc Injectors
Mishimoto Radiator
New Clutch
OK exhaust system (not stock, but not up to full turbo snuff)
MTX-l

Here is what I know I need:

Turbo (either 2560 or 2860 likely)
Manifold (BEGI, FM, or Artech- really digging the Artech)
Downpipe (from same place as above likely)
Sandwich Filter for oil feed
T fitting for water feed
Do I need a wastegate?

I am sure there are various bits and pieces I am missing here, but anything obvious I should be sourcing?
dwink is offline   Reply With Quote
Old 02-07-2013, 06:46 PM   #2
Junior Member
iTrader: (2)

Join Date: Oct 2011
Location: Chicago Il
Posts: 111
Total Cats: 2
Default

You only need a wastegate if your turbo doesn't have one internally. Most 2560's are internally wastegated, unless you swap the exhaust housing I believe. Not sure about the 2860.
akbloom is offline   Reply With Quote
Old 02-07-2013, 06:55 PM   #3
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

The build threads section is what you are looking for.

You probably don't need a wastegate, as it's easy to get those garret turbos internally gated. In fact with most if you wanted to run an external wastegate you would have to weld the internal shut.
thenuge26 is offline   Reply With Quote
Old 02-07-2013, 06:57 PM   #4
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

You claim to have done this before, so I'm not sure how detailed a response you want....
  • Manual or electronic boost controller (if you go electronic, make sure Rev is setting up your MS to work with it)
  • divider/blow off valve
Wastegate should be built in to your turbo for a T25 frame unless you go out of your way to find a housing that's welded shut or vband.

Go check out the FM or BEGi website and dig up the instructions for the FM2 or BEGi S series turbo kits. They should include a list of parts.
EO2K is offline   Reply With Quote
Old 02-07-2013, 09:47 PM   #5
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2013
Location: Reno/Tahoe
Posts: 159
Total Cats: 2
Default

Yes, I did do it before, but it was back in 2006 or 7 and everything was in a box with directions! Good advice on pulling out my old installation instructions for the BEGI- heck, I might just call Corky up and get all the bits I need- like a lite version of the starter kit. Something about those Artech manifolds though....
dwink is offline   Reply With Quote
Old 02-07-2013, 10:18 PM   #6
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Its cool, we deal with a lot of different types around here so I never know how my comments will be perceived.

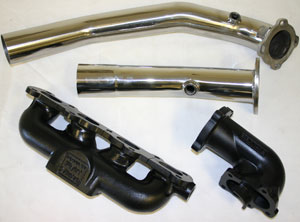

FM offers a cast manifold, cast downpipe elbow and downpipe for $750. See HERE

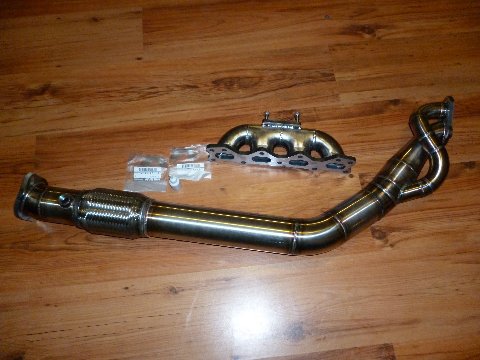

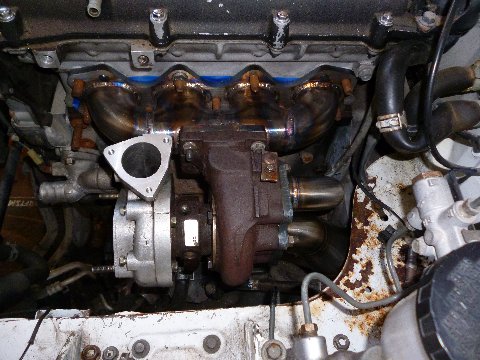

Abe can do you a very simple manifold and downpipe like what Curly is running for about the same $$$ +/- $100 IIRC.





Read about it here: https://www.miataturbo.net/build-thr...e6/#post851963

That's pretty god damn good for the money. Not only does Abe's gear represent a significant level of craftsmanship, about the only way to beat it is to DIY.

No clue what BEGi charges for the same.

After that, its plumbing and planning. Fittings will drive you insane for DIY. Not so much figuring out what to use, but actually finding them. This will be driven partially by your sources for said fluids. Again, check build threads for routing.

Intercooler plumbing shouldn't be bad. Is yours an "over the top" TDR? There are enough build threads around here that it shouldn't be much of an issue if its not. Mobius has a bitchen thread with a lot of this information, bonus points that its specific to an NB. I'm using that entire parts list for the hot side of intercooler setup, but I had issues getting the cold side single piece pipe from FM to fit, so I went "traditional" with mine.

I just ordered one of these from Amazon:
GlowShift Oil Filter Sandwich Adapter 20mm 1.5 Thread : Amazon.com : Automotive GlowShift Oil Filter Sandwich Adapter 20mm 1.5 Thread : Amazon.com : Automotive
I found it listed in this thread: https://www.miataturbo.net/build-threads-57/sjps-paint-numbers-build-70470/ Its not here yet, so if it doesn't fit, I'm blaming SJP0tato

Just a note: your 1999 is mechanically the same as my 2000 and I don't even have a turbo. I found all this info by reading and searching here on the forum. You better make a build thread with lots of pics once you get your stuff figured out, I want to see what does/does not work out for you
Attached Thumbnails
Stupid F***in n00b DIY questions-22-20000.jpg
EO2K is offline   Reply With Quote
Old 02-07-2013, 11:01 PM   #7
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2013
Location: Reno/Tahoe
Posts: 159
Total Cats: 2
Default

Quote:
Originally Posted by EO2K View Post
Its cool, we deal with a lot of different types around here so I never know how my comments will be perceived.

FM offers a cast manifold, cast downpipe elbow and downpipe for $750. See

Abe can do you a very simple manifold and downpipe like what Curly is running for about the same $$$ +/- $100 I

That's pretty god damn good for the money. Not only does Abe's gear represent a significant level of craftsmanship, about the only way to beat it is to DIY.

No clue what BEGi charges for the same.

After that, its plumbing and planning. Fittings will drive you insane for DIY. Not so much figuring out what to use, but actually finding them. This will be driven partially by your sources for said fluids. Again, check build threads for routing.

Intercooler plumbing shouldn't be bad. Is yours an "over the top" TDR? There are enough build threads around here that it shouldn't be much of an issue if its not. Mobius has a bitchen thread with a lot of this information, bonus points that its specific to an NB. I'm using that entire parts list for the hot side of intercooler setup, but I had issues getting the cold side single piece pipe from FM to fit, so I went "traditional" with mine.

I just ordered one of these from Amazon: GlowShift Oil Filter Sandwich Adapter 20mm 1.5 Thread : Amazon.com : Automotive I found it listed in this thread: SJP's "paint by numbers" build Its not here yet, so if it doesn't fit, I'm blaming SJP0tato

Just a note: your 1999 is mechanically the same as my 2000 and I don't even have a turbo. I found all this info by reading and searching here on the forum. You better make a build thread with lots of pics once you get your stuff figured out, I want to see what does/does not work out for you

No, feel free to tell me if I am being a n00b!!

Thanks for the the link to Curly's build, that totally helps and I have subscribed. Yes, it is the over the top, and Gary actually sells a kit to use that with a FM turbo, you just need to re-clock the turbo, so it should be very easy to adapt to a custom.

One great advantage of living in Reno- I may well have the world's greatest speed shop down the street. The Summit Racing retail location is so cool... need a WB02, just go take your pick. Want a racing seat- right here. Fittings- yes we have whatever you want....

I just got the car last Friday, and I have not lifted a wrench (yet!). I will try to do a build thread- not my specialty!!!
dwink is offline   Reply With Quote
Old 02-07-2013, 11:56 PM   #8
Senior Member
iTrader: (1)

Join Date: Sep 2008
Location: Tucson, Arizona
Posts: 889
Total Cats: 55
Default

Last time I talked to abe it was more than just + or - 100. I don't know how he feels about people quoting his prices but i'd talk to him directly for pricing.
krissetsfire is offline   Reply With Quote
Old 02-08-2013, 12:22 AM   #9
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2013
Location: Reno/Tahoe
Posts: 159
Total Cats: 2
Default

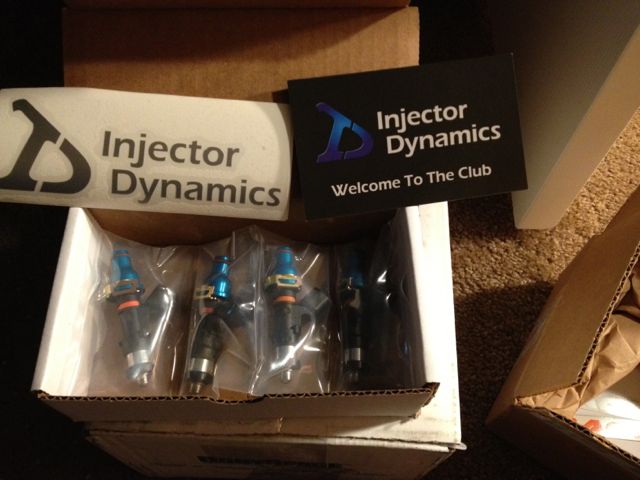

The parts have begun to arrive....
Attached Thumbnails
Stupid F***in n00b DIY questions-img_1481.jpg
dwink is offline   Reply With Quote
Old 02-08-2013, 12:32 AM   #10
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,165
Total Cats: 2,573
Default

I have a Begi S4 turbo setup available. Well, most of it anyway:

manifold
garrett gt2860rs
downpipe
support brace

perfect setup and just what you're looking for

I'm local too.
Hit me up if interested.
18psi is offline   Reply With Quote
Old 02-08-2013, 02:39 AM   #11
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Quote:
Originally Posted by krissetsfire View Post
Last time I talked to abe it was more than just + or - 100. I don't know how he feels about people quoting his prices but i'd talk to him directly for pricing.
Chillax, that's not from a quote. As stated previously, this is all from information I've gathered by searching around the site. I put the +/- in there because based on what I've read, there seems to be a range, and I'm sure it's based on configuration, options, etc. If homeslice wants a real quote, he can call or email Abe and get one just like the rest of us plebes.
EO2K is offline   Reply With Quote
Old 02-09-2013, 10:23 AM   #12
Elite Member
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by thenuge26 View Post
The build threads section is what you are looking for.

You probably don't need a wastegate, as it's easy to get those garret turbos internally gated. In fact with most if you wanted to run an external wastegate you would have to weld the internal shut.
Just FYI this is not true anymore ...

Grimspeed makes this nifty little piece that holds it shut

Grimmspeed Adjustable Wastegate(IWG) Bracket - Universal Import Image Racing
BTMiata is offline   Reply With Quote
Old 02-09-2013, 07:53 PM   #13
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

Why not just a piece of wire or a strong spring.

Dann
nitrodann is offline   Reply With Quote
Old 02-09-2013, 08:00 PM   #14
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2013
Location: Reno/Tahoe
Posts: 159
Total Cats: 2
Default

FYI. Worked a deal with 18psi for his S4 with a 2860. Anyone know anyone looking for a JR supercharger?
dwink is offline   Reply With Quote
Old 02-09-2013, 09:57 PM   #15
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

Most of us try not to associate with idiots haha.

Dann
nitrodann is offline   Reply With Quote
Old 02-09-2013, 11:42 PM   #16
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,165
Total Cats: 2,573
Default

lol throw it up in the classifieds when its off the car.
when I was selling my friends I had a ton of people interested.
18psi is offline   Reply With Quote
Old 02-09-2013, 11:47 PM   #17
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Quote:
Originally Posted by dwink View Post
FYI. Worked a deal with 18psi for his S4 with a 2860. Anyone know anyone looking for a JR supercharger?
Miata.net, clubroadster.net or your local forum, if you have one. I sold one of these a few years back. Just make sure everything is clean and well organized and you should have no problem selling it.
EO2K is offline   Reply With Quote
Old 02-10-2013, 02:10 AM   #18
Senior Member
iTrader: (1)

Join Date: Sep 2008
Location: Tucson, Arizona
Posts: 889
Total Cats: 55
Default

Quote:
Originally Posted by EO2K View Post
Chillax, that's not from a quote. As stated previously, this is all from information I've gathered by searching around the site. I put the +/- in there because based on what I've read, there seems to be a range, and I'm sure it's based on configuration, options, etc. If homeslice wants a real quote, he can call or email Abe and get one just like the rest of us plebes.
When wasn't I chillaxed? Simply stated you were off on your pricing. I have gathered information directly from abe and so I chimed in. It's all good dude

OP glad you were able to come to an agreement and come closer to getting your turbo on.
krissetsfire is offline   Reply With Quote
Old 02-10-2013, 01:01 PM   #19
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

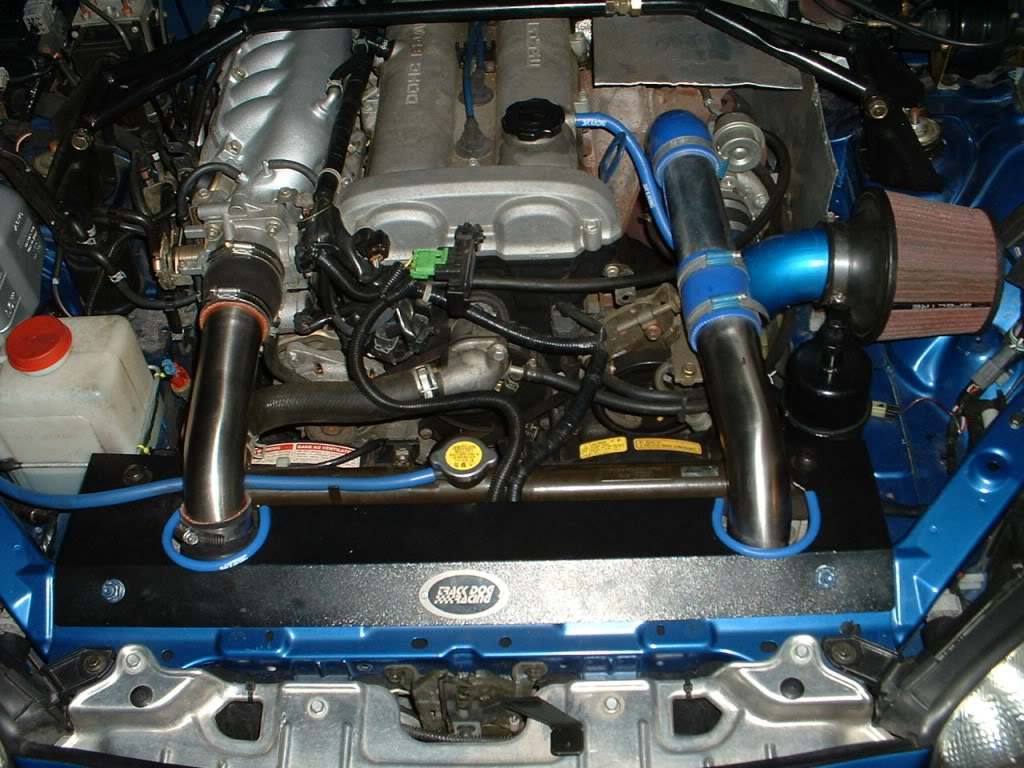

For the water cooling you dont need a t pipe. You just have to unplug the hose from the mixing casting and plug that into the drain side to the turbo and plug the fill side to the mixing casting.

See the line going from the mixing casting to the turbo. Thats your fill line, Use a 2 sided barb fitting to connect the coolant drain line to the hose you took off from the mixing casting.
Attached Thumbnails
Stupid F***in n00b DIY questions-dscf0005.jpg
triple88a is offline   Reply With Quote
Old 02-22-2013, 01:29 PM   #20
Newb

Join Date: Sep 2012
Posts: 19
Total Cats: -1
Default

Quote:
Originally Posted by dwink View Post
Hey all!

I figured I would ask some stupid questions today!

Really just looking for a pointer to a useful DIY build link. I read the sticky above, lots of great stuff there, but my question is a bit more basic.
Thanks for saving me from having to ask the same question, even though I'm not the ex-style-conscious-VW-guy I was when I bought my Miata, I'm always worried that Vlad is going to roast me for any questions I ask. Seems like that's just MT in general.

Quote:
Originally Posted by dwink View Post
FYI. Worked a deal with 18psi for his S4 with a 2860. Anyone know anyone looking for a JR supercharger?
For Sale thread? Might be interested myself. (flamesuit: on)
BulldogMiata16 is offline   Reply With Quote
