Default suck it, hustler

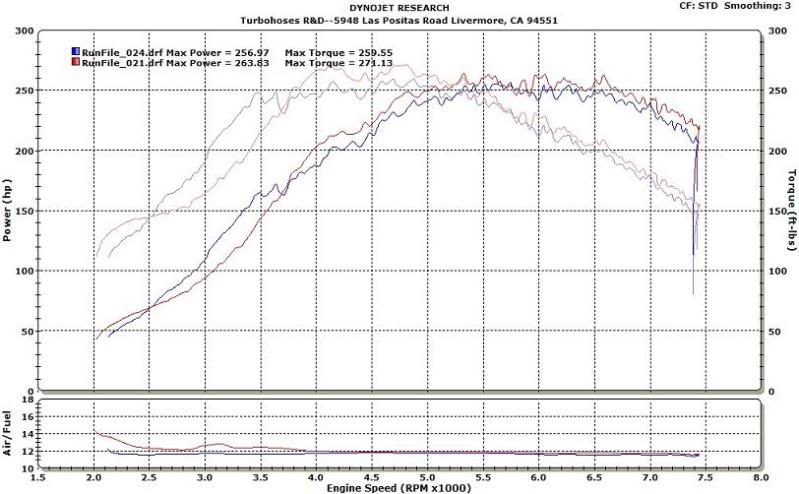

Name:  gt28rsturbine.jpg
Views: 2
Size:  60.0 KB

Disco potato comparison, blue line is .64 A/R and red line is .86 A/R. 400rpm for 11ft.lbs?
Savington is online now   Reply With Quote
Old 04-18-2009, 06:46 AM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,186
Total Cats: 2,582
Default

lol this should be good
18psi is offline   Reply With Quote
Old 04-18-2009, 07:23 AM   #3
Junior Member

Join Date: Mar 2008
Location: Seattle
Posts: 244
Total Cats: 3
Default

inb4 /buttsex/
DontPassTheFence is offline   Reply With Quote
Old 04-18-2009, 11:25 AM   #4
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

11 ft lbs is almost small enough for run-to-run variation, but that left half is significant.
y8s is offline   Reply With Quote
Old 04-18-2009, 11:55 AM   #5
Senior Member
iTrader: (22)

Join Date: Oct 2007
Location: bay area, ca
Posts: 551
Total Cats: 19
Default

What engine? Is this on your 99 1.8?
orion4096 is offline   Reply With Quote
Old 04-18-2009, 01:24 PM   #6
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Big difference indeed. Do you have a comparison plot to the GT2560R that I run?
Laur3ns is offline   Reply With Quote
Old 04-18-2009, 02:58 PM   #7
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

What are EGT's doing?

That's interesting. I went with the larger turbine for EGT lowness. However, I still need to get back to the dyno because my AFR's are too rich out of boost, and spark table needs some work. I plan on doing this in May. There is still more work I can do to make my tune better, and I'm not sold on using a smaller turbine housing to lower spool exclusively. I think I can still reap the benefits of the larger hot-side if I work on a few other things.
hustler is offline   Reply With Quote
Old 04-18-2009, 03:21 PM   #8
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by orion4096 View Post
What engine? Is this on your 99 1.8?
considering that's a dynojet, he's making similar #'s on a 9.5:1 motor with a pea-shooter 2554. lol

My car would make 292whp/282wtq on that dyno considering the 12% change from a local dynojet to the dynodynamics which I've shown in real data, and backed-up by keyboard jockeys.

However, my interest is piqued because my car makes more power than I wanted initially. I'm probably just going to leave it how it is.

Any chance we can get a look at this car's spark table?
hustler is offline   Reply With Quote
Old 04-18-2009, 03:44 PM   #9
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,364
Total Cats: 1,325
Default

To quantify a bit, this was from an MR2. GT2860RS, they just swapped the hotsides to see what the difference would be.
Savington is online now   Reply With Quote
Old 04-18-2009, 06:46 PM   #10
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

you mean "qualify." lulz
hustler is offline   Reply With Quote
Old 04-18-2009, 09:19 PM   #11
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Well I would say I am glad I got the .64 AR housing on my 2871. I'll give up a little torque for that much additional spool.

Did I mention even with my initial crap tune I was seeing 12 psi at ~3300 rpm?
ZX-Tex is offline   Reply With Quote
Old 04-18-2009, 11:04 PM   #12
Junior Member

Join Date: Apr 2008
Posts: 350
Total Cats: -2
Default

Quote:
Originally Posted by Savington View Post
To qualify a bit, this was from an MR2. GT2860RS, they just swapped the hotsides to see what the difference would be.
1ZZ-FE has variable intake cam timing. Don't know what that does to spool compared to a BP.
SolarYellow510 is offline   Reply With Quote
Old 04-19-2009, 12:06 AM   #13
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,364
Total Cats: 1,325
Default

Quote:
Originally Posted by hustler View Post
you mean "qualify." lulz
quan·ti·fy (kwŏn'tə-fī')
1. To determine or express the quantity of.
2. (Logic) To limit the variables of (a proposition) by prefixing an operator such as "all: or "some".

Name:  emot-snoop.gif
Views: 2
Size:  8.6 KB
Savington is online now   Reply With Quote
Old 04-19-2009, 12:18 AM   #14
Junior Member

Join Date: Mar 2009
Location: Venice, FL
Posts: 179
Total Cats: 9
Default

Quote:
Originally Posted by SolarYellow510 View Post
1ZZ-FE has variable intake cam timing. Don't know what that does to spool compared to a BP.
I think you're thinking of the wrong generation. Probably the older 89-94 MR-2, not the 2000-05 MR-S. Anyways, later BPs have VVT as well; just two 1.8 4 banger convertible designs from different Jap companies at the same time.

I agree that the area to the left is educational and interesting, though I wonder what difference enriching it a bit would make on the red graph.

For a street DD (or autocross even), it looks like a .64 would be better putting around town. I think the low end benefits are better than the minor HP drop comparatively.
Orion ZyGarian is offline   Reply With Quote
Old 04-19-2009, 01:26 AM   #15
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by Savington View Post
quan·ti·fy (kwŏn'tə-fī')
1. To determine or express the quantity of.
2. (Logic) To limit the variables of (a proposition) by prefixing an operator such as "all: or "some".

the graphs quantified it. now you're limiting the scope of applicability by saying it's an MR2 and not general for all cars. a quality of that dyno test is that it was done on a specific car. qualify.
y8s is offline   Reply With Quote
Old 04-19-2009, 01:36 AM   #16
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by Savington View Post


Disco potato comparison, blue line is .64 A/R and red line is .86 A/R. 400rpm for 11ft.lbs?
Hey Andrew,
I have to ask... What does this MR2 bullshit have to do with the price of rice in China?

I'm going to agree with Hustler here. For open track, the tater is the better choice.
Ben is offline   Reply With Quote
