Default T25 Questions: Mounting, Clocking, and Actuator Relocation

1) When I tried to mount my non-clocked SR20 T25 onto the new BEGI manifold, there are clearance issues w/ the triangular compressor outlet hitting the manifold. Do I HAVE to clock the compressor outlet downwards for this to fit? Or is a spacer normally used? I always thought T25 were plug and play for BEGI manifolds?

2) How do you remount the wastegate actuator if clocking this downwards? I'd prefer not to drill/tap the compressor housing. Any other non-permanent methods while utilizing the stock actuator?

Thanks.
kenzo42 is offline   Reply With Quote
Old 01-26-2008, 05:21 AM   #2
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,367
Total Cats: 1,331
Default

You REALLY want to clock the compressor housing. You also REALLY want to just remove the compressor housing, drill/tap it, and mount the wastegate can properly. You'll love yourself after it's all installed and looking like it should. A few minutes with a drillpress and a hand-tap and it'll be done up real nice.
Savington is online now   Reply With Quote
Old 01-26-2008, 10:22 AM   #3
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

That's the best way to do it. Unless you go with a different wastegate actuator (the DSM ones mount to the back of the compressor housing vice the front), or fabricate a bracket of some sort that uses the stock holes (totally doable and done often), or go with an external wastegate.... you're stuck tapping the compressor housing so everything will line up.

As for clocking, you can aim the compressor outlet down (highly recommended if you don't have AC/PS), or towards the firewall... see a Stripes-Pipes kit for that angle.
samnavy is offline   Reply With Quote
Old 01-26-2008, 01:52 PM   #4
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Saml01 is offline   Reply With Quote
Old 01-26-2008, 02:21 PM   #5
Trackspeed Engineering
iTrader: (9)

Join Date: Jan 2008
Location: Bay Area, California
Posts: 937
Total Cats: 10
Default

Just go EWG dumped to atmosphere and that'll solve your drill/tap issues for the wastegate :-P.

But seriously, clocking and re-drilling/tapping isn't that bad, and it's what you should do.
crashnscar is offline   Reply With Quote
Old 01-26-2008, 03:12 PM   #6
Elite Member
Thread Starter
iTrader: (6)

Join Date: Sep 2007
Location: CA
Posts: 1,990
Total Cats: 9
Default

Quote:
Originally Posted by samnavy View Post

As for clocking, you can aim the compressor outlet down (highly recommended if you don't have AC/PS), or towards the firewall... see a Stripes-Pipes kit for that angle.

I don't have PS, but I do have AC. Will this make clocking downwards a problem? Is it still doable?
kenzo42 is offline   Reply With Quote
Old 01-26-2008, 03:29 PM   #7
Senior Member
iTrader: (1)

Join Date: Oct 2006
Location: Burbank, CA
Posts: 536
Total Cats: 0
Default

hmmm sam how difficult would you say it is to drill tap the compressor housing? I actually had a theory which turned out to be alright.. but not smart. Check it out.

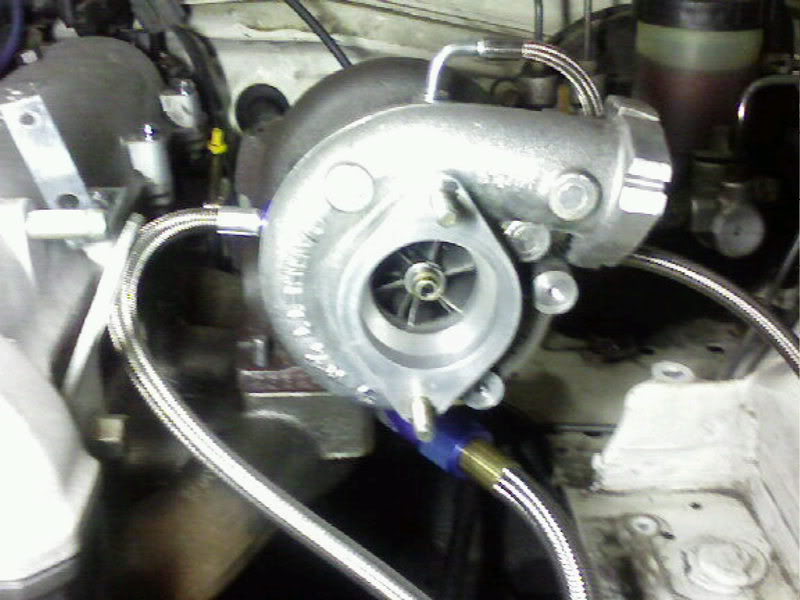

Name:  miata3.jpg
Views: 180
Size:  65.3 KB

The L Bracket on the valve cover.. I was thinking about bolting up the IWG there. It bolts up fine.. the WG is closed completely but I'm just not sure how safe that would be.
PaKMaN is offline   Reply With Quote
Old 01-26-2008, 03:47 PM   #8
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

I think that's an awesome solution... as long as the turbine housing and the actuator are in fixed position in relation to each other... it shouldn't matter that they're not physically mounted to each other.

Kenzo... you need to figure out how you're going to route your pipes. Look through the vbGarage and the Picture upload and check out a bunch of engine bays and the dozen or so ways of routing your piping. If your compressor housing points straight down and the AC compressor is 1" below that, there's no room for a pipe, and you're left with the only option (since you're using the ATP adapter) of pointing the compressor outlet at the fender and making a 180* turn back toward the IC... like this one, right:
http://www.**********/turbo-install-done.jpg
samnavy is offline   Reply With Quote
Old 01-26-2008, 04:05 PM   #9
Elite Member
Thread Starter
iTrader: (6)

Join Date: Sep 2007
Location: CA
Posts: 1,990
Total Cats: 9
Default

What the heck? I never even knew VBgarage even existed!
kenzo42 is offline   Reply With Quote
Old 01-26-2008, 05:38 PM   #10
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

looks flimsy, how thick is it?
kotomile is offline   Reply With Quote
Old 01-26-2008, 08:15 PM   #11
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Flush your brake fluid man that stuff is dark as heck. Don't broken dipsticks suck? I just replaced mine.
cjernigan is offline   Reply With Quote
Old 01-26-2008, 10:07 PM   #12
Elite Member
iTrader: (17)

Join Date: May 2007
Location: NY
Posts: 1,614
Total Cats: 2
Default

Its prob he most expensive solution out of all mentioned, but ATPturbo.com does sell a WG actuator & mounting bracket for clocked turbos...I used both on my gt2560 and worked fantastic...U can then sell the original actuator and recoop some money...
If u DO decide to go this route, make sure u order through wideopentuning (member), great guy and u get a lil something off the price vs the website...
TonyV is offline   Reply With Quote
Old 01-26-2008, 11:32 PM   #13
Junior Member

Join Date: Mar 2007
Location: Whales Vagina, CA
Posts: 99
Total Cats: 0
Default

Quote:
Originally Posted by PaKMaN View Post
hmmm sam how difficult would you say it is to drill tap the compressor housing? I actually had a theory which turned out to be alright.. but not smart. Check it out.



The L Bracket on the valve cover.. I was thinking about bolting up the IWG there. It bolts up fine.. the WG is closed completely but I'm just not sure how safe that would be.
did the L bracket thing when i did my build, guess genius' think alike
dirtyboost is offline   Reply With Quote
Old 01-26-2008, 11:44 PM   #14
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Hey Kenzo, what kind of fitting did you use on the coolant ports and how did you connect the steel braid water lines to the flares on the car, just slip on and clamp?
Saml01 is offline   Reply With Quote
Old 01-27-2008, 12:03 AM   #15
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Quote:
Originally Posted by Saml01 View Post
Hey Kenzo, what kind of fitting did you use on the coolant ports and how did you connect the steel braid water lines to the flares on the car, just slip on and clamp?
Pakman is using one of these to attach it to the coolant lines.
cjernigan is offline   Reply With Quote
Old 01-27-2008, 02:47 AM   #16
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

^ What store sells that, specifically one in 90 Degree.
Saml01 is offline   Reply With Quote
Old 01-27-2008, 03:33 AM   #17
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,367
Total Cats: 1,331
Default

Savington is online now   Reply With Quote
