DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 03-13-2008, 03:53 PM   #1
Senior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2006
Location: Burbank, CA
Posts: 536
Total Cats: 0
Default T25G Questions

Guys.. i've got an MBC I want to hook up.. yet I don't see where the lines off the mbc go? I know one obviously hooks up to the WG, but the turbo doesn't have a nipple anywhere on it for the Boost line.
PaKMaN is offline   Reply With Quote
Old 03-13-2008, 04:04 PM   #2
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Drill and tap the hot pipe, put a fitting and attach the line.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 03-13-2008, 04:11 PM   #3
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

If you have the outlet adapter that comes with it, you can drill and tap that. Its what I did.

Saml01 is offline   Reply With Quote
Old 03-13-2008, 04:38 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

just put it on the current line you have for your wastegate....
Braineack is offline   Reply With Quote
Old 03-13-2008, 05:13 PM   #5
Senior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2006
Location: Burbank, CA
Posts: 536
Total Cats: 0
Default

None of your post make any sense.

Current line???


Sam your pics not working..


And you want me to drill my turbo??
PaKMaN is offline   Reply With Quote
Old 03-13-2008, 05:14 PM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

you have a line going into your wategate, correct?


so put the darned thing in that line...the current line.
Braineack is offline   Reply With Quote
Old 03-13-2008, 05:16 PM   #7
Senior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2006
Location: Burbank, CA
Posts: 536
Total Cats: 0
Default

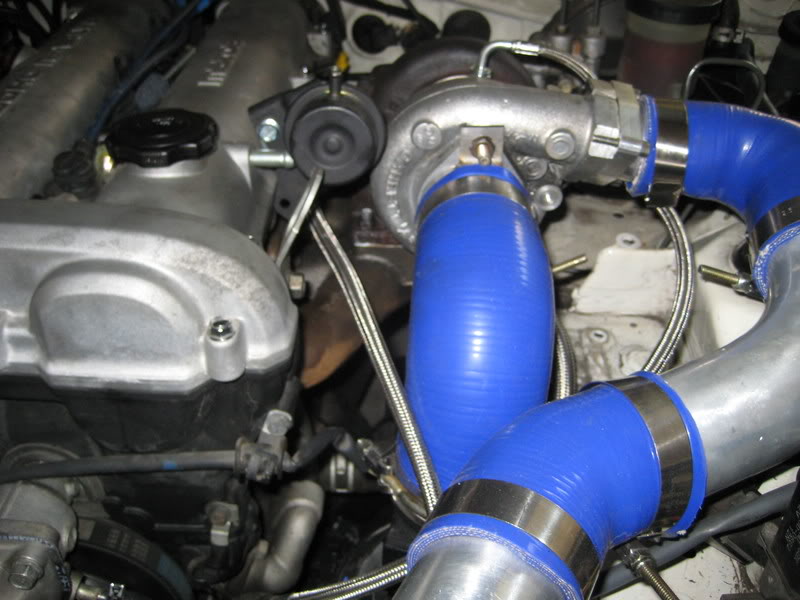

Name:  IMG_3925.jpg
Views: 3
Size:  73.5 KB

Okay.. the nipple on the WG is where i'm going to put the line. Now where does the second line go?
PaKMaN is offline   Reply With Quote
Old 03-13-2008, 05:28 PM   #8
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

If there isnt a nipple on the turbo housing then you need to put it in the hot charge pipe somewhere before the intercooler.

Name:  IMG_6170-2-1-1.jpg
Views: 2
Size:  44.1 KB
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote

Last edited by levnubhin; 03-13-2008 at 05:59 PM.
levnubhin is offline   Reply With Quote
Old 03-13-2008, 05:32 PM   #9
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

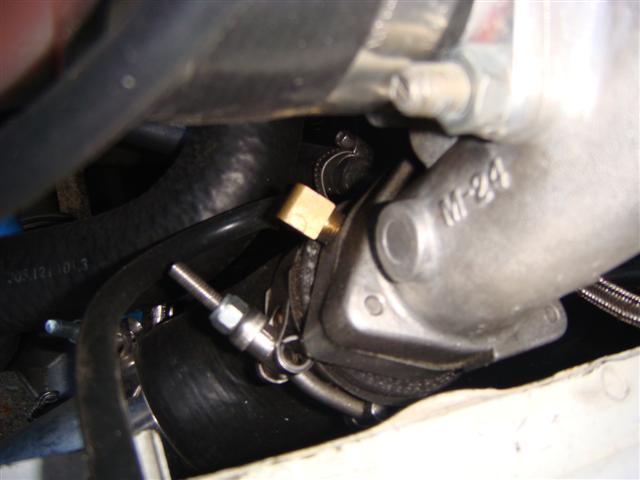

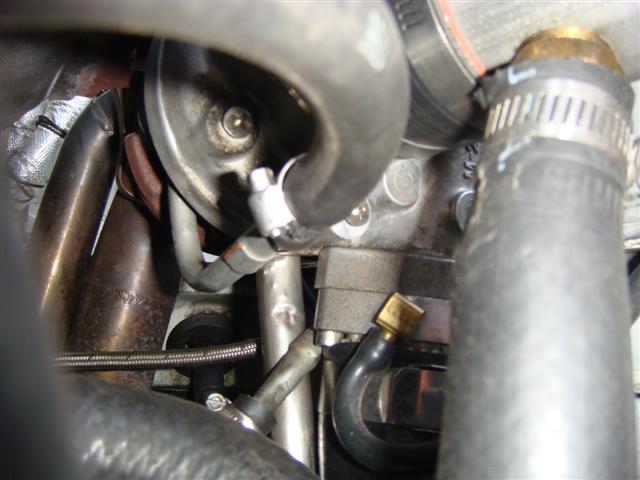

Your compressor outlet adapter is the best place to drill and tap for a boost source. Here's what the ATP adapters come with:
Attached Thumbnails
T25G Questions-dsc00991-small-.jpg   T25G Questions-dsc00992-small-.jpg
samnavy is offline   Reply With Quote
Old 03-13-2008, 05:44 PM   #10
Senior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2006
Location: Burbank, CA
Posts: 536
Total Cats: 0
Default

hmm I believe my ATP turbo thing does have that! I'll need to find something to screw it in though.
PaKMaN is offline   Reply With Quote
Old 03-13-2008, 07:50 PM   #11
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

I'm in a good mood right now, or I'd think of something clever to say... but I assume you feel pretty silly right now. If your ATP adapter already has a hole in it like that, how did you ever expect to make boost?

Just about any brass barb that will screw into the hole and you can get your vaccum line on will be fine. Any autoparts store will have something that will work.
samnavy is offline   Reply With Quote
Old 03-13-2008, 09:27 PM   #12
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Get a 1/8 NPT plug
cjernigan is offline   Reply With Quote
Old 03-14-2008, 01:12 AM   #13
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Quote:
Originally Posted by PaKMaN View Post
None of your post make any sense.

Current line???


Sam your pics not working..


And you want me to drill my turbo??
Saml01 is offline   Reply With Quote
Old 03-15-2008, 06:03 AM   #14
Senior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2006
Location: Burbank, CA
Posts: 536
Total Cats: 0
Default

Thanks guys!
PaKMaN is offline   Reply With Quote
