Default T3 outlet flange question

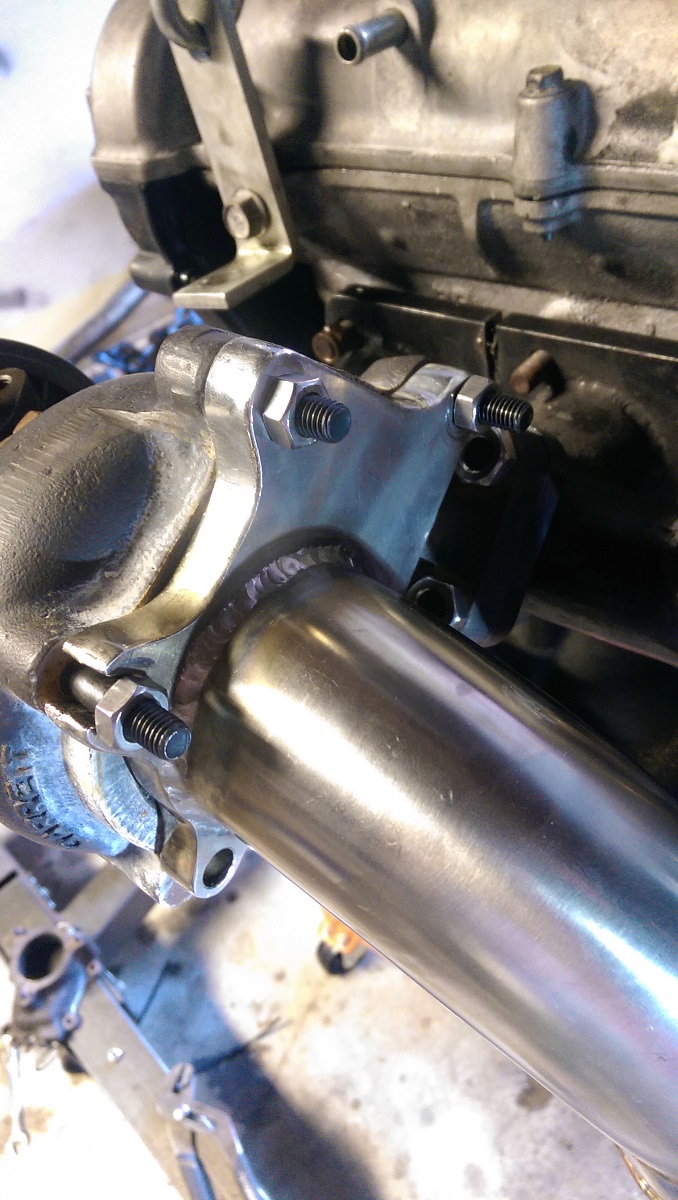

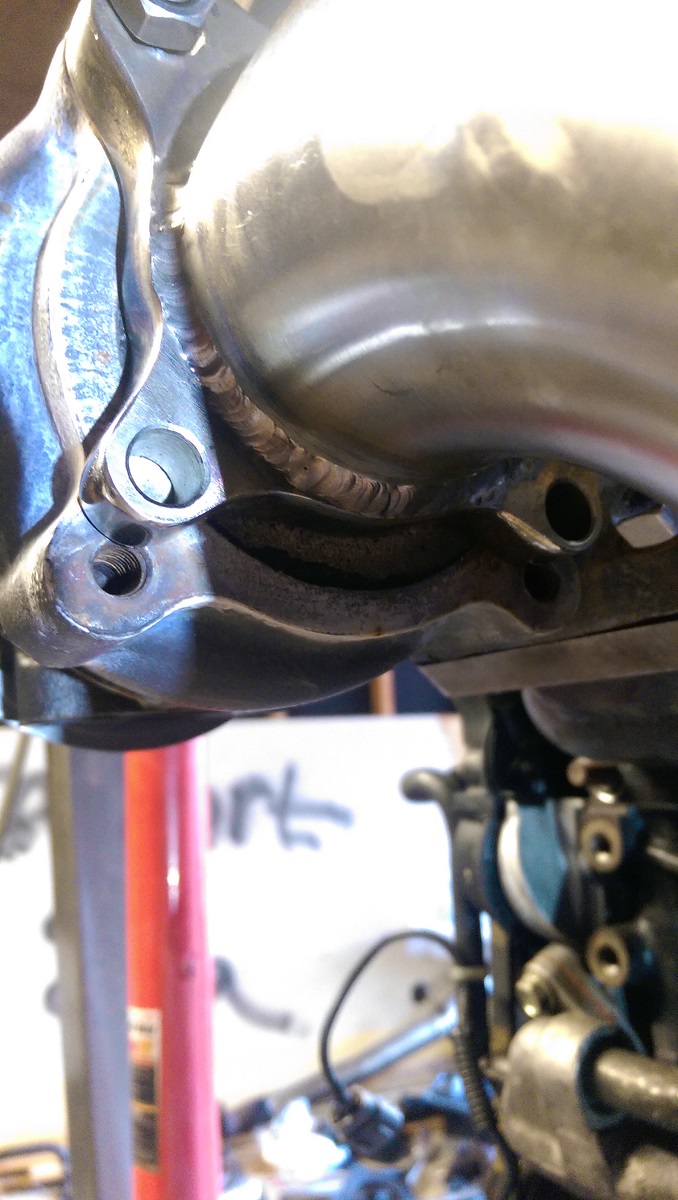

I recently test fit a downpipe I had fabricated by Abe at Artech. The turbo is a Garrett T3 60 trim from an old Ford Mustang SVO. I did not send the turbo to Abe because he said he had a T3 turbine housing he could use and I did not think that the 5 bolt outlet of my turbo would be any different from any other T3. The problem is, 2 of the 5 mounting holes for the outlet do not match the downpipe, as seen in the pictures. My question: Is it possible that the outlet on these old Ford turbos is different from that of a normal T3? I was under the impression that the 5 bolt "ford style" flange was the only 5 bolt outlet for T3 turbos.

Here is a 5 bolt gasket I found on ATP's website:

Gasket for T3 5 Bolt (Ford Style) Turbine Outlet Flange : atpturbo.com

Pictures:



Attached Thumbnails
T3 outlet flange question-turbo2.jpg   T3 outlet flange question-turbo1.jpg
albertogti117 is offline   Reply With Quote
Old 05-29-2014, 03:26 AM   #2
Newb

Join Date: Oct 2011
Location: The Desert
Posts: 2
Total Cats: 0
Default

I don't have direct experience with a ford style flange, but I had a normal t3 flange that didn't work on my turbine housing and it turned out that the larger Mercedes t3 flange fit.
m_2teh_t is offline   Reply With Quote
Old 05-29-2014, 04:42 AM   #3
Junior Member
Thread Starter
iTrader: (2)

albertogti117's Avatar

Join Date: Jul 2011
Location: Houston, Tx
Posts: 167
Total Cats: 4
Default

Quote:
Originally Posted by m_2teh_t View Post
I don't have direct experience with a ford style flange, but I had a normal t3 flange that didn't work on my turbine housing and it turned out that the larger Mercedes t3 flange fit.
Do you happen to have a link? That might just be what I need. I can't seem to find any vendors that provide measurements for these things.
albertogti117 is offline   Reply With Quote
Old 05-29-2014, 02:08 PM   #4
Newb

Join Date: Oct 2011
Location: The Desert
Posts: 2
Total Cats: 0
Default

http://www.treadstoneperformance.com...ownpipe+Flange

It doesn't look like they post the dimensions for it either.
m_2teh_t is offline   Reply With Quote
