Default TD04-15g to 19t Conversion

First I would like to start by saying this isn't specifically miata related. However, the Greddy turbo kit uses a 15g so I thought this may be useful to someone on here. Also I saw some discussion of this a while ago on this forum but no one had done it. One disclaimer is the turbo I used has a TD04HL wheel where I believe the Greddy turbo uses the smaller TD04 wheel. This writeup should sill work but the nut on the shaft may not be reverse threaded for the TD04 wheel. Feel free to let me know of any changes that may need to be made. Also if I refer to something mysterious its probably because I wrote this for a volvo forum.

I kept seeing 19t wheel and housing sets on ebay and decided to give one a try. The one I ordered cost around 170 shipped and was made by Kinugawa Turbo. I looked into them a little bit and the European subie guys seem to like their turbos. They claim they are good quality parts and not just cheap Chinese knock offs. The wheel and housing I got seemed decent.

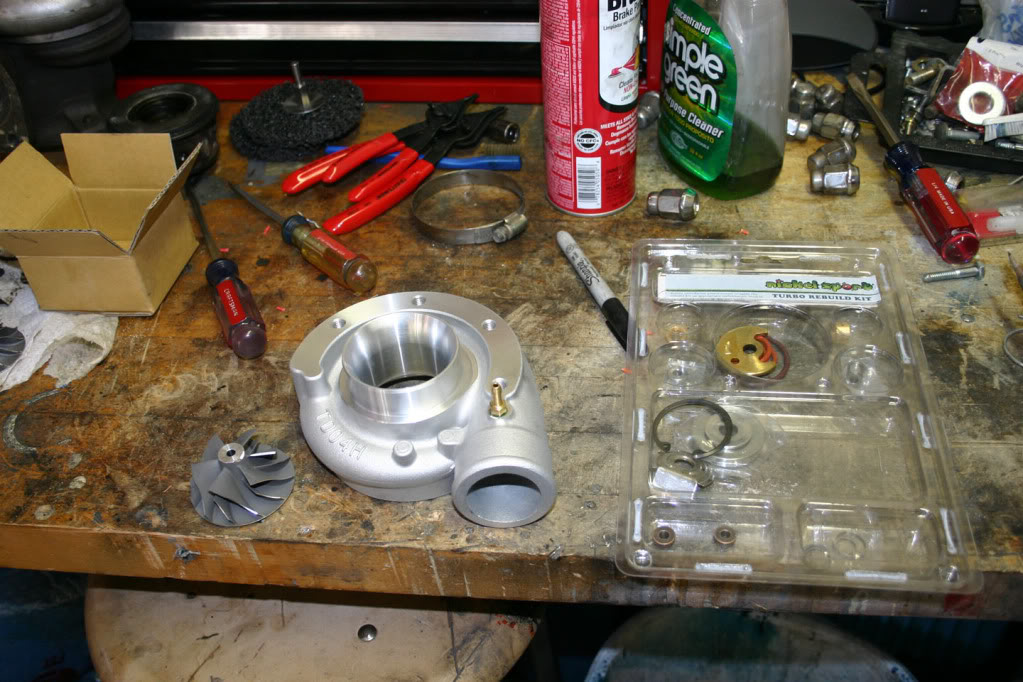

For parts you will need the following:

TD04HL-15g (you could in theory use a 13c but it has a smaller exhaust wheel)
19T Wheel
19T Housing
BOV (if you get a housing without a CBV like me)
Rebuild Kit for a superback wheel


For tools you will need:

Basic tools
Snap ring pliers
Lathe (or take it to a shop)
Also you will need to get the turbo balanced

Useful Links:


http://www.volvoforums.org.uk/showpo...50&postcount=1

http://brickspeed.net/VolvoDocs/MHI-...nstruction.pdf

Name:  IMG_2506small.jpg
Views: 139
Size:  150.9 KB

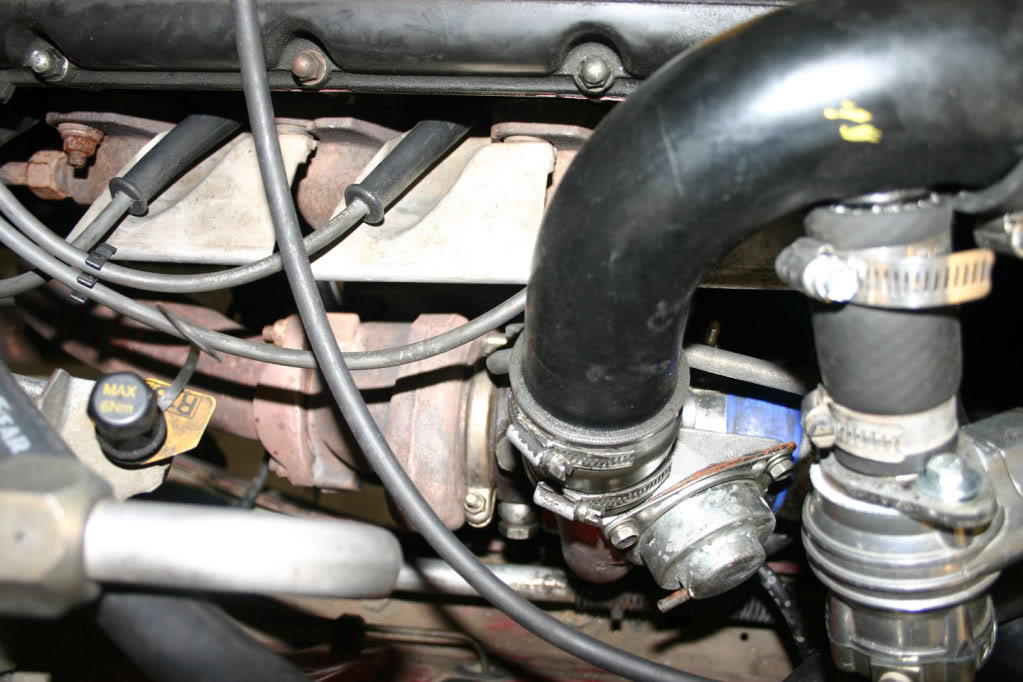

The first step is removing the turbo. Duh. The easiest way I have found is to just remove all piping, oil and coolant lines and then just undo the central v band. After that it pulls out.

Name:  IMG_2505small.jpg
Views: 108
Size:  116.5 KB

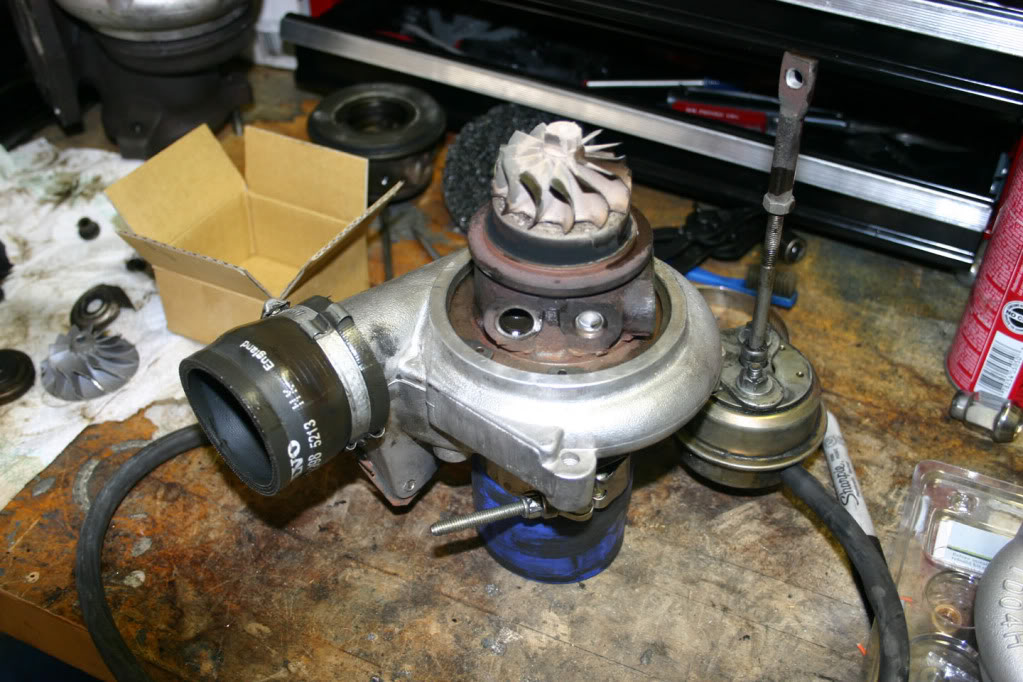

Next the large c clip holding the compressor housing on needs to be removed. This is a pita and is easier to do with two people. One compressing the clip and the other prying it with a screwdriver.

Name:  IMG_2511small.jpg
Views: 115
Size:  139.4 KB

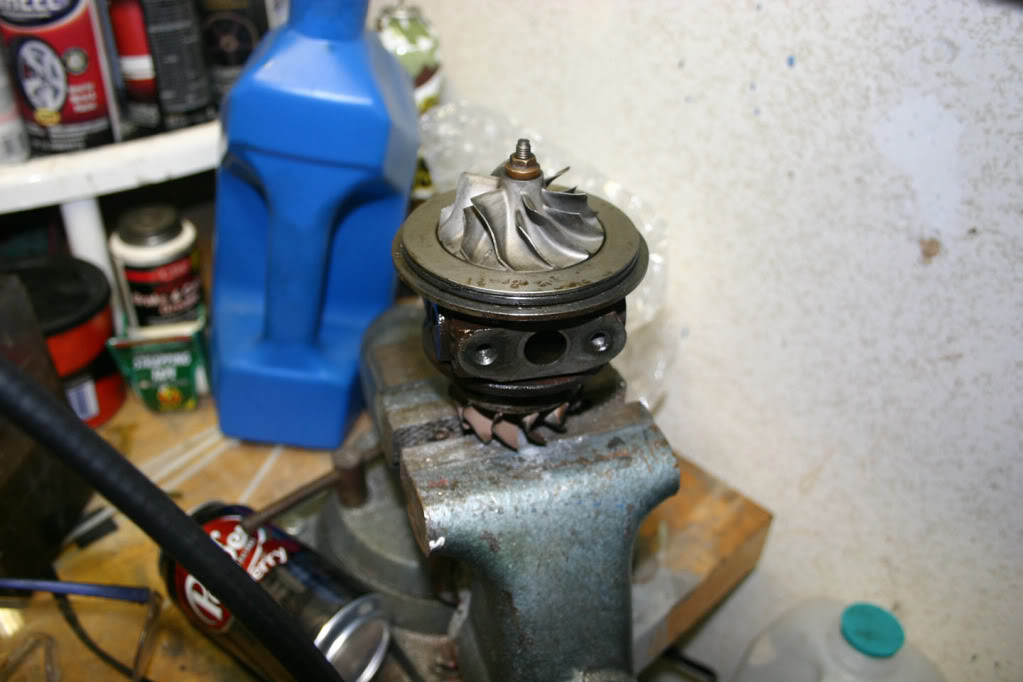

Once the clip is removed the CHRA can be freed. Remove the nut on the compressor wheel. Note: The nut is reverse threaded (may not be on a greddy turbo). Also be careful to not put a lot of side load on the shaft as to not bend it.

Name:  IMG_2516small.jpg
Views: 107
Size:  79.4 KB

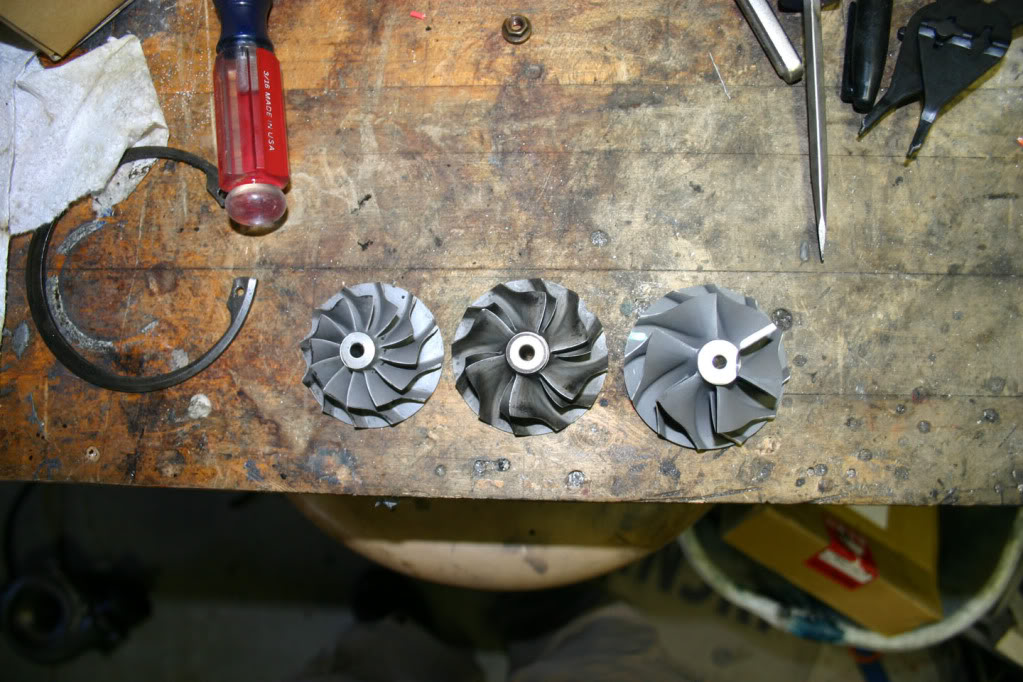

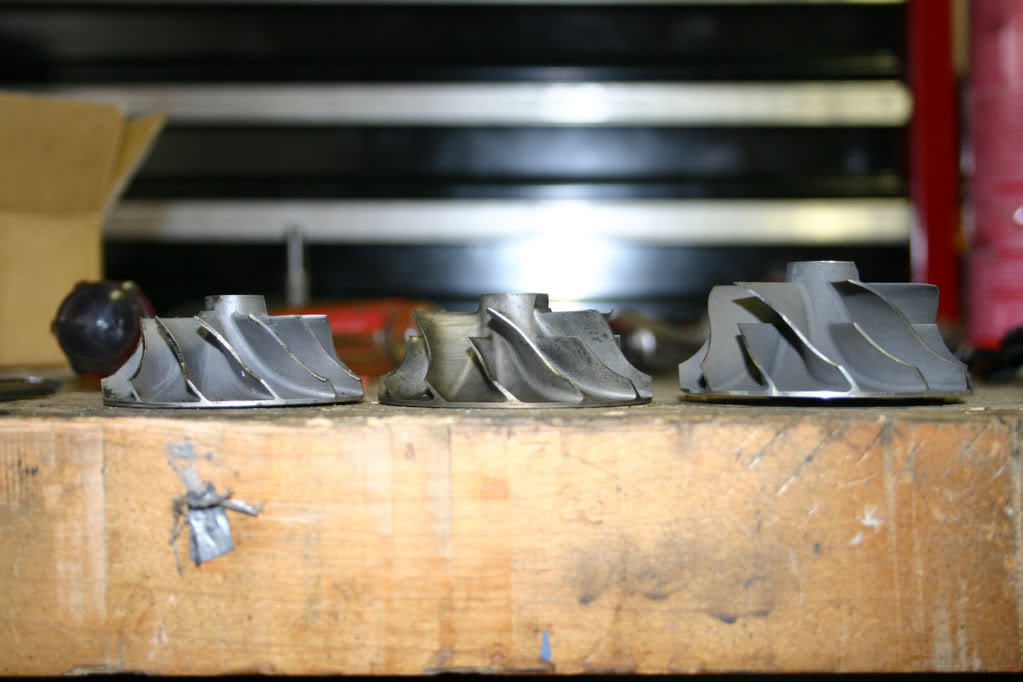

Just for laughs here is a comparison of some wheels. From left to right we have a 13C, 15g and then the 19t.

Name:  IMG_2518small.jpg
Views: 213
Size:  148.2 KB

Name:  IMG_2521small.jpg
Views: 106
Size:  76.7 KB

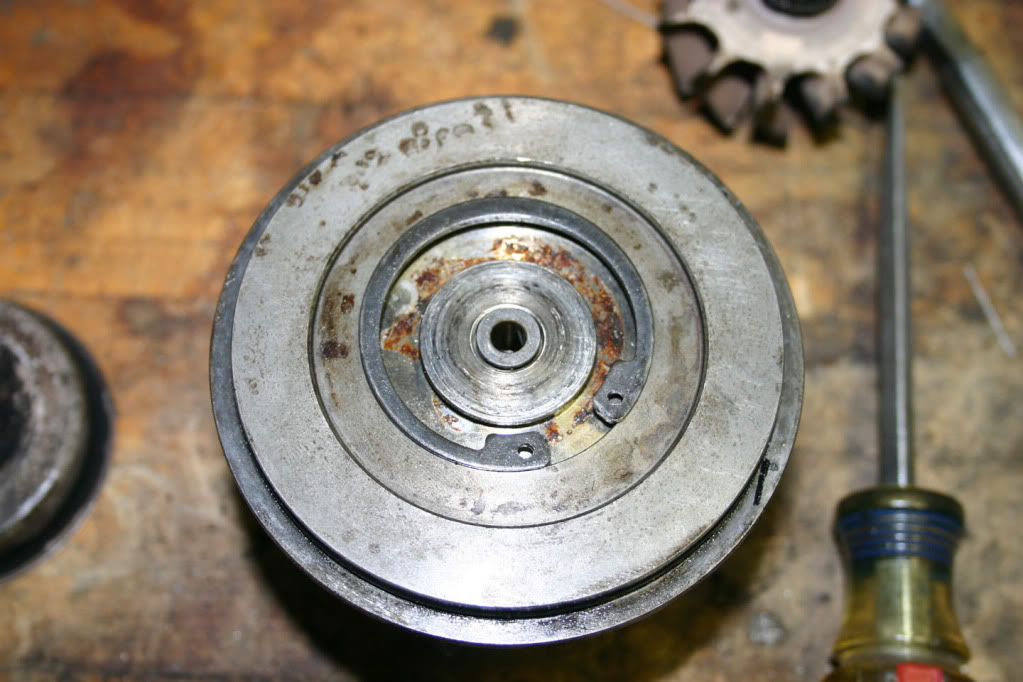

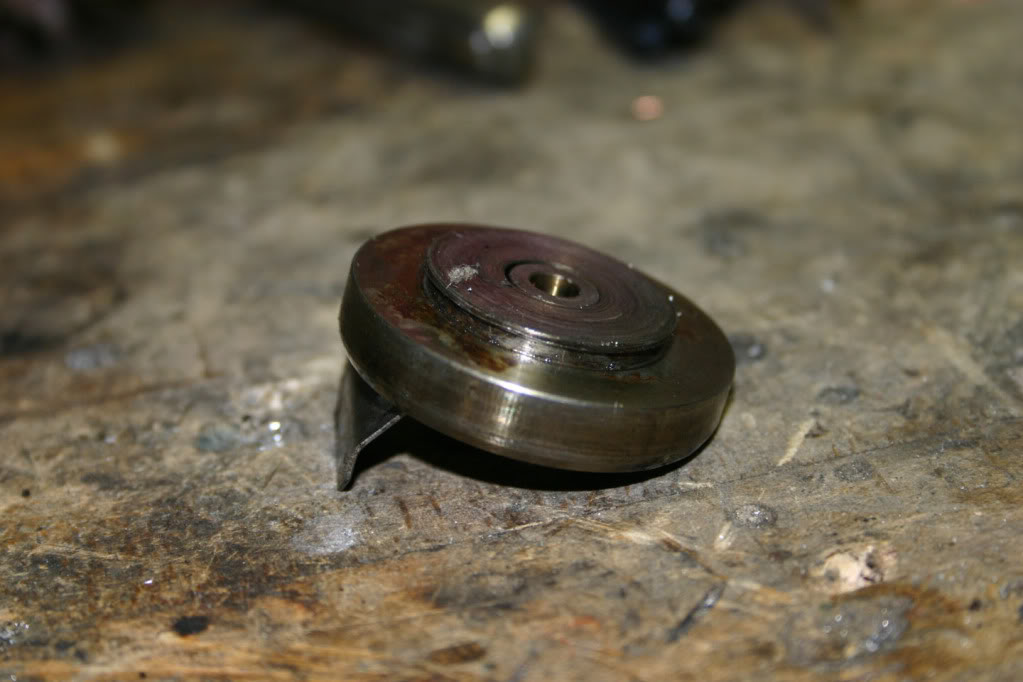

Next this c clip needs to be removed. Once it is removed use two flathead screwdrivers to pop out this piece.

Name:  IMG_2524small.jpg
Views: 135
Size:  112.5 KB

Name:  IMG_2527small.jpg
Views: 106
Size:  79.3 KB

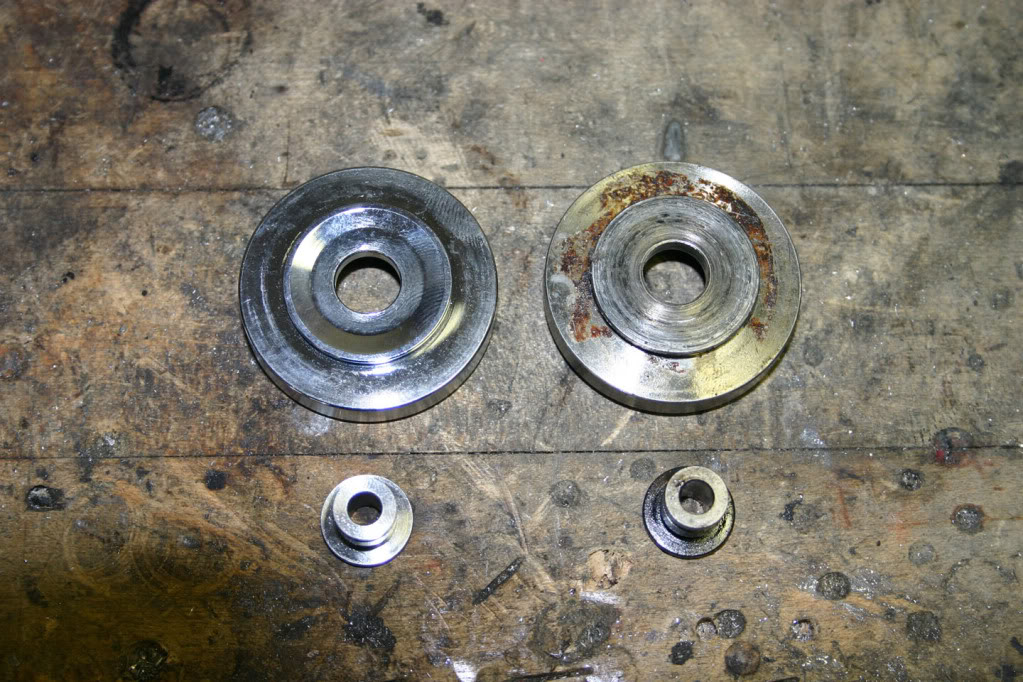

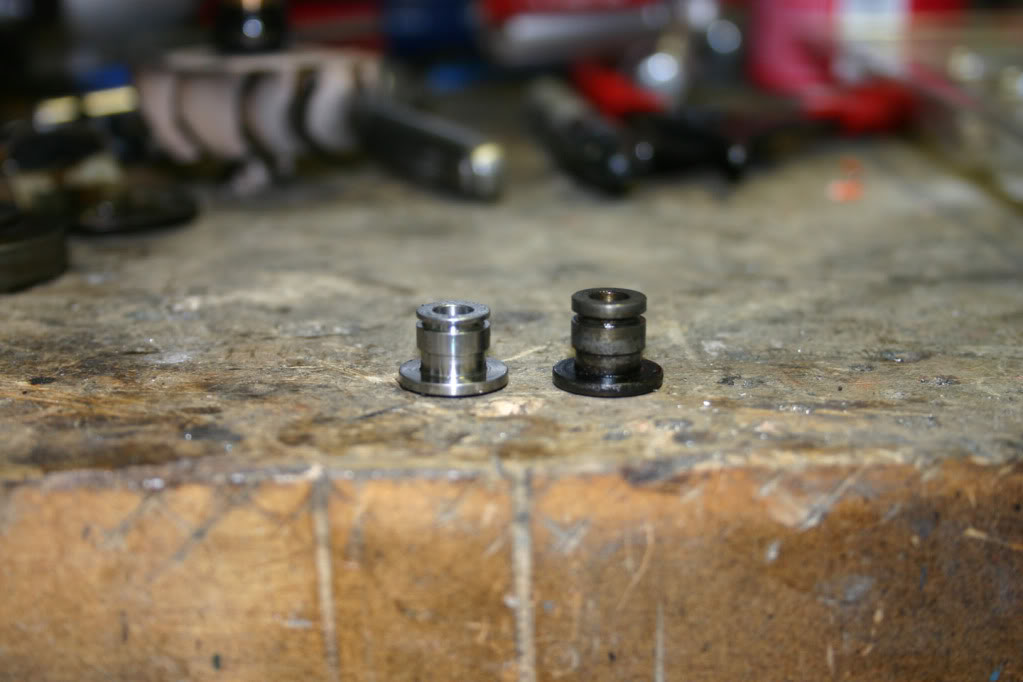

Here is why the rebuild kit is needed. The 19T wheel is a superback, where the 15g is a flatback. The only difference is two parts seen below. The superback parts are on the left.

Name:  IMG_2528small.jpg
Views: 108
Size:  190.1 KB

Name:  IMG_2531small.jpg
Views: 118
Size:  73.5 KB

At this point it would make sense to replace the rest of the parts in the turbo. This is not too difficult but I won’t discuss it and rather link to another thread.

http://www.volvoforums.org.uk/showpo...50&postcount=1

Another link:

http://brickspeed.net/VolvoDocs/MHI-...nstruction.pdf

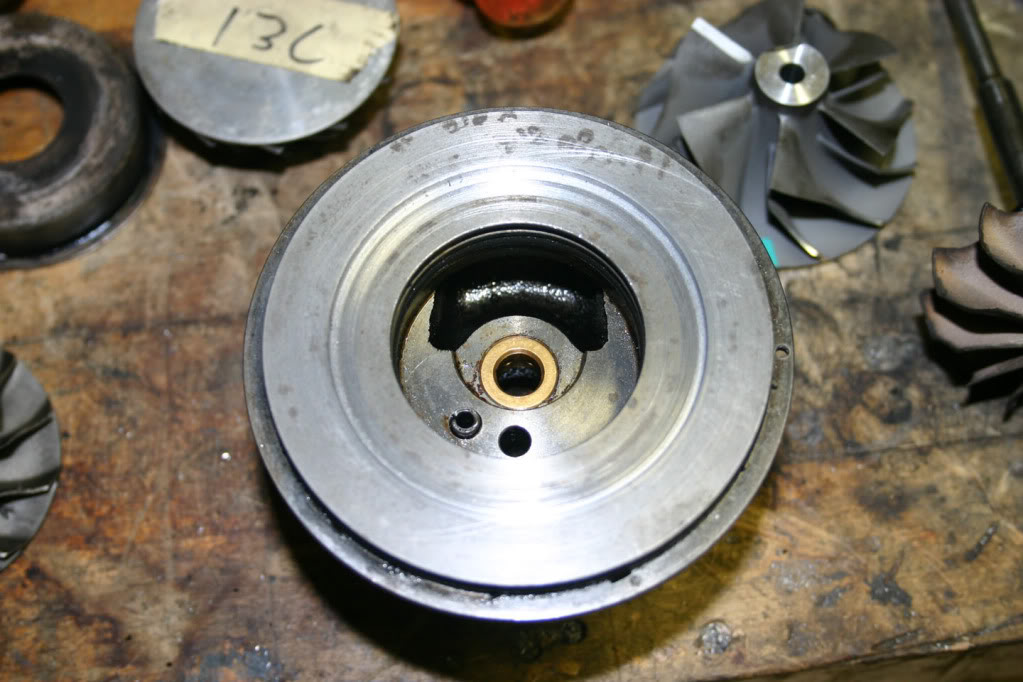

Next there is a recess that the compressor wheel fits into that needs to be enlarged. The 19t wheel is too big for it. To do this you need a lathe so I just took it to a shop. In the pic below you can see the part that was lathed. Also make sure you take all the internal bits out. That journal bearing was placed in after I got it back.

Name:  IMG_2532small.jpg
Views: 122
Size:  103.4 KB

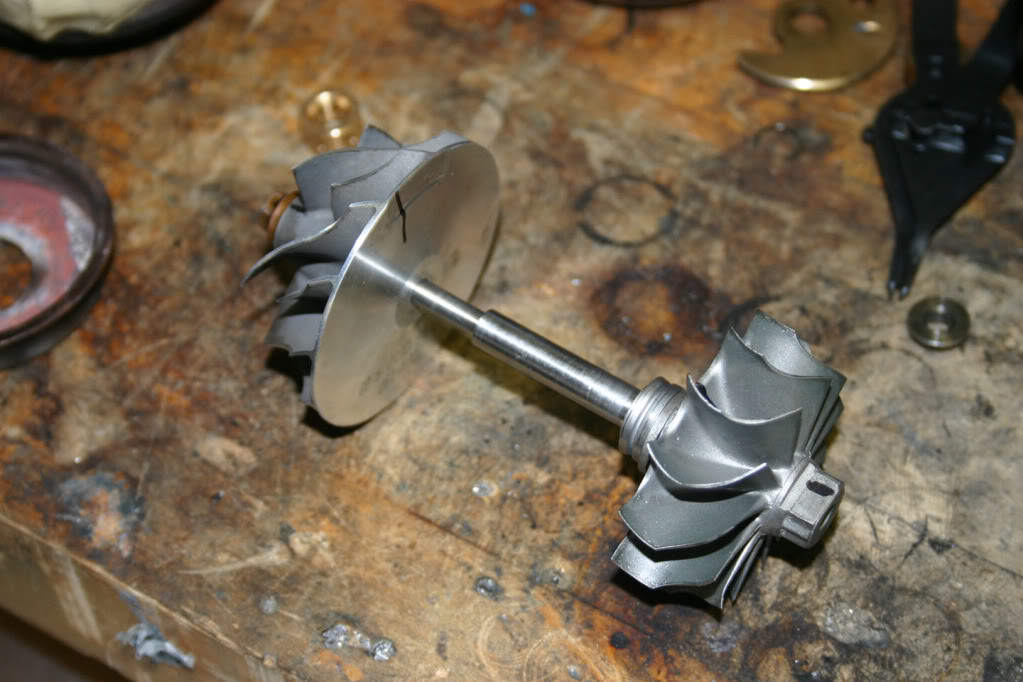

The next step is crucial. You need to take the turbo to a shop and have it balanced. The place I took it to only needed the compressor and exhaust wheels. Here it is after I got it back:

Name:  IMG_2539small.jpg
Views: 105
Size:  96.0 KB

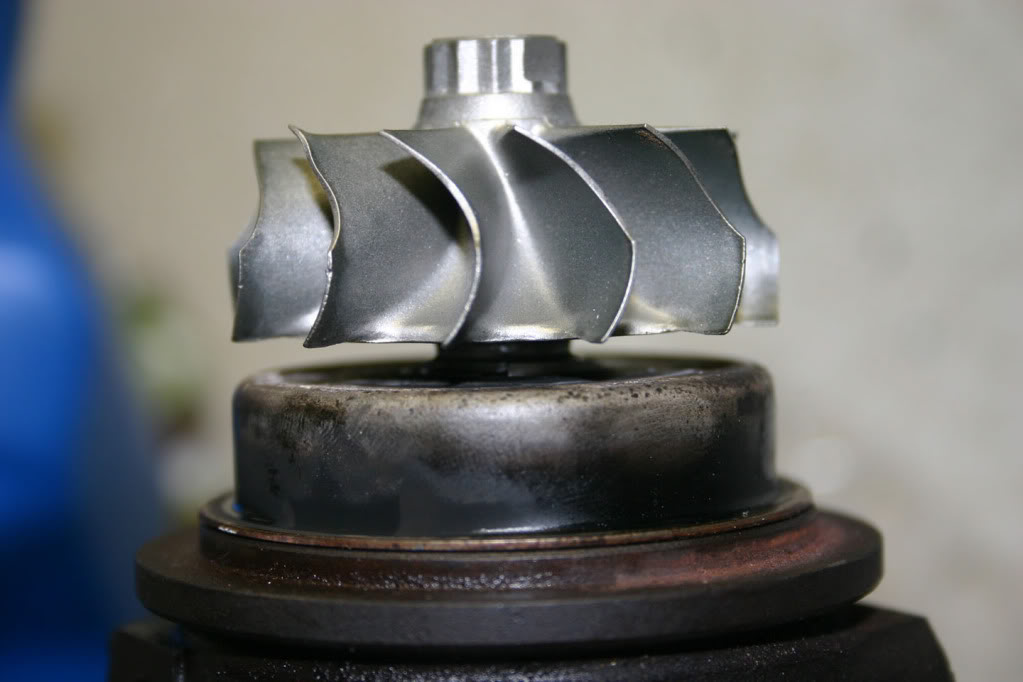

Now the reassembly. Just follow the disassembly in reverse or look at the previous link. Be careful when putting the exhaust wheel back in. There is a clip on the wheel that needs to be seated right. If not, you will have a hard time with it. Make sure the clip is starting to go into the housing with a flat head screwdriver. At this point it should look like this:

Name:  IMG_2540small.jpg
Views: 107
Size:  64.6 KB

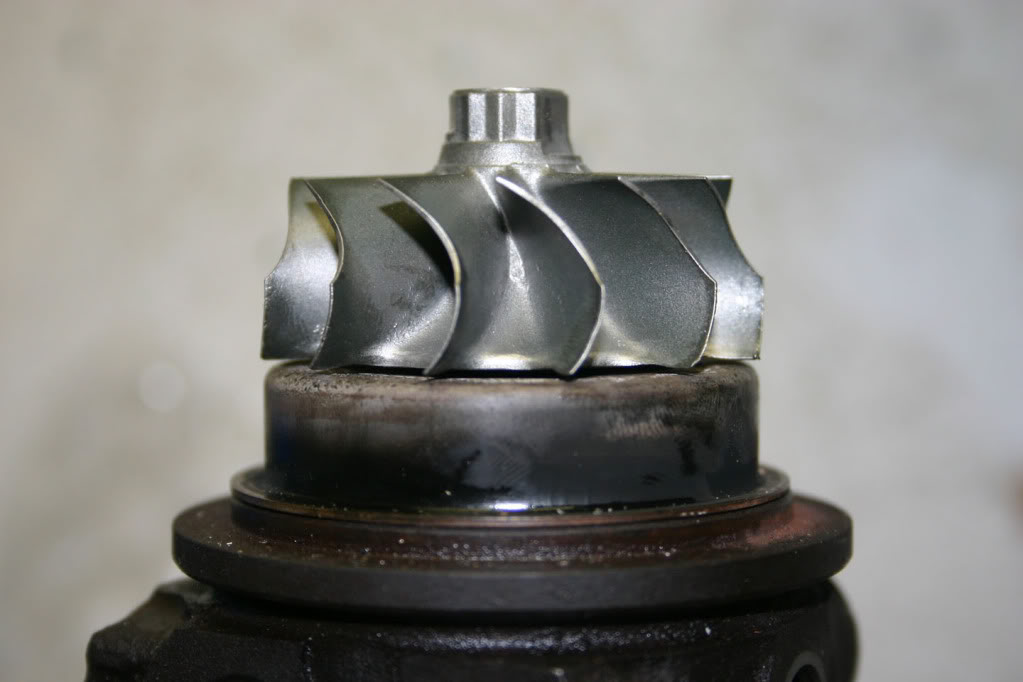

However, this is not how the wheel is supposed to sit. I just hit it with a rubber mallet a few times until it snapped into place.

Name:  IMG_2543small.jpg
Views: 109
Size:  58.2 KB

Next put the compressor wheel on and tighten the nut down. The torque spec for it is something lower than my torque wrench can read, so I guestimated it and put some loctite on as insurance.

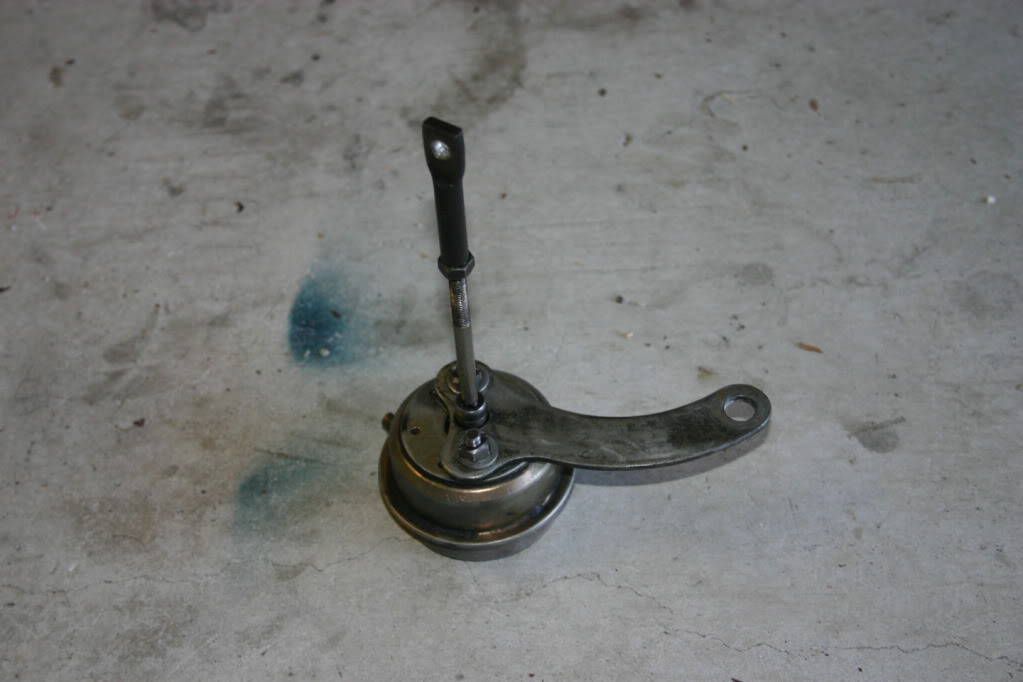

Lastly you need to do something about the wastegate actuator. The compressor housing has plenty of threaded holes so this shouldn’t be too hard. I used an ac compressor bracket and a wga from a T3. Reason for the T3 actuator is the Mitsubishi one is supposed to suck. Luckily for me the bracket I made for the 15g worked perfectly with this housing.

Name:  IMG_2547small.jpg
Views: 107
Size:  63.8 KB


And that is it. Reinstall the turbo and all the other bits and you are good to go.

Name:  IMG_2550small.jpg
Views: 302
Size:  101.7 KB
cjsafski is offline   Reply With Quote
Old 01-21-2011, 01:19 AM   #2
Senior Member
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

Nice write up, It seems these days that the greedy kits are slowly disbanding but they are still out there.
Gotpsi? is offline   Reply With Quote
Old 01-21-2011, 05:07 AM   #3
Junior Member

Join Date: Aug 2010
Location: Oakland ca
Posts: 59
Total Cats: 0
Default

Great write up! Very usefull, if i still had my greddy kit that is definitely something i would do. It kinda makes me want to pick up a kit with a bad turbo so i can rebuild it into this.
Miataman28 is offline   Reply With Quote
Old 01-21-2011, 06:40 AM   #4
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Quote:
Originally Posted by Gotpsi? View Post
Nice write up, It seems these days that the greedy kits are slowly disbanding but they are still out there.


Last edited by kotomile; 01-21-2011 at 06:50 AM.
kotomile is offline   Reply With Quote
Old 01-30-2011, 07:34 AM   #5
Junior Member

Join Date: Sep 2009
Location: London UK
Posts: 65
Total Cats: 0
Default

I've got a Greddy kit, last night I stripped the turbo down for a rebuild, the shaft is pretty worn and so although i rebuilt it i can't see it lasting to long, was thinking. If i bought something liek this from ebay http://cgi.ebay.co.uk/SAAB-9-3-9-5-T...item56420a6166 I presume I could just fit this, then run some feeds for water cooling? Any idea if this would work?
Paul TVR is offline   Reply With Quote
Old 01-30-2011, 11:55 AM   #6
Senior Member
iTrader: (3)

Join Date: May 2005
Location: Mass.
Posts: 816
Total Cats: 41
Default

Has anyone dyno'd a 19t on a miata?

Stealth316 has a lot of info including compressor maps but I'd be curious to see some numbers on a 1.6.


-Zach
thasac is offline   Reply With Quote
Old 01-30-2011, 02:12 PM   #7
Junior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2008
Location: Irvine, Ca
Posts: 277
Total Cats: 23
Default

Quote:
Originally Posted by Paul TVR View Post
I've got a Greddy kit, last night I stripped the turbo down for a rebuild, the shaft is pretty worn and so although i rebuilt it i can't see it lasting to long, was thinking. If i bought something liek this from ebay http://cgi.ebay.co.uk/SAAB-9-3-9-5-T...item56420a6166 I presume I could just fit this, then run some feeds for water cooling? Any idea if this would work?
Probably wouldn't work. The one you linked to has a bigger exhaust wheel than the greddy. I think the greddy one is just a td04 not the td04hl. Someone correct me if I am wrong.

I too would like to see a 19t dyno on a miata. I thought about tossing one on my miata a few times but then got lazy.
