Default TD04H-13C upgrade to 19T

I use a volvo TD04H-13C turbo

Compressor:
Inducer 40mm
Exducer 53mm (!)

Turbine 52mm

I would like to upgrade to 19T compressor, that will give me:

Inducer 46mm
Exducer 58mm

Turbine 52mm (not replacing)

I have found this:

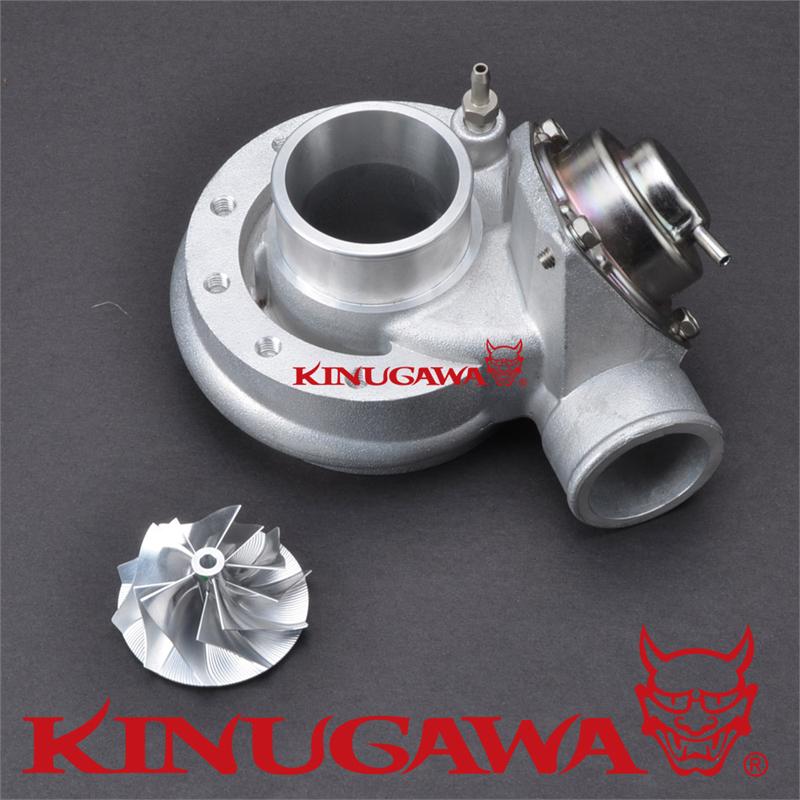

Kinugawa Mitsubishi Turbo TD04 TD04H TD04HL Billet 19T Compressor Housing + Billet wheel & Blow Off Valve(BOV)

Will it fit ?

Thanks !
Attached Thumbnails
TD04H-13C upgrade to 19T-bovcompressorwheelkit1.jpg
elior77 is offline   Reply With Quote
Old 11-29-2014, 03:58 AM   #2
Senior Member

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

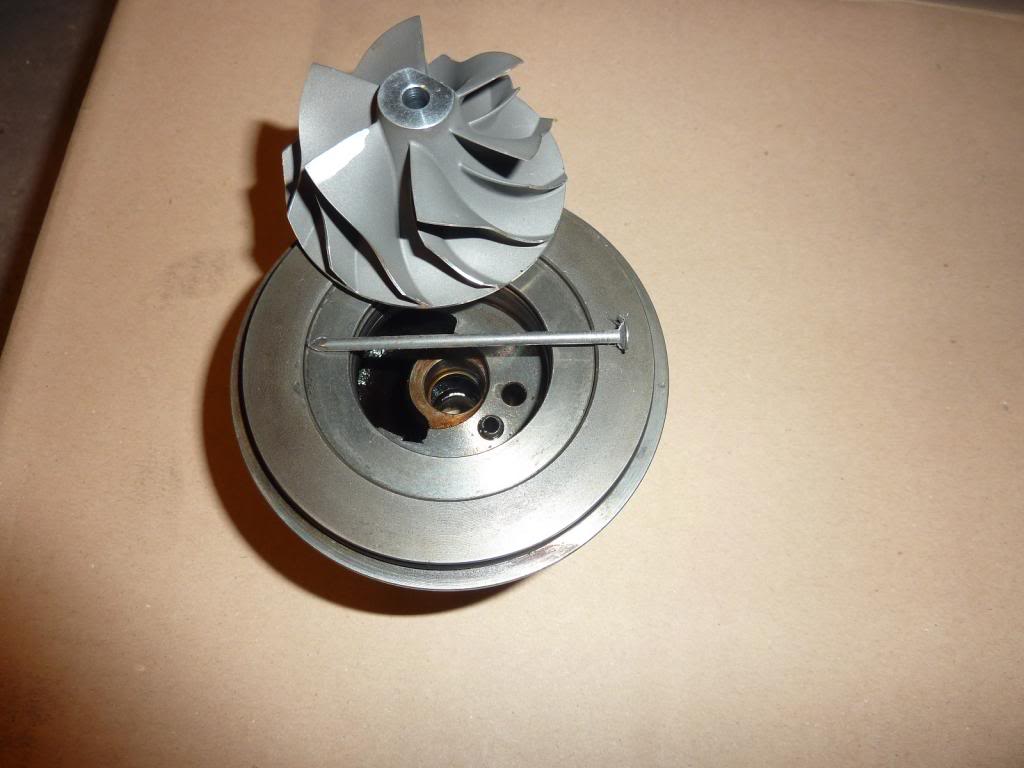

Not sure for the 13C... but it is necessary to increase the width of the exducer recess on 13t CHRA's when fitting 19t wheels.

Attached Thumbnails
TD04H-13C upgrade to 19T-p1040775_zps28ed9344.jpg
sturovo is offline   Reply With Quote
Old 11-29-2014, 04:06 AM   #3
Senior Member

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

In any case 19t's are too small. You need the 23t
sturovo is offline   Reply With Quote
Old 11-29-2014, 04:31 AM   #4
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

What do you mean "increase the width of the exducer recess" ?
elior77 is offline   Reply With Quote
Old 11-29-2014, 07:57 AM   #5
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,664
Total Cats: 1,560
Default

He's talking about the cut out in the backing plate behind the compressor that the compressor sits down into.
sixshooter is online now   Reply With Quote
Old 11-29-2014, 08:37 AM   #6
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

elior77 is offline   Reply With Quote
Old 11-29-2014, 09:36 PM   #7
Senior Member
iTrader: (1)

Join Date: Dec 2010
Location: Farmington Hills, MI
Posts: 875
Total Cats: 93
Default

FYI, here's my TD04HL-20T with a 6cm Kinugawa turbine housing. This is the Mitsu 20t that comes on the Caliber SRT4, not the billet wheel. 3" DP and the rest is 2.5" back, no cat. I didn't quite have my EBC tuned fully yet. It'll hit that 9 psi at 3000 rpm now.

acedeuce802 is offline   Reply With Quote
Old 11-30-2014, 08:21 PM   #8
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by elior77 View Post
Yes that will work, but its not much more money to just get the whole turbo with a new exhaust housing so you can sell your current turbo.

That 20t dyno is kind of depressing, those are the peak numbers I'd expect out of a 13t, is the motor ok?
