Default TD04H turbo on a 1.8?

I have a greddy kit that was on my 1.6 and want to switch it over my 1993 with a 1.8 motor. The turbo is a TD04H. I have two questions. Is the turbo big enough to get to around 220 hp without too hot of an intake tempeture.

And does anyone make a manifold to fit the 1.8 and the TD04H turbo?

FYI my current setup has:

Blue Emanage
Walbro fuel pump
starion IC
Vetech fuel presure regulator
ect.

Ataim
Ataim is offline   Reply With Quote
Old 03-07-2007, 11:43 AM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

you'll need to use the HKS manifold and modify the DP
Braineack is offline   Reply With Quote
Old 03-07-2007, 12:27 PM   #3
Newb
Thread Starter

Join Date: Jun 2005
Posts: 12
Total Cats: 0
Default

What kind of modification? How 'bout size of turbo?
Attached Thumbnails

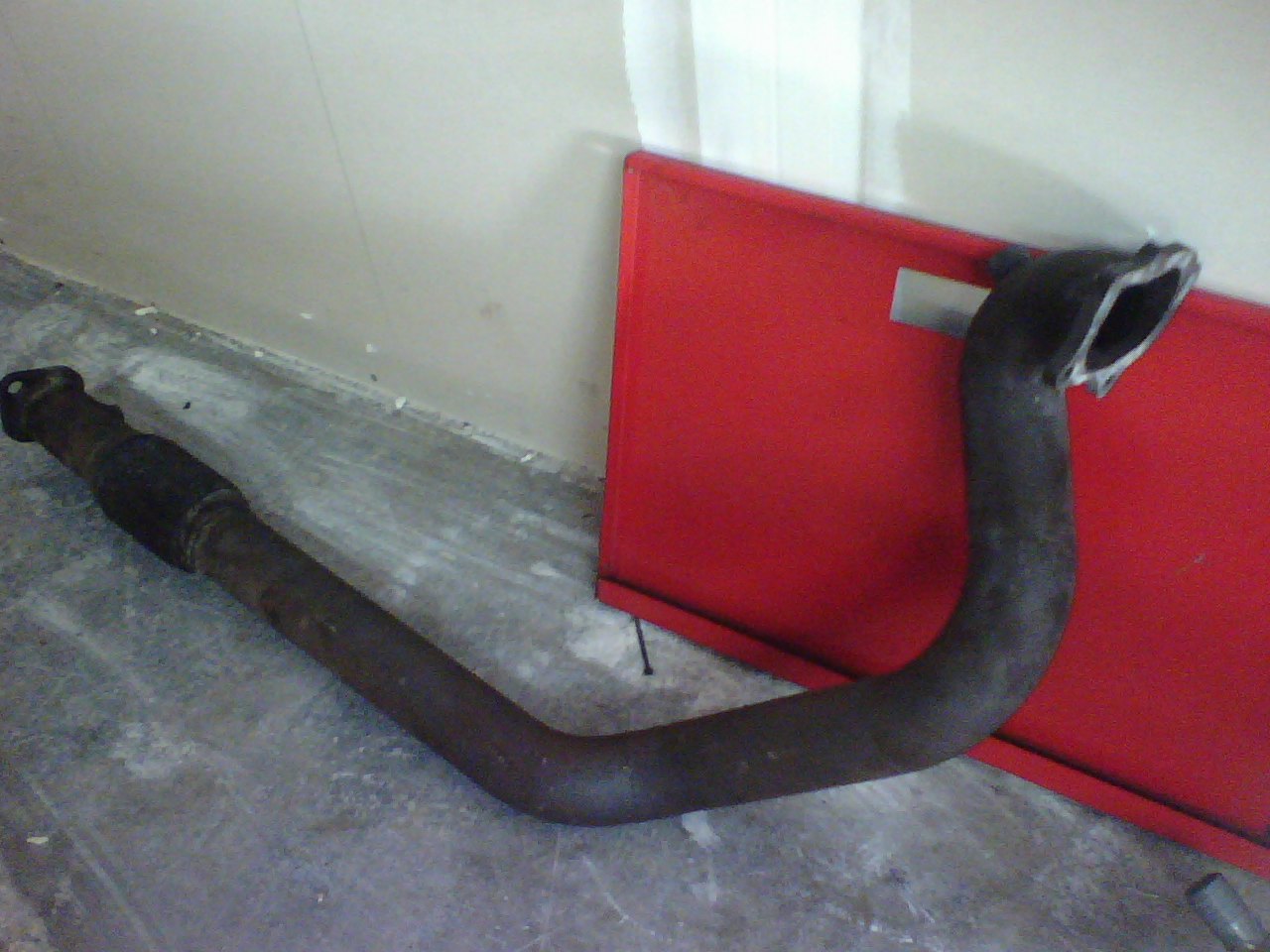

TD04H turbo on a 1.8?-0307071023.jpg
Ataim is offline   Reply With Quote
Old 03-07-2007, 02:23 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

the turbo will make 220rwhp on 1.8 at 12-15psi.

the main thing is the placement of the turbo, as the block in longer, and they don't both sit in the eact same spot. the reason I recommend the hks manifold is that the turbine flange is horizontal like the greddy, so the only modification may only be extending the DP, but you wont need to rotate the flange and reweld it all.
