Default Thoughts on rear-mounted oil cooling

So I'll be using a side exit exhaust on my little build. 6 speed to an 8.8/Bossfrog setup. There will be no room for a 3" exhaust to get past that subframe. If there is, I'm not willing to do the work to get around it!

This leaves me with emptiness ... but in a good way

How's about an oil cooler where the stock muffler location use to hang out? Did some research, got a couple of ideas and what not, and found out that nobody's actually done it. Great. So how's the flow back there? Would it be beneficial? I'll either use my FC oil cooler or just buy another single-pass cooler. The idea of freeing up room for the radiator/condenser/front mount is appealing, especially in this awesome Houston weather. Any insight or experience would be great.
Iroquois Pliskin is offline   Reply With Quote
Old 06-01-2011, 01:08 AM   #2
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

Quote:
Originally Posted by Iroquois Pliskin View Post
Did some research, got a couple of ideas and what not, and found out that nobody's actually done it.
Wrong, more or less. Location is a little different, but it's been done. Didn't work either IIRC.
curly is offline   Reply With Quote
Old 06-01-2011, 01:30 AM   #3
Senior Member
iTrader: (4)

Join Date: Aug 2010
Location: Farmington Hills, MI
Posts: 510
Total Cats: 15
Default

Disturbing the airflow in that area seems like a bad idea... not to mention the debris that could go through it.
njn63 is offline   Reply With Quote
Old 06-01-2011, 01:35 AM   #4
Junior Member
Thread Starter
iTrader: (6)

Join Date: Aug 2010
Location: Jacksonville, FL
Posts: 197
Total Cats: 1
Default

Curly, is there a thread? Can you remember why it didn't work? Flow?

njn, defiantly thought about the debris, but isn't that what you'd expect from a FMOC?
Iroquois Pliskin is offline   Reply With Quote
Old 06-01-2011, 01:37 AM   #5
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

FM's Track Dog work. Email them and ask, serious. They have great customer service, and may prove me wrong, but I believe I remember them saying it didn't work, perhaps Keith said it somewhere during his Targa build, I forget.
curly is offline   Reply With Quote
Old 06-01-2011, 01:39 AM   #6
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,685
Total Cats: 216
Default

There is a lot more Aerial debris at the back of the car than the front. Im sure you would kick a lot up into it.
Full_Tilt_Boogie is offline   Reply With Quote
Old 06-01-2011, 02:01 AM   #7
Elite Member
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

not to mention the extra oil needed to do an oil change from the long lines.
falcon is offline   Reply With Quote
Old 06-01-2011, 06:07 AM   #8
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by falcon View Post
not to mention the extra oil needed to do an oil change from the long lines.
More oil = good as thermal capacity increases, but there are other ways to do it.
Laur3ns is offline   Reply With Quote
Old 06-01-2011, 11:35 AM   #9
Junior Member

Join Date: Nov 2010
Location: Winchester, VA
Posts: 302
Total Cats: 3
Default

I would think you might be able to fab up some kind of underbody NACA-duct that could direct air up through there. Might even help a little with smoothing out flow behind the bumper? I suppose there's also an equal chance that it would ruin everything air-flow related catastrophically. Hell if I know, I'm no aerodynamicist :P
stinkycheezmonky is offline   Reply With Quote
Old 06-02-2011, 12:23 AM   #10
Senior Member
iTrader: (4)

Join Date: Aug 2010
Location: Farmington Hills, MI
Posts: 510
Total Cats: 15
Default

Quote:
Originally Posted by Iroquois Pliskin View Post
njn, defiantly thought about the debris, but isn't that what you'd expect from a FMOC?
My theory is that it only sees debris (minus bugs) from the front when following a car. It'll see debris in the rear any time you're driving due to the front wheels kicking up stuff.
Quote:
Originally Posted by stinkycheezmonky View Post
I would think you might be able to fab up some kind of underbody NACA-duct that could direct air up through there. Might even help a little with smoothing out flow behind the bumper? I suppose there's also an equal chance that it would ruin everything air-flow related catastrophically. Hell if I know, I'm no aerodynamicist :P
Could do it like the C5.R and put the NACA ducts on the rear quarter panels:

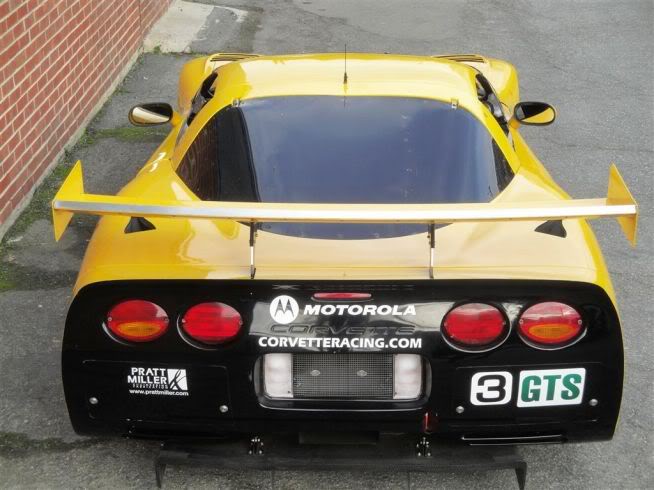

Name:  45406.jpg
Views: 24
Size:  53.6 KB

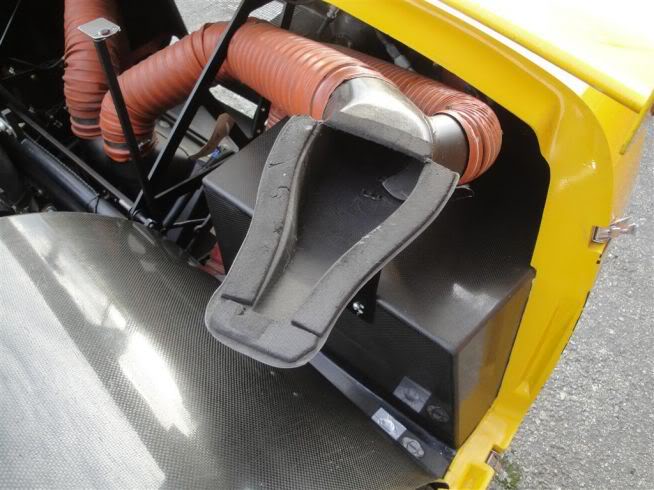

Name:  45416.jpg
Views: 51
Size:  54.7 KB

(That's for a rear diff cooler though, of course)
njn63 is offline   Reply With Quote
Old 06-02-2011, 01:52 AM   #11
Junior Member
Thread Starter
iTrader: (6)

Join Date: Aug 2010
Location: Jacksonville, FL
Posts: 197
Total Cats: 1
Default

All good points, thanks. I might look into some NACA ducting, but like I said, not much is getting past that goddamn subframe. Open to any other ideas that doesn't involve front mount. BTW, this will not be tracked, maybe autocrossed, big maybe.
Iroquois Pliskin is offline   Reply With Quote
Old 06-02-2011, 09:22 AM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

then why even need an oil cooler?
Braineack is offline   Reply With Quote
Old 06-02-2011, 09:53 AM   #13
Elite Member
iTrader: (12)

Join Date: Apr 2008
Location: Springfield IL
Posts: 2,750
Total Cats: 24
Default

Quote:
Originally Posted by Braineack View Post
then why even need an oil cooler?


I've not seen anything north over of 220 degrees on the street, and even that was after being stupid w/o a cooler. With the cooler, oil temps would never get past 190 (which was why it was removed).
chpmnsws6 is offline   Reply With Quote
Old 06-02-2011, 10:06 AM   #14
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,326
Total Cats: 1,926
Default

Quote:
Originally Posted by Iroquois Pliskin View Post
BTW, this will not be tracked, maybe autocrossed, big maybe.
Then you don't need an external oil cooler.

If you already have a 1.8 engine, then you should already have the best oil cooler for street use, which is the little water/oil sandwich plate that sits under the oil filter.

If you don't already have this device, it's an easy (and inexpensive) upgrade.

And best of all, it serves a dual purpose. When cold, the engine coolant warms up to normal operating temp faster than the oil, so this device allows heat to transfer from the warm coolant into the cold oil.
Joe Perez is offline   Reply With Quote
Old 06-02-2011, 10:06 AM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

I see 180F driving to work. I'll see them top off at 210F cruising at 80mph for extended periods of time.

I have no oil/water cooler.
Braineack is offline   Reply With Quote
Old 06-02-2011, 10:12 AM   #16
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Braineack View Post
I see 180F driving to work. I'll see them top off at 210F cruising at 80mph for extended periods of time.

I have no oil/water cooler.
I see the same on the way to and from the track WITH my oil cooler, lol.
hustler is offline   Reply With Quote
Old 06-06-2011, 01:11 AM   #17
Senior Member
iTrader: (10)

Join Date: Oct 2005
Posts: 718
Total Cats: 5
Default

a 3" exhaust really wont fit??? Even with oval pipe???
Sorry to be off topic LOL I was looking into that rear and need me some 3"" action!!
TURNS101 is offline   Reply With Quote
