Default Too big? 20g and 1.6?

Soooo ive been slowly building my homebrew kit for a while and i got (what i think) was a pretty good deal on a turbo and a buncha other crap.

- 20g mitsu td-05 turbo

- OBX log type manifold? not 100% sure on that one

- capri valve cover

- ebay fmic

- adjustable fuel pressure regulator

- manual boost controller

- random intake filter

- ebay knock off greddy bov

- purple "jdm" tow hook lol


alllllll for 200 bucks...


i was mainly looking for the valve cover cuz it was mint but i figured id buy everything and he threw in a buncha extra crap.



so down to my main question, is that 20g turbo too big for my little old 1.6? its 100% stock now. my GOAL is around 180-200whp and full boost (8lbs) around 3k ish or should i count my losses and find a nice sr20 turbo and new manifold?

ive already purchased my managment (ms) and i have a set of rx-7 injectors ( i build rotary engines all day ).

thoughts? input?
Thursday is offline   Reply With Quote
Old 09-19-2013, 12:03 AM   #2
Senior Member
iTrader: (3)

Join Date: Apr 2011
Location: Volo, IL
Posts: 1,247
Total Cats: 140
Default

I'd ditch the turbo for a T25 from an SR20. They're tried and true. If this is your first turbo Miata build, you want to be a lemming. You can "experiment" later on with off the wall parts, but for now follow what is well documented. I wouldn't recommend the OBX manifold either, but if needed you can run it until it cracks, which it will.

HUGE props for starting with MS.

Keep the intercooler.
Keep the valve cover for swagtytejdmyo.
Ditch the pressure regulator, you have an MS.
Keep the rest.

Except the tow hook. Unless you really want to have that jdmswaghella.
dieselmiata is offline   Reply With Quote
Old 09-19-2013, 12:05 AM   #3
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,685
Total Cats: 216
Default

Pics of the manifold?

I wouldnt say its too big, although it certainly is unnecessarily large for the amount of power you can make on the stock bottom end, but it really depends on how fast you want it to spool. Big turbo cars are pretty fun on the street.
Full_Tilt_Boogie is offline   Reply With Quote
Old 09-19-2013, 12:14 AM   #4
Junior Member
Thread Starter
iTrader: (2)

Join Date: Sep 2013
Location: SF Bay Area
Posts: 63
Total Cats: 2
Default

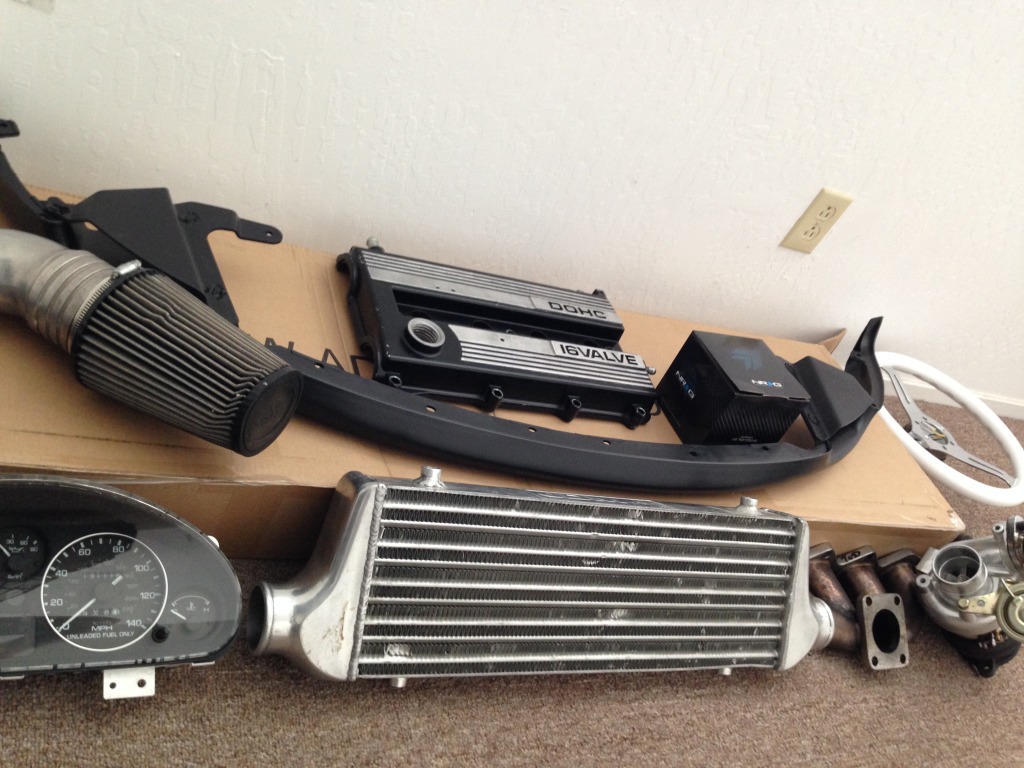

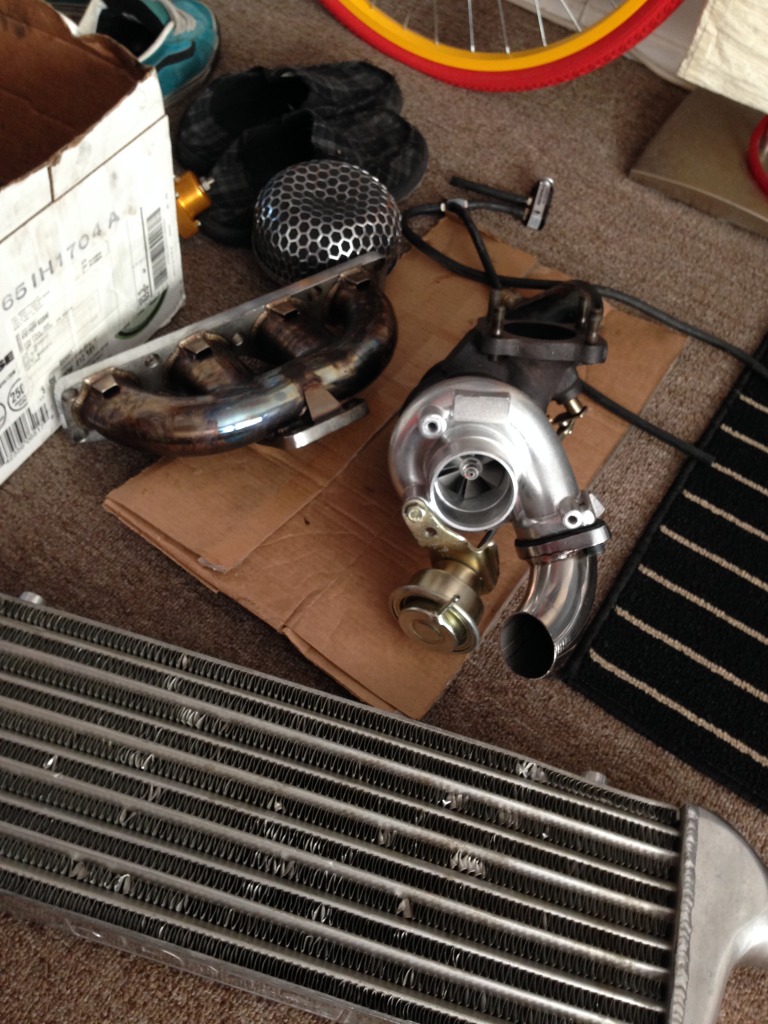

dont mind the other crap, its my spare parts room lol



Attached Thumbnails
Too big? 20g and 1.6?-null_zps4505b1fe.jpg   Too big? 20g and 1.6?-null_zpsf0439d4e.jpg
Thursday is offline   Reply With Quote
Old 09-19-2013, 12:17 AM   #5
Junior Member
Thread Starter
iTrader: (2)

Join Date: Sep 2013
Location: SF Bay Area
Posts: 63
Total Cats: 2
Default

also the guy i got it from said he had the turbo and manifold on his 1.6 for a while with no problems?

i really dont wanna hit full boost at **** 5k or something like that lol
Thursday is offline   Reply With Quote
Old 09-19-2013, 12:40 AM   #6
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,685
Total Cats: 216
Default

Id probably run that turbo, but that manifold is going to crack at some point, so Im not sure its worth messing with. Id sell them together to some sucker.
Since youre using the 1.6 you can actually get a really cheap cast manifold on ebay. It has a T3 flange so you can get yourself a T3 super 60 chinacharger and youre off to a good start.

You get the car running on the MS already? If not you should do that before anything.
Full_Tilt_Boogie is offline   Reply With Quote
Old 09-19-2013, 12:41 AM   #7
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 259
Default

Personally, I would resell all the parts except the FMIC and maybe the BOV.
soviet is offline   Reply With Quote
Old 09-19-2013, 12:45 AM   #8
Junior Member
Thread Starter
iTrader: (2)

Join Date: Sep 2013
Location: SF Bay Area
Posts: 63
Total Cats: 2
Default

word. will my manifold work with a sr20 charger? i would mind running a t3 but they all look like theyre externally gated
Thursday is offline   Reply With Quote
Old 09-19-2013, 12:52 AM   #9
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,685
Total Cats: 216
Default

Nope, thats a weird flange, which is why you should just ditch both of them.
A manifold with a T25 or T3 flange will be better, its more common.

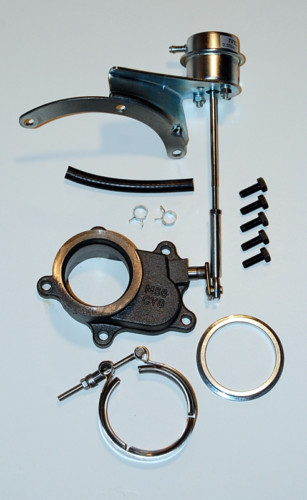

As for the T3, you may have to run one of these:


EDIT:
This is just my 2 cents, others may disagree. If I were in your situation, Id get this:
http://www.ebay.com/itm/89-93-MAZDA-...7fde82&vxp=mtr
and this (or something similar):
http://www.ebay.com/itm/CXRacing-T3-...f0cf24&vxp=mtr

fab up a downpipe, and ride out on the cheap.
Attached Thumbnails
Too big? 20g and 1.6?-b-lfh2gegk%7E%24-kgrhqiokooey-jc-yvmbm9ed-4i-w%7E%7E_12.jpg
Full_Tilt_Boogie is offline   Reply With Quote
Old 09-19-2013, 12:59 AM   #10
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

turbo too big for what you want
manifold is a worthless piece of junk
get rid of both and get a proper manifold that won't crack in a day and a proper turbo that won't take til 5k to spool
18psi is offline   Reply With Quote
Old 09-19-2013, 01:44 AM   #11
Junior Member
Thread Starter
iTrader: (2)

Join Date: Sep 2013
Location: SF Bay Area
Posts: 63
Total Cats: 2
Default

****** ay, id rock that t3 gated turbo and log mani. are those LESS prone to cracking?
Thursday is offline   Reply With Quote
Old 09-19-2013, 02:37 AM   #12
Junior Member

Join Date: Sep 2008
Location: ATL GA
Posts: 290
Total Cats: -217
Default

So i bought ar 70 garette turbo miata with a blown motor. Kid said it made 270 whp at 15 psi. Its a 1.8 94. at what rpm would this turbo make 12 psi? i had a 91 turbo fm2 with gt25 and love the fast spool. I figure if the big turbo sucks ill go with a gt28. Is there anything positive on running big turbo on stock block?. Is the 20g about same spec as the 70ar.?
locomonkeyboricua is offline   Reply With Quote
Old 09-19-2013, 10:37 AM   #13
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Both of you should get the T3 50 trim mentioned. See Braineack's dyno for why.

And a toilet paper tube mani would be less prone to cracking than that OBX one.
thenuge26 is offline   Reply With Quote
Old 09-19-2013, 11:21 AM   #14
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,685
Total Cats: 216
Default

Quote:
Originally Posted by Thursday View Post
****** ay, id rock that t3 gated turbo and log mani. are those LESS prone to cracking?
Yeah they hold up pretty well. Its the one chinese manifold that works, and its only for the 1.6!
This is pretty much the "Braineak special", that manifold with a little T3 chinacharger, running MS. Its hella cheap and works well.
Full_Tilt_Boogie is offline   Reply With Quote
Old 09-19-2013, 11:23 AM   #15
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

the brain runs a fm/begi piece, not the china mani

but yeah that one is the only one that seems to work for the most part
18psi is offline   Reply With Quote
Old 09-19-2013, 11:34 AM   #16
Junior Member
Thread Starter
iTrader: (2)

Join Date: Sep 2013
Location: SF Bay Area
Posts: 63
Total Cats: 2
Default

It also looks like the t3 that you linked is only oil cooled ?
Thursday is offline   Reply With Quote
Old 09-20-2013, 12:22 PM   #17
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

Quote:
Originally Posted by Thursday View Post
It also looks like the t3 that you linked is only oil cooled ?
and your problem with that is?

Quote:
Originally Posted by 18psi View Post
the brain runs a fm/begi piece, not the china mani

but yeah that one is the only one that seems to work for the most part
yeah, I run a BEGi directed flow cast manifold.
Braineack is offline   Reply With Quote
Old 09-20-2013, 12:26 PM   #18
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

Quote:
Originally Posted by locomonkeyboricua View Post
So i bought ar 70 garette turbo miata with a blown motor. Kid said it made 270 whp at 15 psi. Its a 1.8 94.
Cool.

Quote:
at what rpm would this turbo make 12 psi?
Somewhere between 2000rpms and redline.

Quote:
i had a 91 turbo fm2 with gt25 and love the fast spool. I figure if the big turbo sucks ill go with a gt28.
Why not a 2560 if you love the fast spool?

Quote:
Is there anything positive on running big turbo on stock block?.
Less rod-bending torque available at higher HP numbers. That's.... about it.

Quote:
Is the 20g about same spec as the 70ar.?
Is an apple about the same as a steak? I mean... they're both food, right?
concealer404 is offline   Reply With Quote
Old 09-20-2013, 12:49 PM   #19
Junior Member
Thread Starter
iTrader: (2)

Join Date: Sep 2013
Location: SF Bay Area
Posts: 63
Total Cats: 2
Default

Quote:
Originally Posted by Braineack View Post
and your problem with that is?



yeah, I run a BEGi directed flow cast manifold.


No problem! Just all the other builds I've seen have all had water lines as well. Less stuff for me to plum I guess!!
