Only thing I touched on mine was dwell. I don't know if I should have set anything else on my PnP MS. ( ? )
poobs is offline   Reply With Quote
Old 04-07-2012, 01:44 AM   #62
Elite Member
Thread Starter

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Here are the specs for the Toyota COPs with part number 90919-02246

Primary inductance is 3.7 mH up to 7A;
From 7-12A, 1.4 mH
It current limits just below 12 A

In order to hit 10A, you need the following dwell numbers

V mS
15 2.1
14 2.3
12 3.1
10 4.3

To hit 7A, you need
V ms
15 1.75
14 1.9
12 2.45
10 3.2

The turns ratio appears to be around 80:1

At 12A of primary current, peak secondary current is 140 mA

With a 1kV TVS (zener) load, the spark duration is 1.2 to 1.3 ms for a dwell current of 7-12A. (Stays pretty constant, but max voltage should be higher)
Secondary spark energy is 58 mJ at 12A of primary current
At 10A it's 55 mJ
At 7A it's 45 mJ.

The trigger input impedance is about 350 ohms.
It needs a minimum of 2.5V to dwell, and must go below 2V to fire.
It can be driven from 5V or from 12V, as long as the drive current is at least 7 mA.

At just 4.4A of dwell current the output reaches 30 kV, and it takes 45us to get there.

At 6A of dwell current the output reaches 40 kV, and that's the limit of my 1000x probe.
Takes 40 us to get there.

The delay time from trigger to when the output begins to rise is 8us.

At 7A of dwell current, the output rise time is 8 us.
At 10A, it's 10 us.

Here's the comparo against other coils:
https://www.miataturbo.net/showpost....9&postcount=53

These look like strong coils.
I think these are the ones to have.

Last edited by JasonC SBB; 04-07-2012 at 04:10 PM.
JasonC SBB is offline   Reply With Quote
Old 04-07-2012, 10:36 AM   #63
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

Jason, some of your pictures on the first page (at least) have gone AWOL. Can you see if you can fix those?
y8s is offline   Reply With Quote
Old 04-07-2012, 01:15 PM   #64
Elite Member
Thread Starter

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

AT&T unceremoniously deleted all user web pages.
I got no warning.

The short answer is sorry, no.
JasonC SBB is offline   Reply With Quote
Old 04-07-2012, 01:46 PM   #65
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

bummer. at least the stuff going forward is automatically archived by the forum software.
y8s is offline   Reply With Quote
Old 04-07-2012, 03:49 PM   #66
Elite Member
Thread Starter

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Added more info above.

Can someone confirm which cars these 02246 coils go into, vs the more common ones?
And if the shape is the same?

Last edited by JasonC SBB; 04-07-2012 at 04:12 PM.
JasonC SBB is offline   Reply With Quote
Old 04-08-2012, 04:18 PM   #67
Junior Member
iTrader: (9)

Join Date: Jan 2011
Location: Socal
Posts: 169
Total Cats: 5
Default

Quote:
Originally Posted by JasonC SBB View Post
Added more info above.

Can someone confirm which cars these 02246 coils go into, vs the more common ones?
And if the shape is the same?
I'm pretty sure I am the first to use these in a Miata successfully, so yay for me, and tons of thanks to you for testing them-It's awesome that you do this.

If you're asking what motor you can find these in from factory its toyota's v6 3MZFE which is: CAMRY'S V6, 2004-2008, SOLARAS, V6 2002-2008, HIGHLANDERS 2002-2008 & LEXUS ES330 2004-2008, RX330 2004-2008.

The shape isn't quite the same as these are a bit longer then the typical toyota cop.
Is that what you were asking?
Jpopsbronco is offline   Reply With Quote
Old 04-09-2012, 12:40 PM   #68
Elite Member
Thread Starter

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Yes, and do they fit in the same way as the other Toy COPs? Or do they need extra work?
JasonC SBB is offline   Reply With Quote
Old 04-09-2012, 12:54 PM   #69
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

it would be awesome if they were just a hair smaller diameter.

or if someone found better coils that were a hair smaller diameter.

... so they fit in the 01 valve cover.
y8s is offline   Reply With Quote
Old 04-09-2012, 04:59 PM   #70
Elite Member
Thread Starter

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Anyone investigate EVO and WRX coils?
JasonC SBB is offline   Reply With Quote
Old 08-23-2012, 07:19 PM   #71
Newb

Join Date: Mar 2009
Location: Beside the beach, NSW, Oz
Posts: 4
Total Cats: 0
Default

Quote:
Originally Posted by y8s View Post
it would be awesome if they were just a hair smaller diameter.

or if someone found better coils that were a hair smaller diameter.

... so they fit in the 01 valve cover.
an old post, I know, but ... I just picked up a set of Toyota coils marked as 90919-02234. They're 21.1mm diameter compared to the 22.0mm of the usual Corolla coils we use here. They're also a 12mm longer but they still fit and work OK in my NA8.

They were described as removed from a JDM 3.0L Toyota Harrier. I think that's sold as a Lexus RX300 in Oz and the States.

Last edited by manga_blue; 08-23-2012 at 09:20 PM.
manga_blue is offline   Reply With Quote
Old 08-27-2012, 05:14 PM   #72
Elite Member
Thread Starter

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Anyone know if they will fit the VVT valve cover?
JasonC SBB is offline   Reply With Quote
Old 06-03-2013, 01:47 AM   #73
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,877
Total Cats: 344
Default

...bringing this thread back from the dead again.

A friend and I o-scope'd my COPs today. We didn't want to buy the $350 inductive current probe at Fry's, so current was measured by inserting a .05 ohm resistor in the power wire going to the COP harness and measuring the voltage drop across it. I have the 90080-19015 coils from TSE, driving them sequentially with a Hydra 2.5.

My understanding of the operation of the coils is that +12v and ground are constantly applied, but they don't do anything until the trigger wire is pulled down by the ECU. That starts the coil charging, and when the trigger is released the coil fires. As it charges, the current going into the coil rises to a max, then gets limited at that level by the internal circuitry. The dwell time is the length of time that the trigger is held down by the ECU, and it needs to be long enough to get the coil properly charged, but not too long or it overheats them. Is that right?

The Hydra has a 2d table for the dwell time, indexed by voltage, and I have set ranging from 2.5ms at around 11v to 2.0ms at 15v.

At the 2.2ms that it was using while idling, the max current we saw on the scope was 3A. This seemed awfully low, given the 10A numbers I saw in this thread and elsewhere, so I tried increasing it. More dwell gave more current up to 5.0 ms where I chickened out and stopped testing, afraid of frying stuff.

At 13.8 volts on the Hydra (which reads about half a volt low), the results looked like this (argh, is there a better way to make a decent looking table in the forum syntax?):

dwell (nominal, ms) dwell (measured, ms) current (amps)
2.2 ------------------ 2.25 ------------------- 2.99
2.5 ------------------ 2.56 ------------------- 3.56
3.0 ------------------ 3.06 ------------------- 4.50
3.5 ------------------ 3.58 ------------------- 5.56
4.0 ------------------ 4.08 ------------------- 6.28
4.5 ------------------ 4.54 ------------------- 6.90
5.0 ------------------ 5.16 ------------------- 7.36

Here's a screenshot from the scope of the last measurement:



So... wtf? Am I measuring something wrong, or do these coils really want a lot more dwell than everyone else seems to be seeing? If I'm only putting 3A in them at 2.2ms, does that mean I'm only running them at 30% of their max power? If so, I'm surprised the car runs well (no misfires under boost, even at 15psi/270rwhp). We used a pair of 0.1 ohm resistors in parallel in the power line, making 0.05 ohm. Measuring a 0.15v drop across it yields 3.0 amps. Yes, the ~ 1% voltage drop from the resistor will reduce the current, but surely not by that much? We measured the current before the capacitor, which is not ideal, but that should just filter out some high frequency noise, right?

--Ian
Attached Thumbnails
Toyota COP dwell curve-coil-current8.jpg
codrus is online now   Reply With Quote
Old 06-03-2013, 02:52 AM   #74
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,877
Total Cats: 344
Default

Hm. Thinking about it some more, I'm guessing it is all down to the capacitor. Argh. I don't want to cut the power wire in that harness.

--Ian
codrus is online now   Reply With Quote
Old 06-08-2013, 11:02 PM   #75
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,132
Total Cats: 187
Default

NECRO POST:

Does anyone have Jason's dwell curve image? I get only a red "X". I've recently updated my ECU and I lost my printed copy of the graph.\


Edit: Damn, I guess I didn't necro post after all; someone just posted in this thread on June 3rd...
fooger03 is offline   Reply With Quote
Old 06-08-2013, 11:07 PM   #76
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,132
Total Cats: 187
Default

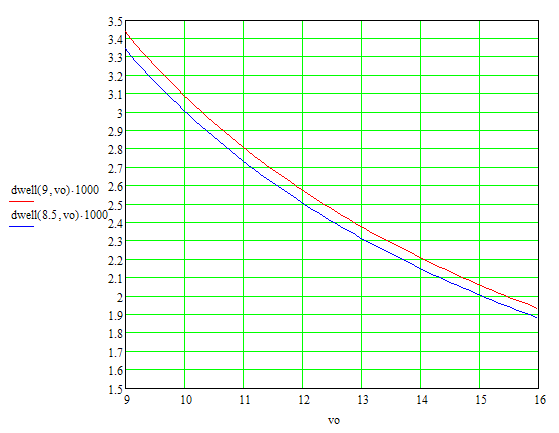

Found what might be the relic while doing a google image search. Jason, is this your original graph?

Attached Thumbnails
Toyota COP dwell curve-viatura%2520-%2520mazda%2520mx-5%2520-%2520base%2520-%2520motor%2520-%2520ignicao%2520-%2520cop%2520-%2520dwell%252005.gif
fooger03 is offline   Reply With Quote
Old 06-09-2013, 03:34 AM   #77
Elite Member
Thread Starter

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Looks like it.
JasonC SBB is offline   Reply With Quote
