Old 01-17-2013, 12:17 PM   #21
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Quote:
Originally Posted by TorqueZombie View Post
Anyone tried something like this?
ARP 400-8012 Stainless Steel Exhaust Manifold Kit 8x Studs/Yokes/ Nuts

Curious if they would be any good for the turbine to downpipe connection.
There are numerous stainless steel alloys (alloy = mixture of base metals) available. Not all of them offer heat resistant properties. Would be nice if you could find out which particular alloy this is (available on ARP's website perhaps?).

Don't forget that exhaust manifold studs in the head can get away with less heat protection because they are water cooled. The studs in the manifold to turbo and turbo to downpipe connections only get air cooling, with the manifold to turbo being, by far, the highest heat connection in the car.
hornetball is offline   Reply With Quote
Old 01-17-2013, 10:11 PM   #22
Junior Member
Thread Starter
iTrader: (10)

Join Date: Jun 2011
Location: Detroit Burbs
Posts: 300
Total Cats: 3
Default

Well, I still need to call that fastener place listed earlier, but so far, it looks like the BEGI 8mm inconel downpipe studs are the only "good" option.

Miata Downpipe Mounting Hardware - Inconel studs /8mm BEGi

$175.85 + $18.64 Shipping. **** that.

Also - I have been fighting removal of my turbine housing from the CHRA for days. I finally got it off, but some of the turbine housing to CHRA bolts are a bit rounded.

Are these special material too?
Frank_and_Beans is offline   Reply With Quote
Old 01-17-2013, 10:32 PM   #23
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

I think Hustler wrote about his CHRA bolts over in the EPIC thread. Thankfully, my Mitsu turbo uses a V-band for that.
hornetball is offline   Reply With Quote
Old 01-17-2013, 10:48 PM   #24
Junior Member
Thread Starter
iTrader: (10)

Join Date: Jun 2011
Location: Detroit Burbs
Posts: 300
Total Cats: 3
Default

It looks like Ford uses M8 studs for 4.6 and 5.4 V8 exhaust manifolds. At some point furing production they switched from standard steel to some sort of stainless alloy to try and cure stud breakage.

Ford 9K494SUB Exhaust Manifold Install Kit 8 Studs Washers Nuts | eBay

Looks like you can get a full set of 8 studs, nuts and washers for pretty cheap. Not sure why the studs have a copper color though.

Also not sure what type of stainless they are made from. But, I might try these instead. The local parts store (O'Reilly) had a set of these studs in the "HELP" section. Of course the HELP ones are shitty chinese brand, so I didn't buy them. Length is 56mm.
Frank_and_Beans is offline   Reply With Quote
Old 02-01-2013, 09:56 PM   #25
Junior Member
Thread Starter
iTrader: (10)

Join Date: Jun 2011
Location: Detroit Burbs
Posts: 300
Total Cats: 3
Default

Well, after removing the TSE inconel studs that came with my manifold - it looks like one of the threaded holes in the manifold is boogered up. It has only about 20% thread height on one side.

I'm not sure if this happened before the previous owner installed the TSE studs or after. No way to know. In any case, it looks like I will have to fix this somehow.

So - on to the question. Should I use a Time-sert (unknown material), or an Inconel 725 Helicoil?

TIME-SERT M10 X 1.50 Metric Thread Repair Kit 1015 : Amazon.com : Automotive TIME-SERT M10 X 1.50 Metric Thread Repair Kit 1015 : Amazon.com : Automotive

Versus:

Helical Thread Inserts: M10 x 1.5, 15.0mm (1.5xD) Length, Free Running, Inconel X750 (Package of 1)

I'm kinda leaning towards the Inconel helicoil. It is cheaper as I already have a helicoil installation tool, and I only have to buy one (probably 2 to be safe) inserts. It is Inconel, so should be plenty strong at high temps versus the unknown quality of the TimeSert at high temps.

Any thoughts on this?
Frank_and_Beans is offline   Reply With Quote
Old 02-02-2013, 01:25 AM   #26
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

I agree with you. I would go with the known material that is suitable for the temperature requirement.
hornetball is offline   Reply With Quote
Old 02-02-2013, 02:49 AM   #27
Elite Member
iTrader: (6)

Join Date: May 2011
Location: Lebanon, TN
Posts: 1,668
Total Cats: 63
Default

Time-serts- I've never seen many good things come from heli-coils. Never known of inconel ones, but never liked heli-coils for anything important. Brackets-maybe. Sparkplugs and such-no.
TorqueZombie is offline   Reply With Quote
Old 02-02-2013, 09:16 AM   #28
Junior Member
Thread Starter
iTrader: (10)

Join Date: Jun 2011
Location: Detroit Burbs
Posts: 300
Total Cats: 3
Default

I did a little more research, and it looks like a standard Time-sert insert is just carbon steel.

http://www.timesert.com/html/12L14CarbonSteel.pdf

You can special order them in 303 stainless as well.

That being said, it looks like neither 303 or carbon steel would be recommended for high temp applications. It's looking like Inconel is the better solution.

For what it's worth - I have never had an issue with Helicoils in the past. I've used them for motor mount holes into an aluminum block - which should have some pretty high load and vibration. Seems like Helicoils don't work very well for headbolt/stud applications though.
Frank_and_Beans is offline   Reply With Quote
Old 02-02-2013, 10:12 AM   #29
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,680
Total Cats: 1,561
Default

One of my cast manifold stud holes is helicoiled.
sixshooter is online now   Reply With Quote
Old 03-02-2013, 01:49 AM   #30
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

I know this thread is a month old, but I'm going to resurrect it with what I'm sure will turn out to be a stupid question...

I'm seeing turbine housings with studs and bolts in various locations. Is there a reason to use studs over bolts in specific holes, or is this an OEM packaging thing? Why not run all studs? Or all bolts?
EO2K is offline   Reply With Quote
Old 03-02-2013, 02:26 AM   #31
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Actually, a pretty good question.

Speaking from personal experience:

Bolt:
1. Cheaper (1 part vs. at least 2 parts)
2. Easily drilled for safety wire
3. More prone to getting frozen due to corrosion -- a definite consideration in a high heat environment
4. Requires enough clearance around hole to insert the bolt

Stud and Nut:
1. More parts
2. Both stud and nut need to be secured -- you'll end up using things like high-heat thread lockers and stage-8 fasteners
3. So long as you never want the remove the stud, the only corrosion/freezing you care about is between the stud and nut -- usually easier to control
4. Handles situations where clearance to insert a bolt may not be present

In my case, Inconel studs on manifold to turbo and Inconel bolts on the downpipe seem to be working just fine. Of course, I had to learn the hard way.
hornetball is offline   Reply With Quote
Old 03-02-2013, 02:56 AM   #32
Junior Member
iTrader: (42)

Join Date: Dec 2010
Location: Meridian, ID
Posts: 280
Total Cats: 32
Default

Quote:
Originally Posted by Frank_and_Beans View Post
Well, I still need to call that fastener place listed earlier, but so far, it looks like the BEGI 8mm inconel downpipe studs are the only "good" option.

Miata Downpipe Mounting Hardware - Inconel studs /8mm BEGi

$175.85 + $18.64 Shipping. **** that.
Nissan also used M8 Inconel downpipe studs on their turbos (e.g. 300ZX). Part No. 14414-17F00.



I count 8 threads on the turbine side. 8 x 1.25mm = 10mm engagement. 16 or so threads on the other end plus about 10mm without threads? 40mm overall length? Not quite as long as BEGi's 44mm long Inconel studs but definitely longer than their 37mm long grade 8 studs.

$7.00 each here, but shipping is $14:

1990-1996 Nissan 300zx OEM Turbo to Downpipe Stud

$7.75 each here with $3 shipping:

Nissan OEM 300ZX Turbo to Downpipe Stud Z32 - Nissan performance parts

Last edited by skou; 03-02-2013 at 03:13 AM.
skou is offline   Reply With Quote
Old 03-02-2013, 03:09 AM   #33
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Awesome explanation, thanks Hornet!

I went out of my way to remove the 2 studs from my exhaust housing before sending my turbo in for the Garrett CHRA exchange, and the guys replaced them (for free, along with all the other hardware) with 2 new studs in the same location. I figured "well, they must know something I don't" so I didn't question it until now.

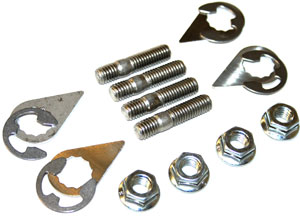

skou: FM also has a kit of 8mm Inconel manifold-to-turbo studs along with Stage 8 fasteners for $99.95. No length listed though.

Flyin' Miata : Turbochargers : Parts and upgrades : Stage 8 hardware with Inconel studs


Humm... "10mm master race" is obviously the solution, but I'm not convinced I could drill out my turbine housing or drill/tap my manifold accurately enough. I should go find pricing on those Stage 8 nuts.

Edit: FM sells the Stage 8 8mm nuts for $28.95. Summit is only slightly less at $27.95
Attached Thumbnails
Turbine outlet studs + Downpipe Q's-36-19300.jpg
EO2K is offline   Reply With Quote
Old 03-02-2013, 03:34 AM   #34
Junior Member
iTrader: (42)

Join Date: Dec 2010
Location: Meridian, ID
Posts: 280
Total Cats: 32
Default

skou is offline   Reply With Quote
Old 03-02-2013, 03:44 AM   #35
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Neat! It'd be nice to know the actual lengths on these studs, maybe I'll order a few more for the downpipe and see how they measure up.
EO2K is offline   Reply With Quote
