Default Turbo Blowing White Smoke?

Hey guys,
I rebuilt my 1.8 in April 2014 with the help of zipstips and duffbuster
Manely rods
OEM Pistons
ALC race bearings
Fel-Pro Head Gasket
ARP Head studs
ID 1000cc injectors
AEM EMS

Drove it around for a few oil changes, and then took it to the dyno
at the vette doctors in long island. Turbo Blewup on the dyno.. I got a Gpop rebuild kit for the turbo and reinstalled the turbo yesterday (9-3-14). The turbo is a ebay T2 28/25 turbo, with a -10an return line and a -3an feed line.
I welded shut the feed fitting and drilled a small hole to "rig" a oil restrictor since i couldnt find they made one.

My problem now is that the car still blows white smoke. I did a compression test and it was pretty even across at 180psi.What do I do now? Did the piston rings not set yet? Is just leftover amounts of oil in the IC or the exhaust? Im not losing coolant or running hot, and its a new head gasket.. So im just confused at this point. Any input would be appericated!!
shredheads666 is offline   Reply With Quote
Old 09-04-2014, 05:24 PM   #2
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,159
Total Cats: 131
Default

Are you sure it's the turbo? What does the smoke smell like? To me white usually means coolant.
Chiburbian is offline   Reply With Quote
Old 09-04-2014, 05:42 PM   #3
Junior Member
Thread Starter

Join Date: Aug 2013
Location: moosic pa
Posts: 58
Total Cats: 1
Default

I dont know for sure, but the turbo had a lot of shaft play and the car rolled white smoke like diesel trucks with black smoke, just to give an idea.The smoke smells like burned oil to me. But with good compression, new head gasket, and no signs of any coolant loss, what else can I look for?
shredheads666 is offline   Reply With Quote
Old 09-04-2014, 05:46 PM   #4
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,159
Total Cats: 131
Default

Do you have coolant going to the turbo?

I might be mistaken but I thought that bearing type turbos don't use a restrictor... Could it be you starved the turbo when you did the dyno tune and now you need another rebuild? Just thinking out loud.
Chiburbian is offline   Reply With Quote
Old 09-04-2014, 05:56 PM   #5
Junior Member
Thread Starter

Join Date: Aug 2013
Location: moosic pa
Posts: 58
Total Cats: 1
Default

I do have coolant going to the turbo. When I first noticed the car smoking, I did some research and I found a site that said -2 lines dont need to be restricted but -3 did. It seemed to help for a little while until I did 3 dyno pulls.

Edit: Journal bearing turbo disco potato knock off
shredheads666 is offline   Reply With Quote
Old 09-04-2014, 06:20 PM   #6
Junior Member
iTrader: (-2)

Join Date: Nov 2012
Posts: 242
Total Cats: -42
Default

Ive always heard - 3 you dont need a restrictor and -4 you may
Gt2560rMiata is offline   Reply With Quote
Old 09-04-2014, 07:18 PM   #7
Junior Member
Thread Starter

Join Date: Aug 2013
Location: moosic pa
Posts: 58
Total Cats: 1
Default

I just pulled the air filter off the turbo and I have a ton of oil in it and the charge pipe to the IC, if I take me "restrictor" out won't it make too much oil pressure and ruin my turbo again?
shredheads666 is offline   Reply With Quote
Old 09-04-2014, 07:50 PM   #8
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,159
Total Cats: 131
Default

Could it have gotten there from your valve over breather? Mine is plumbed in just after the air filter. Could a failing PCV do it? Just trying to figure out the cheap possibilities first.
Chiburbian is offline   Reply With Quote
Old 09-05-2014, 12:46 AM   #9
Junior Member
Thread Starter

Join Date: Aug 2013
Location: moosic pa
Posts: 58
Total Cats: 1
Default

Off the head, I have the 2 lines going to a catch can and then the catch can has a breather filter. How would the PCV effect anything? Sorry if this is a noob response haha
shredheads666 is offline   Reply With Quote
Old 09-05-2014, 09:57 AM   #10
Junior Member
Thread Starter

Join Date: Aug 2013
Location: moosic pa
Posts: 58
Total Cats: 1
Default

.

Last edited by shredheads666; 09-08-2014 at 03:55 PM. Reason: pictures didnt upload correctly
shredheads666 is offline   Reply With Quote
Old 09-07-2014, 02:08 PM   #11
Junior Member

Join Date: Mar 2014
Location: Bartlett, Tn
Posts: 107
Total Cats: 2
Default

Quote:
Originally Posted by shredheads666 View Post
I just pulled the air filter off the turbo and I have a ton of oil in it and the charge pipe to the IC, if I take me "restrictor" out won't it make too much oil pressure and ruin my turbo again?
To this day, I have yet to see a Journal Bearing Turbo loose its life from to much oil pressure, not saying its not possible, because anything can happen. Sure it makes some to allot of smoke and a mess, but after trial and error, and the oiling is correct it will usually recover and eventually stop smoking and leaking. Starting off with too little fills your life with : "Misery&Woe". My 2554, my oil issues went away with a 1/16 restrictor but im also using a 4an line and has been fine for over 8k. On a Sr20, the Factory fitting in it is restricted to almost 1.5mm or 1/16th and half that on the Ball Bearing Models. Same with IHI RHB5VJ11 that Used to be on Concealors F2 from the factory until he turned it into FrankenSlut.

Last edited by jmuse8482; 09-07-2014 at 02:43 PM.
jmuse8482 is offline   Reply With Quote
Old 09-08-2014, 03:16 PM   #12
Junior Member
Thread Starter

Join Date: Aug 2013
Location: moosic pa
Posts: 58
Total Cats: 1
Default

Well I ended up buying 18psi's gt2560 turbo. Really hoping this solves my issue. In the mean time i have to take my intercooler off and clean out all the oil. Ill give updates once the turbo is installed. On a side note anyone want a china turbo for cheap? haha
shredheads666 is offline   Reply With Quote
Old 09-08-2014, 03:19 PM   #13
Junior Member

Join Date: Mar 2014
Location: Bartlett, Tn
Posts: 107
Total Cats: 2
Default

Quote:
Originally Posted by shredheads666 View Post
Well I ended up buying 18psi's gt2560 turbo. Really hoping this solves my issue. In the mean time i have to take my intercooler off and clean out all the oil. Ill give updates once the turbo is installed. On a side note anyone want a china turbo for cheap? haha
What size?
jmuse8482 is offline   Reply With Quote
Old 09-08-2014, 03:30 PM   #14
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

I've read multiple times in the past that a failing turbo CAN cause white smoke. Basically when the oil is burnt up in the combustion chamber it is blue, but when it burns at a lower temperature being pushed past the turbo seals directly into the downpipe, it will not fully combust and burn off white

Report back and let us know how it goes with the new turbo!
Fireindc is offline   Reply With Quote
Old 09-08-2014, 03:53 PM   #15
Junior Member
Thread Starter

Join Date: Aug 2013
Location: moosic pa
Posts: 58
Total Cats: 1
Default

My guess is I rebuilt it wrong?I used this write up

HOW TO: Rebuild a T25/T28 Turbo - SR20 Forum

Oil is definitely passing through the turbo seals.
Jmuse its China rep of a disco potato gt25/28 maybe used for 5k-7k hard miles. I was able to make 220whp.
shredheads666 is offline   Reply With Quote
Old 09-08-2014, 04:30 PM   #16
Junior Member
iTrader: (20)

Join Date: Apr 2010
Location: Redmond, WA
Posts: 494
Total Cats: 15
Default

had this problem with a chinacharger. the restrictor it came with was actually too big. Did the rivet in the oil line trick (was using -4 AN lines, but had a restrictor that wasn't enough) and all is well
bmxfuel007 is offline   Reply With Quote
Old 09-08-2014, 04:53 PM   #17
Junior Member
Thread Starter

Join Date: Aug 2013
Location: moosic pa
Posts: 58
Total Cats: 1
Default

I wish the trick worked for me! Either way, upgrading the turbo was a plan I had for the future. Im curious to see how a real turbo is going to work for me, updates soon!
shredheads666 is offline   Reply With Quote
Old 09-08-2014, 05:24 PM   #18
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,391
Total Cats: 58
Default

Quote:
Originally Posted by Fireindc View Post
I've read multiple times in the past that a failing turbo CAN cause white smoke. Basically when the oil is burnt up in the combustion chamber it is blue, but when it burns at a lower temperature being pushed past the turbo seals directly into the downpipe, it will not fully combust and burn off white

Report back and let us know how it goes with the new turbo!
You mean smoke-machine white? I've changed a dead turbo doing that, compressor wheel having a play of 1/6". The cloud behind that one was big and had a hang time of over a minute. Love when OEMs cut corners and make stuff brake just after 100k mi.
So oil smoke can be white, as was mentioned early in this thread.
NiklasFalk is offline   Reply With Quote
Old 09-18-2014, 02:09 PM   #19
Junior Member
Thread Starter

Join Date: Aug 2013
Location: moosic pa
Posts: 58
Total Cats: 1
Default

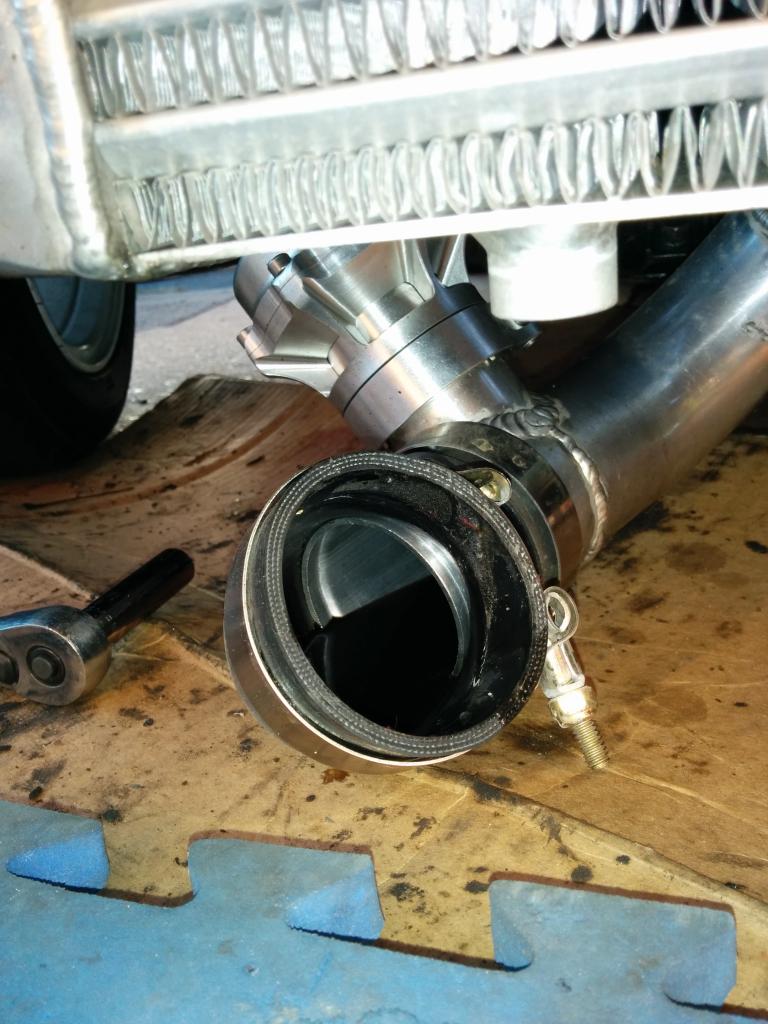

Heres some pictures to give an idea how much oil is going by the turbo. You'd swear i was changing my oil when i removed the piping haha
Attached Thumbnails
Turbo Blowing White Smoke?-oilpipe_zps56ef5a27.jpg   Turbo Blowing White Smoke?-oilintercooler_zps76b996fa.jpg
shredheads666 is offline   Reply With Quote
Old 09-18-2014, 02:13 PM   #20
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

wow

make sure to thoroughly wash that all out before you bolt it all together
