Default Turbo brace Idea's?

Right. I have at long last bolted my turbo on to the car. And it is working pretty damn good. I think my BOV is leaking a bit, or I just wasn't expecting all the noise under boost, but it is working.

I bought my turbo (DSM T25) from a member here a few months back with the D/P and mani. Both those parts are from "x02 racing". Same **** they sell on eBay, only with an actual brand name on it. I have been clinging to the hope that this is what the eBayers are imitating and not the same ****, but I know I am just blowing smoke up my own ***. At any rate, he used it for some time and it looked very solid when I got it, so perhaps they are not the same tin foil eBay stuff.

I also know that while we don't all say it out loud, there are more than a few members here running this manifold. And I also know we all tell everyone running one to "brace the **** out of it". However try as I might I cannot find a single thread on the subject.

So has anyone here actually braced one up and have pictures? I am planning to use a couple of pieces of steel strap from the outer turbo bolts down to the engine mount. I just have not come up with anything to let me adjust the tension on it once it is mounted.

Idea's?
Blaize is offline   Reply With Quote
Old 03-30-2010, 06:28 PM   #2
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Heim joint.
hustler is offline   Reply With Quote
Old 03-30-2010, 11:39 PM   #3
Former Vendor

Join Date: Dec 2007
Location: Texas Hill Country
Posts: 271
Total Cats: 16
Default

Hustler is quite correct. Use a pair of heim joints, left and right threads. Crank the thing up with all the pre-load you can manage by hand w/o a wrench and anchor the left/right lock nuts.

I would suggest the life of the typical SS tube manifold w/o brace is about 1000 miles of vibrating annoyance.

A brace ought to get the life up to about 20K min.

Corky
Corky Bell is offline   Reply With Quote
Old 03-31-2010, 06:51 AM   #4
Junior Member
Thread Starter

Join Date: Jun 2008
Location: New Forest, U.K.
Posts: 336
Total Cats: 4
Default

Well I suppose that's that settled then. I have found a reasonably cheap source for kit car steering turnbuckles on the eBay. I'll order one tonight and do it this weekend. May even post a picture so the next guy has an answer waiting. Thanks guys.
Blaize is offline   Reply With Quote
Old 03-31-2010, 11:38 AM   #5
Senior Member
iTrader: (8)

Join Date: Feb 2009
Location: Jax, Fl
Posts: 907
Total Cats: 0
Default

I'm in for pics
johnmatt is offline   Reply With Quote
Old 03-31-2010, 03:42 PM   #6
Junior Member
Thread Starter

Join Date: Jun 2008
Location: New Forest, U.K.
Posts: 336
Total Cats: 4
Default

Just ordered a pair of heim joints and a turnbuckle. Going to make a pair of L brackets, one at the turbine to exhaust manifold flange, and one at one of the engine mount bolts on the block. I'll do my best to take pictures but it is tight in there so no promises. I'll be doing it all monday morning. I'll post up what I have, once I have it.
Blaize is offline   Reply With Quote
Old 03-31-2010, 05:46 PM   #7
Senior Member
iTrader: (16)

Join Date: Jul 2009
Location: salem ark
Posts: 563
Total Cats: -1
Default

in for pics also
browning is offline   Reply With Quote
Old 04-04-2010, 07:40 PM   #8
Junior Member

Join Date: Feb 2010
Posts: 277
Total Cats: 4
Default

In for pics as well.
Sam TII is offline   Reply With Quote
Old 04-05-2010, 03:14 PM   #9
Junior Member
Thread Starter

Join Date: Jun 2008
Location: New Forest, U.K.
Posts: 336
Total Cats: 4
Default

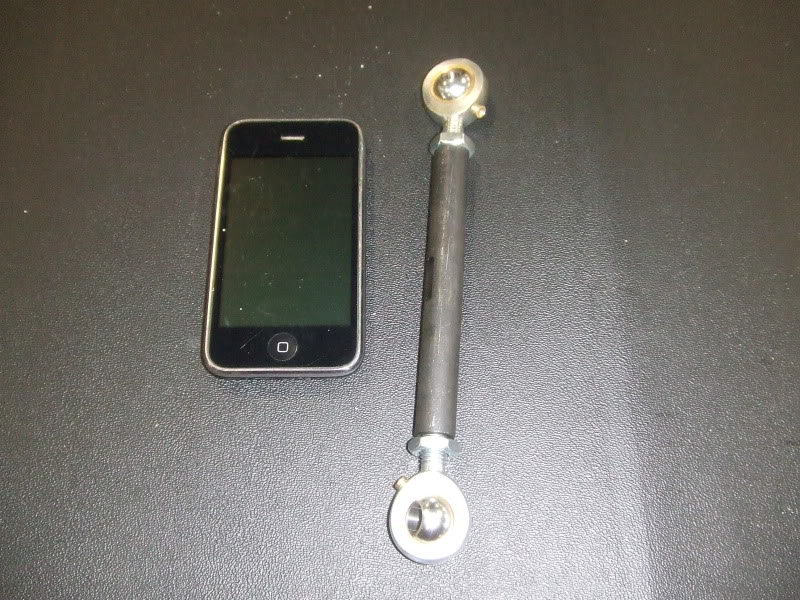

And its done. Here is what I bought. (phone for size reference)

Name:  DSCF3160.jpg
Views: 4
Size:  151.3 KB

That's 200mm bolt center to center. The advertised adjustment range is 170-210mm. Got all of it for 15 delivered (round $22) from a company supplying kit car makers. Called and told them what I was doing and that the cheapest **** would do. VERY nice quality stuff for the cheapest option.

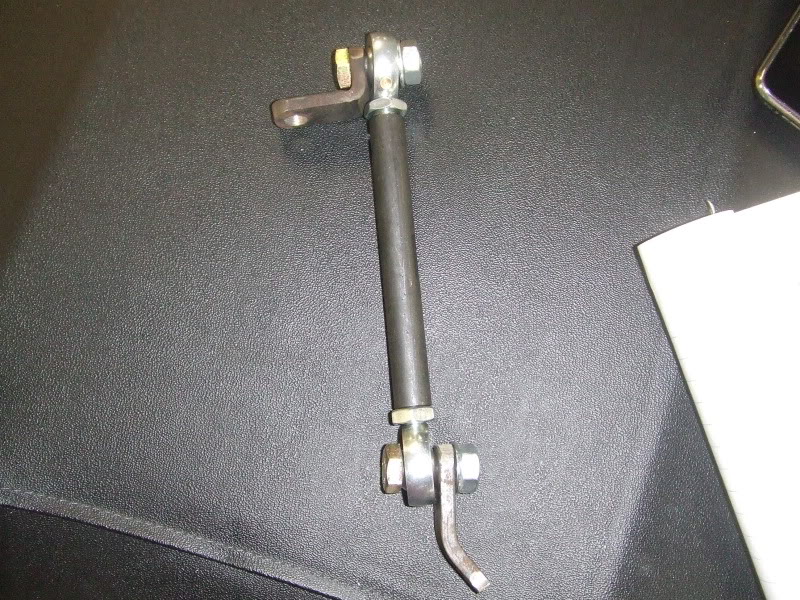

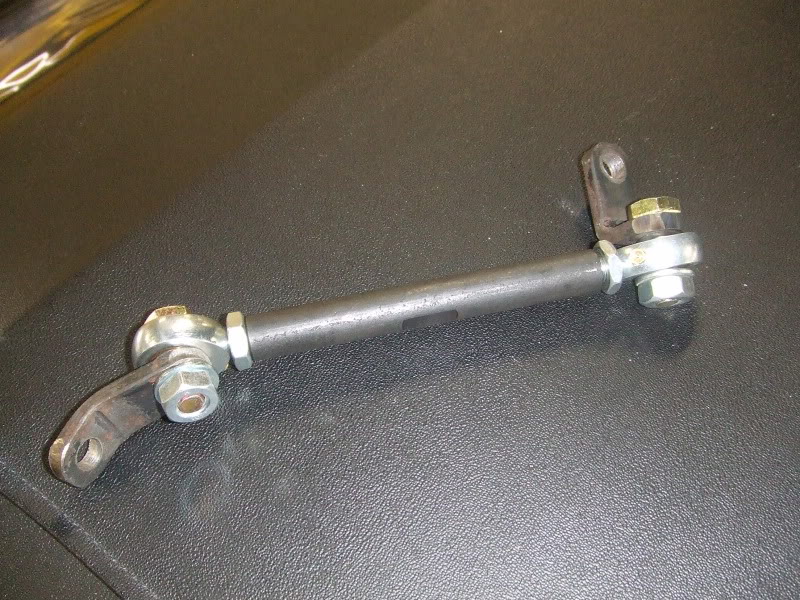

Did a bit of measuring and mocking up and these are the brackets

Name:  DSCF3161.jpg
Views: 4
Size:  179.1 KB

Name:  DSCF3162.jpg
Views: 4
Size:  158.9 KB

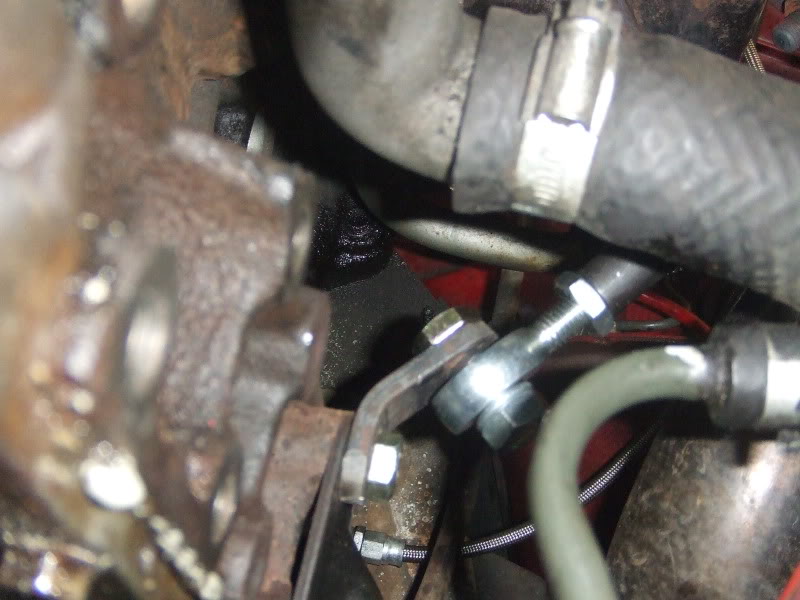

Then bolted the bastard in, this is viewed from below looking at the front upper engine mount bolt on the block. You will need to find a longer bolt than stock to allow for the thickness of the bracket (1/4 inch in this case) as they are pretty much "just" long enough as standard.

Name:  DSCF3166.jpg
Views: 4
Size:  74.4 KB

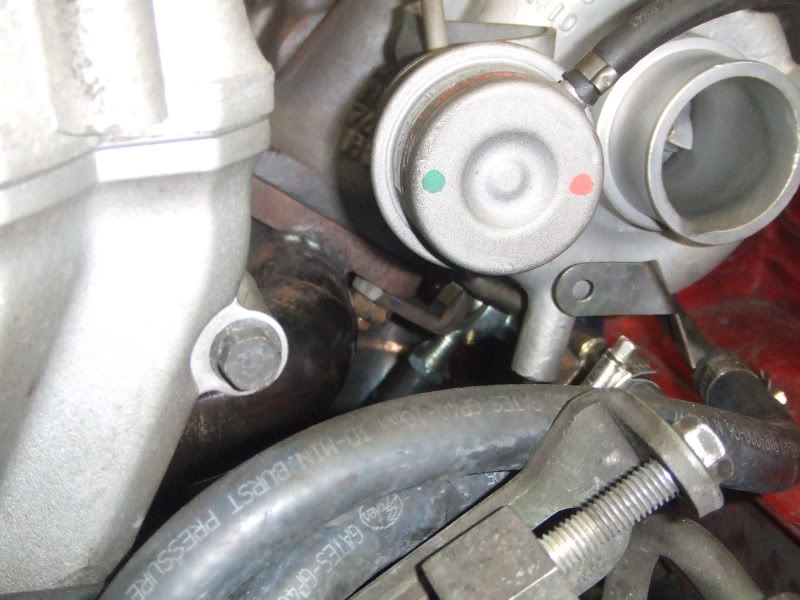

and here is the mount at the turbo

Name:  DSCF3164.jpg
Views: 4
Size:  86.9 KB

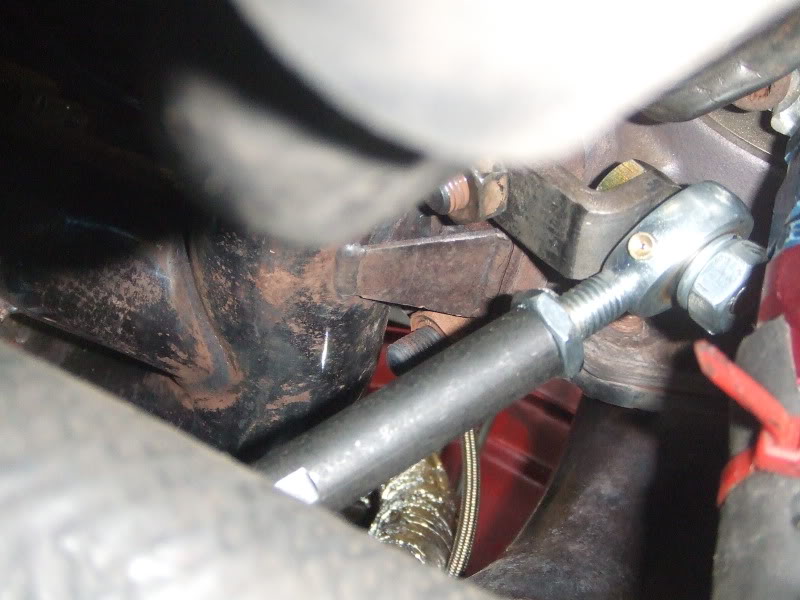

and again from below

Name:  DSCF3168.jpg
Views: 4
Size:  79.4 KB

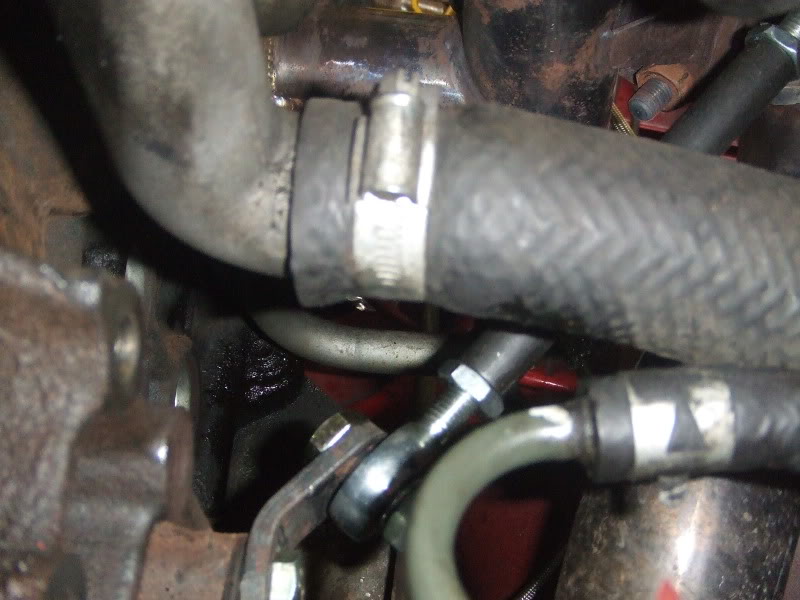

and these two are the best I could muster for the whole thing. Very difficult to see it all at once as it is really buried in there.

Name:  DSCF3167.jpg
Views: 4
Size:  74.3 KB

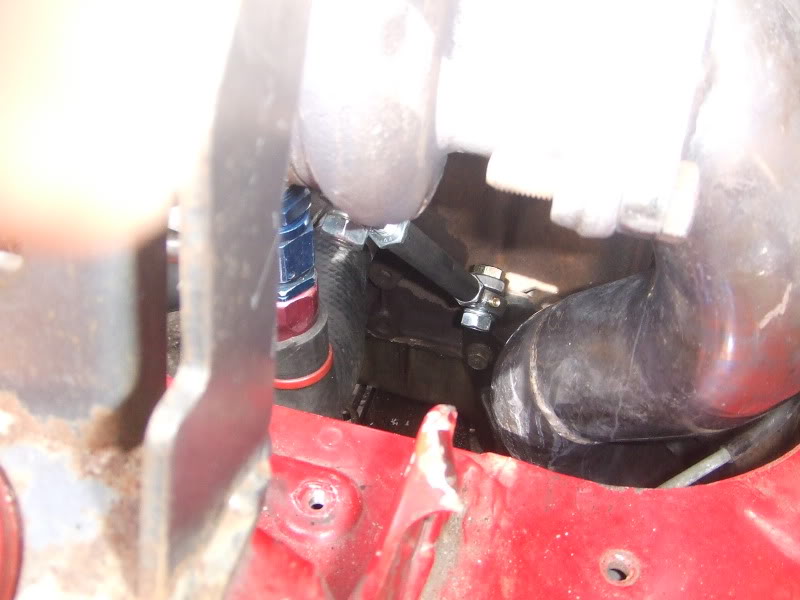

and this is looking from behind and above the turbo

Name:  DSCF3171.jpg
Views: 4
Size:  66.7 KB

So that's how its done. Followed corkey's advice and turned it by hand as tight as I could then tightened the lock nuts. I don't know if I am imagining it or not but the engine does now feel smoother. I did take measurements of the brackets as I did it, so you could just have a shop fab up a set for you (presuming that most of us don't have the equipment to properly bend up 1/4 inch steel, I am lucky in that I know a guy who does)
I'll draw up a set of plans tonight and add it to this thread for future use.

Oh and all thanks to Barry Spiers on this forum as he was/is "the guy" with the tooling, and made short work of fabbing up the brackets.
Blaize is offline   Reply With Quote
Old 04-05-2010, 03:40 PM   #10
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I may do the same thing for my turbo with the same pointing point.
hustler is offline   Reply With Quote
Old 04-06-2010, 03:35 PM   #11
Senior Member
iTrader: (16)

Join Date: Jul 2009
Location: salem ark
Posts: 563
Total Cats: -1
Default

hey where did you pick the heim joint up at?
browning is offline   Reply With Quote
Old 04-06-2010, 03:46 PM   #12
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Very cool! Going to do the same thing asap! My local hardware store has lots of turnbuckles to choose from!

I'll stop posting like WonTon now!
wayne_curr is offline   Reply With Quote
Old 04-06-2010, 04:38 PM   #13
Junior Member
Thread Starter

Join Date: Jun 2008
Location: New Forest, U.K.
Posts: 336
Total Cats: 4
Default

I got it here-http://www.mcgillmotorsports.co.uk/i...d&productId=14

But they are in Scotland (I am in the U.K.). All I did was google it and go to the first shop I found. I have to assume there are people in the states supplying this stuff as well. Failing that I am SURE good old McMaster Carr would have it (God I miss them).

I couldn't be bothered to dick around doing the math with all the part lengths, so I just called and told them what I needed.

Busy couple of nights. I will draw up plans for the brackets this week sometime and post them up
Blaize is offline   Reply With Quote
Old 04-20-2010, 05:32 PM   #14
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

I need to do this as my welds at the flange ate beginning to seperate from what I guess is too much weight.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 04-20-2010, 05:41 PM   #15
Junior Member

Join Date: Jan 2010
Location: Todmorden UK
Posts: 98
Total Cats: 0
Thumbs up

Drawings and specs would be great. I need this mod for mine as I don't fancy swapping the manifold too early. Cheers.
j555pre is offline   Reply With Quote
Old 04-20-2010, 09:02 PM   #16
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by hustler View Post
I may do the same thing for my turbo with the same pointing point.


How would you suggest we do this with our manifolds? Ours sits much lower and the turbo flange is on the outer side.

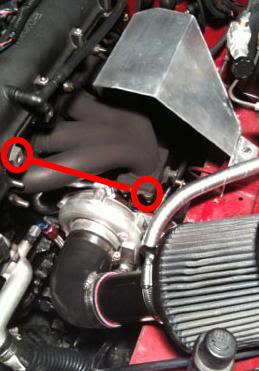

This is how I think we could do it.

Name:  brace.jpg
Views: 9
Size:  20.1 KB
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote

Last edited by levnubhin; 04-21-2010 at 10:19 AM.
levnubhin is offline   Reply With Quote
Old 04-20-2010, 09:45 PM   #17
Junior Member
iTrader: (2)

Join Date: Feb 2009
Location: 94401
Posts: 240
Total Cats: -2
Default

proughj is offline   Reply With Quote
Old 04-21-2010, 10:07 AM   #18
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

On the AF stuff we will go from below and connect at the CHRA/turbine flange clippy thingies.
hustler is offline   Reply With Quote
Old 04-21-2010, 10:50 AM   #19
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by hustler View Post
On the AF stuff we will go from below and connect at the CHRA/turbine flange clippy thingies.
And where will the other end go?
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 04-21-2010, 11:01 AM   #20
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by levnubhin View Post
And where will the other end go?
Engine mount, AC mount, and up your ***.
