Default Opinions on DIY mani and how to make it stronger

Snaged a new motor today and the previous owner gave me his DIY mani/dp and since the funds are kinda tight i was thinking of just using what i have. Savington brought up a good point about how the OEM header was not made to hold the weight of a turbo, and this DIY mani is clearly made out of parts of the OEM header.

Take a look:
Name:  IMG_0231.jpg
Views: 4
Size:  91.5 KB
Name:  IMG_0232.jpg
Views: 3
Size:  85.6 KB
Name:  IMG_0233.jpg
Views: 3
Size:  82.6 KB


How might i make this thing last a while?
thesnowboarder is offline   Reply With Quote
Old 10-07-2008, 04:07 AM   #2
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

LOL that mani may look like it might flow better than a log mani.

Can you dig up pix of Begi's S4 manifold support?
JasonC SBB is offline   Reply With Quote
Old 10-07-2008, 04:15 AM   #3
Elite Member
Thread Starter
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

something like this?
http://www.bellengineering.net/image...e/P3180845.JPG

Edit: that flange looks significantly thicker as well
thesnowboarder is offline   Reply With Quote
Old 10-07-2008, 04:18 AM   #4
Elite Member
iTrader: (24)

Join Date: Jun 2007
Location: Sherman Oaks, CA
Posts: 4,481
Total Cats: 3
Default

dude... this manifold looks SICK!

you need to weld bracket that goes from turbo inlet flange to a "head" flange. any muffler shop will charge you around $40 to do so.



ps: edited.
UrbanSoot is offline   Reply With Quote
Old 10-07-2008, 09:22 AM   #5
I'm Miserable!
iTrader: (1)

Join Date: Oct 2005
Location: Columbia, SC
Posts: 858
Total Cats: 0
Default

Quote:
Originally Posted by UrbanSoot View Post
dude... this manifold looks SICK!

you need to weld bracket that goes from turbo inlet flange to a "head" flange. any muffler shop will charge you around $40 to do so.
This man speaketh the truth.
SloS13 is offline   Reply With Quote
Old 10-07-2008, 09:41 AM   #6
Elite Member
iTrader: (8)

Join Date: Oct 2007
Location: Dallas
Posts: 1,841
Total Cats: 0
Default

Another case of "The work computer blues." No pictures available. I would brace it somehow. Mabe someone else has a picture of a braced manifold they can post.
Toddcod is offline   Reply With Quote
Old 10-07-2008, 09:55 AM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,868
Total Cats: 1,790
Default

Quote:
Originally Posted by thesnowboarder View Post
something like this?
http://www.bellengineering.net/image...e/P3180845.JPG

Edit: that flange looks significantly thicker as well

no...The manifold is supported by seven inches of 3/4" Aluminum Rod.
Braineack is online now   Reply With Quote
Old 10-07-2008, 03:06 PM   #8
I'm Miserable!
iTrader: (5)

Join Date: Sep 2005
Location: SLC, Utah
Posts: 1,591
Total Cats: 0
Default

That is pretty sweet, brace it and use it. Any pics of the downpipe?
zoom2zoom is offline   Reply With Quote
Old 10-07-2008, 03:13 PM   #9
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

Turbo not hit block?

Manifold looks nice, id brace it for sure though.
Fireindc is offline   Reply With Quote
Old 10-07-2008, 03:23 PM   #10
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Quote:
Originally Posted by Fireindc View Post
Turbo not hit block?
Forever to be one of my favorite turbo-related lines.
Stein is offline   Reply With Quote
Old 10-07-2008, 03:41 PM   #11
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,241
Total Cats: 290
Default

I think the brace needs to run from the turbo flange down to the block, or the motor mount. Both dvcn and I have SSAutochrome manifolds braces that way and they're surviving. I'm using some round mild steel rod. It does a nice job of supporting while having some give for expansion/contraction. I originally went with square tube, but it eventually tore. So I sectioning the square and welded up some solid rod in the center.
m2cupcar is offline   Reply With Quote
Old 10-07-2008, 04:07 PM   #12
Elite Member
iTrader: (5)

Join Date: Mar 2007
Location: NYC
Posts: 1,997
Total Cats: 1
Default

for a chopped up stock manifold that looks pretty sweet
johndoe is offline   Reply With Quote
Old 10-09-2008, 05:06 AM   #13
Junior Member

Join Date: Sep 2007
Location: Brisbane, Australia
Posts: 112
Total Cats: 0
Default

I just used a bit of 10mm steel rod from the turbo flange to the head flange. The manifold seems pretty similar in design apart from mine being steam pipe, whoever made it had made a pretty good effort I reckon.

zoomzoom is offline   Reply With Quote
Old 10-09-2008, 09:35 AM   #14
Senior Member
iTrader: (1)

Join Date: Sep 2007
Location: Trenton, NJ
Posts: 1,125
Total Cats: 0
Default

Ok, one question...... What is up with the OVERSIZED oil filter sticking out from the valve cover?
ArtieParty is offline   Reply With Quote
Old 10-09-2008, 07:37 PM   #15
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by ArtieParty View Post
Ok, one question...... What is up with the OVERSIZED oil filter sticking out from the valve cover?
yeah, seriously.
hustler is offline   Reply With Quote
Old 10-09-2008, 10:38 PM   #16
Junior Member

Join Date: Mar 2006
Location: Sydney Australia
Posts: 138
Total Cats: 0
Default

Catchcan
ampz is offline   Reply With Quote
Old 10-09-2008, 10:44 PM   #17
Elite Member
Thread Starter
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

Came with the motor, its got an oil filter relocation kit on it, and the previous owner had that piece of crap attached to the end of it.
thesnowboarder is offline   Reply With Quote
Old 10-09-2008, 11:15 PM   #18
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,241
Total Cats: 290
Default

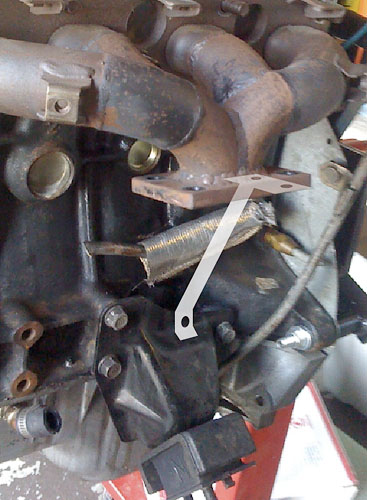

You want the support going to the underside anchored somewhere else other than the head flange for maximum support.
Attached Thumbnails
Opinions on DIY mani and how to make it stronger-manibrace.jpg
m2cupcar is offline   Reply With Quote
Old 10-10-2008, 01:45 AM   #19
Junior Member
iTrader: (3)

Join Date: Sep 2005
Location: las vegas
Posts: 203
Total Cats: 0
Default

you could also use the factory nuts that are on the mani to bolt 2 upper braces
blue turbo mx5 is offline   Reply With Quote
Old 10-10-2008, 10:28 AM   #20
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,241
Total Cats: 290
Default

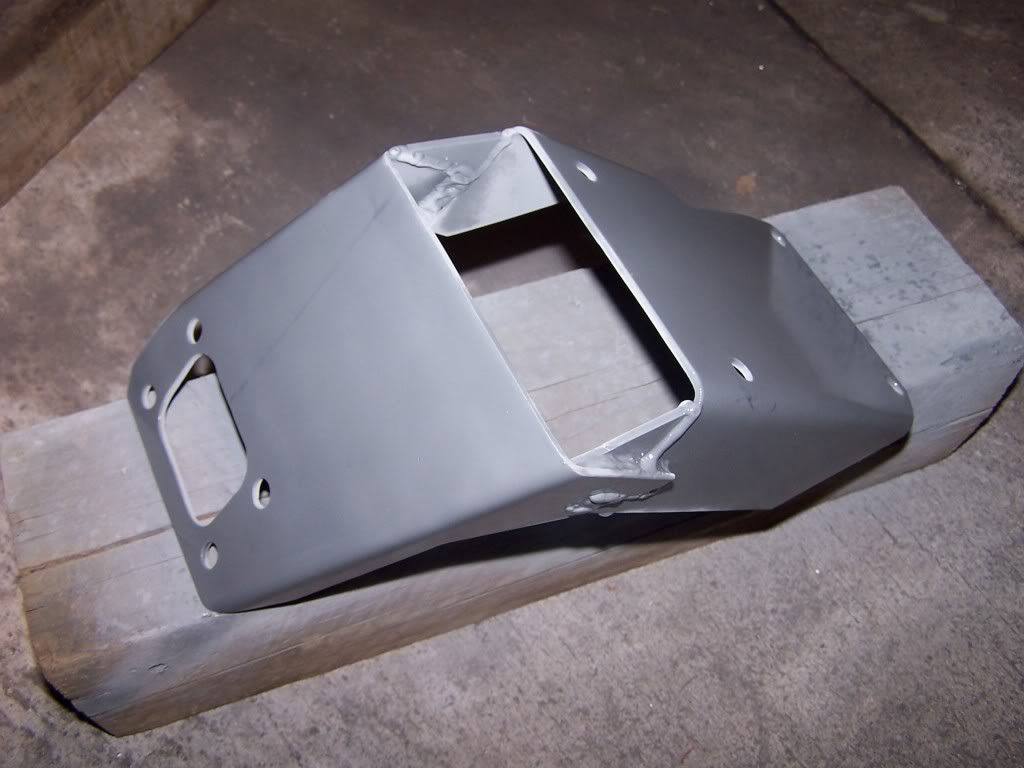

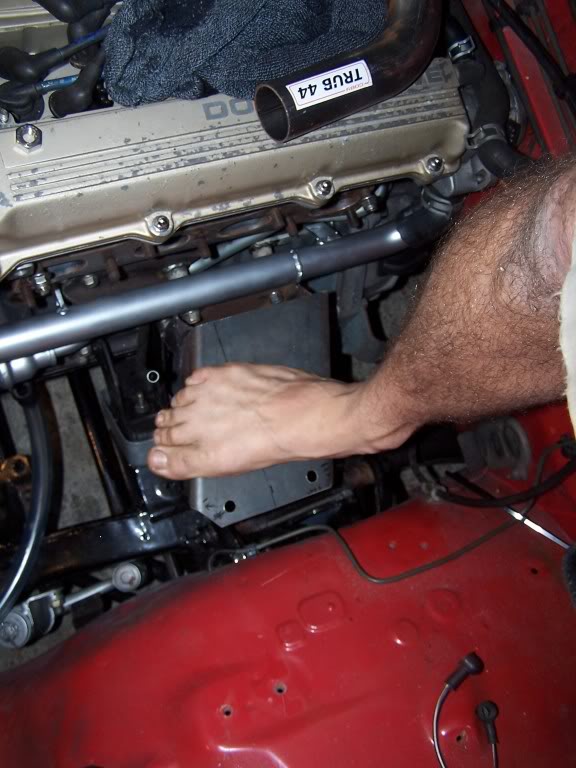

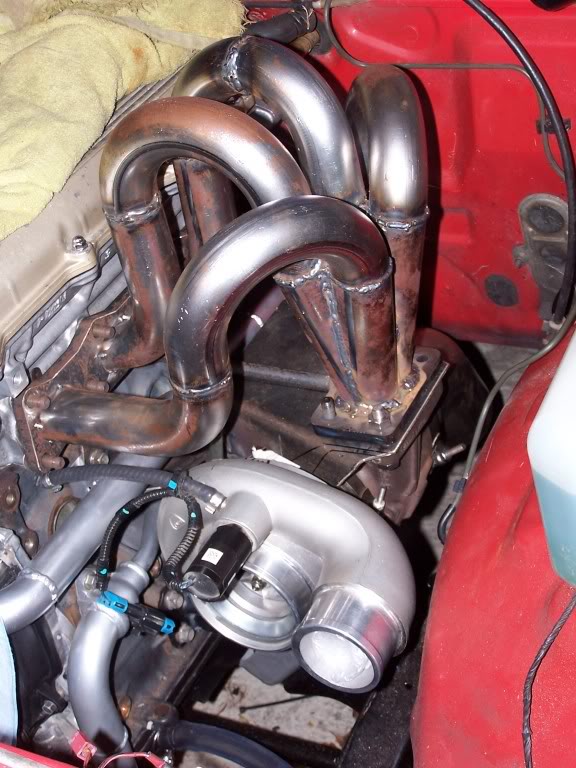

Here's a bottom mount support courtesy of fredio. It's actually sandwiched between the turbo and mani flange.
Name:  100_4009.jpg
Views: 3
Size:  71.7 KB
Name:  100_3939.jpg
Views: 3
Size:  70.8 KB
Name:  100_3971.jpg
Views: 3
Size:  92.2 KB
m2cupcar is offline   Reply With Quote
