DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 01-20-2013, 11:12 PM   #21
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default

if its a T3, then no
Pen2_the_penguin is offline   Reply With Quote
Old 01-20-2013, 11:14 PM   #22
Senior Member
Thread Starter
iTrader: (1)

gorillazfan1023's Avatar

Join Date: May 2010
Location: Harrisburg, Pa
Posts: 582
Total Cats: 8
Default

Kinda figured that. Not a huge issue. The car drives fine out of boost. Now someone sell me a T3 super 60.
gorillazfan1023 is offline   Reply With Quote
Old 01-22-2013, 07:45 PM   #23
Senior Member
Thread Starter
iTrader: (1)

gorillazfan1023's Avatar

Join Date: May 2010
Location: Harrisburg, Pa
Posts: 582
Total Cats: 8
Default

Ok I haven't done any further digging yet but I'm thinking it's the bearings going out. I will confirm this when I get a chance to tear it apart more.

My question now is why did they go out? Just low quality (china charger!) or lack of oil? I run a restrictor, I believe it's a 0.06" opening. When (if) I rebuild the turbo should I put the restrictor back in? Maybe switch to a bigger one? I did remove the restrictor and go for a drive but that didn't seem to help. Though I'm not sure it would if the bearings are already bad.
gorillazfan1023 is offline   Reply With Quote
Old 01-22-2013, 08:00 PM   #24
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

It's an ebay turbo..

I'd dare say you get what you pay for. Find something better
Fireindc is offline   Reply With Quote
Old 01-22-2013, 08:05 PM   #25
Senior Member
Thread Starter
iTrader: (1)

gorillazfan1023's Avatar

Join Date: May 2010
Location: Harrisburg, Pa
Posts: 582
Total Cats: 8
Default

Quote:
Originally Posted by Fireindc View Post
It's an ebay turbo..

I'd dare say you get what you pay for. Find something better
So true. But I has the poors :(. Always on the look out for deals though.
gorillazfan1023 is offline   Reply With Quote
Old 01-22-2013, 09:33 PM   #26
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default

Quote:
Originally Posted by Fireindc View Post
It's an ebay turbo..

I'd dare say you get what you pay for. Find something better
then im lucky to have nothing but success with them?
Pen2_the_penguin is offline   Reply With Quote
Old 01-23-2013, 07:42 PM   #27
Senior Member
Thread Starter
iTrader: (1)

gorillazfan1023's Avatar

Join Date: May 2010
Location: Harrisburg, Pa
Posts: 582
Total Cats: 8
Default

Ok you were all wrong. I took apart my turbo tonight and found the cause of the noise...

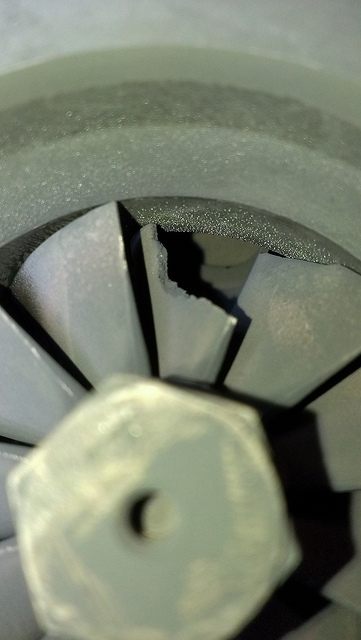

IMAG0108 by Gorillazfan, on Flickr
Only two fins are damaged.

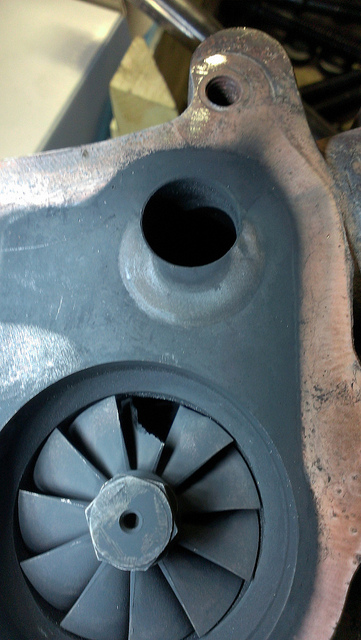

IMAG0109 by Gorillazfan, on Flickr
Also you can see that my internal gate was hardly covering the exhaust port.

Now I just have to figure out what to do. Buy another ebay turbo, look for a different turbo, or just drive sans boost...
Attached Thumbnails
Turbo charger sounds like a supercharger...-8409952478_1102da9d3f_z.jpg   Turbo charger sounds like a supercharger...-8409954050_7d16bfac56_z.jpg
gorillazfan1023 is offline   Reply With Quote
Old 01-23-2013, 09:38 PM   #28
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default

Pen2_the_penguin is offline   Reply With Quote
Old 01-23-2013, 09:42 PM   #29
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

I'm not impressed, your turbine wheel is still attached
soviet is offline   Reply With Quote
Old 01-23-2013, 09:49 PM   #30
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

i bet the whistling noise was actually the wastegate flapper not sealing the hole...


what exact ebay T3 was this? the same I'm running? Mines been great to me.
Braineack is offline   Reply With Quote
Old 01-23-2013, 09:49 PM   #31
Senior Member
Thread Starter
iTrader: (1)

gorillazfan1023's Avatar

Join Date: May 2010
Location: Harrisburg, Pa
Posts: 582
Total Cats: 8
Default

Quote:
Originally Posted by soviet View Post
I'm not impressed, your turbine wheel is still attached
I'm sorry :( I did my best to defend your honor.
gorillazfan1023 is offline   Reply With Quote
Old 01-23-2013, 09:58 PM   #32
Senior Member
Thread Starter
iTrader: (1)

gorillazfan1023's Avatar

Join Date: May 2010
Location: Harrisburg, Pa
Posts: 582
Total Cats: 8
Default

Quote:
Originally Posted by Braineack View Post
i bet the whistling noise was actually the wastegate flapper not sealing the hole...


what exact ebay T3 was this? the same I'm running? Mines been great to me.
I don't think so because of the carbon build up, it did probably cause boost control issues though. I think it is very similar. Exactly the same one that underdog used. I think it was a combo of boost cut + over tight bov.

I had this one:
T3 INTERNAL WASTEGATE TURBO CHARGER .48ar

I'm thinking about getting this one:
T3 T4 Turbo Charger Trim 50 A R 63 AR T04E Turbocharger | eBay
Which looks strikingly similar to this one:
T3 INTERNAL WASTEGATE TURBO CHARGER .63ar
gorillazfan1023 is offline   Reply With Quote
Old 01-23-2013, 10:06 PM   #33
Senior Member
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,353
Total Cats: 66
Default

I have a freshly rebuilt Super 60 if you were serious about buying one.

Here is the link from when I bought it. https://www.miataturbo.net/miata-par...-hybrid-68297/ It has never been run since being rebuilt. Will come with feed/drain lines, fittings, intake elbow thing, and wastegate actuator. Everything that I got, you will get.
RyanRaduechel is offline   Reply With Quote
Old 01-23-2013, 10:49 PM   #34
Junior Member
iTrader: (5)

Join Date: Mar 2012
Location: Gilbert, Az
Posts: 337
Total Cats: 26
Default

Quote:
Originally Posted by gorillazfan1023 View Post
I don't think so because of the carbon build up, it did probably cause boost control issues though.

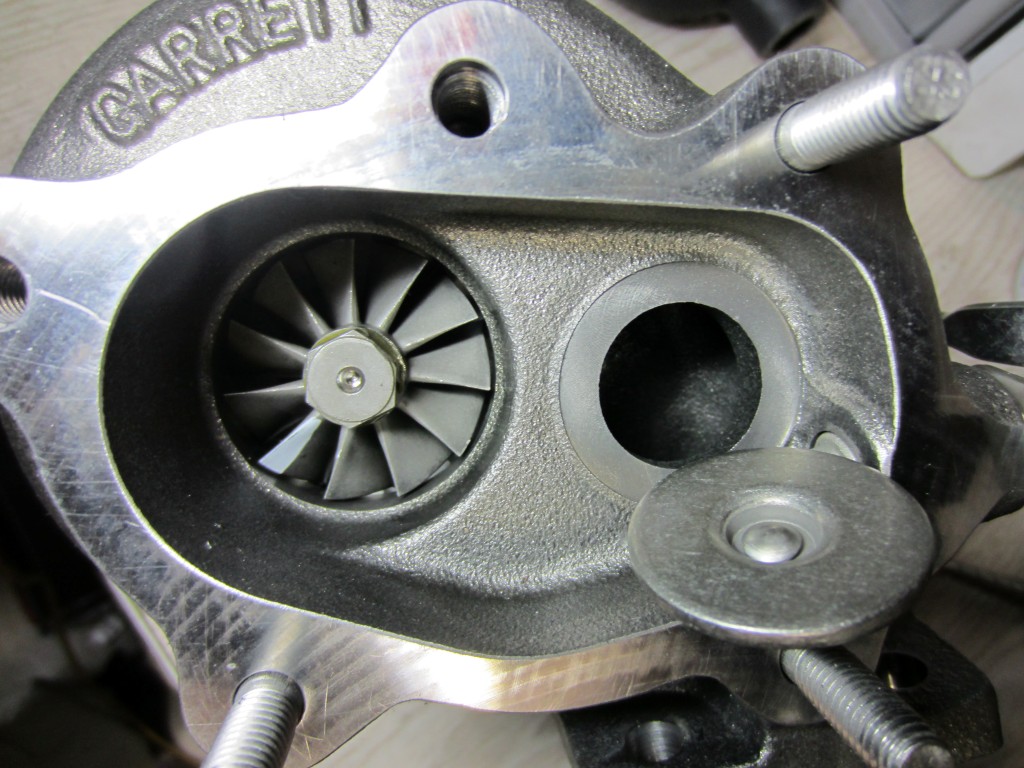

Did you ever suffer from overboost? The wastegate port overall seems very undersized. Here's my Garret for reference:



I'd guess the uncovered portion would give slow spool/boost.
Attached Thumbnails
Turbo charger sounds like a supercharger...-img_1402-medium-.jpg
SJP0tato is offline   Reply With Quote
Old 01-23-2013, 11:24 PM   #35
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Quote:
Originally Posted by Pen2_the_penguin View Post
then im lucky to have nothing but success with them?
Plenty of people have, but i've also seen quite a few fail on the first drive.
Fireindc is offline   Reply With Quote
Old 01-23-2013, 11:44 PM   #36
Senior Member
Thread Starter
iTrader: (1)

gorillazfan1023's Avatar

Join Date: May 2010
Location: Harrisburg, Pa
Posts: 582
Total Cats: 8
Default

Quote:
Originally Posted by SJP0tato View Post
Did you ever suffer from overboost? The wastegate port overall seems very undersized.
Yes, recently it was overboosting like a ****. I was going to port it when I got it (as underdog did). But the gate was so close to the edge I decided not to risk it.
gorillazfan1023 is offline   Reply With Quote
Old 01-24-2013, 12:02 AM   #37
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

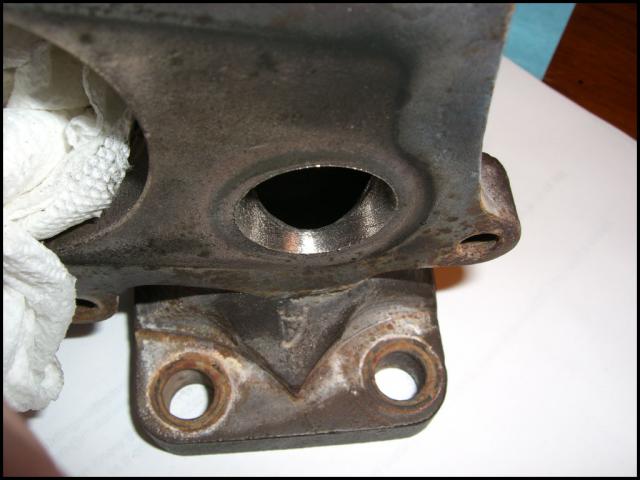

yeah crazy, mine isn't like that:



even with the hole enlarged, you can see the flapper still covers it fine.
Attached Thumbnails
Turbo charger sounds like a supercharger...-cimg1366.jpg
Braineack is offline   Reply With Quote
Old 01-24-2013, 08:47 PM   #38
Senior Member
Thread Starter
iTrader: (1)

gorillazfan1023's Avatar

Join Date: May 2010
Location: Harrisburg, Pa
Posts: 582
Total Cats: 8
Default

Lucky duck. Now I'm at a crossroads, buy new ebay unit and try to get the wastegate to line up better or run external. Or I'm looking at a turbonetics t3/t4 57trim. Which will probably be way too big. I also won't make any good power until I get a vvt controller...
gorillazfan1023 is offline   Reply With Quote
