Default Turbo Coolant/Water Line Size

Had a google, found no answers!

When running water lines from here


What internal diameter hose should be used?

Cheers
Mick288 is offline   Reply With Quote
Old 01-04-2014, 07:03 PM   #2
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

-3 for oil, -4 for water.
thirdgen is offline   Reply With Quote
Old 01-04-2014, 07:18 PM   #3
Newb
Thread Starter

Join Date: Sep 2013
Location: NE England
Posts: 6
Total Cats: 0
Default

-4 being 4/16ths being 1/4"?
Sorry, I'm from England!
Mick288 is offline   Reply With Quote
Old 01-04-2014, 07:19 PM   #4
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

I was using AN sizing
thirdgen is offline   Reply With Quote
Old 01-04-2014, 08:02 PM   #5
Newb
Thread Starter

Join Date: Sep 2013
Location: NE England
Posts: 6
Total Cats: 0
Default

AN sizing only references the OD though yeah? When really I'm asking for the ID of the hose or the OD of the nipples on the car...
Mick288 is offline   Reply With Quote
Old 01-04-2014, 08:31 PM   #6
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

I think -4 is 5/16", -3 is 1/4"...that's off the top of my head. I'm positive -6 is 3/8" so I just scaled down. I custom did my lines in all braided with no barbed fittings, so I can only compare.
thirdgen is offline   Reply With Quote
Old 01-04-2014, 08:50 PM   #7
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

I used 1/4" ID.
Leafy is online now   Reply With Quote
Old 01-04-2014, 09:53 PM   #8
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,365
Total Cats: 1,326
Default

1/16' = -1AN, so -4 is 1/4", -6 is 3/8", -8 is 1/2", etc. All the way up to -20AN which is 1 1/4".

I've typically used -6AN for water lines, but that's only because M14x1.5 to -4AN fittings can be hard to find. -4AN or -6AN is fine.
Savington is offline   Reply With Quote
Old 01-05-2014, 11:02 AM   #9
Senior Member

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Mick,

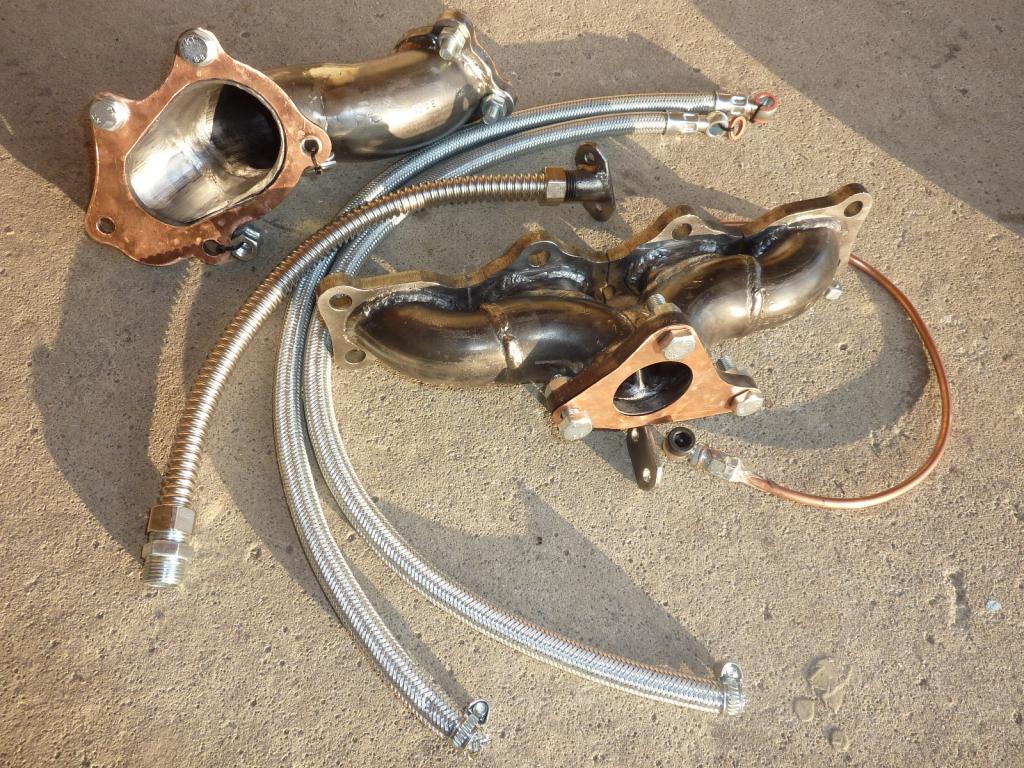

In my experience hose with an 8mm internal diameter is a good fit. I use steel braided hose with crimped banjo connectors on one end and and hose clamps on the other.

Attached Thumbnails
Turbo Coolant/Water Line Size-p1050052_zps3b0566ab.jpg
sturovo is offline   Reply With Quote
Old 01-05-2014, 11:07 AM   #10
Elite Member
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

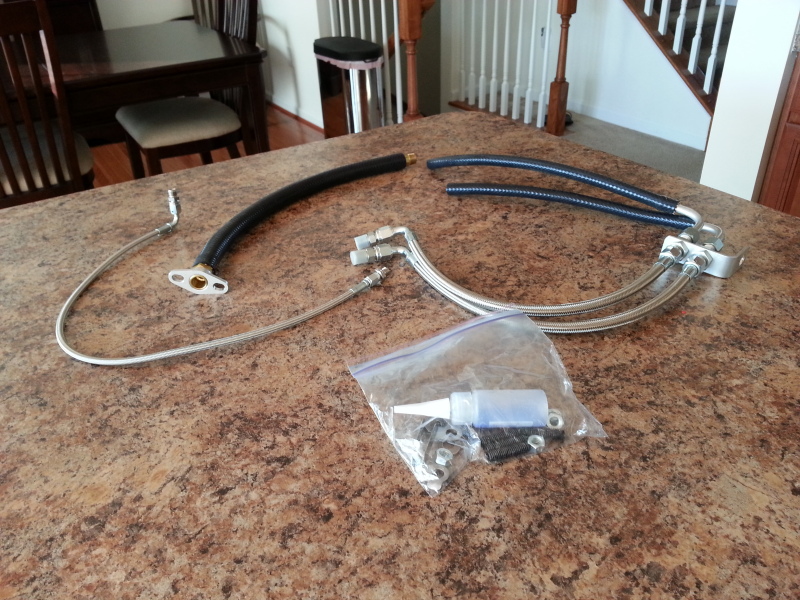

Hmmm I never even thought about what size my lines were... I got Artech's SS oil/water lines. Anyone know off hand what size these are?

Attached Thumbnails
Turbo Coolant/Water Line Size-20131002_163639_zps47426214.jpg
BTMiata is offline   Reply With Quote
