Default Updated with new pics - heatshield

Hey all,

I am running into all sorts of issues trying to get bits to fit as I install the turbo. The latest one is that the airconditioning compressor bracket fouls the side of the sump, and where I have enough space on the sump to clear everything, the access to the sump for drilling is fouled by the chassis/subframe.

Has anyone encountered similar issues (or not) and how did you get around installing (particularly the drilling and tapping part) the return fitting into the sump for the oil line return?????

Last edited by Uncle Arthur; 03-19-2007 at 06:52 PM.
Uncle Arthur is offline   Reply With Quote
Old 03-16-2007, 12:45 AM   #2
Senior Member

Join Date: Mar 2006
Location: Ireland
Posts: 534
Total Cats: 0
Default

Good question since I'm going to be doing this next week !
Fergus is offline   Reply With Quote
Old 03-16-2007, 12:55 AM   #3
Senior Member

Join Date: May 2005
Location: San Francisco
Posts: 547
Total Cats: 0
Default

you just have to be careful, a 45deg head is supposed to help. Otherwise, you need to either A) pull the engine B) pull the subframe. it's tight in there. Do a search, there is tons of info on tapping the pan here.
turbored is offline   Reply With Quote
Old 03-16-2007, 04:45 AM   #4
Junior Member

Join Date: Jul 2006
Location: Torino, Italy
Posts: 99
Total Cats: 0
Default

Quote:
Originally Posted by Uncle Arthur View Post
Has anyone encountered similar issues (or not) and how did you get around installing (particularly the drilling and tapping part) the return fitting into the sump for the oil line return?????
I have the same problem. it's almost impossible to drill in the usual place if you have AC compressor still in place.
I have seen an AVO kit instruction manual in wich they put a jackstand under the pan, lift the engine a bit and then unbolt and remove the left motor mount.
So you have enought room from to drill next to the compressor bracket, from the inside of the engine bay.

I will do that asap, I still need some fittings...
jhoexp is offline   Reply With Quote
Old 03-16-2007, 09:48 AM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

there's plenty of room:



run of the mill cordless drill, run of the mill drill bit.
Braineack is offline   Reply With Quote
Old 03-16-2007, 11:52 AM   #6
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Done from underneath correct? I have AC and see that as the best way to go about it. Some people might be attempting to do it from above, thus the difficulty.
cjernigan is offline   Reply With Quote
Old 03-16-2007, 12:16 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

yeah, car was on two jack stands. there's no way you can do it from above. but it can be done no problem.
Braineack is offline   Reply With Quote
Old 03-16-2007, 12:23 PM   #8
Elite Member
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

You have A/C, Braineack?
Atlanta93LE is offline   Reply With Quote
Old 03-16-2007, 01:01 PM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

A/C, P/S, ABS, Leather, Power Windows, etc.
Braineack is offline   Reply With Quote
Old 03-16-2007, 01:29 PM   #10
Senior Member

Join Date: Apr 2005
Location: NAS Oceana/VA
Posts: 759
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
A/C, P/S, ABS, Leather, Power Windows, etc.
*****
getsidewaysd1 is offline   Reply With Quote
Old 03-16-2007, 01:35 PM   #11
Senior Member
iTrader: (1)

Join Date: Mar 2006
Location: Tucson "it's 110" Arizona
Posts: 1,017
Total Cats: 0
Default

I have PS and AC as well. I put the car on stands and used a long extension for my bit. I think I removed the wheel too.
UofACATS is offline   Reply With Quote
Old 03-16-2007, 01:41 PM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

Quote:
Originally Posted by getsidewaysd1 View Post
*****
hellzyeah!
Braineack is offline   Reply With Quote
Old 03-17-2007, 02:30 AM   #13
Junior Member

Join Date: Jun 2006
Location: LV, NV
Posts: 225
Total Cats: 0
Default

It takes a few more minutes, but I unbolted the compressor and raised it up a few inches to get the drill in there. Just be sure you don't put the fitting too high that it interfers with the pump once it's back on.
mschlang is offline   Reply With Quote
Old 03-17-2007, 08:21 AM   #14
Junior Member
Thread Starter

Join Date: Sep 2006
Posts: 225
Total Cats: -4
Default

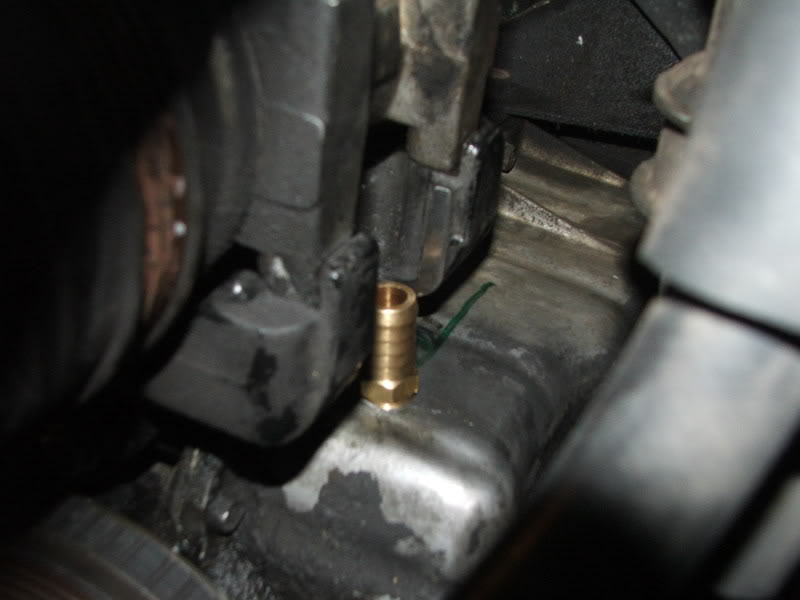

Thanks all for the suggestions - in the end we modded the A/C compressor bracket slightly with the angle grinder and it fits ok.....

Name:  DSCF2010.jpg
Views: 3
Size:  38.7 KB

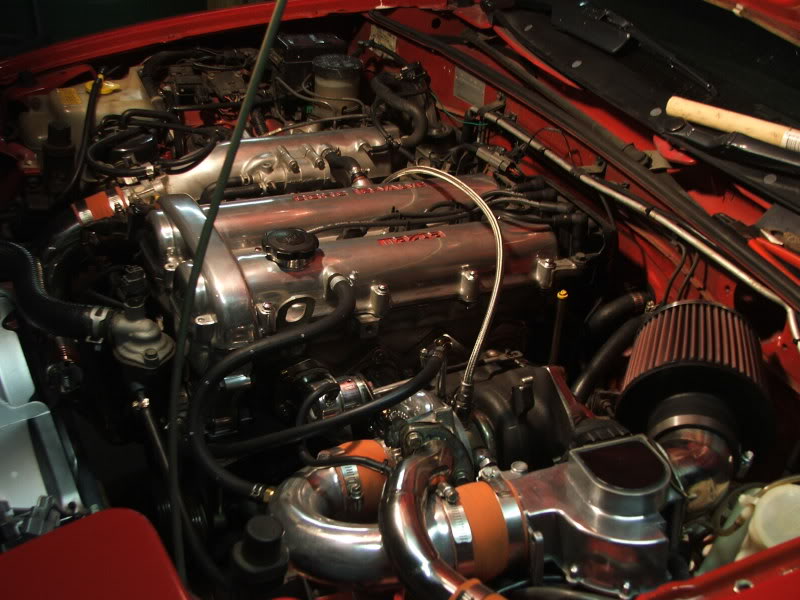

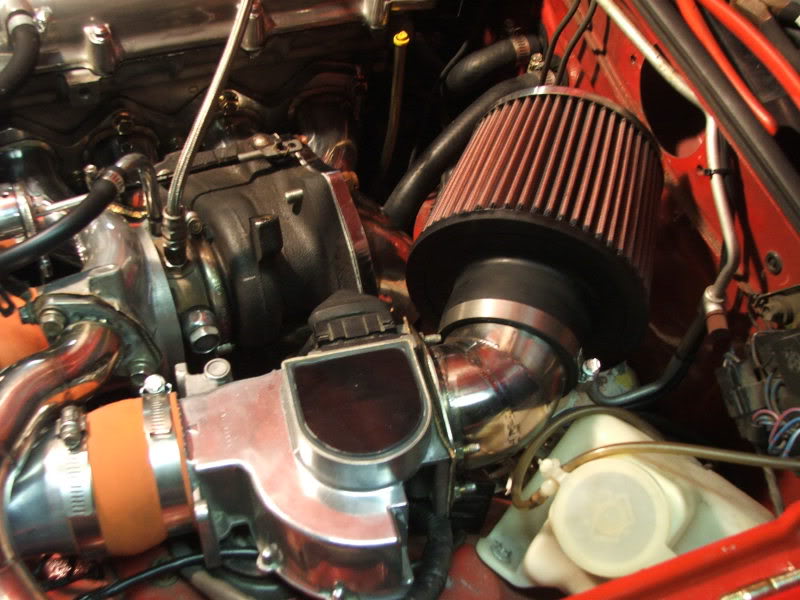

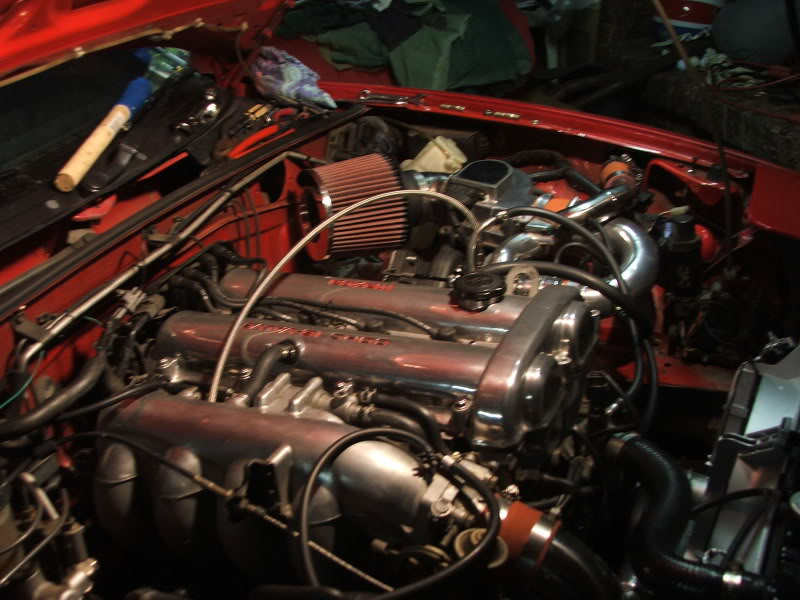

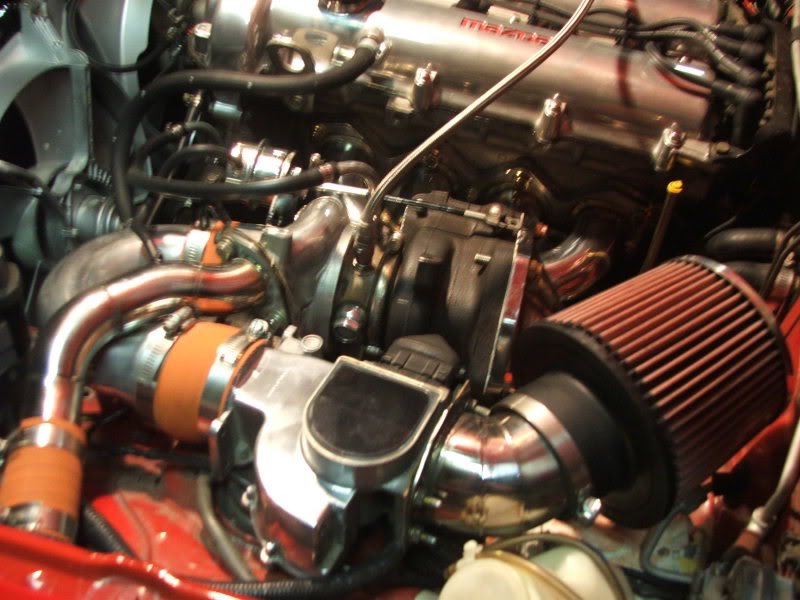

The rest of it is looking like this after today's effort.....

Name:  DSCF2011.jpg
Views: 3
Size:  83.4 KB
Name:  DSCF2012.jpg
Views: 3
Size:  82.8 KB
Name:  DSCF2006.jpg
Views: 3
Size:  83.8 KB
Name:  DSCF2004.jpg
Views: 3
Size:  77.7 KB

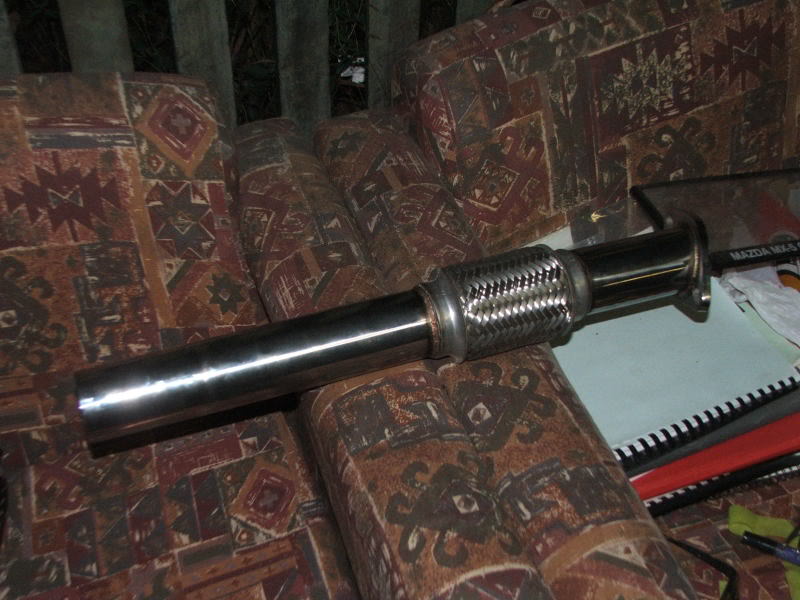

However it was not all plain sailing - this is what happens when aftermarket 'bolt on' parts (like the NPower dump pipe) don't actially bolt up and need extensive modification.

First it needed to be cut just to get it to be able to bolt up to the turbo. Don't aske me how much trouble we had trying to get the bottom stud connected.

Name:  DSCF2015.jpg
Views: 3
Size:  75.6 KB

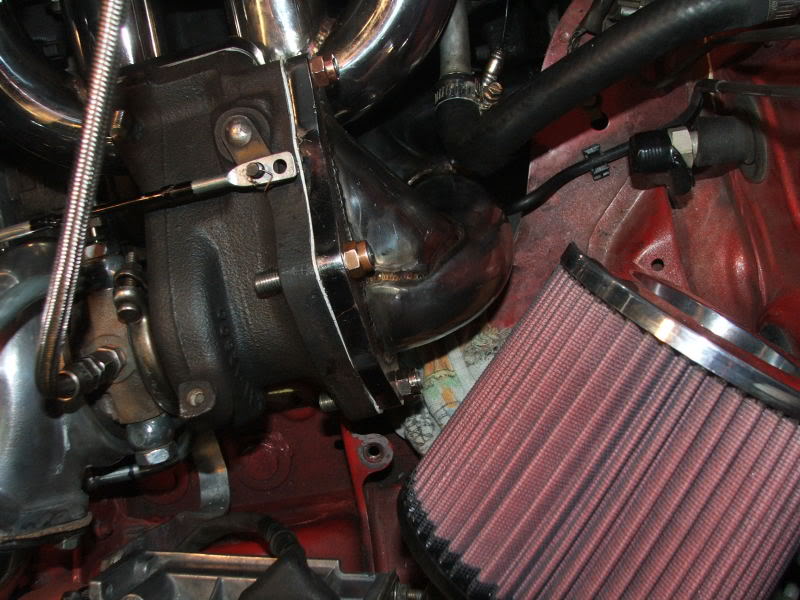

Next, I have to find a way to shift the water return pipe because the O2 sensor position is right in the way (and I'm not pulling the dumppipe back off after it took an hour to fit up.

Name:  DSCF2021.jpg
Views: 3
Size:  85.1 KB

That said - we got it to start this afternoon, and the oil is happily being pumped to the turbo, and it still runs.....
Uncle Arthur is offline   Reply With Quote
Old 03-17-2007, 12:55 PM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

looks good, few thoughts:

what type of turbo is that?

Consider a NACA duct, or something to prevent your intake from getting nice 500-700* F radiating heat from the DP.

what diameter is the charge pipe?
Braineack is offline   Reply With Quote
Old 03-17-2007, 04:38 PM   #16
Senior Member
iTrader: (1)

Join Date: Mar 2006
Location: Tucson "it's 110" Arizona
Posts: 1,017
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
what diameter is the charge pipe?
And where does it go??

Everything looks great polished up. Fabbed parts look real good too.

Turbo probably a 16G. Maybe a 14B, but i'm guessing 16..
UofACATS is offline   Reply With Quote
Old 03-17-2007, 07:54 PM   #17
Junior Member
Thread Starter

Join Date: Sep 2006
Posts: 225
Total Cats: -4
Default

Quote:
Originally Posted by UofACATS View Post
And where does it go??

Everything looks great polished up. Fabbed parts look real good too.

Turbo probably a 16G. Maybe a 14B, but i'm guessing 16..

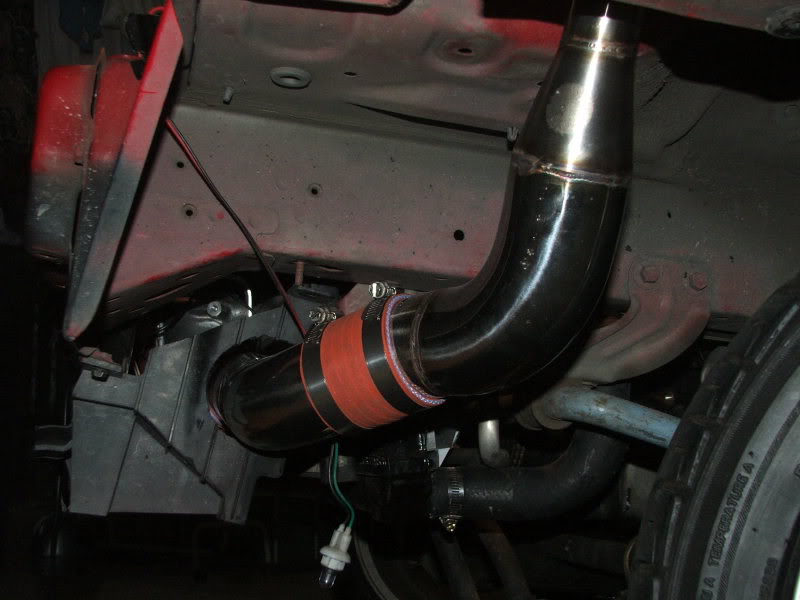

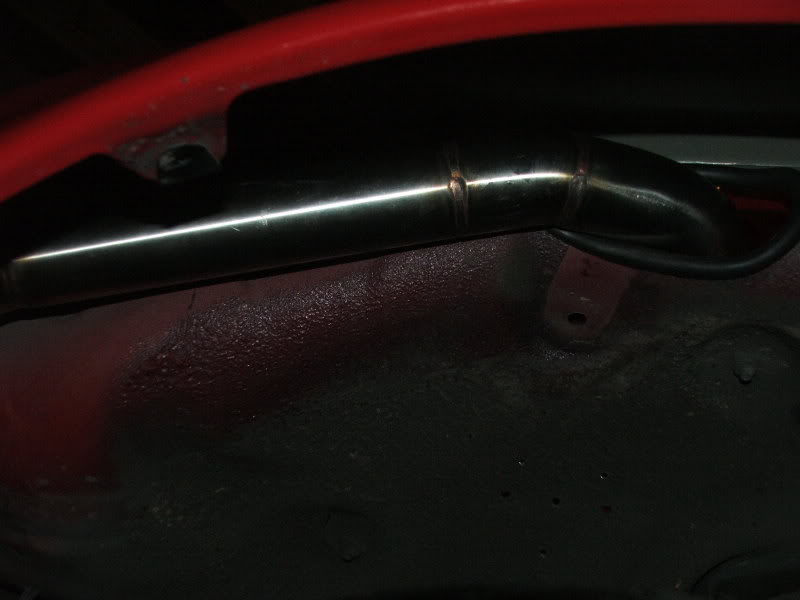

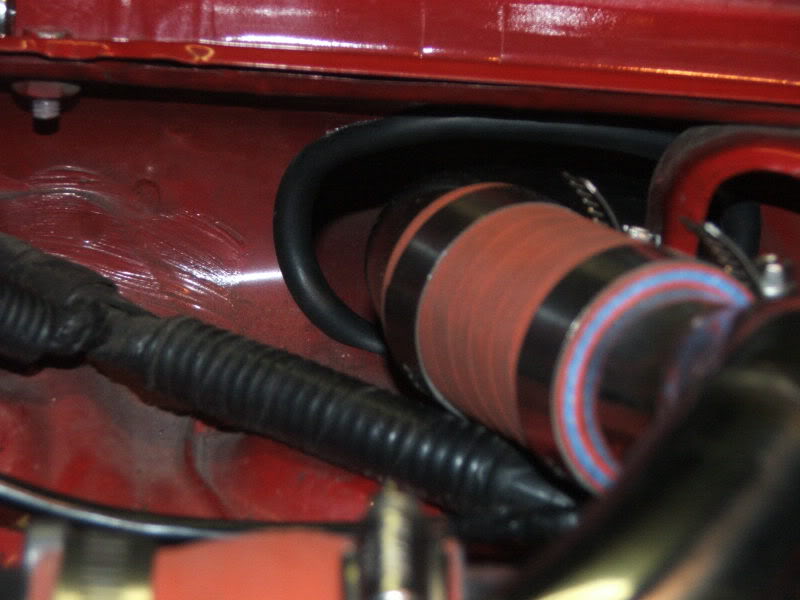

The charge pipe is 38mm and it goes here:

Name:  DSCF1982.jpg
Views: 3
Size:  50.6 KB

Name:  DSCF1985.jpg
Views: 3
Size:  31.9 KB

Name:  DSCF1987.jpg
Views: 3
Size:  54.1 KB

I'll be making a heatshield/shroud for the air filter, so it will predominantly draw cooler outside air through the hole in the firewall that previously held my old Loch Stewart air box.

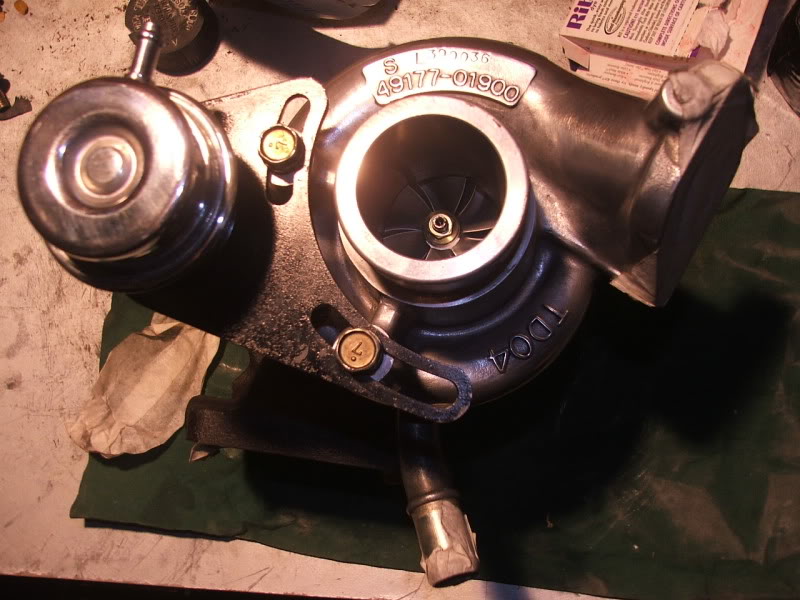

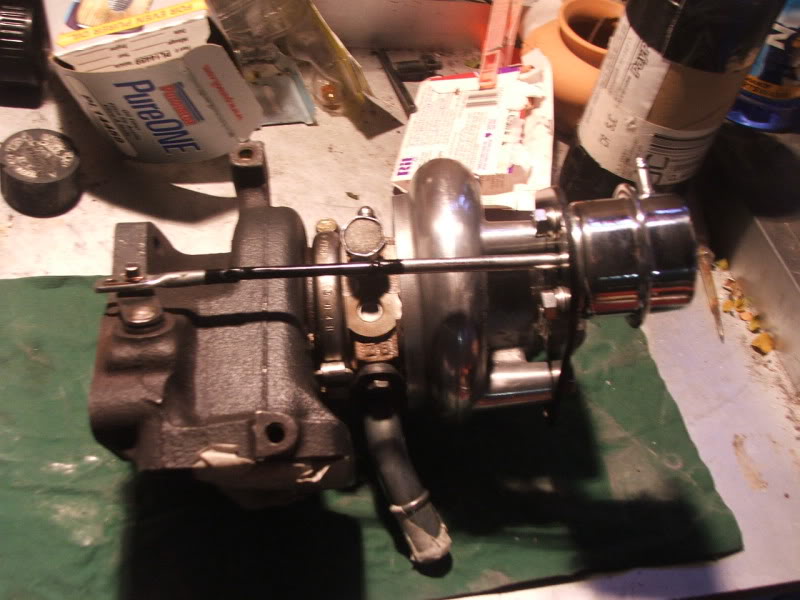

And this is the turbo here - I don't exactly know which TD04 it is - I thought 13G at first, but I really can't tell the difference between them looking at pics on the net.

Name:  DSCF1834.jpg
Views: 3
Size:  84.7 KB

Name:  DSCF1829.jpg
Views: 3
Size:  71.5 KB
Uncle Arthur is offline   Reply With Quote
Old 03-19-2007, 06:53 PM   #18
Junior Member
Thread Starter

Join Date: Sep 2006
Posts: 225
Total Cats: -4
Default

Sooooo - it's amazing how long the finishing off seems to be taking - I suppose it's not easy to ****** much time when the office beckons each day for most of it...

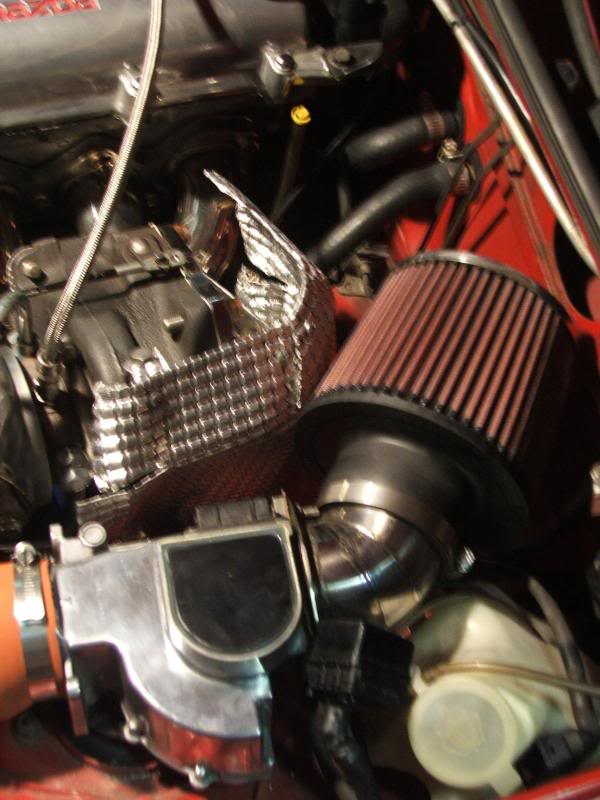

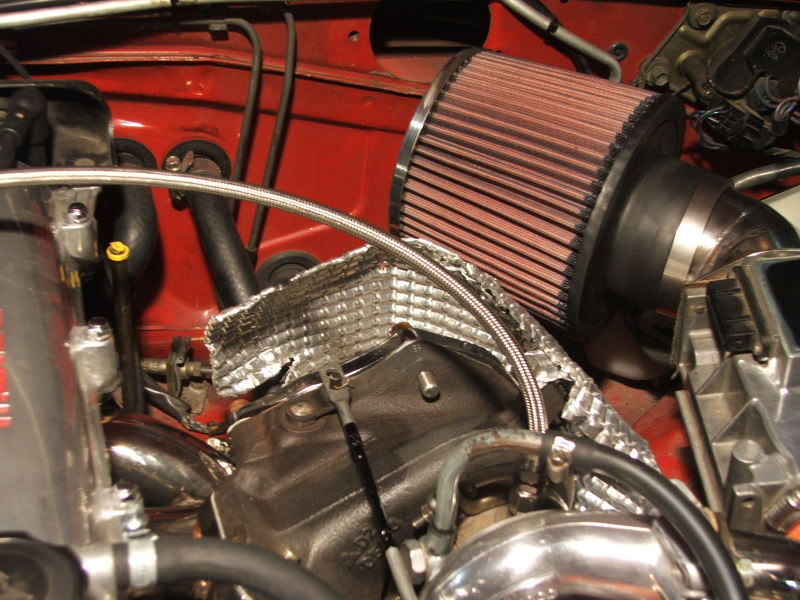

Here is my heatshield. It's not as bling as bling can be, but it's a bugger to make these things from scratch. I don't know how some of the guys get their DIY airboxes/heatshields looking so damn good.....

Name:  DSCF2037.jpg
Views: 3
Size:  90.9 KB
Name:  DSCF2036.jpg
Views: 3
Size:  65.2 KB

I'm hoping it does what's needed.
Uncle Arthur is offline   Reply With Quote
Old 03-19-2007, 11:21 PM   #19
Senior Member

Join Date: Mar 2005
Posts: 531
Total Cats: 0
Default

looks pretty legit, maybe wrap those heater hoses in somthing to no?
VRTSid is offline   Reply With Quote
Old 03-19-2007, 11:55 PM   #20
Junior Member
Thread Starter

Join Date: Sep 2006
Posts: 225
Total Cats: -4
Default

Quote:
Originally Posted by VRTSid View Post
looks pretty legit, maybe wrap those heater hoses in somthing to no?
yeah - I'm wondering about how I might do that, but it is the intention to protect them some how.
Uncle Arthur is offline   Reply With Quote
