Old 03-05-2009, 12:01 AM   #21
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

oh ****...stealth reroute.
hustler is offline   Reply With Quote
Old 03-05-2009, 12:11 AM   #22
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Quote:
Originally Posted by Ben View Post
LOL @ Matt
Thank you, thank you, I'll be here all night.

I'm definitely in for more info on the very clean coldside reroute. Any pics of that Mr. Woolery?
kotomile is offline   Reply With Quote
Old 03-11-2009, 02:17 AM   #23
Newb
Thread Starter

Join Date: Jan 2009
Posts: 41
Total Cats: 0
Default

Sure, I have some pics of the coldside reroute:

Here's some pics of the modified JR spacer:

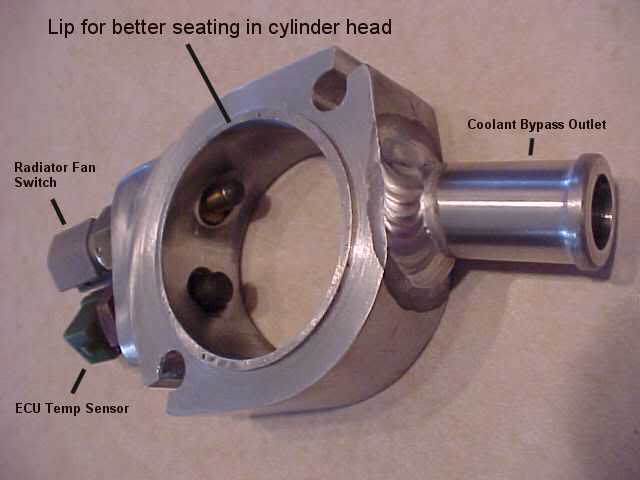

Name:  Tstat_Spacer_Front_labeled.jpg
Views: 0
Size:  19.7 KB
Name:  Tstat_Spacer_Rear_labeled.jpg
Views: 0
Size:  20.7 KB

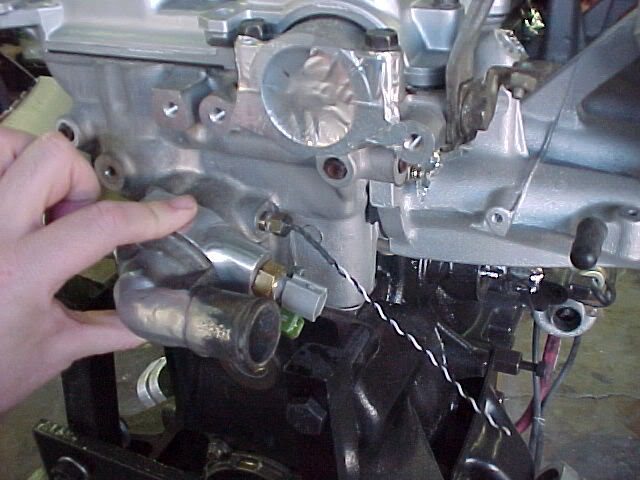

Name:  TStat_spacer_and_cap_on_head.jpg
Views: 0
Size:  52.4 KB

And the reroute:




I'm glad that I was able to find all the right parts to make everything go together with nearly OEM-like fit.

Took the car out for the first really fun drive today...not worrying about it exploding on me for the first time since the turbo was installed (got lots of initial issues finally sorted out). HOLY CRAP it has much more power than the last turbo iteration of the car (or at least it feels like it). I was unintentionally breaking the tires loose in 2nd at half throttle taking off from stoplights. Wow...I'm not sure if it's because the car's ~300lbs lighter than last time around, or if it just has a shitload more power than before (prior turbo iteration was a stock FMII w/T25 sleeve turbo)...this thing now feels unhinged. Power delivery is kinda reminiscent of the Ariel Atom...MUCH more than I expected or hoped for.

I can't wait to flog it at the upcoming Miatas at Laguna Seca event.
mrwoolery is offline   Reply With Quote
Old 03-11-2009, 08:22 AM   #24
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Thanks for the re-route pics! Clever use of that bolt on the IM too.
kotomile is offline   Reply With Quote
Old 03-11-2009, 10:37 AM   #25
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

What did the JR coolant spacer look like before modification?
Saml01 is offline   Reply With Quote
Old 03-11-2009, 04:55 PM   #26
Newb
Thread Starter

Join Date: Jan 2009
Posts: 41
Total Cats: 0
Default

Quote:
Originally Posted by Saml01 View Post
What did the JR coolant spacer look like before modification?
-flat on each side (no lip or countersinking)
-no bypass tube (had one fabbed and welded on)
-no bungs for sensors (had it fabbed onto the spacer)
mrwoolery is offline   Reply With Quote
Old 03-11-2009, 05:56 PM   #27
Senior Member
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

I can see the Greddy sticker but It doesnt look like a clocked Greddy, what is it?
Gotpsi? is offline   Reply With Quote
Old 03-11-2009, 07:59 PM   #28
Newb
Thread Starter

Join Date: Jan 2009
Posts: 41
Total Cats: 0
Default

Quote:
Originally Posted by Gotpsi? View Post
I can see the Greddy sticker but It doesnt look like a clocked Greddy, what is it?
mrwoolery is offline   Reply With Quote
Old 03-11-2009, 08:22 PM   #29
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by mrwoolery View Post
http://arb.ca.gov/msprog/aftermkt/devices/eo/D-397.pdf

I SEE WUT YOU DID THAR
y8s is online now   Reply With Quote
Old 03-12-2009, 02:37 AM   #30
Elite Member
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

You should sell those JR spacers modified like that. Id buy one right now. Though i dont know if 1.6 and 1.8 would be the same. I dont currently have a welder, and wouldnt like sitting at a shop explaining what I wanted done. Still looks great.
NA6C-Guy is offline   Reply With Quote
Old 03-12-2009, 11:48 AM   #31
Newb
Thread Starter

Join Date: Jan 2009
Posts: 41
Total Cats: 0
Default

Quote:
Originally Posted by NA6C-Guy View Post
You should sell those JR spacers modified like that. Id buy one right now. Though i dont know if 1.6 and 1.8 would be the same. I dont currently have a welder, and wouldnt like sitting at a shop explaining what I wanted done. Still looks great.
SOMEONE should sell them, but I'm not interested in doing it myself. The way I see it, three pieces could be developed to allow people to make their own partial DIY coolant reroute kits.

-JR spacer like mine (I think it'd work for both 1.6 or 1.8 engines)
-A 1.6 version of the T-stat cap
-A 1.8 version of the T-stat cap

People could buy one or two of the pieces, and the rest would be a cakewalk.
mrwoolery is offline   Reply With Quote
Old 03-12-2009, 11:49 AM   #32
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

oh you mean like the one begi is developing?
y8s is online now   Reply With Quote
Old 03-12-2009, 02:49 PM   #33
Newb
Thread Starter

Join Date: Jan 2009
Posts: 41
Total Cats: 0
Default

I'll believe it when I see it. I've seen many companies claiming to be developing coolant reroutes over the years (including BEGI). The only ones I've seen make it to market have been poorly done compromises "reroutes" that weren't true crossflow reroutes (BEGI among them). I have yet to see one true crossflow reroute actually make it to market.
mrwoolery is offline   Reply With Quote
Old 03-12-2009, 03:54 PM   #34
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

oh i just meant the spacer... see the dev thread uhhh somewhere around here.
y8s is online now   Reply With Quote
Old 03-12-2009, 04:18 PM   #35
Newb
Thread Starter

Join Date: Jan 2009
Posts: 41
Total Cats: 0
Default

Quote:
Originally Posted by y8s View Post
oh i just meant the spacer... see the dev thread uhhh somewhere around here.
If BEGI is making the proper spacer (including the bypass tube, sensor bungs, and it seats right) then good for them!
That's the hardest part of the reroute to make...I hope they sell 'em by the dozen.
mrwoolery is offline   Reply With Quote
