Default Turbo manifold and downpipe

I bought this manifold and down pipe from ebay which looks like it has a take off for an external wastegate now should I fit one? The turbo iv decided to go for is a t25 from a 200sx which has an internal wastegate

Mazda Miata MX5 Eunos 1.6L T3 Cast Iron Turbo Exhaust Manifold w/ Steel Downpipe | eBay
Blister is offline   Reply With Quote
Old 08-08-2014, 05:58 PM   #2
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,653
Total Cats: 1,559
Default

You are seriously fucked. Not because of the manifold. Not really because of the fact that the downpipe will probably crack and fail. But mostly because you can't read.
sixshooter is offline   Reply With Quote
Old 08-08-2014, 06:02 PM   #3
Senior Member
iTrader: (3)

Join Date: Apr 2011
Location: Volo, IL
Posts: 1,247
Total Cats: 140
Default

There is no possible way that this is a real post. Who made a second account?
dieselmiata is offline   Reply With Quote
Old 08-08-2014, 06:07 PM   #4
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

18psi is offline   Reply With Quote
Old 08-08-2014, 06:16 PM   #5
Newb
Thread Starter

Join Date: Aug 2014
Posts: 2
Total Cats: 0
Default

I'm sorry this is a genuine post but if your referring to me using a t25 on a t3 (not being able to read) I'm intending on using an adaptor plate if I need to
Blister is offline   Reply With Quote
Old 08-08-2014, 06:18 PM   #6
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

Quote:
Originally Posted by Blister View Post
I'm sorry this is a genuine post but if your referring to me using a t25 on a t3 (not being able to read) I'm intending on using an adaptor plate if I need to
is your goal with this build to use every single non-compatible part with every single other non compatible part and just use adapters for everything.

that sounds...........brilliant
18psi is offline   Reply With Quote
Old 08-08-2014, 06:19 PM   #7
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

What in the hell is going on here?
concealer404 is offline   Reply With Quote
Old 08-08-2014, 06:22 PM   #8
Senior Member
iTrader: (3)

Join Date: Apr 2011
Location: Volo, IL
Posts: 1,247
Total Cats: 140
Default

Someone is bored at work on a Friday afternoon.
dieselmiata is offline   Reply With Quote
Old 08-08-2014, 06:24 PM   #9
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,653
Total Cats: 1,559
Default

That's... worse.


The manifold is fine. Buy a T3/T4 off of ebay and sell the downpipe for scrap because it is thin and will fail. Then buy an outlet flange to fit the T3/T4 and have the local muffler shop fab a downpipe to fit everything for $150 and be done with it.

See DVCN's build thread for success stories with a $150 Chinese T3/T4.

Do not use adapters on the turbine inlet side. They will:
1. Fail
2. Cause the turbo to hit the hood
3. Cause the downpipe not to fit the car anyway
sixshooter is offline   Reply With Quote
Old 08-13-2014, 05:20 PM   #10
Elite Member

Join Date: Dec 2008
Location: Colorado
Posts: 1,669
Total Cats: 36
Default

What a pile of eggplant.

Does turbo hit block or not? Everything else is sort of pointless until that is sorted out.
Sparetire is offline   Reply With Quote
Old 08-13-2014, 08:34 PM   #11
Senior Member
iTrader: (1)

Join Date: Sep 2008
Location: Tucson, Arizona
Posts: 889
Total Cats: 55
Default

you know what isn't sorted out. This stupid noobs ability to read. Figure that out before you post you stupid hoser. suck it.

p.s. read the forum rules.
krissetsfire is offline   Reply With Quote
Old 08-16-2014, 05:15 AM   #12
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

triple88a is offline   Reply With Quote
Old 08-16-2014, 09:44 AM   #13
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

Attached Thumbnails
Turbo manifold and downpipe-pipe.jpg
Joe Perez is online now   Reply With Quote
Old 08-16-2014, 12:56 PM   #14
Senior Member
iTrader: (1)

Onyxyth's Avatar

Join Date: May 2013
Location: Boyertown, PA
Posts: 719
Total Cats: 55
Default

^ holy **** what is that.

Double the wastegates. Double the creep. fun.
Onyxyth is offline   Reply With Quote
Old 08-20-2014, 04:09 PM   #15
Junior Member

Join Date: Dec 2013
Location: Little Rock, Ar
Posts: 107
Total Cats: 24
Default

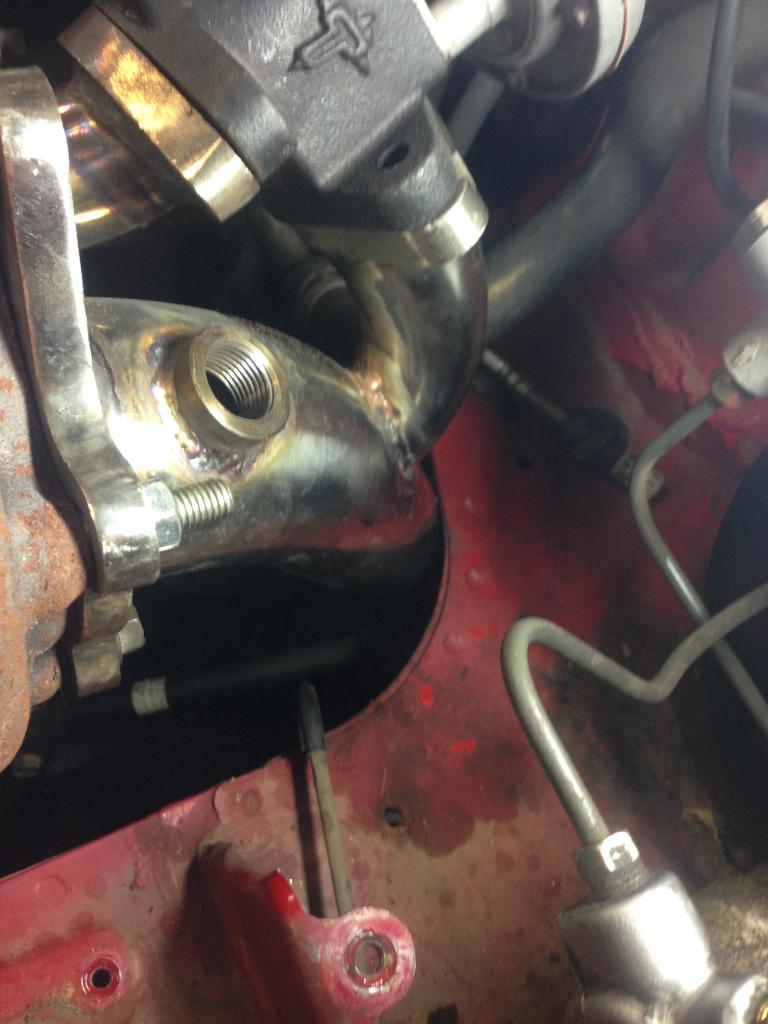

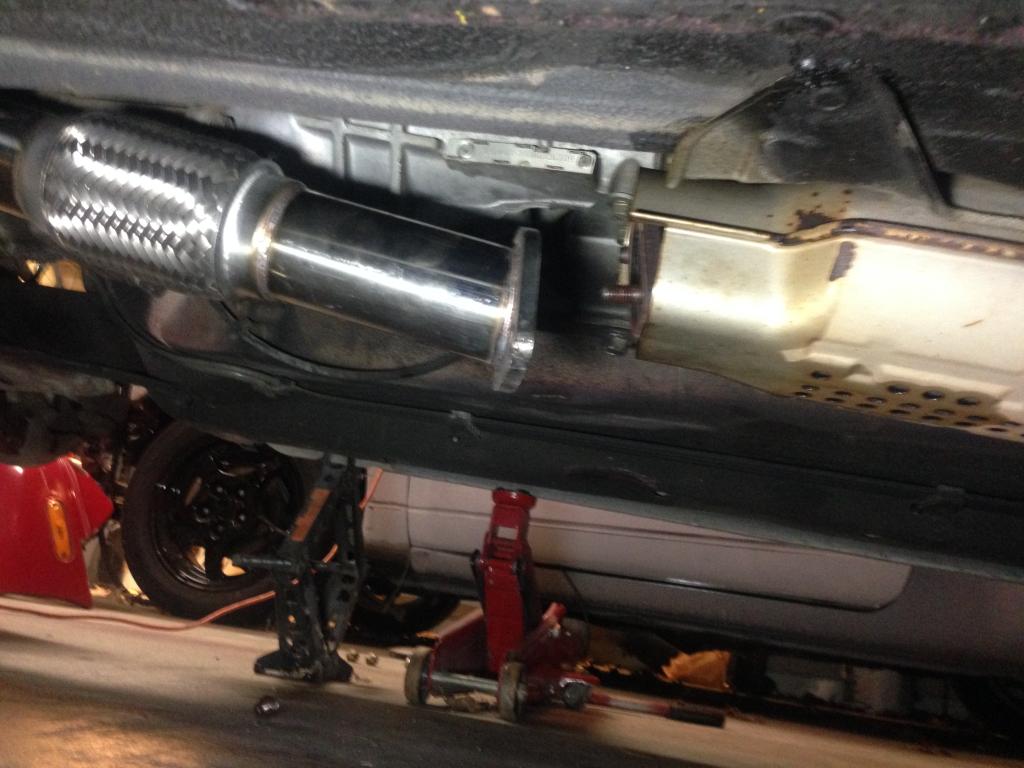

Thought I would chime in here since I've had experience with that manifold and downpipe. The manifold was great, didn't crack. And the downpipe also worked...with some modification. For the 6000 miles or so it was on the car it did not crack or break, the wastegate held 15 psi all day which is the spring I had in the wastegate, however it didn't fit worth a ****. It hit the firewall, a few minutes with a blow torch and hammer fixed that but it also did not fit up to the stock exhaust which was ok with me since the next day I had a new exhaust fabbed up anyways.

Long story short, yes it will work with some modification. I would not buy it again. With an adapter plate for the T25 forget about it



Attached Thumbnails
Turbo manifold and downpipe-9fcad3c9-b7fc-4126-909b-eeb52c1b393b.jpg   Turbo manifold and downpipe-1f640da5-441a-4fbe-b729-64e0d826576d.jpg
92turbomiata is offline   Reply With Quote
