Default Turbo Manifold question will this work?

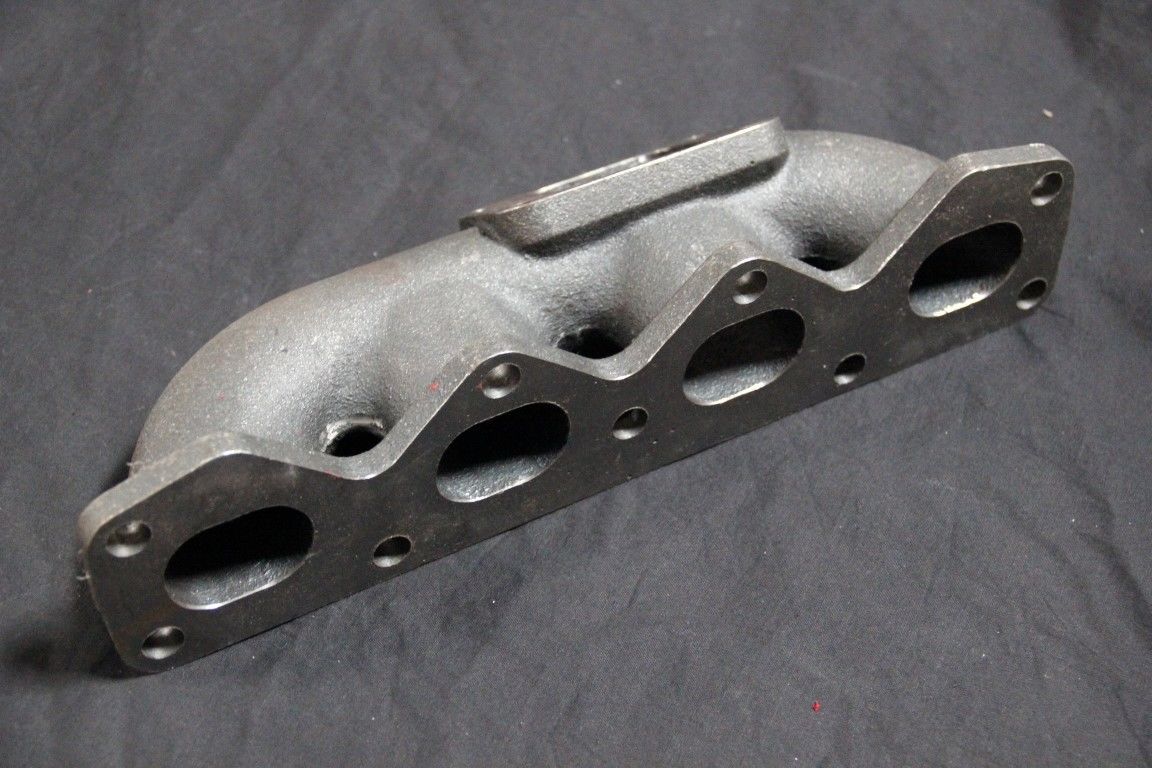

i have a TD05 Big16 turbo and my Manifold has heat cracks in it. i dont know what kind it is but i am losing power and it is quite noisy.its time to replace it. and without breaking the bank my car has been sitting for a while and ready to get my car running. i lack a few things like putting on my PNP MegaSquirt i had made 4 years ago by Braineack. and cant seem to get it to communicate with anything. Me and fellow turbo Miata Engineer friend last year tried and he has a hydra with no problems, i REALLY REALLY want this to work.and any help would be appreciated. anyway would this Manifold work on my car?? i tried to attatch its from ebay and its a cast iron Mani.. seems legit but will it work?
Attached Thumbnails
Turbo Manifold question will this work?-%24t2ec16j-e9s2fbwrcbrd-jvgsjq%7E%7E60_57.jpg
bandit mx5 is offline   Reply With Quote
Old 11-16-2014, 02:54 PM   #2
Senior Member

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

With a t3 to eclipse td05 adapter it could work......as long as it the turbo doesn't hit the hood.
DSM TD05 T25 to T3 Adaptor Turbo Manifold Flange Adapter | eBay
sturovo is offline   Reply With Quote
Old 11-16-2014, 02:55 PM   #3
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

Is this the listing? Cast Iron Mazda Mitata NA 1 6L T3 T4 Turbo Manifold Exhaust 35 WG Keep AC PW | eBay

If so, your turbo will not bolt directly to that if it is a Mitsubishi-flanged hotside (which is likely given your description).
matthewdesigns is offline   Reply With Quote
Old 11-16-2014, 04:18 PM   #4
Junior Member
Thread Starter

Join Date: Jan 2010
Location: mississippi
Posts: 61
Total Cats: 0
Default

oh man..YESSSSSS. i really want this to work and have been doing some research on this but hopefully it wont hit my hood..any other suggestions i have been reading threads on this and i almost bought the CX racing glad i didnt..Megan racing has a combo pipe and Manifold still wondering about that one..any suggestions?
bandit mx5 is offline   Reply With Quote
Old 11-16-2014, 04:30 PM   #5
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Do you have a megasquirt installed yet? How about a wideband O2 sensor? If those are done, stop screwing around with your ghetto setup and do things right. 1.8 swap to start. Then turbo correctly after that.
shuiend is offline   Reply With Quote
Old 11-16-2014, 04:39 PM   #6
Senior Member

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

What Lars said.

What about the downpipe? it is most unlikely the current one will fit with the t3+ td05 adapter set up.
Either way you are getting into custom fabrication...

You could get another short life ebay manifold?
It would be better to make a proper replacement.

https://www.miataturbo.net/diy-turbo...5/#post1173119
sturovo is offline   Reply With Quote
Old 11-16-2014, 04:55 PM   #7
Junior Member
Thread Starter

Join Date: Jan 2010
Location: mississippi
Posts: 61
Total Cats: 0
Default

i cant get the Megasquirt to communicate with my computer at all i downloaded the software i dont know if thats the problem or what..nothing. WB02 sensor working maybe i should do the 1.8 upgrade..everything is on car and running i am running a little rich i am very close..its been just so hard to finish and am having other little problems..going to get it..my mechanic friend that was a miata enthusiast helped me from the start its now been my project. i have alot on the car. Torzen, FM radiator, Hardtop, Comp Motor mounts, Exedy Clutch, Etc Etc
bandit mx5 is offline   Reply With Quote
Old 11-16-2014, 10:27 PM   #8
Junior Member
Thread Starter

Join Date: Jan 2010
Location: mississippi
Posts: 61
Total Cats: 0
Default

Enlighten me Lars!
bandit mx5 is offline   Reply With Quote
Old 11-16-2014, 10:30 PM   #9
Junior Member
Thread Starter

Join Date: Jan 2010
Location: mississippi
Posts: 61
Total Cats: 0
Default

my car has been sitting up unfinished for a coupla years..its almost heartbreaking seeing the moola i have put in this car. i have no garage to work on it..i can on weekends. i am about to take it over to my Ex brother inlaws and start slammin wrenches. he is a mechanical engineer and has built many a vehicles he has built stock cars and he is into big trucks like old blazers and ****...
bandit mx5 is offline   Reply With Quote
Old 11-16-2014, 10:54 PM   #10
Junior Member
Thread Starter

Join Date: Jan 2010
Location: mississippi
Posts: 61
Total Cats: 0

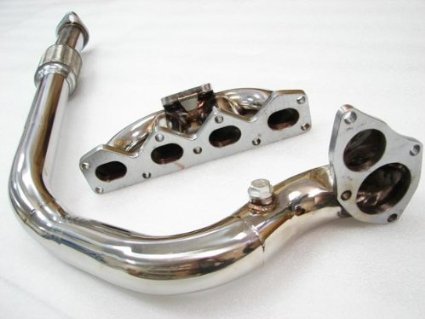

Default New pic of different set-up

so this is the only thing that will fit my current set-up? this is getting complicated as hell. unless i change my turbo to a different setup and manifold ,these parts are not interchangeable at all different mounting brackets etc etc. i am very limited to what i can do at this point correct?
Attached Thumbnails
Turbo Manifold question will this work?-41iy9flj04l_002.jpg
bandit mx5 is offline   Reply With Quote
Old 11-17-2014, 12:19 AM   #11
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,177
Total Cats: 2,579
Default

yes. this is why we tell everyone not to build a setup around a turbo
18psi is offline   Reply With Quote
Old 11-17-2014, 12:43 PM   #12
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,664
Total Cats: 1,560
Default

Quote:
Originally Posted by 18psi View Post
yes. this is why we tell everyone not to build a setup around a turbo
^This.

Now you can repeat it to noobs when they ask in the future.
