Default Rx7 460cc Injector Adapters

Hey, I know this has kind of been asked before but I could not find a clear enough answer. I hope it is alright I ask again.

I have rx7 red tops mn: 195500-1350 and I didn't realize they use a different socket than my 94 oem injectors. What adapter do I need to make these work?

Will this do the trick? Specializing in automotive interconnect and wiring systems

Or will these be better?

Fuel Injector Clip Miata WRX STI 350Z Supra Camry Corolla Celica GS300 IS300 RX7 | eBay

Thanks for all the help.
gr4v3r is offline   Reply With Quote
Old 11-14-2014, 02:59 PM   #2
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,370
Total Cats: 1,332
Default

Those not only have the wrong connector, they are low impedance. Unless your ECU has low-imp injector drivers, you're better off selling them and picking up a set of high-imp injectors, preferably S5 TII purple 195500-2020s. Or, if you want a better injector and don't need ~275whp of fuel capacity, the Rx8 420s are a far superior injector to any EV1 Rx7 unit.

Last edited by Savington; 11-16-2014 at 06:12 PM. Reason: rx7 != rx8
Savington is offline   Reply With Quote
Old 11-14-2014, 03:02 PM   #3
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

Honestly you can do the Mustang GT500 EV14 injectors for less then $200. There really is no reason to go with any other cheaper used options. Once you factor in getting used injectors cleaned you are almost at what the mustang injectors cost and are still using an older worse injector.
shuiend is offline   Reply With Quote
Old 11-14-2014, 06:19 PM   #4
Junior Member
Thread Starter

Join Date: May 2014
Posts: 154
Total Cats: 4
Default

Quote:
Originally Posted by Savington View Post
Those not only have the wrong connector, they are low impedance. Unless your ECU has low-imp injector drivers, you're better off selling them and picking up a set of high-imp injectors, preferably S5 TII purple 195500-2020s. Or, if you want a better injector and don't need ~275whp of fuel capacity, the Rx7 420s are a far superior injector to any EV1 Rx7 unit.
I tested them and they are 12 ohms, they should be high-imp.... Is that not correct? Also I foolishly just paid to have them serviced by Deatsch Werks. :(
gr4v3r is offline   Reply With Quote
Old 11-14-2014, 06:39 PM   #5
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

Red 1350s should be low impedance. Purple 1350s should be high impedance. Both will be squares.
concealer404 is offline   Reply With Quote
Old 11-14-2014, 06:53 PM   #6
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Quote:
Originally Posted by Savington View Post
Those not only have the wrong connector, they are low impedance. Unless your ECU has low-imp injector drivers, you're better off selling them and picking up a set of high-imp injectors, preferably S5 TII purple 195500-2020s. Or, if you want a better injector and don't need ~275whp of fuel capacity, the Rx7 420s are a far superior injector to any EV1 Rx7 unit.
I believe you meant rx8 right? The EV-6s?
aidandj is offline   Reply With Quote
Old 11-14-2014, 07:06 PM   #7
Junior Member
Thread Starter

Join Date: May 2014
Posts: 154
Total Cats: 4
Default

Quote:
Originally Posted by concealer404 View Post
Red 1350s should be low impedance. Purple 1350s should be high impedance. Both will be squares.

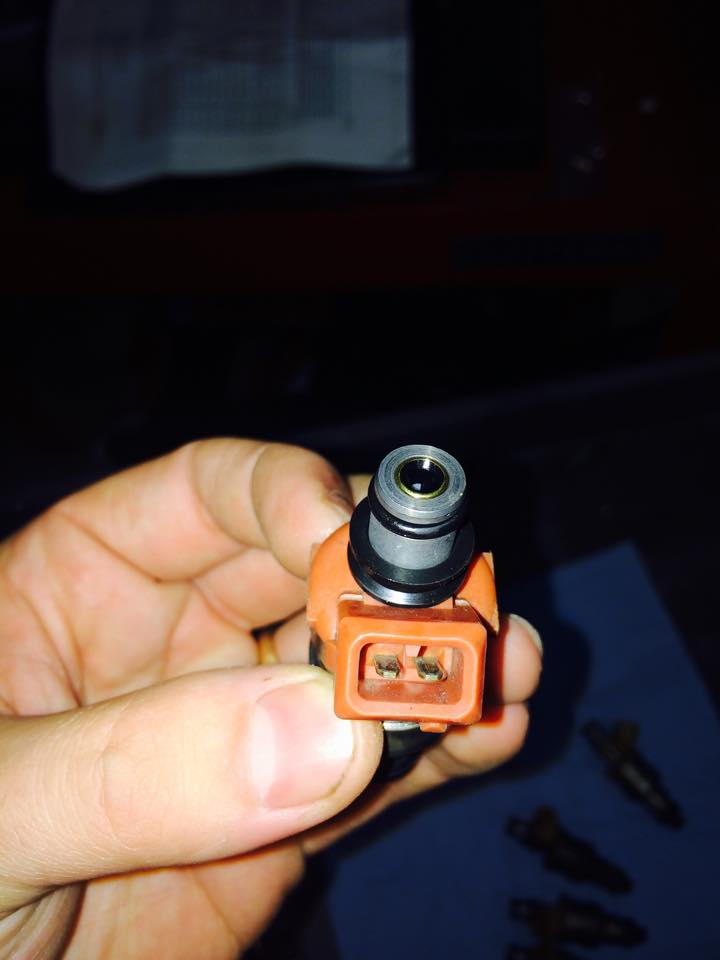

Is that purple? I tested them all anhd they are 12 ohms :/

gr4v3r is offline   Reply With Quote
Old 11-16-2014, 06:11 PM   #8
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,370
Total Cats: 1,332
Default

Quote:
Originally Posted by aidandj View Post
I believe you meant rx8 right? The EV-6s?
Yep, sorry. Rx8 420cc ev6
Savington is offline   Reply With Quote
Old 11-17-2014, 12:45 PM   #9
Junior Member
Thread Starter

Join Date: May 2014
Posts: 154
Total Cats: 4
Default

will these do the trick?

Specializing in automotive interconnect and wiring systems

Here are the injectors im trying to use model number 195500-1350 and have 12.2 ohms

gr4v3r is offline   Reply With Quote
