Default Turbo pipe for iac hookup and BOV

I reused my FM intercooler piping because it had the outlets for the BOV and IAC hose. It doesn't fit quite right in my current configuration, and was wondering what everyone does for this pipe? Where do you get a generic one, or how do you hook up your BOV and IAC hose on your diy setups?

Thanks
miatauser884 is offline   Reply With Quote
Old 11-24-2010, 04:40 PM   #2
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

I make the pipe and weld it where i want it.
SKMetalworks is offline   Reply With Quote
Old 11-24-2010, 05:22 PM   #3
Senior Member
iTrader: (5)

Join Date: Sep 2009
Location: Lompoc, CA
Posts: 579
Total Cats: 12
Default

Stick a little filter on the end and don't tie it into the charge piping... welcome to the beauty of a MAP sensor.
baron340 is offline   Reply With Quote
Old 11-24-2010, 05:30 PM   #4
Elite Member
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

Quote:
Originally Posted by baron340 View Post
Stick a little filter on the end and don't tie it into the charge piping... welcome to the beauty of a MAP sensor.
Or not.

Many people experience leaking under boost @ the IACV. Do you like boost leaks? I certainly don't.

Here is what I did:

Beautiful:NO
Works:Yes

If I had to do it again, I would have welded or jb-welded a fitting directly into the IACV and gone from there. Stepping it down to 3/8 fuel hose allows for a much more flexibility without kinking.
Jeff_Ciesielski is offline   Reply With Quote
Old 11-24-2010, 05:53 PM   #5
Senior Member
iTrader: (4)

Join Date: Jan 2008
Location: Falls Church, VA
Posts: 1,367
Total Cats: 16
Default

You can buy generic BOV adapter pipes that come with a flange welded on. Pretty sure you can get SSQV or Greddy style ones from ebay, siliconeintakes, etc. I forget exactly where I got my adapter pipe for the 50mm Tial flange but my recollection was I had to search around for one that was "only" 2.5" pipe. Just get one of those generic pipes (~$20) and then add a barb to connect to the IACV.
ScottFW is offline   Reply With Quote
Old 11-24-2010, 07:09 PM   #6
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

I bought a pipe for a bov from ebay and got a temp sensor bung welded on there. I wish i had also gotten a 1/8-3/16 bung welded on there for the wastegate so its measing psi around the TB, not the turbo outlet.

Name:  Forgensensor2.jpg
Views: 54
Size:  86.0 KB

Name:  P081110_1626_01.jpg
Views: 171
Size:  135.7 KB
triple88a is offline   Reply With Quote
Old 11-26-2010, 09:23 PM   #7
Elite Member
Thread Starter
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

Quote:
Originally Posted by Jeff_Ciesielski View Post
Or not.

Many people experience leaking under boost @ the IACV. Do you like boost leaks? I certainly don't.

Here is what I did:

Beautiful:NO
Works:Yes

If I had to do it again, I would have welded or jb-welded a fitting directly into the IACV and gone from there. Stepping it down to 3/8 fuel hose allows for a much more flexibility without kinking.

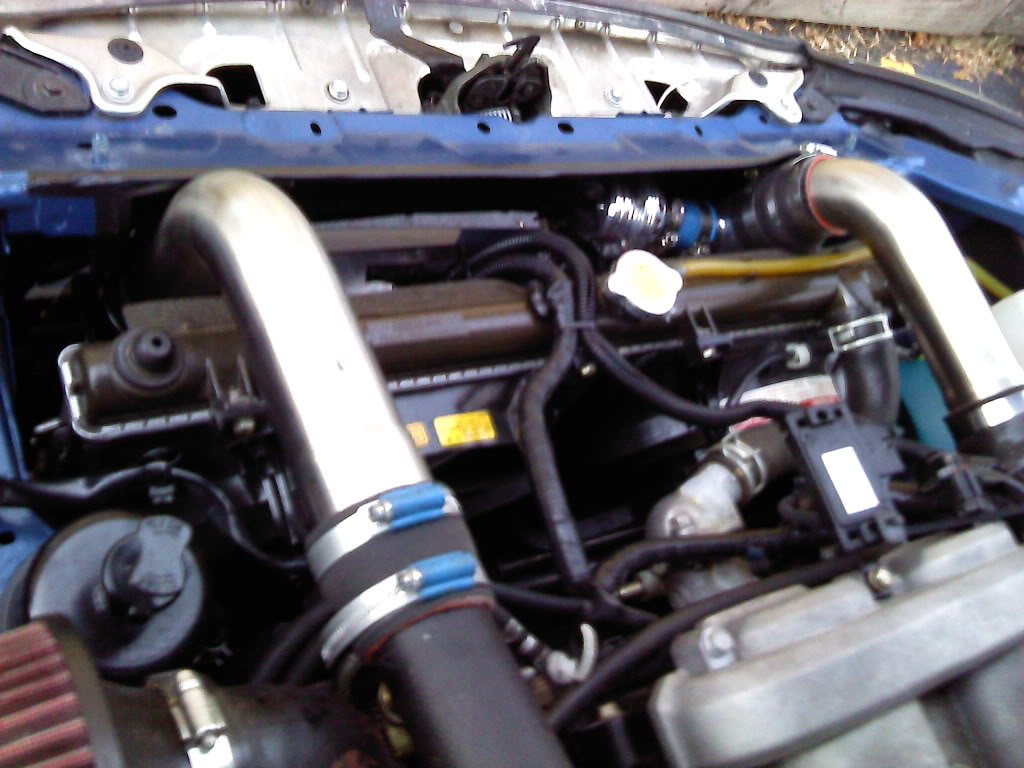

Where is your BOV plumbed?
miatauser884 is offline   Reply With Quote
Old 11-26-2010, 09:38 PM   #8
Elite Member
Thread Starter
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

Here's a cool little pipe that might save people some money.



I might do this^^^^^^

This could be used to plumb the IAC line and IAT sensor.

Edit; image didn't seem to load. Here's link: http://www.siliconeintakes.com/produ...cc79da6f5032e7
miatauser884 is offline   Reply With Quote
Old 11-26-2010, 10:31 PM   #9
Elite Member
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

Quote:
Originally Posted by djp0623 View Post
Where is your BOV plumbed?
If you look top/center of the picture, you can see my SSQV. I used a pipe similar to triple88a's except flanged for an HKS valve.
Jeff_Ciesielski is offline   Reply With Quote
Old 11-26-2010, 10:40 PM   #10
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

IAC?

That's just another one of the things that my car used to have.
kotomile is offline   Reply With Quote
Old 11-27-2010, 05:58 AM   #11
Newb

Join Date: Sep 2010
Location: Basingstoke, UK
Posts: 17
Total Cats: 0
Default

Quote:
Originally Posted by baron340 View Post
Stick a little filter on the end and don't tie it into the charge piping... welcome to the beauty of a MAP sensor.

I have done the same apart from I used a check valve (marine type) seems to work fine.
For my Iat I tapped the inlet much bigger than needed and used a nylon adaptor to stop the heat soak, seems to work fine too...
The BOV is directly on the intercooler, but because I went over the top of the rad with my pipes it is still pretty close to the TB.

(these things were done before I read this forum, Probably not ideal but they work)
dean.L is offline   Reply With Quote
