Default Turbo ruined?

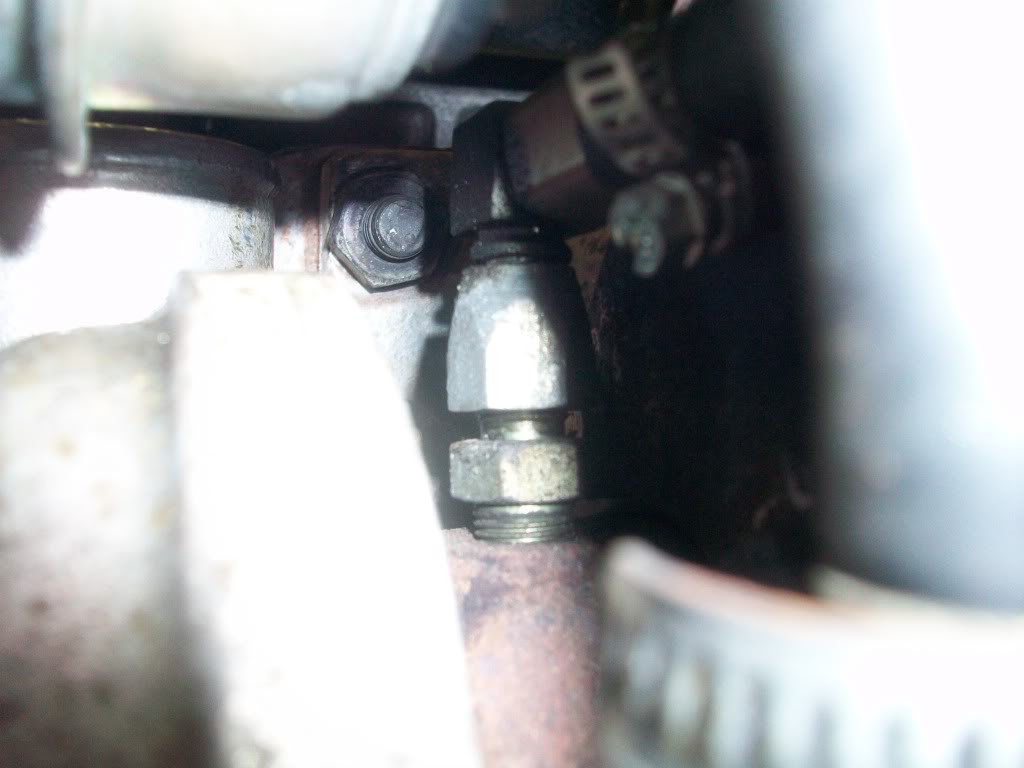

Name:  100_3184.jpg
Views: 16
Size:  121.8 KB

Name:  100_3182.jpg
Views: 10
Size:  127.2 KB

Name:  100_3202.jpg
Views: 10
Size:  55.7 KB



Here are the facts:
  • Everything has been fine with my treating the car softly for a long while
  • Replaced completely shot stock motor mounts with competition mounts
  • Started smoking like crazy

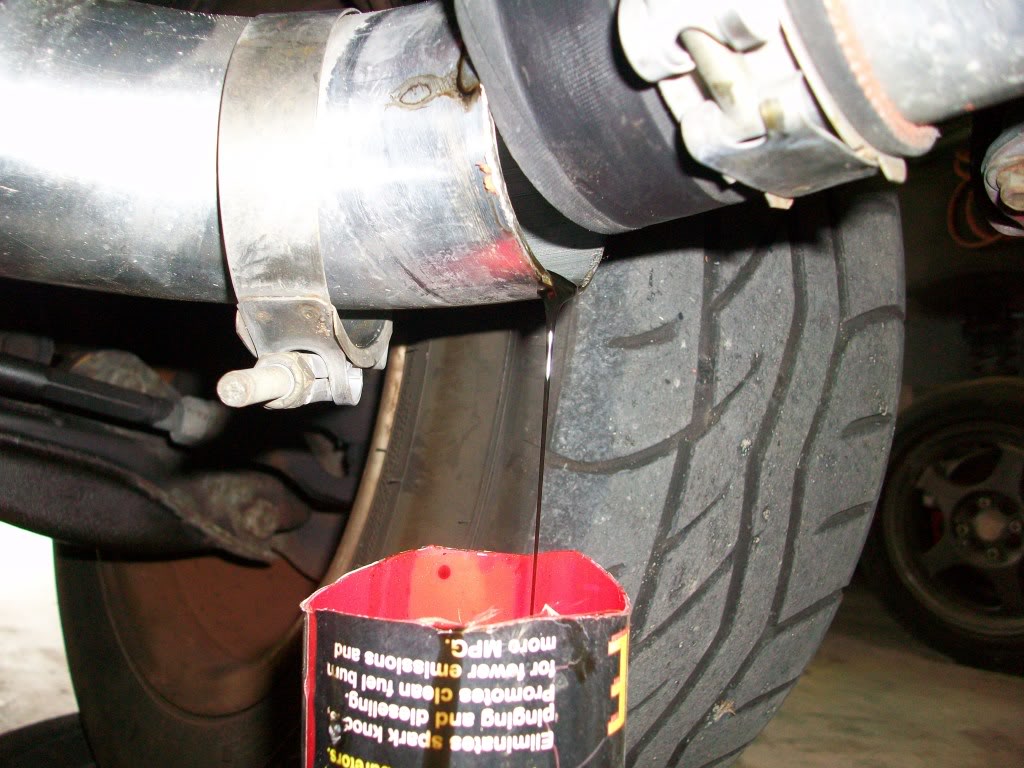

  • Turbo drain would fill a 12oz beer can in about a minute, maybe less
  • No restrictor that I know of in oil feed (possible BEGI put one in)
  • Have been running this setup for about 30k miles
  • Idled/reved the car for about an hour and it continued to smoke without any piping connected to manifold
  • At least a half a quart of oil was inside of the piping / intercooler


Where do I go next?
  • Put in an oil retrictor and try again?
  • Use the CHRA exchange and spend probably close to $500 (have not called them yet)?
  • Get a different turbo (2560 sized) for better top end/cheap out and go chinese?


Thought / Guesses:
  • Whatever oil was in intake manifold would have had to have burned out in an hour, seal in turbo is blown and allowing oil to enter exhaust directly
  • Oil return line was shortened close to 2 inches, and I think it was draining fine beforehand

Thank you for the opinions gentleman.
94mx5red is offline   Reply With Quote
Old 03-10-2011, 08:57 PM   #2
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,132
Total Cats: 187
Default

compression/leakdown?

venting of crankcase not plugged up?
fooger03 is offline   Reply With Quote
Old 03-10-2011, 09:01 PM   #3
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: South East Florida
Posts: 690
Total Cats: 6
Default

Did not do either yet.

Head is pretty new, replaced last year from a '95. Cleaned and inspected.
Bottom end is old, maybe 170k.

Edit:
Driver's side crankcase vent is to atmosphere/beer can. Passenger side goes to intake manifold and has the 323 PCV valve.
94mx5red is offline   Reply With Quote
Old 03-10-2011, 09:02 PM   #4
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

Questions:

1: Is that a ball-bearing or journal-bearing turbo?

2: I can't play jewtube videos at work (so maybe this is answered) but how does it sound?

3: Any abnormal shaft play? (Shaft play. There's no way to write that without it sounding like gay ****. Sorry.)

Could be that the shaft seal finally just decided to call it a day. 30,000 miles ain't all that bad.
Joe Perez is offline   Reply With Quote
Old 03-10-2011, 09:04 PM   #5
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

If it were a new setup, I'd say something is wrong with it, but since you've been running this for 30k miles, I'd say it's the turbo.

What's the shaft play like?
curly is offline   Reply With Quote
Old 03-10-2011, 09:15 PM   #6
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: South East Florida
Posts: 690
Total Cats: 6
Default

Garrett ball bearing 2554r.

My experience with shaft play is minimal. Meaning I touched this one and one other. It feels about the same as the last time I touched it, maybe 3 years ago. Spins freely, and sounds completely normal.

Turbo was purchased used. Previous owner said he ran it (I forget) maybe 5-15k miles at 15psi. I have kept it at wastegate level of maybe 7psi.


What kills me is the sheer coincidence of the replacement of the motor mounts. Simply jacked up the engine and replaced. Nothing else was touched.
94mx5red is offline   Reply With Quote
Old 03-10-2011, 10:49 PM   #7
Junior Member
iTrader: (5)

Join Date: Jan 2006
Posts: 294
Total Cats: 0
Default

Maybe the oil drain got kinked in the process of changing the motor mounts, caused a back up of oil that blew a seal? Whatever the case is, looks like you blew the oil seal thats located behind the compressor. Its a small compression C-clip type that sits in a groove on the shaft. Maybe you can just replace that part since the shaft play isn't too bad....I've never worked on a ball bearing turbo before.
supersuk is offline   Reply With Quote
Old 03-10-2011, 11:20 PM   #8
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

My money is on a blown oil seal on the turbo.
dustinb is offline   Reply With Quote
Old 03-10-2011, 11:36 PM   #9
Junior Member

Golferluke's Avatar

Join Date: Oct 2009
Location: Springfield, MO
Posts: 497
Total Cats: 3
Default

Quote:
Originally Posted by supersuk View Post
Maybe the oil drain got kinked in the process of changing the motor mounts, caused a back up of oil that blew a seal?
Thats what I was thinking. Also if you've got almost a quart of oil in the pipes and the turbo will fill a can in less than a minute. Make sure you check your oil level before you go revving the motor for an hour.
Golferluke is offline   Reply With Quote
Old 03-11-2011, 12:10 AM   #10
I'm Miserable!
iTrader: (11)

Join Date: Apr 2008
Location: Texas, 'Murica
Posts: 2,505
Total Cats: 7
Default

In for answer/turbo rebuild.
chicksdigmiatas is offline   Reply With Quote
Old 03-11-2011, 08:51 AM   #11
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I had similar problems on an old journal bearing turbo on my VW. A restricter on the oil feed fixed it after a few days of street driving. Do what everyone else did and go ahead and get a .032" oil feed fitting.
hustler is offline   Reply With Quote
Old 03-11-2011, 10:28 AM   #12
Junior Member

Join Date: Jan 2007
Location: EXTREME Southern Illinois
Posts: 281
Total Cats: 0
Default

I've mentioned this in other threads, but I once overfilled my oil (accidentally) enough to cover the return fitting in the oilpan, and mine did the same thing (GT2560R). The problem disappeared when I took the oil down to the proper level. I started wondering if this sort of thing would happen in a long continuous right turn, and put in a restrictor anyway.
DammitBeavis is offline   Reply With Quote
Old 03-11-2011, 12:48 PM   #13
Former Vendor

Join Date: Jun 2006
Location: Bell Tuning & Performance
Posts: 1,338
Total Cats: -78
Default

Quote:
Originally Posted by dustinb View Post
My money is on a blown oil seal on the turbo.
The thing about these turbos is that the seals are bad from the factory, or they are good. There really is no in between. If the turbo still makes boost, chances are the turbo is just fine and you need to look elsewhere for the problem.

That said, seals can "temporarily not work". Something is causing excessive oil flow or pressure for there to be that much oil. When there is excessive flow and pressure, the oil seals will leak. It is sort of a built in fail safe for the turbo. Get rid of the excessive flow or pressure, and the seals will return to normal operation. If this is a sudden problem, I would check the oil drain line. Make sure it is not kinked or blocked internally. After that, make sure an oil catch can has a vent hole. Make sure your PCV valve is working. Then I would install an oil restrictor. If none of that fixes your problems, I would start on the engine next. A Leak down test would be in order.
Stephanie
Stephanie Turner is offline   Reply With Quote
Old 03-11-2011, 12:49 PM   #14
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

The only reason I wouldn't think this is the motor's condition was he stated the breather line does not enter the intake.
Braineack is offline   Reply With Quote
Old 03-11-2011, 12:55 PM   #15
Former Vendor

Join Date: Jun 2006
Location: Bell Tuning & Performance
Posts: 1,338
Total Cats: -78
Default

But the oil supply line and oil drain line are still attached. Pressure and flow are still a factor. Need to know if it makes boost.
Stephanie
Stephanie Turner is offline   Reply With Quote
Old 03-11-2011, 12:59 PM   #16
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

My vote would be blown oil seal. Like others have said maybe when you did the mounts the drain got kinked and the internal lining is still closed inside the line. Put a restrictor in it and see if it helps and if you did kill the turbo 30K is not bad at all. I would be happy to get 30K out of a turbo.
Sean is offline   Reply With Quote
Old 03-11-2011, 01:15 PM   #17
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

Quote:
Originally Posted by Stephanie Turner View Post
But the oil supply line and oil drain line are still attached. Pressure and flow are still a factor. Need to know if it makes boost.
Stephanie

ah true, if there was compression leaking past oil rings, there would be slight odd pressure differentials happening in the oil drain.
Braineack is offline   Reply With Quote
Old 03-11-2011, 01:21 PM   #18
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

I have a hard time imagining that unless the vent tube at the side of the cam cover is completely blocked off (or connected to the pressurized side of the intake) he'd be generating more than a few tenths of a PSI inside the crankcase relative to atmo, regardless of what the rings look like.
Joe Perez is offline   Reply With Quote
Old 03-11-2011, 04:08 PM   #19
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: South East Florida
Posts: 690
Total Cats: 6
Default

Turbo still makes boost. Did not really feel down on power either.

PCV valve (323 version) is one year old.

I appreciate the reponses.
94mx5red is offline   Reply With Quote
Old 03-20-2011, 10:03 AM   #20
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: South East Florida
Posts: 690
Total Cats: 6
Default

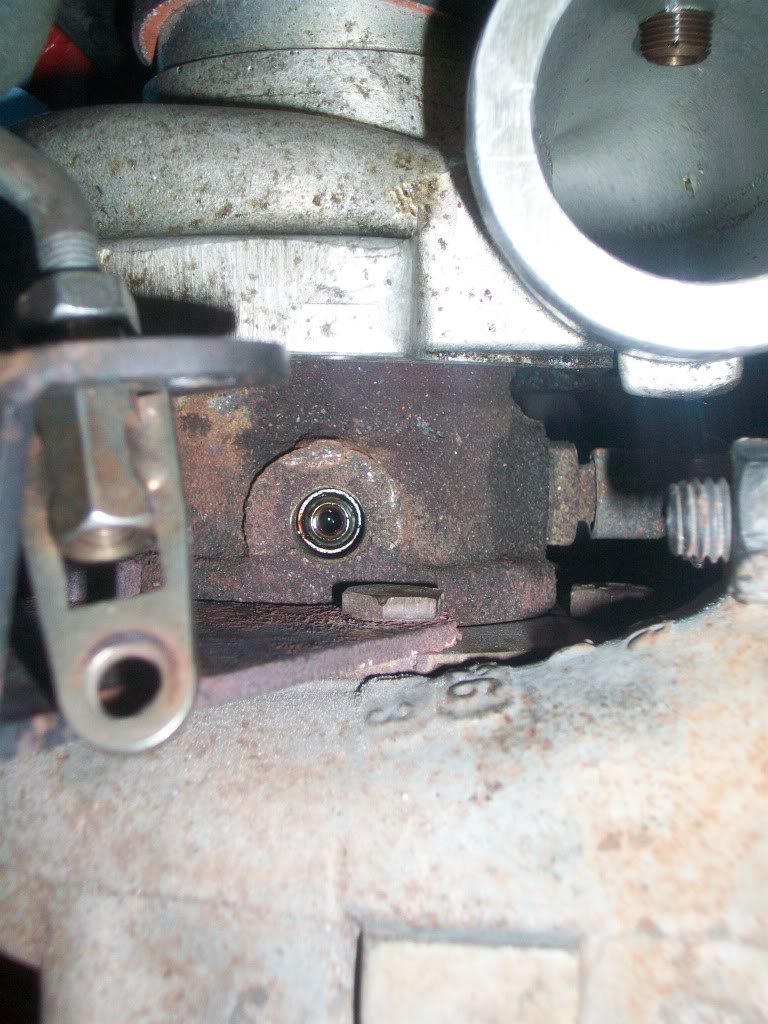

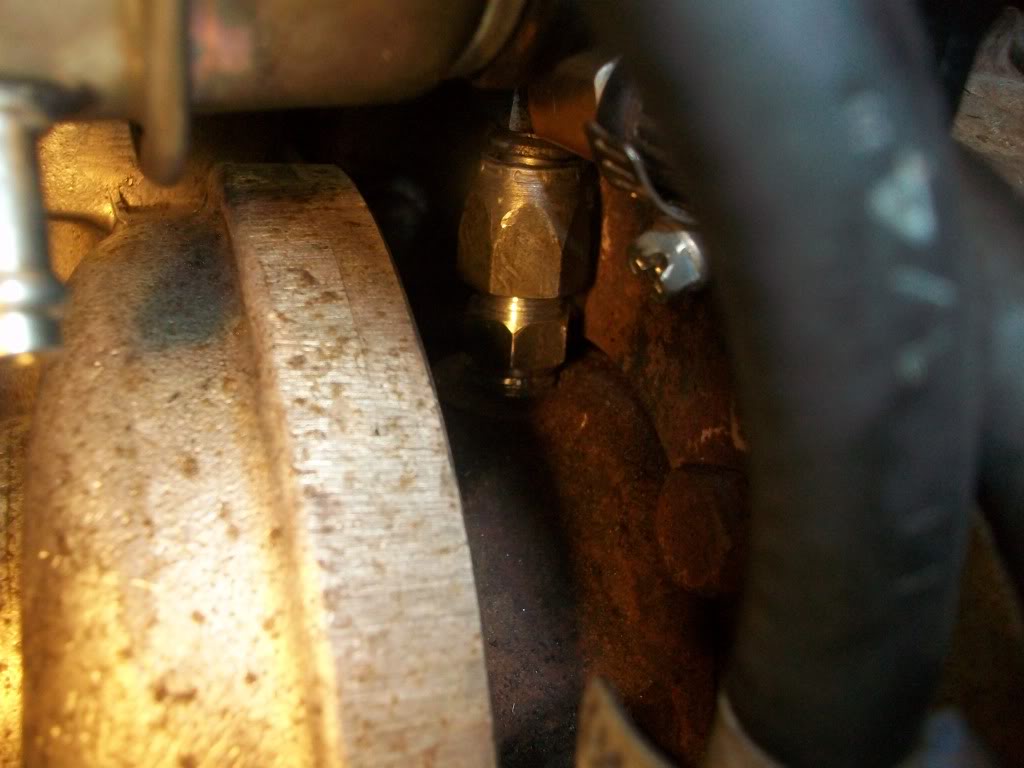

Name:  100_3280.jpg
Views: 10
Size:  67.4 KB
Name:  100_3282.jpg
Views: 10
Size:  58.9 KB
Name:  100_3277.jpg
Views: 10
Size:  100.7 KB
Name:  100_3275.jpg
Views: 11
Size:  128.9 KB
Name:  100_3287.jpg
Views: 10
Size:  74.5 KB


No more blowing *****!

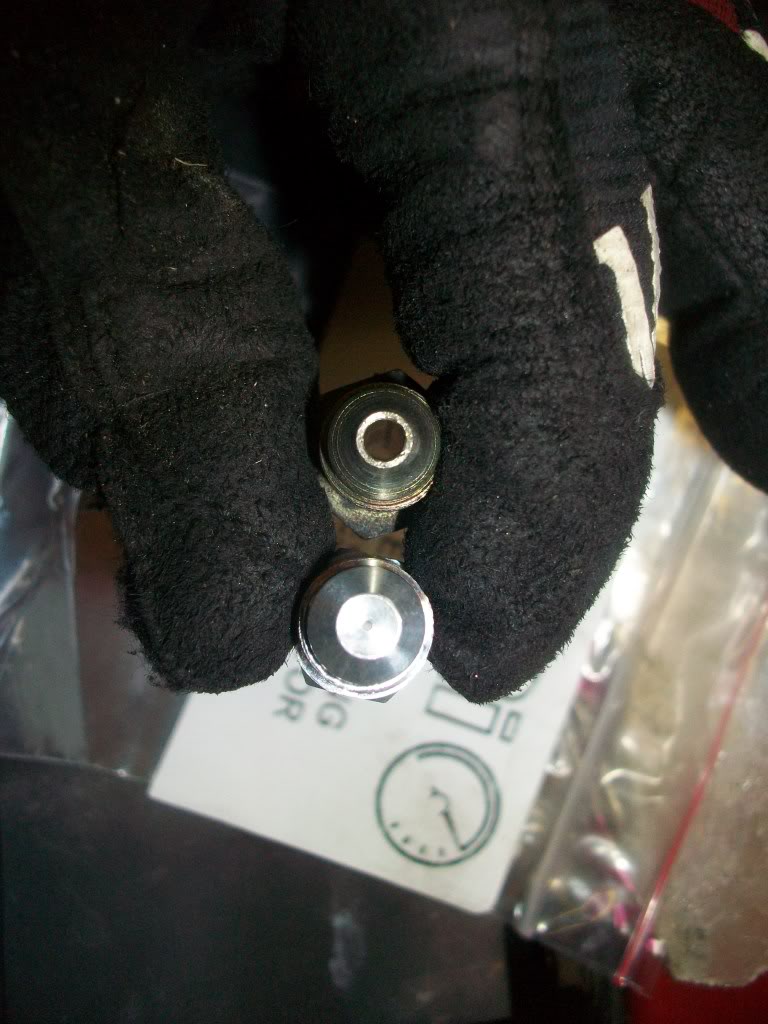

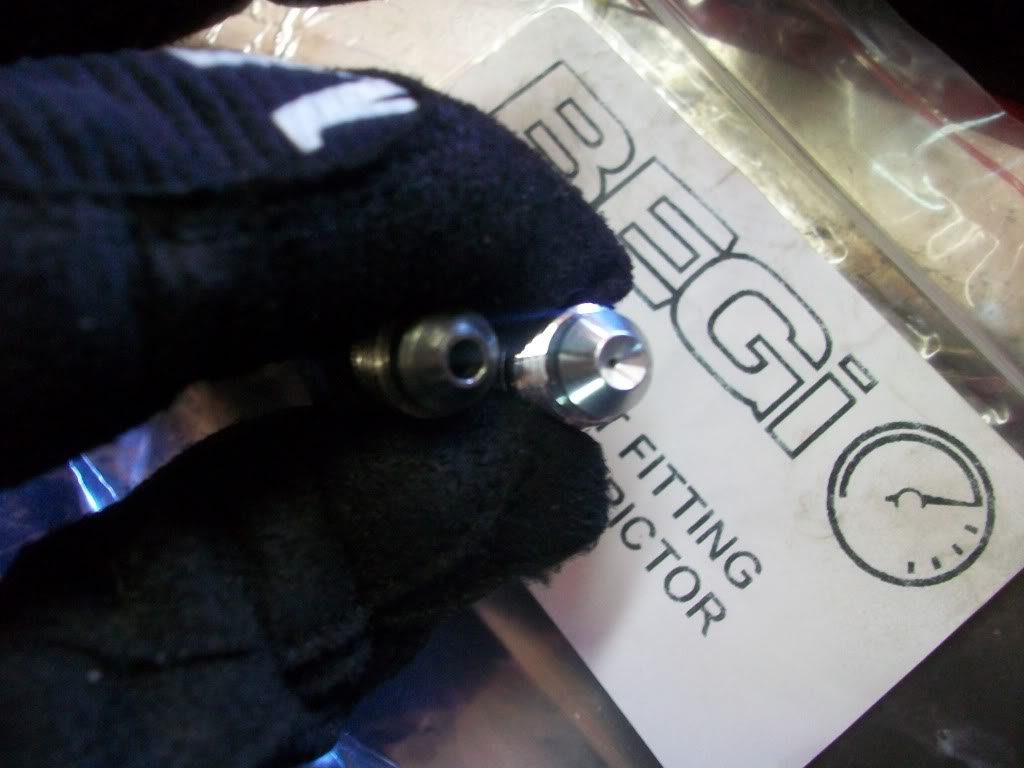

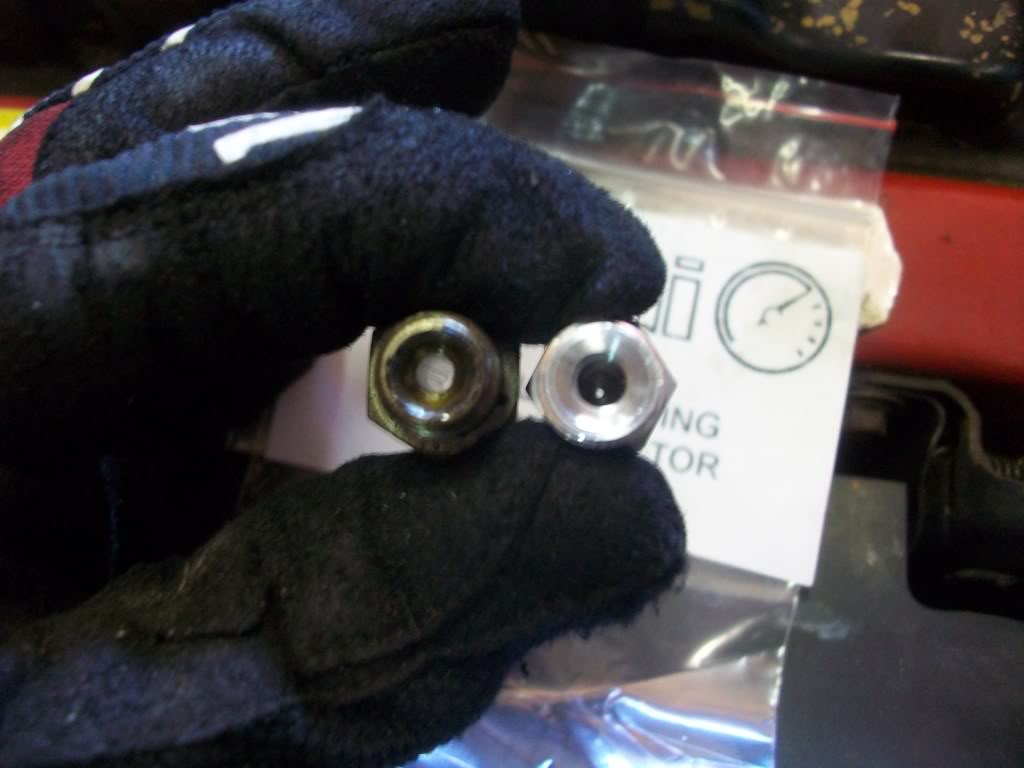

Installed THIS .030" restrictor from BEGI.

Started the car. A little bit of oil came out of the compressor side, then completely stopped after about 5 minutes. It seemed like there was less smoke from the exhaust, but there was still quite a bit.

Took the car out for a spin. After two boosted runs, the smoke disappeared!!!!
94mx5red is offline   Reply With Quote
