Turbo scavenging pump


Old 02-22-2018, 12:52 AM
  #1
Senior Member
Thread Starter
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,374
Total Cats: 104
Default Turbo scavenging pump

Hey gays,
I need some assistance, I have to install a scavenging pump on my turbo. I don't have a sufficient angle for a gravity setup. So, I have seen mixed answers on electric pumps. Some people are using reservoirs after the turbo but before the pump, some people don't. The idea with the reservoir is to help prevent the pump from "sucking the oil from the turbo" or if the pump fails it gives some capacity for oil.

What do you guys think, a reservoir or not? I was thinking about using a -10 an inline fuel filter housing as a reservoir. Then I wouldn't have to fab anything up, simple fittings and I'm done. Apparently Precision turbo has recommended this to several people. But then I see some reservoirs with breathers on them... I'm stumped, please help.
RyanRaduechel is offline
Old 02-22-2018, 01:20 AM
  #2
Senior Member
iTrader: (4)

2manyhobyz's Avatar

Join Date: Feb 2011
Location: Joliet, IL
Posts: 640
Total Cats: 17
Default

Does something like this idea worth looking at?
2manyhobyz is offline
Old 02-22-2018, 09:29 AM
  #3
Senior Member
Thread Starter
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,374
Total Cats: 104
Default

Originally Posted by 2manyhobyz View Post
Does something like this idea worth looking at?

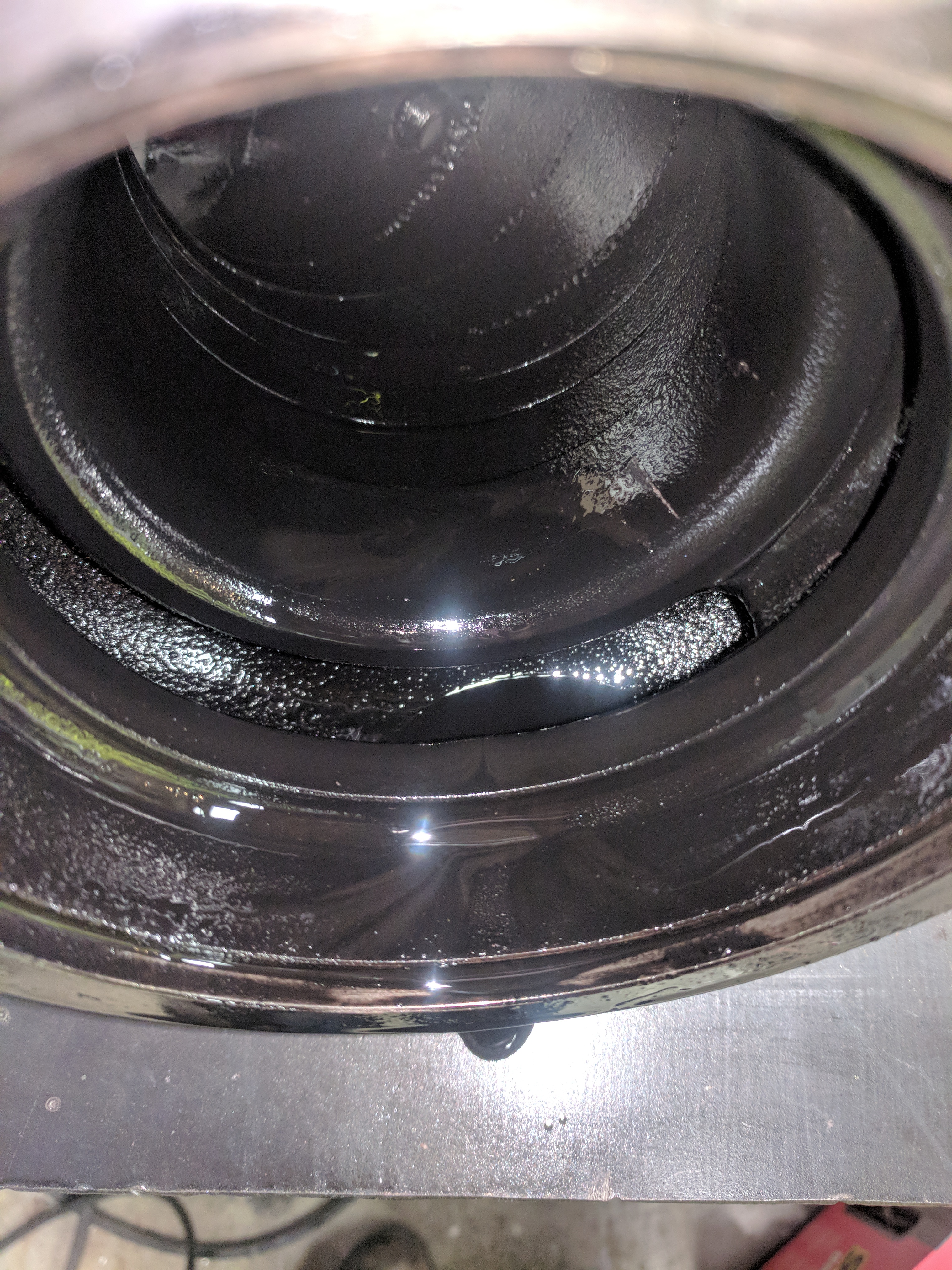

Yes, but with a 12v electric scavenging pump to pull it from the drip tank to the engine. My turbo is mounted a couple inches above the oil pan, but approximately 8 inches in front of the engine. Here is the turbine housing after I pulled it off last night... Not good
Attached Thumbnails Turbo scavenging pump-img_20180221_210928.jpg
RyanRaduechel is offline
Old 02-22-2018, 10:29 AM
  #4
VladiTuned
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,141
Total Cats: 3,144
Default

All the remote mount big turbo Subaru guys as well as the FA oem orientation seem to have reservoirs so I'm guessing it is definitely worth doing.

maybe patsmx5 can chime in since he's one of the only people on here with rear mount turbo
18psi is offline
Old 02-22-2018, 11:48 AM
  #5
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,931
Total Cats: 312
Default

Originally Posted by RyanRaduechel View Post
Some people are using reservoirs
Porsche does it



I think its a good idea, mainly to give the pump a consistent feed of oil which will help it work better when it really needs to.
Full_Tilt_Boogie is offline
Old 02-22-2018, 12:09 PM
  #6
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,824
Total Cats: 269
Default

Originally Posted by RyanRaduechel View Post
Hey gays,
I need some assistance, I have to install a scavenging pump on my turbo. I don't have a sufficient angle for a gravity setup. So, I have seen mixed answers on electric pumps. Some people are using reservoirs after the turbo but before the pump, some people don't. The idea with the reservoir is to help prevent the pump from "sucking the oil from the turbo" or if the pump fails it gives some capacity for oil.

What do you guys think, a reservoir or not? I was thinking about using a -10 an inline fuel filter housing as a reservoir. Then I wouldn't have to fab anything up, simple fittings and I'm done. Apparently Precision turbo has recommended this to several people. But then I see some reservoirs with breathers on them... I'm stumped, please help.
On my car, if I don't run a reservoir between the turbo and pump, everything is fine until you shut the car off. Then the turbo fills up with oil and it leaks out the turbine while it sits. If I put a time delay relay on the pump so that it keeps running for a couple minutes after shutdown, problem solved. Or, if I do a resevoir, problem solved. I did relay first, then did both relay and reservoir, then just reservoir and it's been fine. I have pics of my stuff in my build thread somewhere. I use a BMW oil pump now.
patsmx5 is offline
Old 02-22-2018, 04:12 PM
  #7
Senior Member
Thread Starter
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,374
Total Cats: 104
Default

Originally Posted by patsmx5 View Post
On my car, if I don't run a reservoir between the turbo and pump, everything is fine until you shut the car off. Then the turbo fills up with oil and it leaks out the turbine while it sits. If I put a time delay relay on the pump so that it keeps running for a couple minutes after shutdown, problem solved. Or, if I do a resevoir, problem solved. I did relay first, then did both relay and reservoir, then just reservoir and it's been fine. I have pics of my stuff in my build thread somewhere. I use a BMW oil pump now.
Do you think an inline fuel filter with no element would be a sufficient reservoir? If my math is right, it should hold roughly 5.4 oz of oil. I could also install an inline check valve to the feed. So once the engine is off it won't drain the feed line into the turbo as well causing even more fluid to fill the bearing housing .
RyanRaduechel is offline
Old 02-22-2018, 04:25 PM
  #8
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,824
Total Cats: 269
Default

I tried an inline check valve, it didn't work. Blew the valve in like 1 or 2 days. As for fuel filter idea, yeah probably it would work.
patsmx5 is offline
Old 02-24-2018, 11:17 AM
  #9
Senior Member
Thread Starter
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,374
Total Cats: 104
Default

Here it is, I decided against the fuel filter idea. Mainly because I am cheap so I made a little deal that holds 1.5oz of fluid. Also this is on a toggle switch, so I am not too terribly concerned with the volume, I can also run the pump after the engine is off. The pump was surely bigger than I expected, I went with the Tilton continuous pump. Run some wires, tighten everything up and check for leaks.

RyanRaduechel is offline
Old 02-24-2018, 01:28 PM
  #10
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,931
Total Cats: 312
Default

Nicely done.

Ive been wondering what was going on with this car. Glad to see youre still working on it
Full_Tilt_Boogie is offline
