Default Turbo water lines help

Ok I vaguely understand where the water lines for the turbo are supposed to hook up to. If someone could please take a clear picture of the location on the block that the water feed and return push into I would really appreciate it!

thanks
Brian
neogenesis2004 is offline   Reply With Quote
Old 12-03-2006, 08:39 PM   #2
Elite Member
Thread Starter
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

nvm, just saw a pic in samnavys old thread.
neogenesis2004 is offline   Reply With Quote
Old 12-05-2006, 10:18 PM   #3
Junior Member

Join Date: Jul 2005
Location: Alexandria, VA
Posts: 125
Total Cats: 0
Default

do you have a link to the thread? I was wondering too.
MiaTurbo is offline   Reply With Quote
Old 12-05-2006, 10:34 PM   #4
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

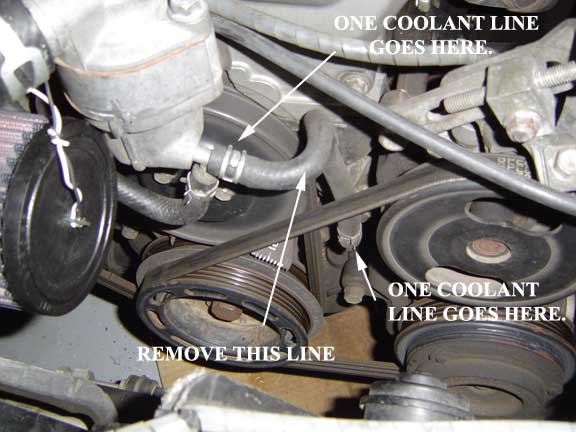

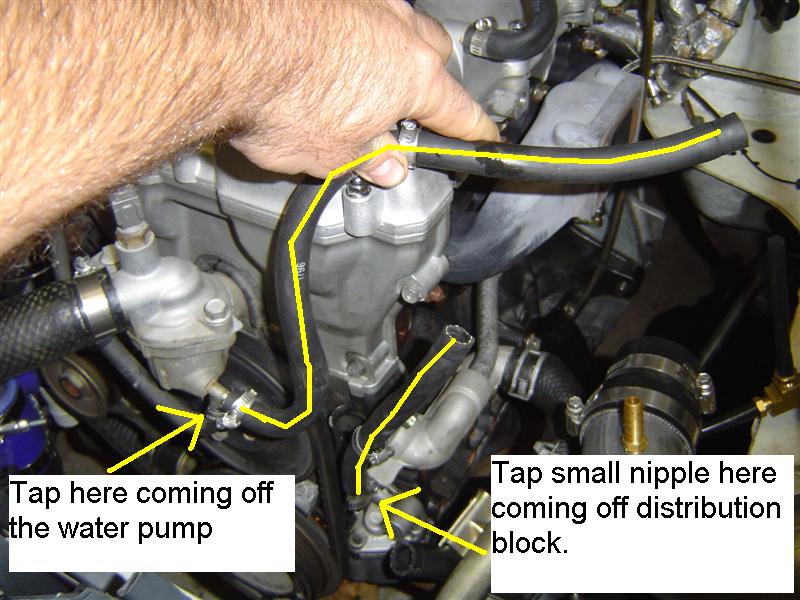

https://www.miataturbo.net/forums/at...6&d=1156903483
https://www.miataturbo.net/forums/at...0&d=1156995178

Hang on two minutes and I'll go take a better one... DONE.

It doesn't matter which way the water flows through the turbo. You can use either hose and run it through either side of the turbo.
Attached Thumbnails
Turbo water lines help-dsc03031-medium-.jpg
samnavy is offline   Reply With Quote
Old 12-05-2006, 10:39 PM   #5
Senior Member

Join Date: Dec 2004
Posts: 1,450
Total Cats: -1
Default

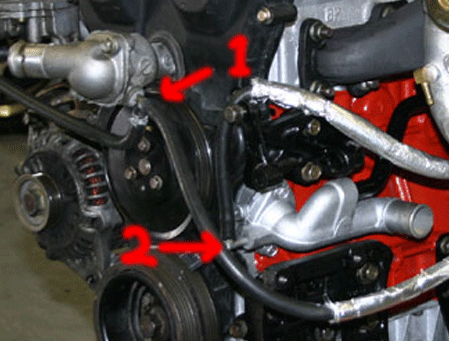

Here's the pic...

Edit: Whoops, I took too long to respond.
Attached Thumbnails
Turbo water lines help-turbowaterlines-miata.jpg

Last edited by bripab007; 12-05-2006 at 10:53 PM.
bripab007 is offline   Reply With Quote
Old 12-06-2006, 12:58 AM   #6
Elite Member
Thread Starter
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

I really appreciate the installed pic guys. I was just wondering how would be best to route it around the accessory belt since I have ac and ps on my car. I was thinking of maybe using some bendable plumbing pipe but im worried that mixing metal type will start to cause severe oxidation. I don't know how well normal antifreeze can protect against mixing copper and aluminum with water. Maybe some water wetter is in order. Same thing I used to run in my water cooled pcs.
neogenesis2004 is offline   Reply With Quote
Old 12-06-2006, 09:26 AM   #7
Senior Member

Join Date: Dec 2004
Posts: 1,450
Total Cats: -1
Default

Just zip-tie them to a hard point to keep them held out of the way.
bripab007 is offline   Reply With Quote
Old 12-06-2006, 09:38 AM   #8
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

Yah, you're making too big a deal out of this. Get some appropriate sized heater hose (I think I used 3/8) and put them on. The one coming out of the pump won't be in the way of anything and the one coming off the distro-block will come straight up and then back to the turbo... won't interfere with the belt.

What do you have coming off the turbo... are you going to simply run barbs out of the CHRA or do you have some type of hard line on banjos? Those heater hoses really aren't designed to run at the temps they'll reach if you run brass barbs straight off the CHRA... buy extra hose as you'll be replacing them often... kinda messy.
samnavy is offline   Reply With Quote
Old 12-06-2006, 11:13 AM   #9
Junior Member

Join Date: Jul 2005
Location: Alexandria, VA
Posts: 125
Total Cats: 0
Default

thanks guys!
MiaTurbo is offline   Reply With Quote
Old 12-06-2006, 01:11 PM   #10
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

If you can, look at making some hardlines to come off the turbo 6-8" on each side should be enough. That will get your coolant lines far enough away from the turbo so that they won't be getting to hot on you. I would suggest aluminum or stainless hardline. You can get aluminum from anplumbing.com, i'm not sure where else you could pick it up. The tools to crimp and bent the stuff is available at advanced, autozone as a free rental with deposit. Those place do carry steel line but it's not stainless and not recommended.
cjernigan is offline   Reply With Quote
