Old 07-07-2015, 01:37 PM   #61
Elite Member
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,579
Total Cats: 155
Default

Quote:
Originally Posted by Vincentmiata View Post
I currently rocking a TD04L. 212whp and 302wtq

Journal bearing


Needs a lot more timing after 5000rpm, but i need to make new detcans for listening to knock. Also needs to be a little more rich.

I was so confused for a moment until I realized it was measuring in newton-meters instead of ft-lbs. That is 222 in freedom units for any of you other Americans.
Ryan_G is offline   Reply With Quote
Old 07-07-2015, 04:54 PM   #62
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,680
Total Cats: 1,561
Default Twinscroll worth it?

I was baffled by the dyno with no way to zoom in because mobile app.
sixshooter is online now   Reply With Quote
Old 07-07-2015, 06:54 PM   #63
Junior Member
Thread Starter

Join Date: Mar 2011
Location: Eindhoven, The netherlands
Posts: 170
Total Cats: 9
Default

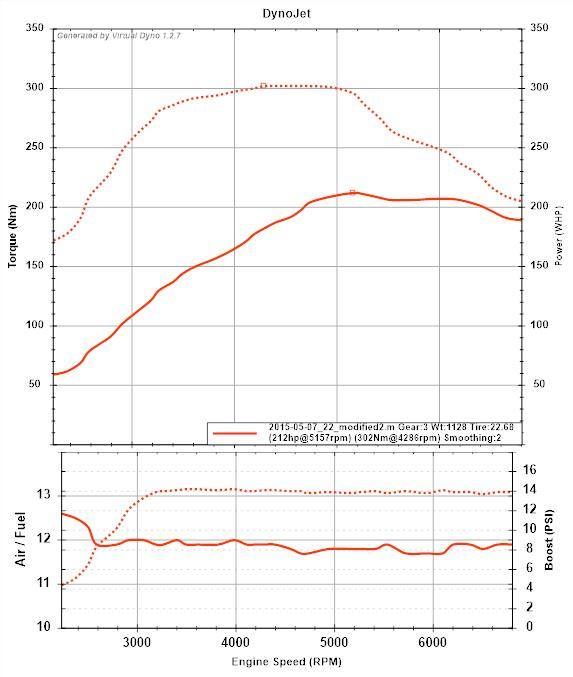

Yeah its in Newton Meters. But as you said its 222 freedoms at the wheels at 4286rpm, and [email protected]

Its a virtualdyno run, but al the runs i did over a few weeks where very similair.

But i want something with more power and better spool. altough the spool of this turbo is pretty good.
Vincentmiata is offline   Reply With Quote
Old 07-07-2015, 08:08 PM   #64
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

you're not gonna get much better spool than that even with a t25
more power? sure, tons of options, at the expense of spool

that's a solid street powerband, I'd enjoy it
18psi is offline   Reply With Quote
Old 07-07-2015, 10:44 PM   #65
Former Vendor

Join Date: Dec 2007
Location: Texas Hill Country
Posts: 271
Total Cats: 16
Default

Gee fellows, is it time for a 2560 for the low end fun, plus something else for top end?

It can't prove that difficult. Can it?

corky
Corky Bell is offline   Reply With Quote
Old 07-07-2015, 10:45 PM   #66
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by Corky Bell View Post
Gee fellows, is it time for a 2560 for the low end fun, plus something else for top end?

It can't prove that difficult. Can it?

corky
with variable turbine and compressor geometry you can have both...
Leafy is offline   Reply With Quote
Old 07-07-2015, 10:49 PM   #67
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

Quote:
Originally Posted by Corky Bell View Post
Gee fellows, is it time for a 2560 for the low end fun, plus something else for top end?

It can't prove that difficult. Can it?

corky
The answer to both questions is: Borgwarner EFR 6258
18psi is offline   Reply With Quote
Old 07-11-2015, 12:55 AM   #68
Former Vendor

Join Date: Dec 2007
Location: Texas Hill Country
Posts: 271
Total Cats: 16
Default

I've no experience with the Borg turbo, but hopefully that will end soon.

Strong doubts remain that it will prove much different.

corky
Corky Bell is offline   Reply With Quote
Old 07-11-2015, 01:08 AM   #69
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by Corky Bell View Post
I've no experience with the Borg turbo, but hopefully that will end soon.

Strong doubts remain that it will prove much different.

corky
Since that whole what happens in 5th gear thing was brought up like last page, my 6758 makes 2psi if you floor it in 5th at 45mph. That 5speed 4.10 gearing. Of course as always the bigger deal is that it drives like its just a bigger engine when you're over ~4k and into instaboost land. But its still no slouch below that. The EFR twin scroll housings are a bit odd, they seem to have sized them in an attempt to maintain the same boost threshold but flow better up top. which is different from how they're normally used.
Leafy is offline   Reply With Quote
Old 07-17-2015, 01:39 AM   #70
Former Vendor

Join Date: Dec 2007
Location: Texas Hill Country
Posts: 271
Total Cats: 16
Default

A 6278 & a 6758. 45 in 5th is about 2200? And offers 2 psi. The 2860 matches that pretty easy, and the 2560 typically hits 4 at 2000 revs.

A VATN Aerocharger could be adjusted to make 10 psi at 1000, but it was undriveable. Best setting seemed like about 4 to 5 psi at 2k was good, but it was reluctant to make 200 rwhp.

Perhaps a 2860 and a VATN.............. I think I'll pass.

corky
Corky Bell is offline   Reply With Quote
Old 07-17-2015, 01:47 AM   #71
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

I'm contemplating an he351. VGT holset. Can potentially be controlled with MS3. My buddy picked one up for $150. I think it might be sized a little big for a Miata. Pretty sure it has a hx35 exhaust housing.
aidandj is offline   Reply With Quote
Old 07-17-2015, 12:26 PM   #72
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,680
Total Cats: 1,561
Default

Quote:
Originally Posted by aidandj View Post
I'm contemplating an he351. VGT holset. Can potentially be controlled with MS3. My buddy picked one up for $150. I think it might be sized a little big for a Miata. Pretty sure it has a hx35 exhaust housing.
Try it for science. Someone here questioned once upon a time the long term reliability of the vatn in a gasoline application, iirc. Nobody here has tried it to my knowledge. These turbos are very common on machines I sell nowadays.
sixshooter is online now   Reply With Quote
Old 07-17-2015, 12:32 PM   #73
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

I was very impressed with that one guy with an aerocharger a while ago making 200tq by like 2k and response so fast it was ridiculous. But his power plumetted up top and IIRC that turbo was unreliable
18psi is offline   Reply With Quote
Old 07-17-2015, 12:37 PM   #74
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,367
Total Cats: 1,331
Default

I know of exactly one variable vane gasoline turbo application. The turbos are readily available...for ~$5200/ea
Savington is offline   Reply With Quote
Old 07-17-2015, 02:15 PM   #75
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Its a stupid heavy thing. At least 25 lbs. Will be interesting to see if I can build a manifold strong enough.
<br />I'm going to help him with running the vgt controller by megasquirt then search for my own. I've seen a dyno of a supra with his turbo. 20psi by like 2500rpm.
aidandj is offline   Reply With Quote
Old 07-17-2015, 02:18 PM   #76
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Biggest issue is they want to work at like 25+psi they aren't efficient below that. But I don't have a car that wants to work at 25+psi.
aidandj is offline   Reply With Quote
Old 07-17-2015, 02:29 PM   #77
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,680
Total Cats: 1,561
Default Twinscroll worth it?

Then it might be a poor choice? How many reasons does it take to become a bad idea?
sixshooter is online now   Reply With Quote
Old 07-17-2015, 02:47 PM   #78
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Since when does bad idea = not fun? I'm going to play with some cheap turbos, just need to build an engine first.
<br />HX-30 if first on my list. Followed by the he351.
aidandj is offline   Reply With Quote
Old 07-17-2015, 02:51 PM   #79
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

aidan - the new and improved faefae
18psi is offline   Reply With Quote
Old 07-17-2015, 02:54 PM   #80
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Not sure if compliment or insult...
aidandj is offline   Reply With Quote
