Old 11-30-2009, 03:52 PM   #41
Junior Member

Join Date: Dec 2007
Location: Santa Fe, TX
Posts: 95
Total Cats: 2
Default

Teflon tape somewhere (I mean ANYWHERE) in your oil plumbing? Maybe at the oil feed take-off from the block/pressure sender? A fly-spec of that crap will kill turbo bearings. - Just a guess, GL...
secretsquirrel is offline   Reply With Quote
Old 11-30-2009, 03:59 PM   #42
Junior Member
Thread Starter
iTrader: (4)

Join Date: Mar 2007
Location: Greece
Posts: 290
Total Cats: 4
Default

So where the heck is the oil going? I can't see any smoke from the exhaust and definetaly nothing is flowing from the return line. Not a signle drop!

The oil feed flows ideally with the restrictor. I test it over and over.

Quote:
Originally Posted by m2cupcar View Post
That would eliminate the restrictor if it flowed the same. What did the two failed turbos have in common? same oil? same drain?
same oil, same drain, a little larger restrictor.

Quote:
Originally Posted by jayc72 View Post
What's on the end of that oil line? Did you check flow through the restrictor? Look at the restrictor and see if there is damage or possibly an error with the machining ... does the hole go all the way through?
The restrictor is fine. you can see through clearly.
gianic is offline   Reply With Quote
Old 11-30-2009, 04:00 PM   #43
Junior Member
Thread Starter
iTrader: (4)

Join Date: Mar 2007
Location: Greece
Posts: 290
Total Cats: 4
Default

Quote:
Originally Posted by secretsquirrel View Post
Teflon tape somewhere (I mean ANYWHERE) in your oil plumbing? Maybe at the oil feed take-off from the block/pressure sender? A fly-spec of that crap will kill turbo bearings. - Just a guess, GL...
No teflon tape for me here.
gianic is offline   Reply With Quote
Old 11-30-2009, 04:01 PM   #44
Junior Member
Thread Starter
iTrader: (4)

Join Date: Mar 2007
Location: Greece
Posts: 290
Total Cats: 4
Default

Quote:
Originally Posted by ARTech View Post
He has the line looped though. Remember it's only gravity carrying the oil away. It's not going to make it's way up that loop.

Gianic, try it again with the bottle under the oil pan.
The line you see looped is the water line.
The oil return is straight down. If you draw an imagenery line from there it would make a perfect 90 degrees angle with the ground.
gianic is offline   Reply With Quote
Old 11-30-2009, 04:42 PM   #45
Senior Member
iTrader: (34)

ARTech's Avatar

Join Date: Mar 2009
Location: Dallas
Posts: 530
Total Cats: 9
Default

Ok, I see it now. If that's the case then yeah, there's blockage somewhere. Coked oil will clog up the passages but I don't see it happening in a matter of weeks. What does Garrett have to say about it?
ARTech is offline   Reply With Quote
Old 11-30-2009, 05:18 PM   #46
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

Take the return fitting off and have a look. Is it the same fitting from the first turbo that bit the dust?
jayc72 is offline   Reply With Quote
Old 12-01-2009, 09:02 AM   #47
Junior Member
iTrader: (1)

Join Date: Jan 2008
Posts: 161
Total Cats: 0
Default

Do you have a mechanical pressure gauge?

Wow, two turbos in 3 months, mmhh!

I do not think is the restrictor, I got a T3/T4 with a EGAY type restrictor and so far works very well on a "CHINA" turbo. Anyway see if you can take it to a hydraulic shop so they can test the braided line, those "braided" lines are made out of some hard white plastic on the inside, I have seen under very extreme heat (especially if the touch the turbo manifold) they buckle/collapse preventing oil from getting into the turbo.

Let us know how it goes, turbo projects every now and then shows its gremlins, best of luck!

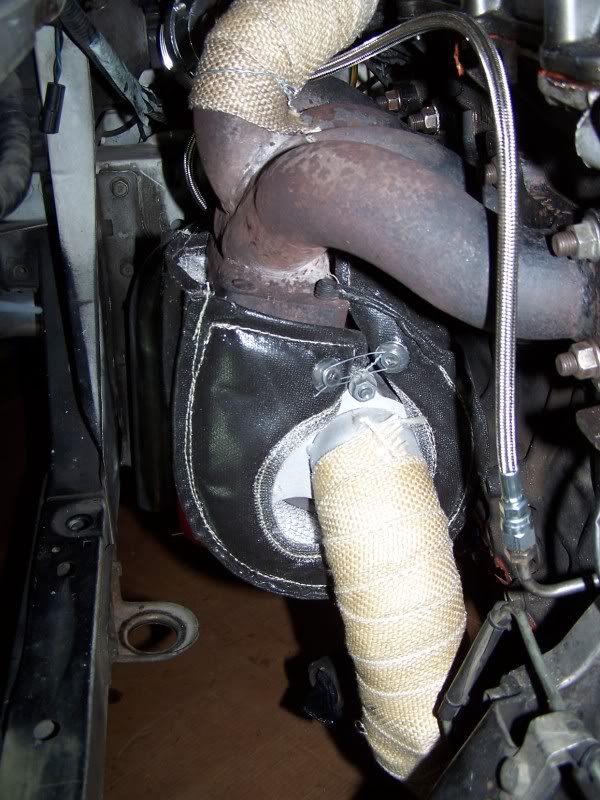

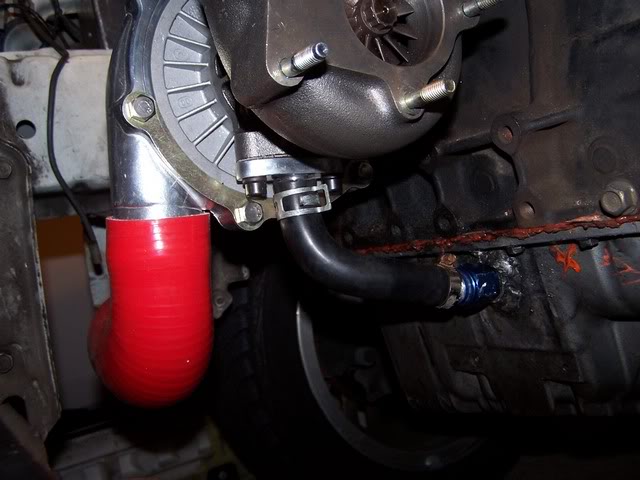

Name:  OilLinem.jpg
Views: 1
Size:  49.5 KB

Name:  101_0077.jpg
Views: 1
Size:  98.5 KB

Name:  OFeed2.jpg
Views: 1
Size:  57.4 KB

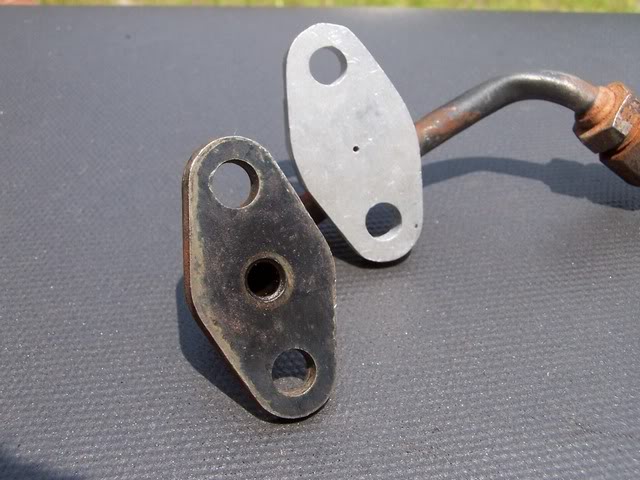

Two different oil feed lines:

The left oil feed line (unrestricted) is from an RX7 Turbo II

The one on the right (silver) is the one I use, our cars deliver 40 + psi under hard acceleration. The fitting is meant to restrict to 15 psi (if I recall well).

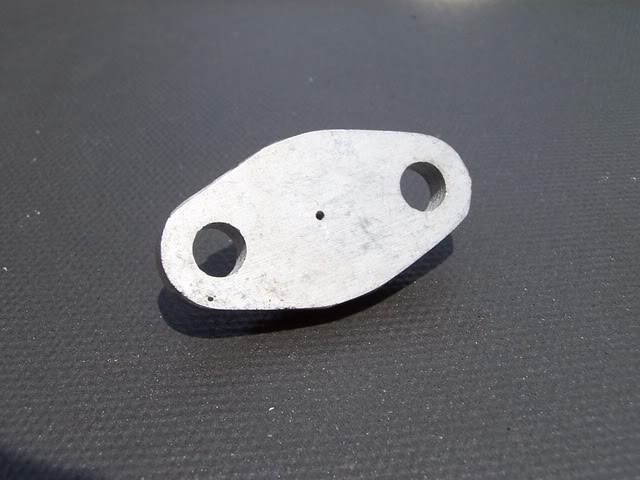

Name:  OFeed1.jpg
Views: 1
Size:  46.1 KB
A closer look to the one I currently have installed, bought from EGAY on a china turbo.

It is not the same car, Mazda Protege, it uses the same engine 1.8 DOHC, also the orientation is transverse instead of inline with the chassis.

Last edited by psiturbo; 12-01-2009 at 09:35 AM. Reason: JDMPOWELOL
psiturbo is offline   Reply With Quote
Old 12-01-2009, 09:15 AM   #48
Elite Member
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

Don't ignore the signs, someone is trying to tell you to forget about turbos...
NA6C-Guy is offline   Reply With Quote
Old 12-01-2009, 09:44 AM   #49
Senior Member
iTrader: (3)

Join Date: Jul 2005
Location: Connect-I-Cut
Posts: 1,431
Total Cats: 0
Default

It has to be either the banjo bolt or the restrictor that it's clogged. I would Aldo check if the whole on the side of the banjo bolt lines up with the oil feed line. I know there's different banjo bolts with different side hole locations and lenghts. And you may want to consider getting rid off banjo bolts period. That's what I did on my turbo
miataspeed2005 is offline   Reply With Quote
Old 12-01-2009, 10:35 AM   #50
Junior Member
Thread Starter
iTrader: (4)

Join Date: Mar 2007
Location: Greece
Posts: 290
Total Cats: 4
Default

Quote:
Originally Posted by NA6C-Guy View Post
Don't ignore the signs, someone is trying to tell you to forget about turbos...
If I find him I'll put my broken chra in his butthole....





....without lubricant


Psiturbo I'm going to measure the pressure of the oil feed at idle. Good idea.

The restrictor and the banjo bolt are not clogged. Oil flows normally through them. I will get rid of them as soon as the new turbo arrives.
But I dont think that this is the problem..
gianic is offline   Reply With Quote
Old 12-01-2009, 01:02 PM   #51
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,654
Total Cats: 1,559
Default

Banjo bolts are not the problem. Factory turbos have them. Aftermarket turbos have them. Most automotive brakes have them. There is nothing inherently wrong with them.

You obviously have some other oiling problem.

I will agree with what was posted previously that taking the wastegate signal from the intake manifold is a problem and must be changed. It may or may not have contributed to the failure, but needs to be changed. The wastegate signal must be taken before the throttle body and preferably after the intercooler.

If the wastegate signal is taken from the intake manifold then at part throttle the turbo is making nearly unlimited amounts of pressure and heat on the compressor side and also severely restricting exhaust flow. If the compressor is seeing no relief from the pressure then it will be fighting with the turbine which will be creating pounds and pounds of superheated backpressure for the exhaust manifold and turbine. Without a pressure reference in front of the throttle, nothing will tell the wastegate to stop making pressure.
sixshooter is online now   Reply With Quote
Old 12-01-2009, 01:17 PM   #52
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

Quote:
Originally Posted by sixshooter View Post
If the wastegate signal is taken from the intake manifold then at part throttle the turbo is making nearly unlimited amounts of pressure and heat on the compressor side and also severely restricting exhaust flow. If the compressor is seeing no relief from the pressure then it will be fighting with the turbine which will be creating pounds and pounds of superheated backpressure for the exhaust manifold and turbine. Without a pressure reference in front of the throttle, nothing will tell the wastegate to stop making pressure.
I just noticed as well from the picture he posted that his turbo has a vacuum reference on it for the wastegate. Use that!!

I would disconnect all the lines to the turbo (feed and drain), plus all the fittings. Give it a visual inspection and see if there is anything in there that has clogged it. Then I would get some oil and just dump it in the top hole, and see if it falls out the bottom.
dustinb is offline   Reply With Quote
Old 12-01-2009, 01:30 PM   #53
Junior Member
Thread Starter
iTrader: (4)

Join Date: Mar 2007
Location: Greece
Posts: 290
Total Cats: 4
Default

Quote:
Originally Posted by dustinb View Post
I just noticed as well from the picture he posted that his turbo has a vacuum reference on it for the wastegate. Use that!!

I would disconnect all the lines to the turbo (feed and drain), plus all the fittings. Give it a visual inspection and see if there is anything in there that has clogged it. Then I would get some oil and just dump it in the top hole, and see if it falls out the bottom.
Τhat was the 2560r. 2871 didnt have that port.


Sixshooter I like your explanation very much, and I'm sure the destruction came in part throttle.
But as I mentioned above, with the 2560 I had the boost signal from the compressor housing so that wasnt the problem on the first failure.
gianic is offline   Reply With Quote
Old 12-01-2009, 01:37 PM   #54
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

Quote:
Originally Posted by gianic View Post
Τhat was the 2560r. 2871 didnt have that port.


Sixshooter I like your explanation very much, and I'm sure the destruction came in part throttle.
But as I mentioned above, with the 2560 I had the boost signal from the compressor housing so that wasnt the problem on the first failure.
Has to be an oil issue then, if you had same thing happen to two turbo's, and were using the right boost reference on one of them.
dustinb is offline   Reply With Quote
Old 12-01-2009, 05:57 PM   #55
Former Vendor

Join Date: Jun 2006
Location: Bell Tuning & Performance
Posts: 1,338
Total Cats: -78
Default

If you send the turbo to ATP they can evaluate it and (9 times out of 10) tell you what caused the failure. Just cause I am paranoid, when we switch out a broken turbo for a new one, we always do new a oil supply and oil drain line. And possible new coolant lines, depending upon the reason for the failure.
Stephanie
Stephanie Turner is offline   Reply With Quote
Old 12-09-2009, 08:13 PM   #56
Elite Member
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

Quote:
Originally Posted by psiturbo View Post
Anyway see if you can take it to a hydraulic shop so they can test the braided line, those "braided" lines are made out of some hard white plastic on the inside, I have seen under very extreme heat (especially if the touch the turbo manifold) they buckle/collapse preventing oil from getting into the turbo.
The white material is Teflon. The braided stainless steel is to give it protection from abrasion and help with preventing swelling of the tubing. But yes, under extreme heating conditions, Teflon tubing will "pinch" closed and restrict or stop flow. Try pouring some oil through the tube directly and see if it flows through at a steady rate. Could give you another idea... Just a thought.

Last edited by thagr81 us; 12-10-2009 at 04:31 PM.
thagr81 us is offline   Reply With Quote
Old 02-28-2010, 07:41 AM   #57
Junior Member
Thread Starter
iTrader: (4)

Join Date: Mar 2007
Location: Greece
Posts: 290
Total Cats: 4
Default

Got my new turbo from atp and I mounted my egt sensor near the collector. (before it was on the dp) They didn't mention the fault.

The readings from the egt sensor were scary. 1796f peak temp. I think this is the problem because I'm quiet sure I read somewhere that the ball bearing temp limit is 1700f.
gianic is offline   Reply With Quote
Old 02-28-2010, 10:34 AM   #58
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

I think you need find out what ATP says about the EGTs for that turbo. A turbo engineer recently posted that modern gas OE turbos run operating egts from 950-1050c depending on the turbo/application. Post here.
m2cupcar is offline   Reply With Quote
Old 02-28-2010, 01:09 PM   #59
Junior Member
iTrader: (6)

Join Date: Mar 2009
Location: Los Gatos, CA
Posts: 120
Total Cats: 0
Default

Quote:
Originally Posted by Savington View Post
My bet is that because you've got the boost controller hooked into the intake manifold, it's overspinning the everliving **** out of the turbo and causing your failures.
+1

and I'm guessing if you couple this with marginal oiling, rapid failure would ensue.

Good read:
https://www.miataturbo.net/forum/t32479-2/
Slayer is offline   Reply With Quote
