Old 09-23-2006, 02:05 PM   #21
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2006
Location: Tucson "it's 110" Arizona
Posts: 1,017
Total Cats: 0
Default

Quote:
Originally Posted by Dange View Post
well i have the ebay square to round maf adapter if you would like to see if you want one just let me know im more than willing to do what i can to help. i also know the owners of a couple shops here in town and in phoenix i can probably get you some black couplers if i call around. that and some cheap dynotime if interested.
im also doing a DIY settup but with a 16g on a 1.6.
i was wondering if i could get a ride sometime, ive ridden in geoffs 300hp ubercharged miata, but i want to feel the different powerband. I think I would enjoy turbo boost better

plus it will probably get me motivated quicker to finish mine


btw pm'ed you my phone number and e-mail
Hey what's up man? Thanks for the offers! I'm going to see if I can make this maf adapter work before I try something else. Where is the dyno? I'm interested in that for sure. I might get some numbers with the stock maf and 1.6 injectors, then again with the rx-7 maf and 1.8s, that would be sweet.

Once this thing is on the road, I'll defintely give you a call. The 16G setup should rock nicely (small, big, evo3??).

Thanks again man, I'll let you know.
UofACATS is offline   Reply With Quote
Old 09-23-2006, 02:07 PM   #22
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2006
Location: Tucson "it's 110" Arizona
Posts: 1,017
Total Cats: 0
Default

Quote:
Originally Posted by magnamx-5 View Post
i like the filter setup. How are you going to keep water out of it
:( though? I didnt know they made a megan racing for the 1.8 hmm.
Heh, yeah it's debatable at the moment. 1.6!
UofACATS is offline   Reply With Quote
Old 09-23-2006, 06:05 PM   #23
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2006
Location: Tucson "it's 110" Arizona
Posts: 1,017
Total Cats: 0
Default

Quote:
Originally Posted by Snowsurfer03 View Post


I LOVE THAT I/C SET-UP!

Good luck with the rest of the set-up.
UofACATS is offline   Reply With Quote
Old 09-23-2006, 06:23 PM   #24
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2006
Location: Tucson "it's 110" Arizona
Posts: 1,017
Total Cats: 0
Default Radiator pics

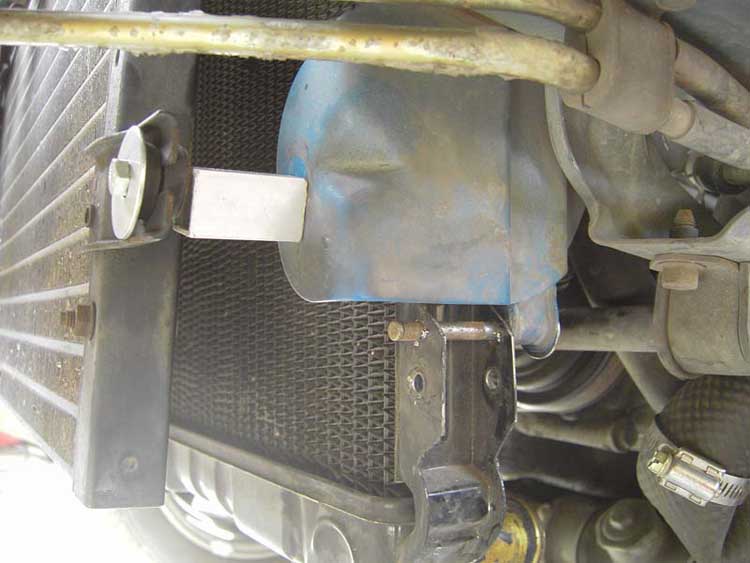

Here are the resized pictures for FMIC fitment.


(pic1)
I dropped the radiator the amount you can see.

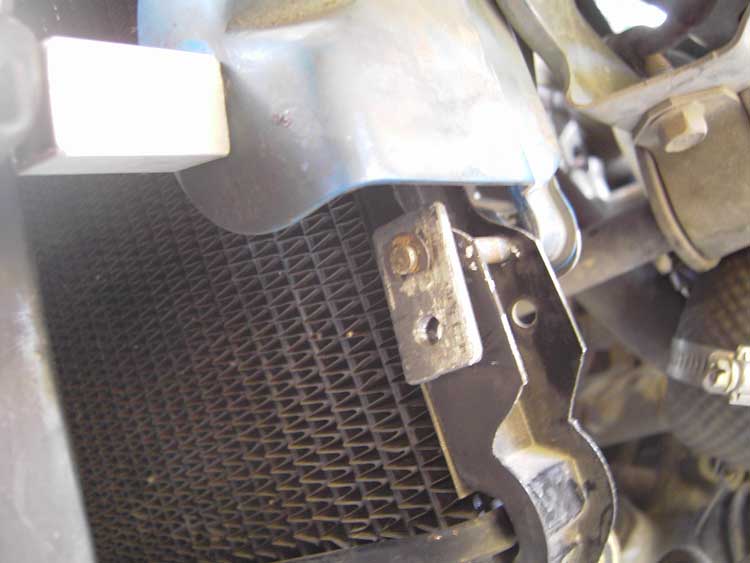

I moved the AC core with the aluminum spacers. The Starion falls right in!

(pic2)
I made some braces for the radiator support for ease of mind, since the support seemed compromised by the lowering. (not much metal left there)

Note: in the pic, the support is on the wrong side for fitment testing. It's on the other side now, distributing the load between the two holes

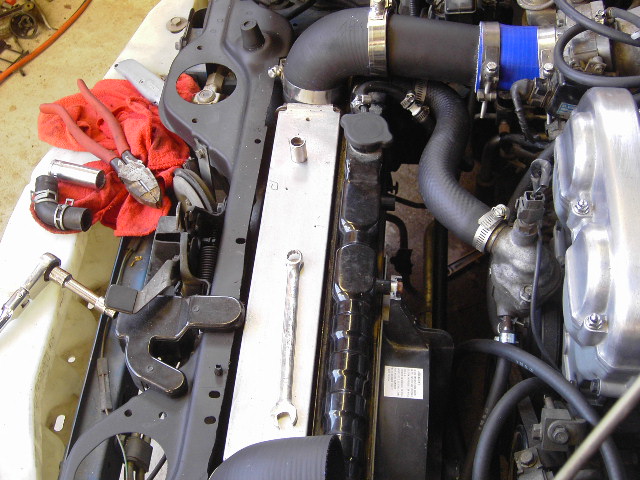

EDIT: (pic3) Check the radiator repositioning.
Attached Thumbnails
UofACATS DIY Turbo Kit-aaradacpic.jpg   UofACATS DIY Turbo Kit-bbmiata.jpg   UofACATS DIY Turbo Kit-pict0153.jpg

Last edited by UofACATS; 09-26-2006 at 01:05 PM.
UofACATS is offline   Reply With Quote
Old 09-23-2006, 07:19 PM   #25
Senior Member
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

How about just taking the AFM off completely? -MAP-
lazzer408 is offline   Reply With Quote
Old 09-23-2006, 07:38 PM   #26
Junior Member

Join Date: Aug 2006
Location: Colorado Springs, Co
Posts: 81
Total Cats: -1
Default

well its going to be a 16g from an 03 evo 8 (my friend is upgrading turbos)

it is looking great, the dyno is at ia performance, its an awd mustang chassis dyno and the guys there do great work tune with the wideband whatever you need the other thing is the company that helps me out is vivid racing and they can probably get you your couplers

now why did you pick the starion intercooler i was looking at a 26x7x2.5 with a 19in wide core would that not fit? or would you suggest something else? i kinda played with the idea of a near free evo intercooler or a starion or saab 900 but for the slight price increase i though the new one may look better in the mouth being its almost the right size
Dange is offline   Reply With Quote
Old 09-23-2006, 08:28 PM   #27
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

Quote:
Originally Posted by UofACATS View Post
Thanks, Braineack. For the most part I'm pleased with how it's looking. So, a no-go on flipping it huh? I think I can get it to work without..

damnit no again my bad. yes i'm flipped. yes it works. no it doesnt matter. i noticed it does change the tension a little bit.
Braineack is offline   Reply With Quote
Old 09-23-2006, 08:46 PM   #28
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2006
Location: Tucson "it's 110" Arizona
Posts: 1,017
Total Cats: 0
Default

Quote:
Originally Posted by Dange View Post
well its going to be a 16g from an 03 evo 8 (my friend is upgrading turbos)

it is looking great, the dyno is at ia performance, its an awd mustang chassis dyno and the guys there do great work tune with the wideband whatever you need the other thing is the company that helps me out is vivid racing and they can probably get you your couplers

now why did you pick the starion intercooler i was looking at a 26x7x2.5 with a 19in wide core would that not fit? or would you suggest something else? i kinda played with the idea of a near free evo intercooler or a starion or saab 900 but for the slight price increase i though the new one may look better in the mouth being its almost the right size
Sweet! I hear nothing but good from IA. I'd prefer mustang numbers even if they don't let you brag quite as much.

Starion I picked because lots of people run it, I heard the 14-row wasn't horrible and I got it for 55 shipped (main reason). I'm sure it's not what we would all call efficient, but it's not garbage either. We'll just have to see what it can do.

The Evo I/C is just too freaking huge. It can be done however, one member here has it installed. I think there are better choices unless you're handy with a welder. There are some good FMIC setups here if you check around. I'd pick up a new one if I were to start over, and I'll replace it eventually.

I'll probably sell it for 55 too

The best advice I have is to start with the manifold / downpipe, then build accordingly.
UofACATS is offline   Reply With Quote
Old 09-23-2006, 08:51 PM   #29
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2006
Location: Tucson "it's 110" Arizona
Posts: 1,017
Total Cats: 0
Default

Quote:
Originally Posted by braineack View Post
damnit no again my bad. yes i'm flipped. yes it works. no it doesnt matter. i noticed it does change the tension a little bit.
Damnit! make up your mind!

Ha. Well hot damn, that helps me out.

Thanks for all your help

That sucka's gettin flipped (soon as the LM-1 is hooked to see any changes)

Last edited by UofACATS; 09-26-2006 at 03:14 PM.
UofACATS is offline   Reply With Quote
Old 09-23-2006, 10:00 PM   #30
Junior Member

Join Date: Aug 2006
Location: Colorado Springs, Co
Posts: 81
Total Cats: -1
Default

id like to stop by and see in person how the ic is mounted, i was looking under my hood today and i know i have room for the i/c but have no idea how im going to route my pipes esp with two side outlets,course i didnt stay around too long because i started my car to back it out some and the mosquitos decided to attack... im thinking im going to need quite a few bends whereas the starion has both outlets facing up and at the top. i already have the megan racing manifold picked out and having my friend ad soem braces so it wont crack,

well i decided i love boost, driving around a modded sti all last night... the owner drove my car and said he loves it and i quote "as soon as you get turboed this thing is going to be a tracks wet dream"

IA is great i can be found there bs'ing with them on a weekly basis, well it also helps that i know all the employees its probably around 50 for a good baseline 3 pull with wideband im not sure ill call up gabe and find out for ya
Dange is offline   Reply With Quote
Old 09-25-2006, 01:03 AM   #31
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2006
Location: Tucson "it's 110" Arizona
Posts: 1,017
Total Cats: 0
Default

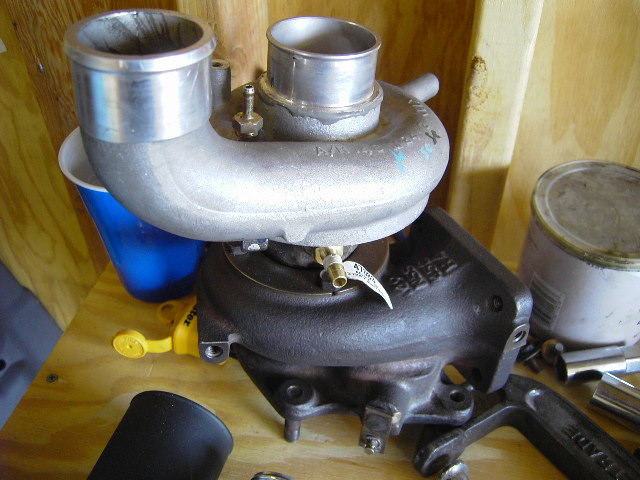

Forced Performance Big T28 turbo (DSM flange)

This is the turbo I'm trying first. I also have a T25 on the shelf if I want to switch. For info on the turbo, check it out at Forced Performance:

http://linux.forcedperformance.net/m...Code=DSM-Turbo

It flows around 36 lbs/min if I'm not mistaken, not that i'll be close to half that. This turbo takes a stock dsm turbo and modifys it to accept larger turbine and compresser wheels. I do have side by side pictures next to a stock dsm turbo, which I can post here if I can find them somewhere. It's ported to 7cm by FP.

Another turbo pic in vBGarage.

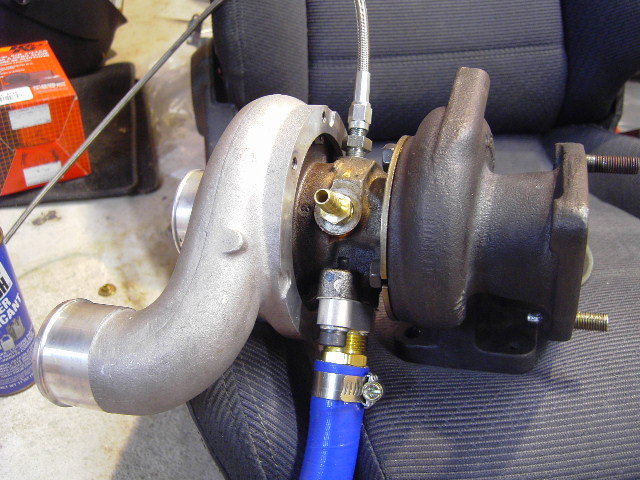

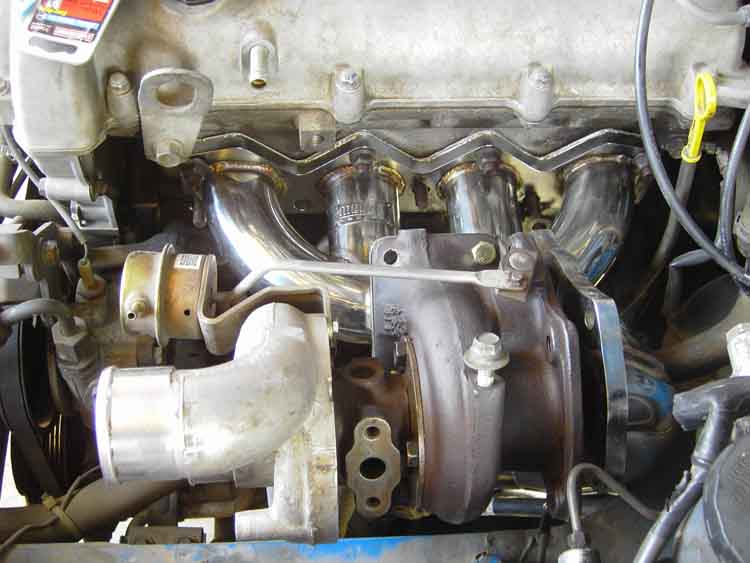

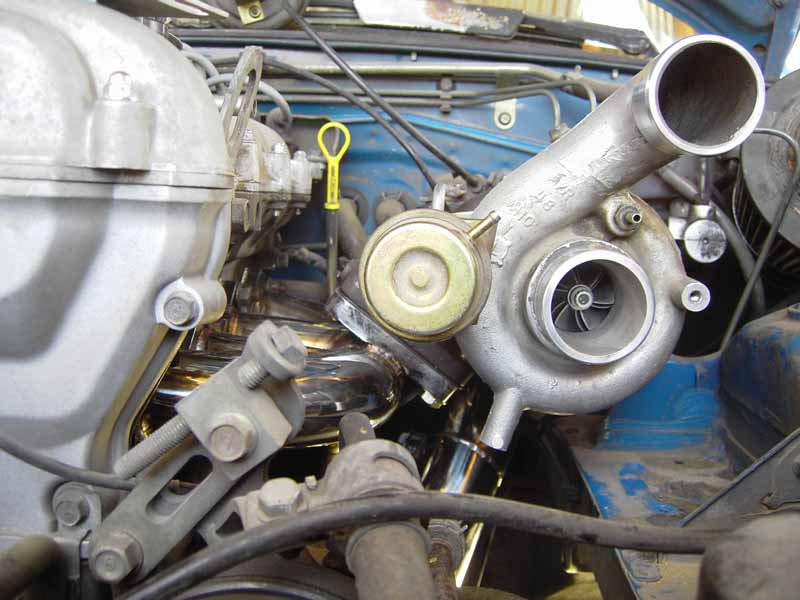

EDIT: added some pics of the turbo placement. I clocked both the center section as well as the compresser housing.
Attached Thumbnails
UofACATS DIY Turbo Kit-pict0143.jpg   UofACATS DIY Turbo Kit-pict0218.jpg   UofACATS DIY Turbo Kit-miatamani2.jpg   UofACATS DIY Turbo Kit-miataturboplacement2.jpg

Last edited by UofACATS; 09-26-2006 at 01:01 PM. Reason: EDIT:
UofACATS is offline   Reply With Quote
Old 09-25-2006, 01:58 AM   #32
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2006
Location: Tucson "it's 110" Arizona
Posts: 1,017
Total Cats: 0
Default

Megan Racing stainless manifold and 2.5" downpipe

Ah, the Megan pieces. Here we go. I'll post with regard to reliability as soon as I have something to say.

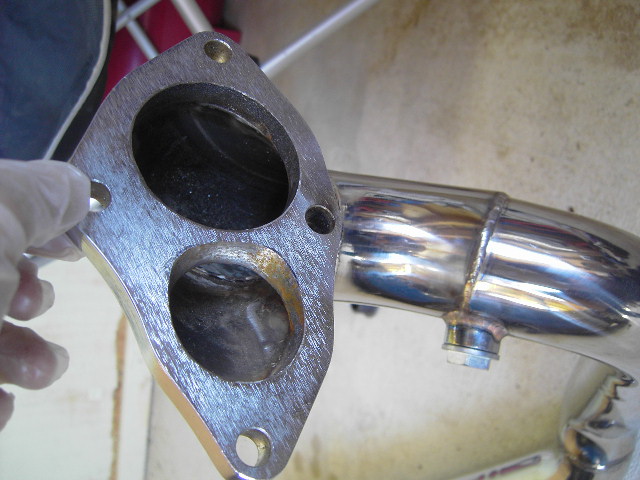

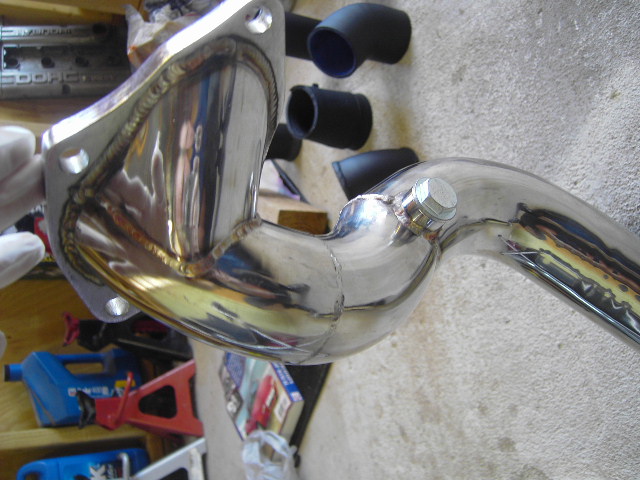

First, the downpipe looks half decent, not good, not great, but decent. The o2 bung is poorly placed, but it works and fits ok. They angled the flange to match up with the stock exhausts, but the downpipe is too short anyway and I cut the angle off. I'm sure the wastegate re-introduce is disrupting flow somewhat. It looks to be designed with space and simplicity in mind rather than flow.

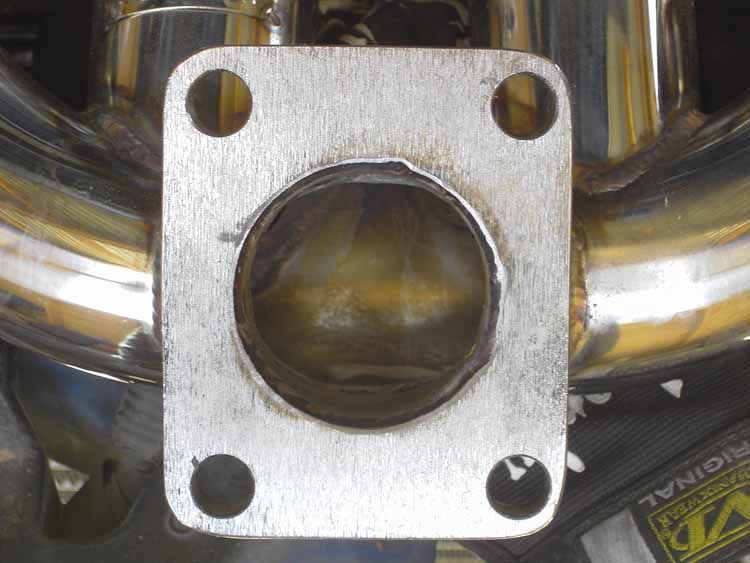

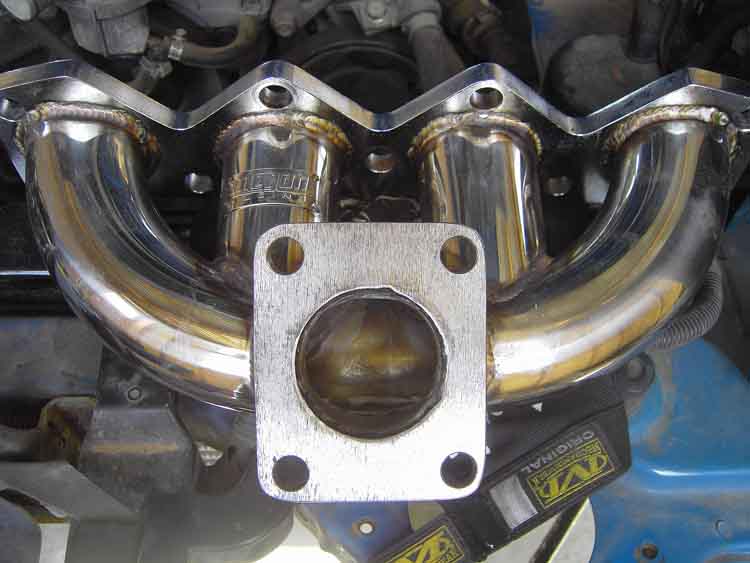

Next, the manifold. What can I say, I'm not sure how long it will last. There is plenty of hearsey and a few have had theirs crack. I'm bracing mine in a way yet to be determined. Open to suggestions. If you see a cool brace idea out there, be sure to send it my way.

The turbo flange was a little irregular, but I had to port it to match my turbo anyway, so it was a non-issue. The runners are a little too thin IMO. The gaskets are a joke, they are there so this can be a "kit," and little else. You can see here the placement of the turbo on the outside corner of the manifold, which only adds to the stress it sees.
Attached Thumbnails
UofACATS DIY Turbo Kit-pict0069.jpg   UofACATS DIY Turbo Kit-pict0070.jpg   UofACATS DIY Turbo Kit-miatamani.jpg   UofACATS DIY Turbo Kit-miatamani2.jpg   UofACATS DIY Turbo Kit-miatamani3.jpg

UofACATS is offline   Reply With Quote
Old 09-26-2006, 12:56 PM   #33
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2006
Location: Tucson "it's 110" Arizona
Posts: 1,017
Total Cats: 0
Default

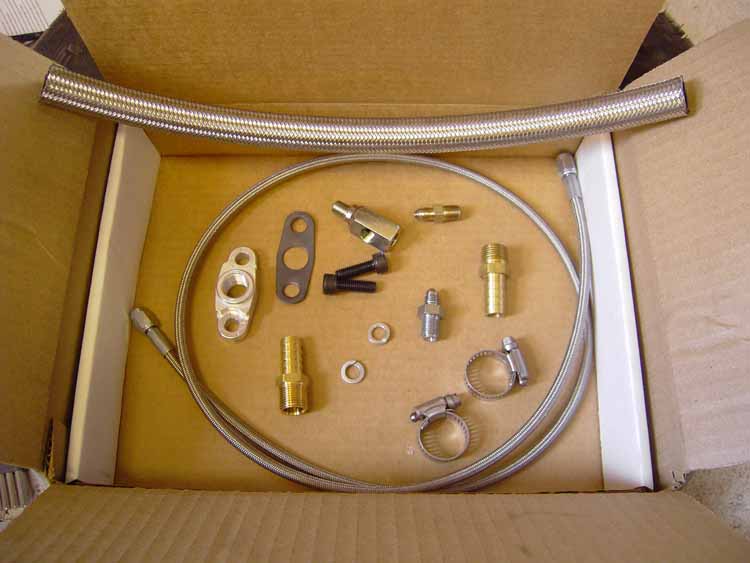

Tuner Toys braided oil feed line and adapter

I have no factory oil feed port, so I had to buy this kit. FYI, the line is 48" and it's a good 6" too long.

The braided drain is a bad joke. It's too short and worthless. Although it must be said that this kit is non-Miata specific, I still think the drain sucks.
Attached Thumbnails
UofACATS DIY Turbo Kit-miataoilkit.jpg
UofACATS is offline   Reply With Quote
Old 09-26-2006, 01:37 PM   #34
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

how long is it? you need at least 18" You could do something like Tom (BrgRacer) did and use a 1/2" threaded pipe in the turbo bung. Just cut it to length and clamp the steel line to that.

Braineack is offline   Reply With Quote
Old 09-26-2006, 02:20 PM   #35
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2006
Location: Tucson "it's 110" Arizona
Posts: 1,017
Total Cats: 0
Default

Quote:
Originally Posted by braineack View Post
how long is it? you need at least 18" You could do something like Tom (BrgRacer) did and use a 1/2" threaded pipe in the turbo bung. Just cut it to length and clamp the steel line to that.
Thats a damn-fine idea. I think the hose is 18", but I can't remember where I threw it.

Mine, I have this: "Basic Turbo Drain Line Kit" 10AN Silcone oil hose. 24" length t25/t28.

Found here: http://www.jgstools.com/turbo/index2.html

It's a nice piece, very thick walled. I ended up cutting off about 4" to fit.
UofACATS is offline   Reply With Quote
Old 09-27-2006, 02:23 PM   #36
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

Did you call Corky about couplers yet? He has the prices on the web:

http://www.bellengineering.net/Pages/products_hose.html
Braineack is offline   Reply With Quote
Old 09-27-2006, 02:57 PM   #37
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,240
Total Cats: 290
Default

hmmm... zip ties holding on heat shield cloth?
m2cupcar is offline   Reply With Quote
Old 09-27-2006, 03:05 PM   #38
Senior Member
iTrader: (14)

brgracer's Avatar

Join Date: Nov 2004
Location: Ambler, PA
Posts: 1,275
Total Cats: 1
Default

Quote:
Originally Posted by m2cupcar View Post
hmmm... zip ties holding on heat shield cloth?
Guilty as charged! The drain hose is now far enough away from the manifold that it doesn't get brittle anymore, but I wrapped it with heat shield and didn't have any stainless steel zip ties around so just went with the plastic ones for now. Not pretty but it works. I'll get around to putting stainless zip ties on one day.
brgracer is offline   Reply With Quote
Old 09-27-2006, 04:56 PM   #39
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,240
Total Cats: 290
Default

I thought you were going to reveal some kind of speed secret to keep plastic from metling. Is there really such thing as stainless zip ties?
m2cupcar is offline   Reply With Quote
Old 09-27-2006, 05:30 PM   #40
Senior Member

Join Date: Apr 2005
Location: NAS Oceana/VA
Posts: 759
Total Cats: 0
Default

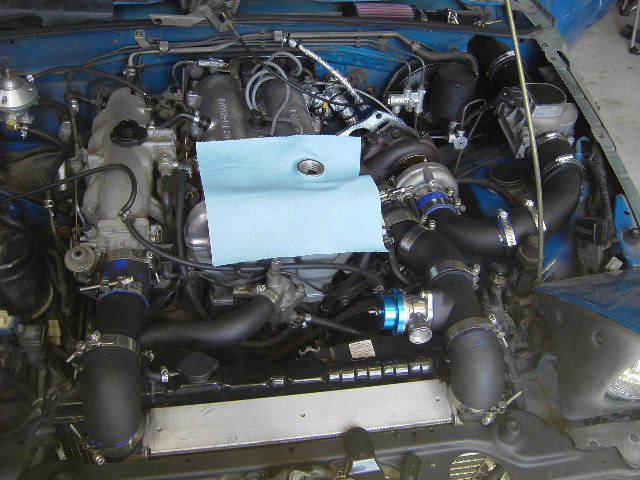

How come I see miata people place there bov on the hot side of there intercooler piping? Everything I have ever read, learned, or see the bov is ALWAYS on the cold side?
Attached Thumbnails
UofACATS DIY Turbo Kit-pict0320.jpg
getsidewaysd1 is offline   Reply With Quote
