Default Update on ongoing 1.6 t3/t4 Pics

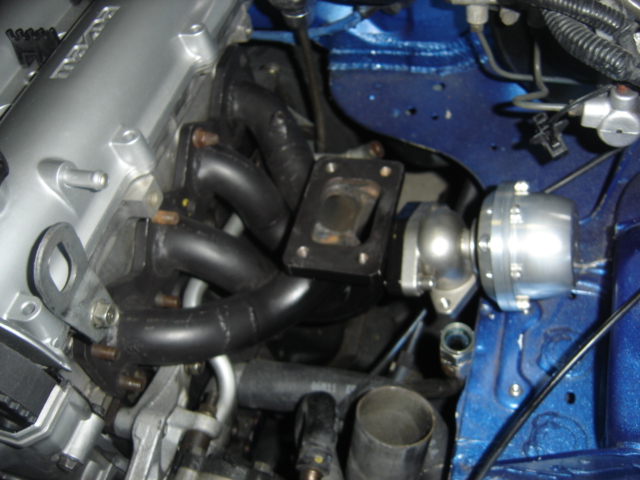

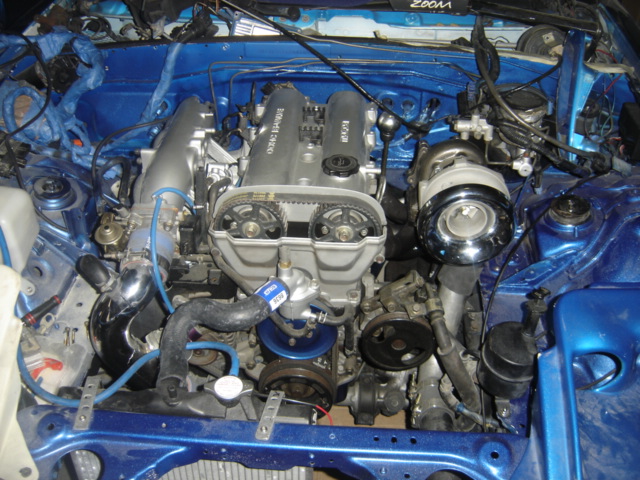

well here are the latest Pictures taken today (06/27/07). Next is the Downpipe and then starting the car. And I will be using a filter, so dont ask. Notice the wastegate placement, I talked about this in a previous thread.
Attached Thumbnails
Update on ongoing 1.6 t3/t4 Pics-wastegate-mockup.jpg   Update on ongoing 1.6 t3/t4 Pics-turbo-mockup.jpg
hazimwood is offline   Reply With Quote
Old 06-28-2007, 02:47 AM   #2
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Who made the mani?
cjernigan is offline   Reply With Quote
Old 06-28-2007, 08:12 AM   #3
Newb
Thread Starter

Join Date: Dec 2005
Location: Miami, fl
Posts: 31
Total Cats: 0
Default

I bought the manifold used a few years ago and had a friend install the wastegate flange recently.
hazimwood is offline   Reply With Quote
Old 06-28-2007, 10:44 AM   #4
Senior Member

Join Date: Apr 2005
Location: NAS Oceana/VA
Posts: 759
Total Cats: 0
Default

Did you have to do anything special to remove all the bull **** stuff on the passanger side of the engine bay?

turbo20mockup.jpg?t=1183038222
getsidewaysd1 is offline   Reply With Quote
Old 06-28-2007, 10:53 AM   #5
Junior Member

Join Date: Mar 2007
Posts: 93
Total Cats: 0
Default

[QUOTE=getsidewaysd1;126972]Did you have to do anything special to remove all the bull **** stuff on the passanger side of the engine bay?

+1

I would love to get all of that stuff out of the passenger side of mine. Have been trying to get some advice on that for a while!!
s10383 is offline   Reply With Quote
Old 06-28-2007, 07:03 PM   #6
Newb
Thread Starter

Join Date: Dec 2005
Location: Miami, fl
Posts: 31
Total Cats: 0
Default

ITs under construction, these are mockup pictures. All that bullshit still goes there.
hazimwood is offline   Reply With Quote
Old 06-28-2007, 10:50 PM   #7
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Lexington, SC
Posts: 2,084
Total Cats: 0
Default

all of that stuff is emissions crap right? if so then it will be removed along with my cat..
mazda/nissan is offline   Reply With Quote
Old 06-28-2007, 11:27 PM   #8
Senior Member
iTrader: (3)

Join Date: Apr 2006
Location: Northern Michigan
Posts: 898
Total Cats: 0
Default

Quote:
Originally Posted by mazda/nissan View Post
all of that stuff is emissions crap right? if so then it will be removed along with my cat..
Rebel.

Up here, I am pretty sure the dealership just takes that **** off when you take delivery.

I have all my Emissions stuff on, but it sure made a difference (power wise) on my RX-7s.
rotaryjunky is offline   Reply With Quote
Old 06-28-2007, 11:28 PM   #9
Senior Member
iTrader: (3)

Join Date: Apr 2006
Location: Northern Michigan
Posts: 898
Total Cats: 0
Default

Get a well built air cleaner. That sucker looks ready to eat an arm.
rotaryjunky is offline   Reply With Quote
Old 06-29-2007, 10:37 AM   #10
Senior Member

Join Date: Apr 2005
Location: NAS Oceana/VA
Posts: 759
Total Cats: 0
Default

Really. So you can just rip all that **** out and nothing will happen?
getsidewaysd1 is offline   Reply With Quote
Old 06-29-2007, 10:47 AM   #11
Newb
iTrader: (1)

Join Date: Jun 2007
Posts: 28
Total Cats: 0
Default

HAHA I love the MS paint diagram
Minglor86 is offline   Reply With Quote
Old 06-29-2007, 12:12 PM   #12
Newb
Thread Starter

Join Date: Dec 2005
Location: Miami, fl
Posts: 31
Total Cats: 0
Default

Are you guys on crack? The only emmisions thing over there is the Vapor Canister. The Major thing on that side is the bracket for windshield washer bottle/fusebox.

Concerning the Velocity stack, It wont be an everyday thing unless I can find a proper sock for it. I've got a cone filter on a short pipe planned for it.

Now thw hard part is the tight radius Downpipe. BTW, be on the lookout for a Racing Mazda Greddy turbo Downpipe hitting Ebay later on Today!.
hazimwood is offline   Reply With Quote
Old 06-29-2007, 12:28 PM   #13
Junior Member
iTrader: (-1)

Join Date: Aug 2006
Location: NJ
Posts: 148
Total Cats: 0
Default

[HiJack Thread]
Just out of curiosity, what hood do you have in the miata as your avatar? Looks like the Seibon hood for RX7's
[/HiJack Thread]

Nice progress!
SOL General is offline   Reply With Quote
