Anybody care to post up some data/charts of the intake air temps for comparisons? Here's my latest from last week. Started at just above ambient ~32c in second gear, rising to ~58c in fifth gear at 6000rpm.
m2cupcar is offline   Reply With Quote
Old 06-17-2007, 11:58 PM   #2
Elite Member
iTrader: (1)

Join Date: Jun 2005
Location: Charleston, SC
Posts: 2,980
Total Cats: 14
Default

This may not be exactly what you want but it is all I can do right now (I'm at work). This is on a SC'd system. The air temp is the blue line going from 30 to 50 degrees C.

rmcelwee is offline   Reply With Quote
Old 06-18-2007, 12:05 AM   #3
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Here are 2:

The first is my final pull on the dyno, 4th gear pull
IAT is 74F at the beginning of the pull. However I poured some cold water on the intake mani and intercooler before the pull. It was mid 80s in the shop. The hottest spike at the end is 110F.




This second one is taken from a street run and is 1,2,3
Looks like I started at 2100 rpm and 96F. IAT was 106F getting into 2nd, 112F getting into 3rd, and 140F at the end of 3rd. Can you say heat soak?



Ben is offline   Reply With Quote
Old 06-18-2007, 12:09 AM   #4
Elite Member
Thread Starter
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

Just the rise is evident enough to suspect my IC is struggling to manage the demand. I just checked Stripes log (below) posted a while back and he's getting ~4c rise in temp on a full throttle boost pull from 4-7k.

Ben- your street run isn't to dissimilar to my street log. Does the MS compensate (retard IGN) for AIT increase?
Attached Thumbnails

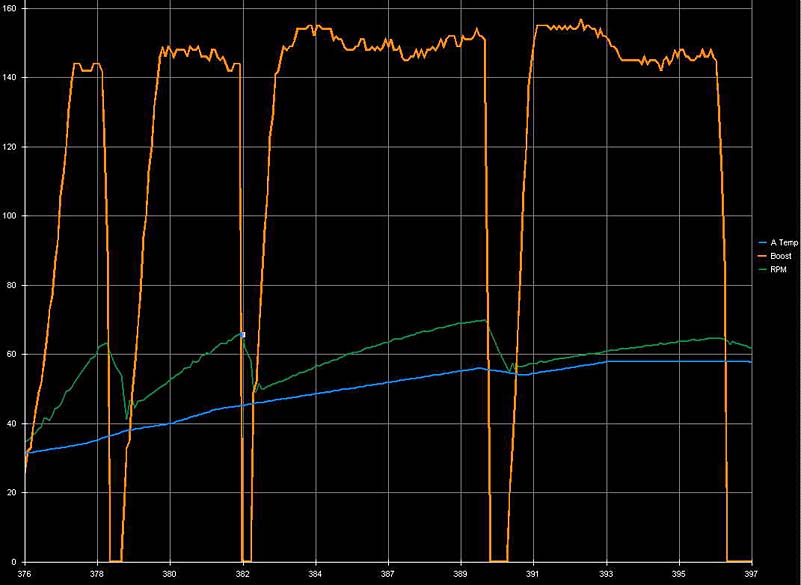

Request: air intake temp AIT data-stripesait.jpg
m2cupcar is offline   Reply With Quote
Old 06-18-2007, 12:15 AM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,831
Total Cats: 1,786
Default

Highest I've ever logged it.

61*F to 91*F full 3rd & 4th pull....went back to 61* as i cruised.



typically if I goes throughout the gears it's just a 20* delta. I also go about 5-10*F lower cruising around than at idle.

Last edited by Braineack; 06-18-2007 at 12:28 AM.
Braineack is online now   Reply With Quote
Old 06-18-2007, 12:40 AM   #6
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
Highest I've ever logged it.

61*F to 91*F full 3rd & 4th pull....went back to 61* as i cruised.



typically if I goes throughout the gears it's just a 20* delta. I also go about 5-10*F lower cruising around than at idle.
That must have been a pretty cool day/night you data logged that. The highest you have ever seen is 91F? What was the outside temp?
jayc72 is offline   Reply With Quote
Old 06-18-2007, 02:01 AM   #7
Junior Member

Join Date: Oct 2004
Location: Windsor, Canada
Posts: 191
Total Cats: -2
Default

I typically run 50F above ambient with city driving with my RX7 intercooler, and about 20F above amb. on the highway after the intercooler has heatsoaked. Heatsoaking the RX7 intercooler only takes a few 5 second pulls. Sorry no logs as I only have an IAT guage.
MiataNuTca is offline   Reply With Quote
Old 06-18-2007, 02:13 AM   #8
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Ben- your street run isn't to dissimilar to my street log. Does the MS compensate (retard IGN) for AIT increase?
Yes, completely configurable and defeatable. It will also retard for knock.

When closed loop boost control is active, it can reduce max boost with IAT, and also pull boost with knock.
Ben is offline   Reply With Quote
Old 06-18-2007, 03:34 AM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,831
Total Cats: 1,786
Default

Quote:
Originally Posted by jayc72 View Post
That must have been a pretty cool day/night you data logged that. The highest you have ever seen is 91F? What was the outside temp?

yeah yeah, I always datalog in the mornings or after dinner. Hasn't been horribly hot out lately. I was just looking through old logs with a good boosted pull to see the MAT. Couldn't find a good 1-2-3-4-5 pull.

one thing I have noticed is, say I start the car in the morning and log, my intake temps drop as I drive. Just looked at a log, I started the car and recorded. First MAT reading was 85*, as soon as I started driving it gradually dropped to 75*. Everytime I stop at a stoplight, they rise back to 85* and then again drop to 75* as i cruise.
Braineack is online now   Reply With Quote
Old 06-18-2007, 03:56 AM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,831
Total Cats: 1,786
Default

ok found a better log. 72*F to 99*F, 1-2-3-4.

Braineack is online now   Reply With Quote
Old 06-18-2007, 12:26 PM   #11
Elite Member
Thread Starter
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default conclusions

* IC is too small - (17x6x3 core)
* Must be the Link's AIT compensation (coolant rise was <4c thru that entire 2-5 run, so it wasn't coolant comp)
* AIT compensation is too great (again FM default for crappy westside petro)

Ben - I think you could benefit from a bigger IC given your logged run thru the gears.

Scott - 6k in fifth gear = you must live near a race track :gay:

thanks for the input guys- I think I've got some direction now
m2cupcar is offline   Reply With Quote
Old 06-18-2007, 12:42 PM   #12
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Mine is 8 x 8.75 x 3 core.
Probably about the same size as your oil cooler. :-)
Ben is offline   Reply With Quote
Old 06-18-2007, 01:12 PM   #13
Elite Member
Thread Starter
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

so my IC would be an upgrade from yours! ... tho it's already "sold" to emerilnut
big ebay intercooler to your door for <$150 ftw... tho you probably don't want any more power :gay:
m2cupcar is offline   Reply With Quote
Old 06-18-2007, 01:48 PM   #14
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

Scott's crazy, it's supposed to be 90 today. oh wait, he can't datalog with no motor.

I may try to datalog mine soon for you. I moved the filter from the turbo inlet behind the headlight. I'm curious if it'll help my hot air problem.
y8s is offline   Reply With Quote
Old 06-18-2007, 01:51 PM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,831
Total Cats: 1,786
Default

Quote:
Originally Posted by m2cupcar View Post
Scott - 6k in fifth gear = you must live near a race track :gay:
well, I had to make sure the damn EBC was working as intended....it was only a 40mph zone, not too bad.

oh and fwiw, my core is 11x12x3. I've highly considered bumping up to 18x12x3, wouldn't take any work for me to adapt it and sub $150 shipped.
Braineack is online now   Reply With Quote
Old 06-18-2007, 01:58 PM   #16
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

mine is now 176+100 cc/min dual stage. FTW. totall cost of upgrade 70 bucks.
magnamx-5 is offline   Reply With Quote
Old 06-18-2007, 02:21 PM   #17
Elite Member
Thread Starter
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

my core area is 75% the size of scott's at $150 for the big IC and your boost level, I'd do it.

Y8s- I'd be curious to see the filter position difference and what kind of compensation the hydra is doing. I wonder if Jeremy adjust your map for the better fuel.
m2cupcar is offline   Reply With Quote
Old 06-18-2007, 02:29 PM   #18
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,831
Total Cats: 1,786
Default

Everything Corky is saying is that 18-20" long and you've reached the max the IC can really cool....but having the extra amount of runners surely wouldn't hurt Rob. I betcha the 18x12x3 core would....well techincally, be twice the cooler.

Corky still reccomends 6-7 sq. in. of internal flow. for every 100HP.

legnth of runner x height of runner x # of runners / width of runner


my 11x12x3" bar&plate: 11 x .25 x 16 = 44 / 3 = 14.66 / 6 * 100 = 244HP * .83 = 203rwhp

your 17x6x3" bar&plate: 17 x .25 x 8(?) = 34 / 3 = 11.33 / 6 * 100 = 188HP * .83 = 156rwhp

18x12x3" bar&plate: 18 x .25 x 16 = 72 / 3 = 24 / 6 * 100 = 400HP * .83 = 332rwhp
Braineack is online now   Reply With Quote
Old 06-18-2007, 03:45 PM   #19
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

Quote:
Originally Posted by m2cupcar View Post
Y8s- I'd be curious to see the filter position difference and what kind of compensation the hydra is doing. I wonder if Jeremy adjust your map for the better fuel.
the hydra comes with air and coolant temp spark and fuel trims...

lets see...

air temp trim: 0% at 30C, removing .2% fuel per 10C increase.
coolant temp trim: zeroed above 80C for now.
air temp spark trim: 0 at 30C, -9deg at 130C
coolant spark trim: 0 from 60-90C, then -1 for each 10C (130C = -4)
(I assume -X means less advance)

I haven't driven the car with the new filter location yet. It looks pretty bling though. It's a 90 degree 4" stainless pipe. slightly polished. :gay:
y8s is offline   Reply With Quote
Old 06-18-2007, 05:03 PM   #20
Elite Member
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

Quote:
Originally Posted by Braineack View Post
Corky still reccomends 6-7 sq. in. of internal flow. for every 100HP.

legnth of runner x height of runner x # of runners / width of runner


my 11x12x3" bar&plate: 11 x .25 x 16 = 44 / 3 = 14.66 / 6 * 100 = 244HP * .83 = 203rwhp

your 17x6x3" bar&plate: 17 x .25 x 8(?) = 34 / 3 = 11.33 / 6 * 100 = 188HP * .83 = 156rwhp

18x12x3" bar&plate: 18 x .25 x 16 = 72 / 3 = 24 / 6 * 100 = 400HP * .83 = 332rwhp
Something seems off with these calculations, good sir. Easiest way to dispute is to just look at your units. Not sure why runner length is even entering into thought when talking about internal flow area. Would seem that internal flow area should be more like

height of runner * width of runner * # of runners
Atlanta93LE is offline   Reply With Quote
